- Nominal Impedance
- 4 ohms
- Sensitivity (2.83 V/1 m)
- 92 dB
- Frequency Response (±6 dB, open-backed)
- 20 Hz - 140 Hz
- Product Dimensions (H x W x D)
- 680 x 230 x 96 mm
- Net Weight
- 10.9 kg
Price $3,000
Includes GST
Voted Australia's #1 Hi-Fi Retailer, Sound+Image Awards 2023. Family owned since 2010.
Hear the Ci3160RLb-THX before you decide
Book a private listening session in Belrose and ask for the Ci3160RLb-THX: we will confirm what we can set up for you. Or audition it at home.
Delivery and collection
Free standard shipping on orders of $300 or more within Australia, and $15 on smaller orders. Western Australia is quoted on request.
Pick up from our Belrose showroom: call ahead so we can have it ready.
Set-up and installation
Our team can deliver, install and set up your system, from speaker placement to a full cinema calibration. Ask us for a quote when you order.
Returns
Your rights under Australian Consumer Law always apply. Read our returns policy.
KEF Ci3160RLb-THX
Specifications
- THX System Configurations (per KEF)
- THX System Configurations (per KEF)
- Medium room, THX Certified Select (up to 2,000 cubic feet)
- 1 x KASA500 with 2 x Ci3160RLb-THX
- Large room, THX Certified Ultra (up to 3,000 cubic feet)
- 2 x KASA500 with 4 x Ci3160RLb-THX
- Design
- Passive in-wall subwoofer, Ci-R Series
- Drive Units
- LF: 3 x 160 mm (6.5 in.)
- Required Amplifier
- KEF KASA500 (sold separately)
- Frequency Response (±6 dB, open-backed)
- 20 Hz - 140 Hz
- Frequency Range (-10 dB)
- 25 Hz - KASA500 setting
- Sensitivity (2.83 V/1 m)
- 92 dB
- Nominal Impedance
- 4 ohms
- Maximum SPL
- 112 dB
- Recommended Low-Pass Filter
- 50 Hz - 120 Hz
Installation
- In-wall mounting, cut-out 661 x 210 mm
- Mounting depth from surface 88.5 mm
- Ideal rear volume 80 L, minimum rear volume 40 L
- Optional RIF3160L rough-in frame (sold separately)
- Supplied with a paintable magnetic grille; optional black cloth grille available separately
In detail

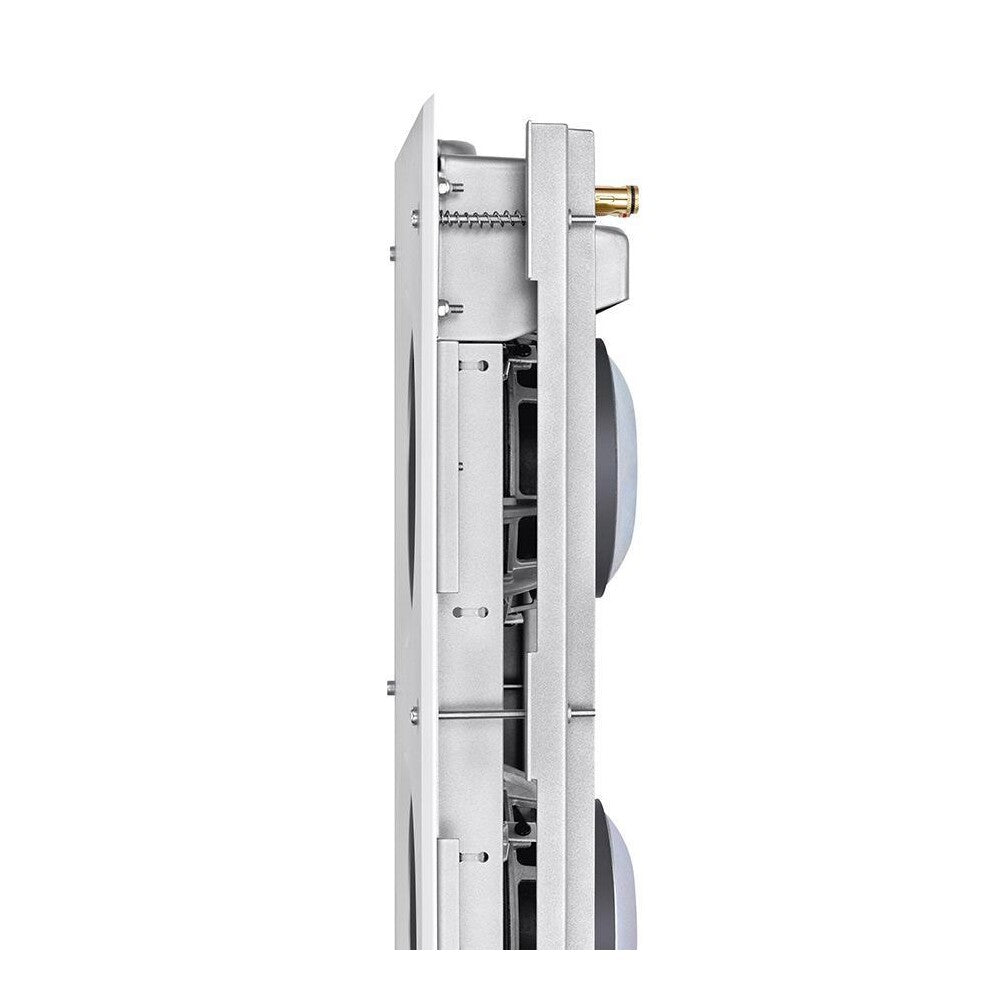

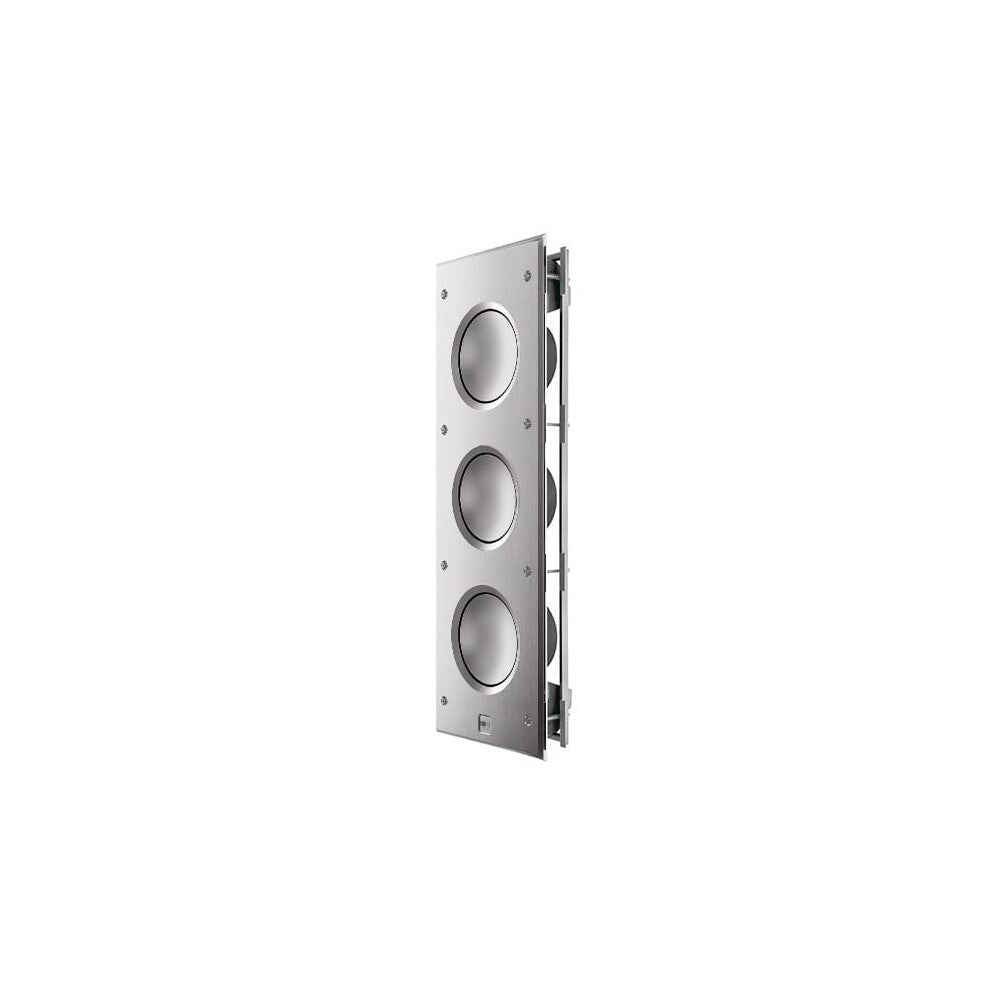

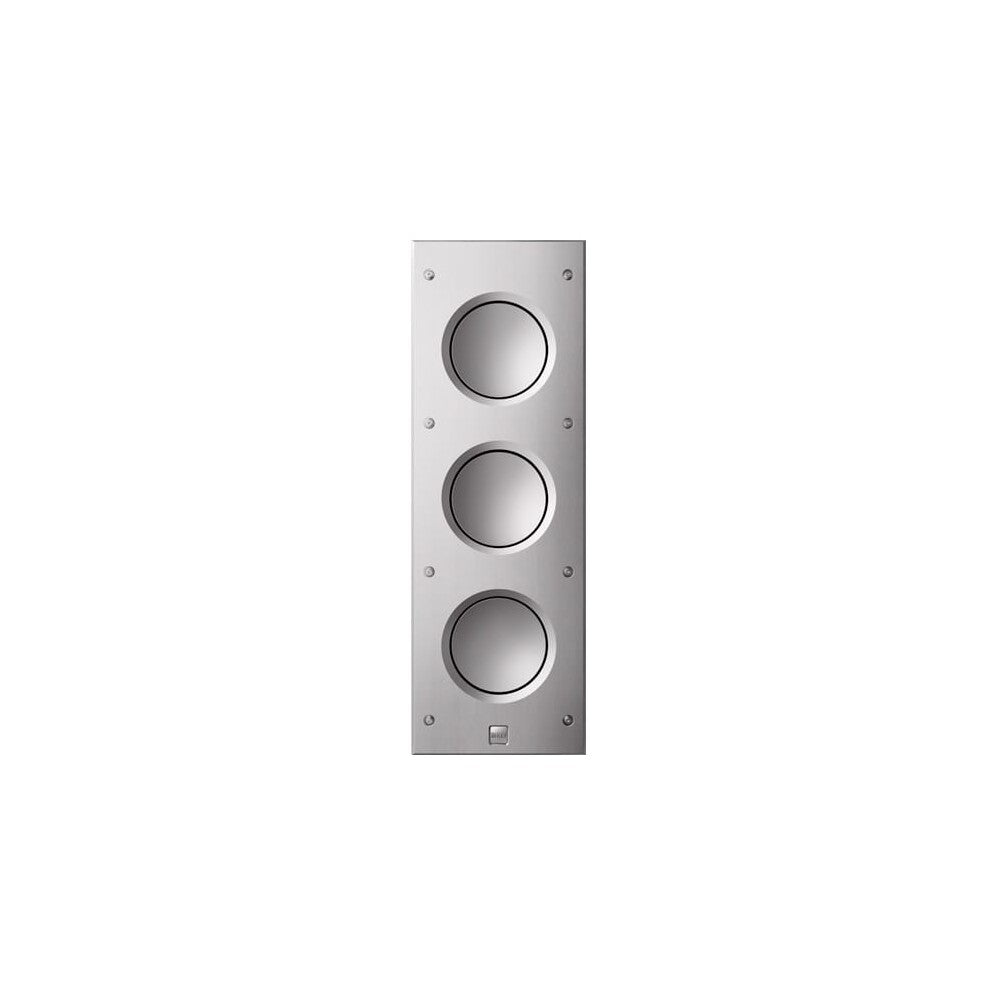

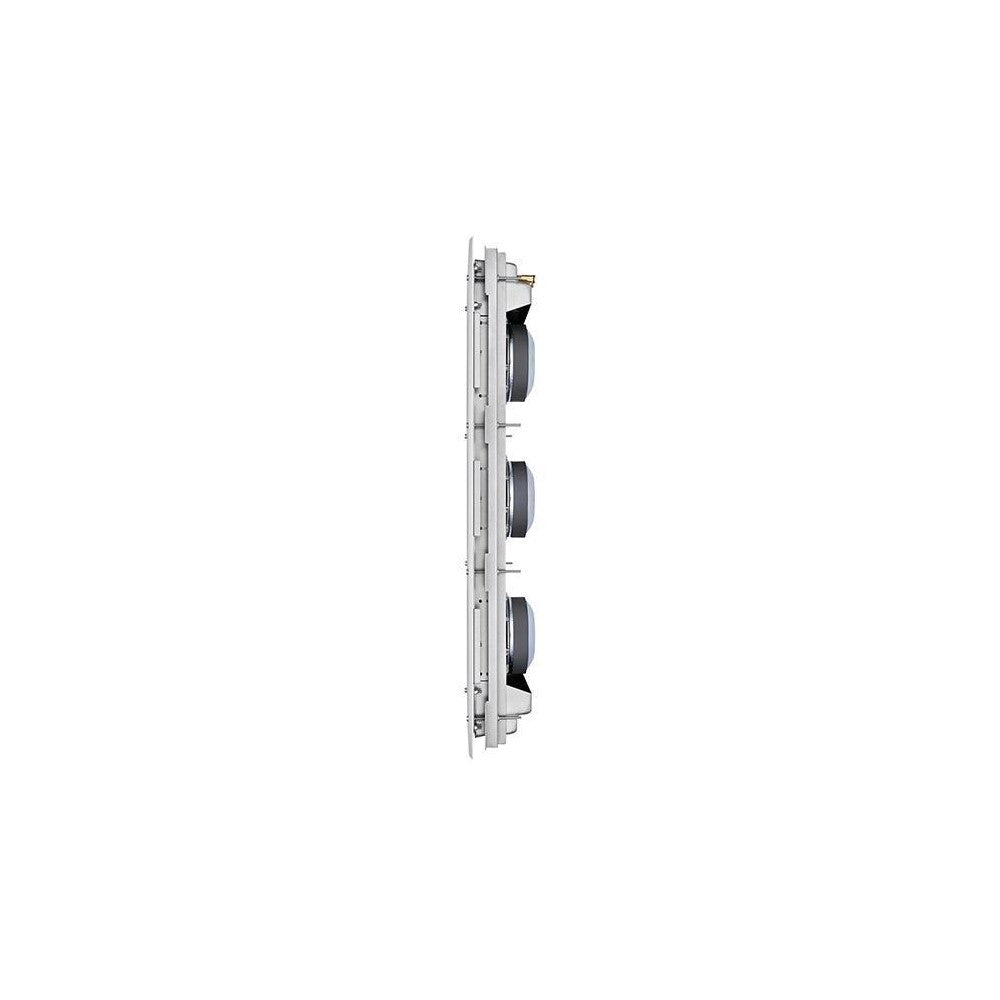

About the Ci3160RLb-THX
Overview
The Ci3160RLb-THX is a passive in-wall subwoofer from KEF's Ci-R Series, with three 160 mm sub-bass drivers on an aluminium front baffle. It is THX Certified Ultra and THX Certified Select depending on system configuration.
It has no built-in amplifier and must be driven by KEF's KASA500 DSP subwoofer amplifier (sold separately). One KASA500 can power up to two Ci3160RLb-THX subwoofers.
Drivers and Technology
- 3 x 160 mm (6.5 in.) extended response aluminium bass drivers
- Solid aluminium, low resonance front baffle
- Passive design, requires the KEF KASA500 amplifier (sold separately)
- THX Certified Ultra / THX Certified Select, depending on configuration
