Ci3160REFM-THX

In-Wall Speakers

Nominal Impedance: 4 ohms
Sensitivity (2.83 V/1 m): 89 dB
Frequency Response (±6 dB, open-backed): 40 Hz - 28 kHz
Recommended Amplifier Power: 50 - 350 W
Product Dimensions (H x W x D): 680 x 230 x 105.7 mm

All specifications

Price $13,000

Includes GST

Voted Australia's #1 Hi-Fi Retailer, Sound+Image Awards 2023. Family owned since 2010.

Planning a cinema around it?

Our designers match it to your room, screen and seating, then install and calibrate the lot. Start with it in our 3D builder, or talk to us.

Delivery and collection

Free standard shipping on orders of $300 or more within Australia, and $15 on smaller orders. Western Australia is quoted on request.

Pick up from our Belrose showroom: call ahead so we can have it ready.

Set-up and installation

Our team can deliver, install and set up your system, from speaker placement to a full cinema calibration. Ask us for a quote when you order.

Returns

Your rights under Australian Consumer Law always apply. Read our returns policy.

KEF Ci3160REFM-THX

Specifications

Design: Three-way in-wall speaker, Ci-Reference series
Drive Units: LF: 2 x 160 mm (6.5 in.), MF: 125 mm (5.25 in.) Uni-Q, HF: 25 mm (1 in.) vented aluminium dome with Metamaterial Absorption Technology
Frequency Response (±6 dB, open-backed): 40 Hz - 28 kHz
Frequency Range (-10 dB): 32 Hz - 45 kHz
Crossover Frequencies: 600 Hz, 3 kHz
Sensitivity (2.83 V/1 m): 89 dB
Nominal Impedance: 4 ohms
Nominal Coverage: 150°
Maximum SPL (at 1 m): 110 dB
Recommended Amplifier Power: 50 - 350 W
Recommended High-Pass Filter: 35 Hz - 80 Hz
Product Dimensions (H x W x D): 680 x 230 x 105.7 mm
Cut-Out Dimensions (H x W): 660 x 209 mm
Mounting Depth From Surface: 99 mm
Ideal / Minimum Rear Volume: 60 L / 30 L
Optional Rough-In Frame: RIF3160L
Net Weight: 13.6 kg
Finish: Aluminium Black/Grey
Certification: THX Certified Ultra
Unit: Sold individually

Installation

In-wall mounting, cut-out 660 x 209 mm
Mounting depth from surface 99 mm
Ideal rear volume 60 L, minimum rear volume 30 L
Optional RIF3160L rough-in frame (sold separately)

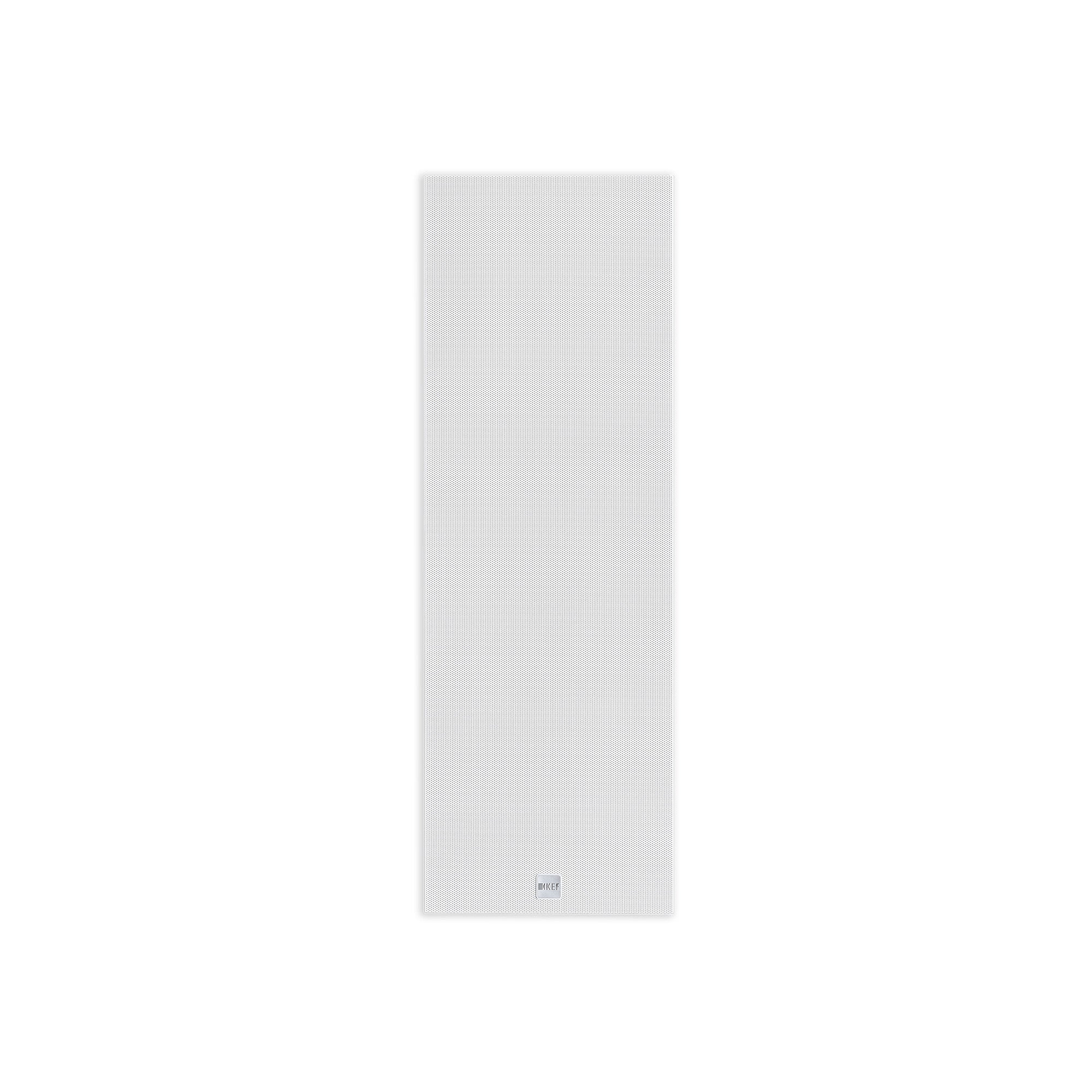

Supplied with a paintable magnetic metal grille; optional black cloth grille available separately
Finish: Aluminium Black/Grey (hairline black aluminium baffle with grey Uni-Q array)

In detail

About the Ci3160REFM-THX

Overview

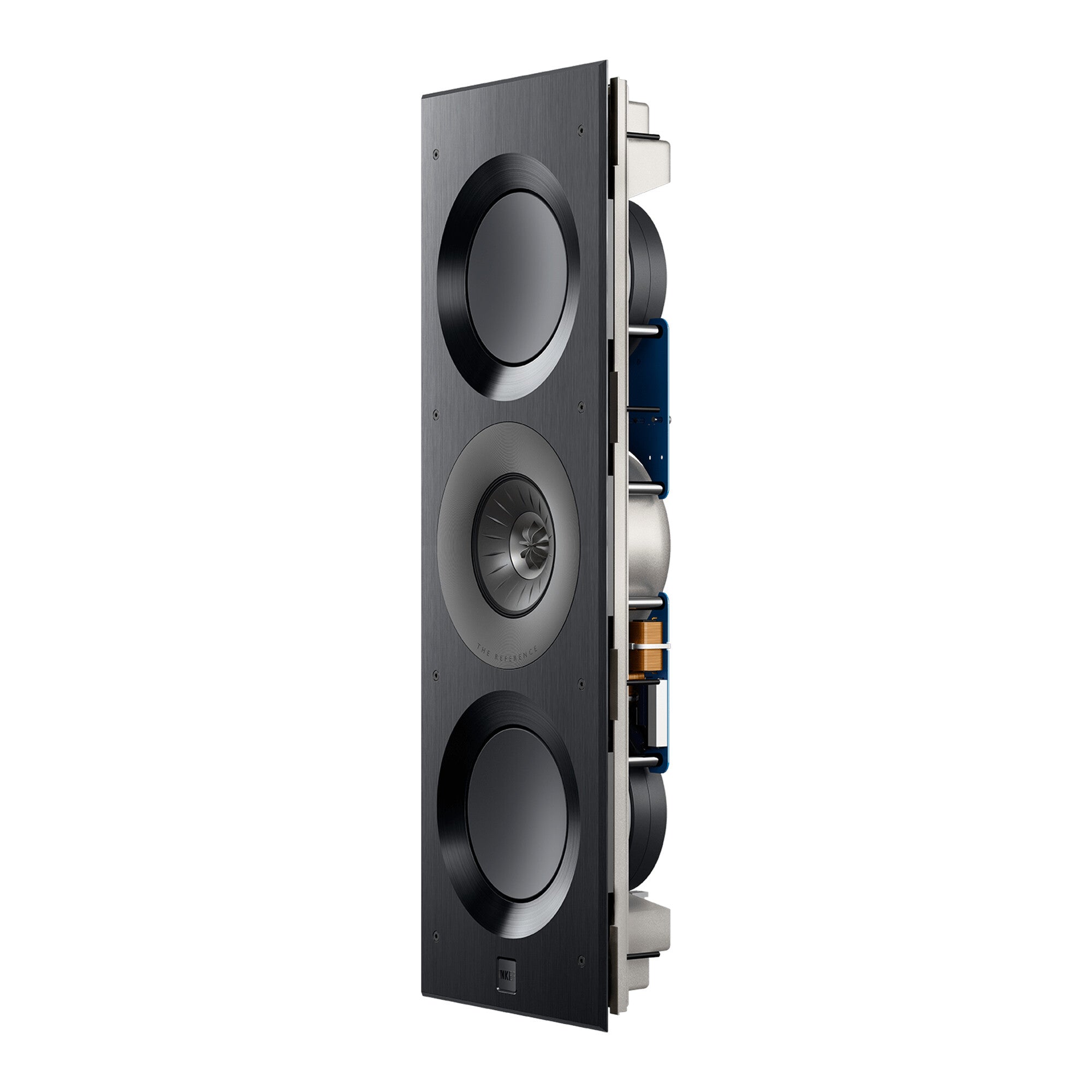

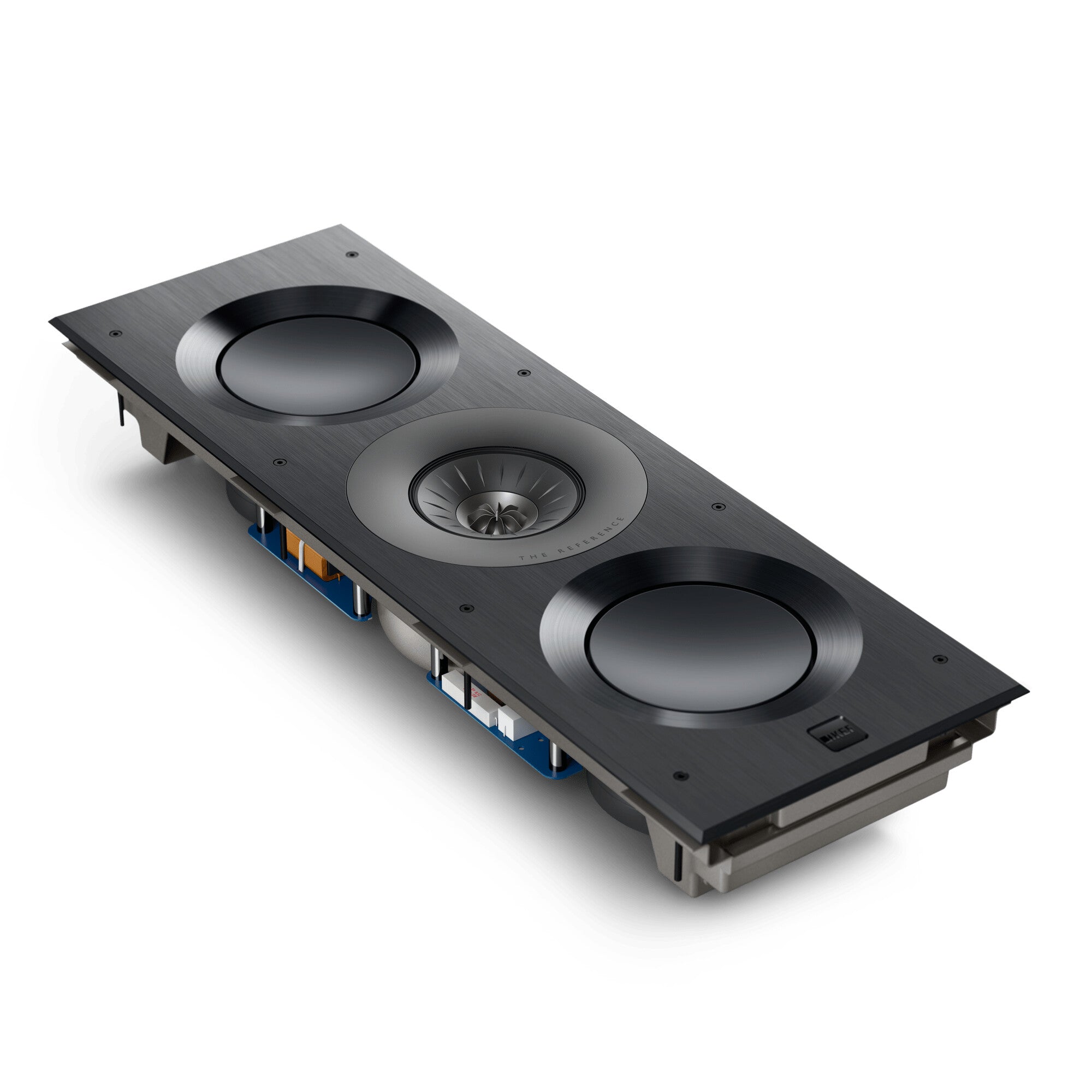

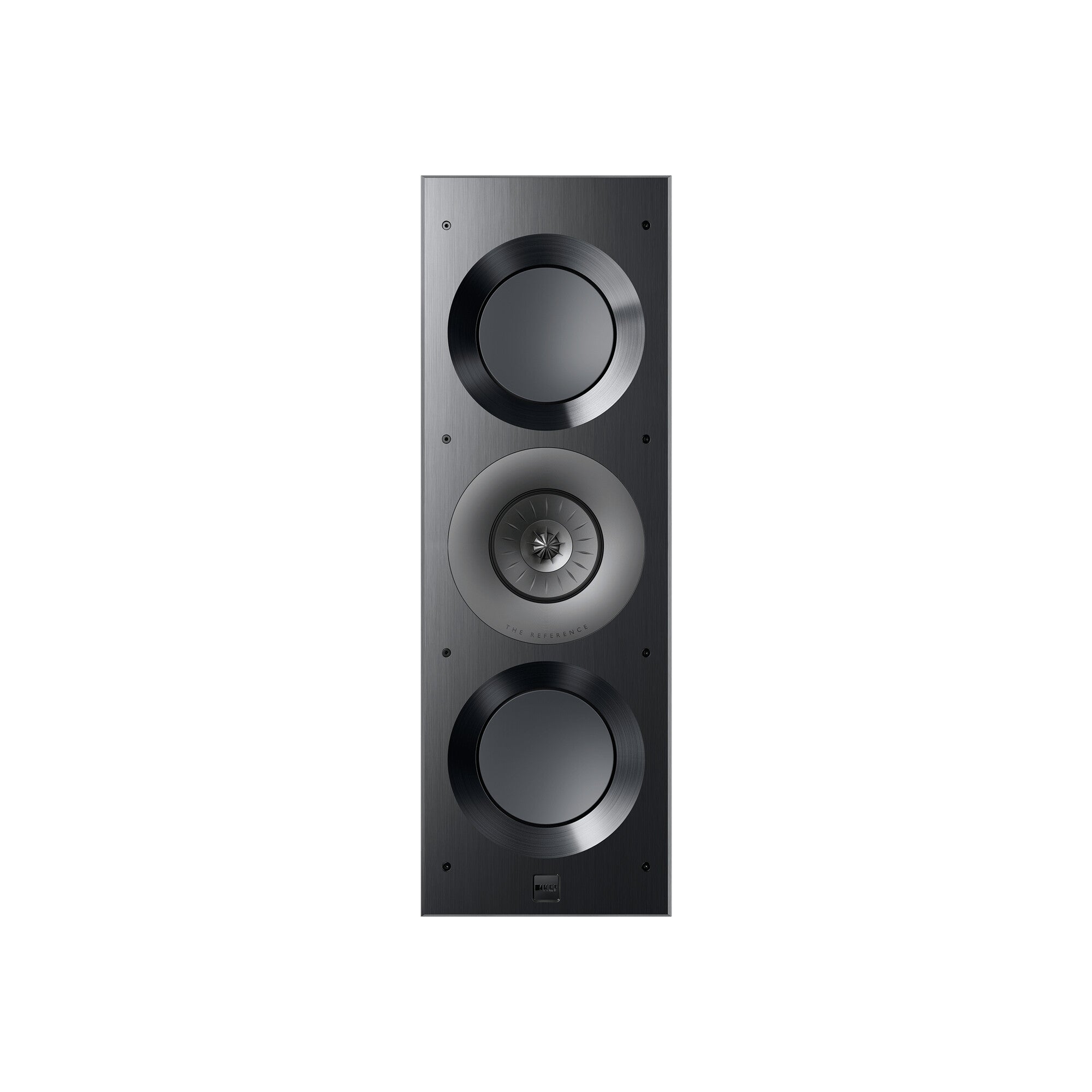

The Ci3160REFM-THX is a Ci-Reference in-wall speaker built in Maidstone, UK, using KEF's 12th generation Uni-Q driver array with Metamaterial Absorption Technology (MAT). It is THX Certified Ultra and suits large home theatres and living rooms.

Two 160 mm bass drivers flank the Uni-Q array on an 11 mm precision-machined aluminium baffle, in a shorter cabinet than the Ci5160REFM-THX.

Drivers and Technology

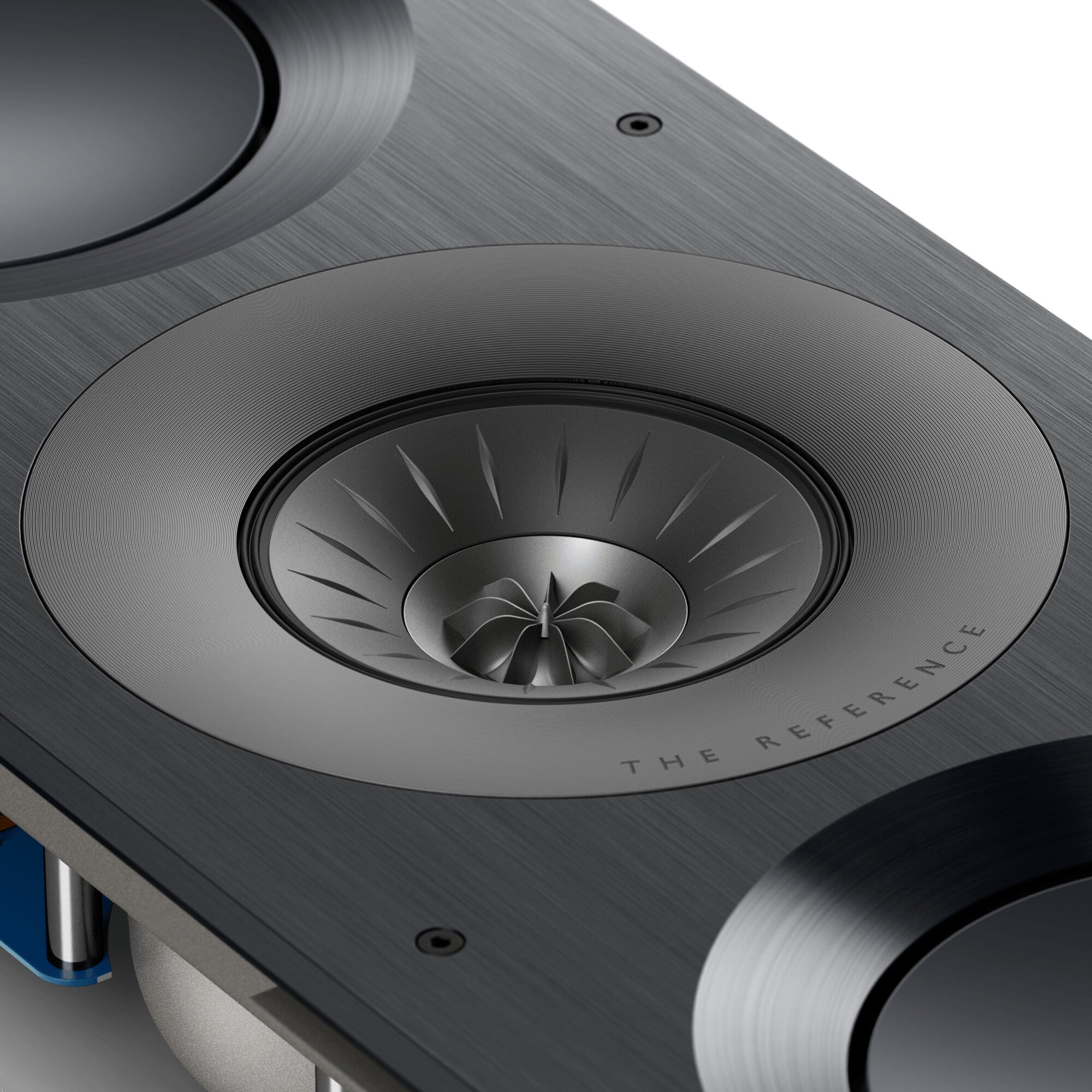

Three-way design with a 125 mm Uni-Q midrange and 25 mm vented aluminium dome tweeter at its acoustic centre
Metamaterial Absorption Technology behind the tweeter, which KEF rates as absorbing 99% of unwanted rear sound
2 x 160 mm aluminium cone bass drivers with a vented motor system designed for in-wall use
THX Certified Ultra
