Ci5160REFM-THX

In-Wall Speakers

Nominal Impedance: 4 ohms
Sensitivity (2.83 V/1 m): 92 dB
Frequency Response (±6 dB, open-backed): 40 Hz - 28 kHz
Recommended Amplifier Power: 50 - 500 W
Product Dimensions (H x W x D): 1070 x 230 x 105.7 mm

All specifications

Price $17,000

Includes GST

Voted Australia's #1 Hi-Fi Retailer, Sound+Image Awards 2023. Family owned since 2010.

Planning a cinema around it?

Our designers match it to your room, screen and seating, then install and calibrate the lot. Start with it in our 3D builder, or talk to us.

Delivery and collection

Free standard shipping on orders of $300 or more within Australia, and $15 on smaller orders. Western Australia is quoted on request.

Pick up from our Belrose showroom: call ahead so we can have it ready.

Set-up and installation

Our team can deliver, install and set up your system, from speaker placement to a full cinema calibration. Ask us for a quote when you order.

Returns

Your rights under Australian Consumer Law always apply. Read our returns policy.

KEF Ci5160REFM-THX

Specifications

Design: Three-way in-wall speaker, Ci-Reference series
Drive Units: LF: 4 x 160 mm (6.5 in.), MF: 125 mm (5.25 in.) Uni-Q, HF: 25 mm (1 in.) vented aluminium dome with Metamaterial Absorption Technology
Frequency Response (±6 dB, open-backed): 40 Hz - 28 kHz
Frequency Range (-10 dB): 32 Hz - 45 kHz
Crossover Frequencies: 600 Hz, 3 kHz
Sensitivity (2.83 V/1 m): 92 dB
Nominal Impedance: 4 ohms
Nominal Coverage: 150°
Maximum SPL (at 1 m): 116 dB
Recommended Amplifier Power: 50 - 500 W
Recommended High-Pass Filter: 35 Hz - 80 Hz
Product Dimensions (H x W x D): 1070 x 230 x 105.7 mm
Cut-Out Dimensions (H x W): 1052 x 209 mm
Mounting Depth From Surface: 99 mm
Ideal / Minimum Rear Volume: 90 L / 40 L
Optional Rough-In Frame: RIF5160L
Net Weight: 21.7 kg
Finish: Aluminium Black/Grey
Certification: THX Certified Dominus
Unit: Sold individually

Installation

In-wall mounting, cut-out 1052 x 209 mm
Mounting depth from surface 99 mm
Ideal rear volume 90 L, minimum rear volume 40 L
Optional RIF5160L rough-in frame (sold separately)

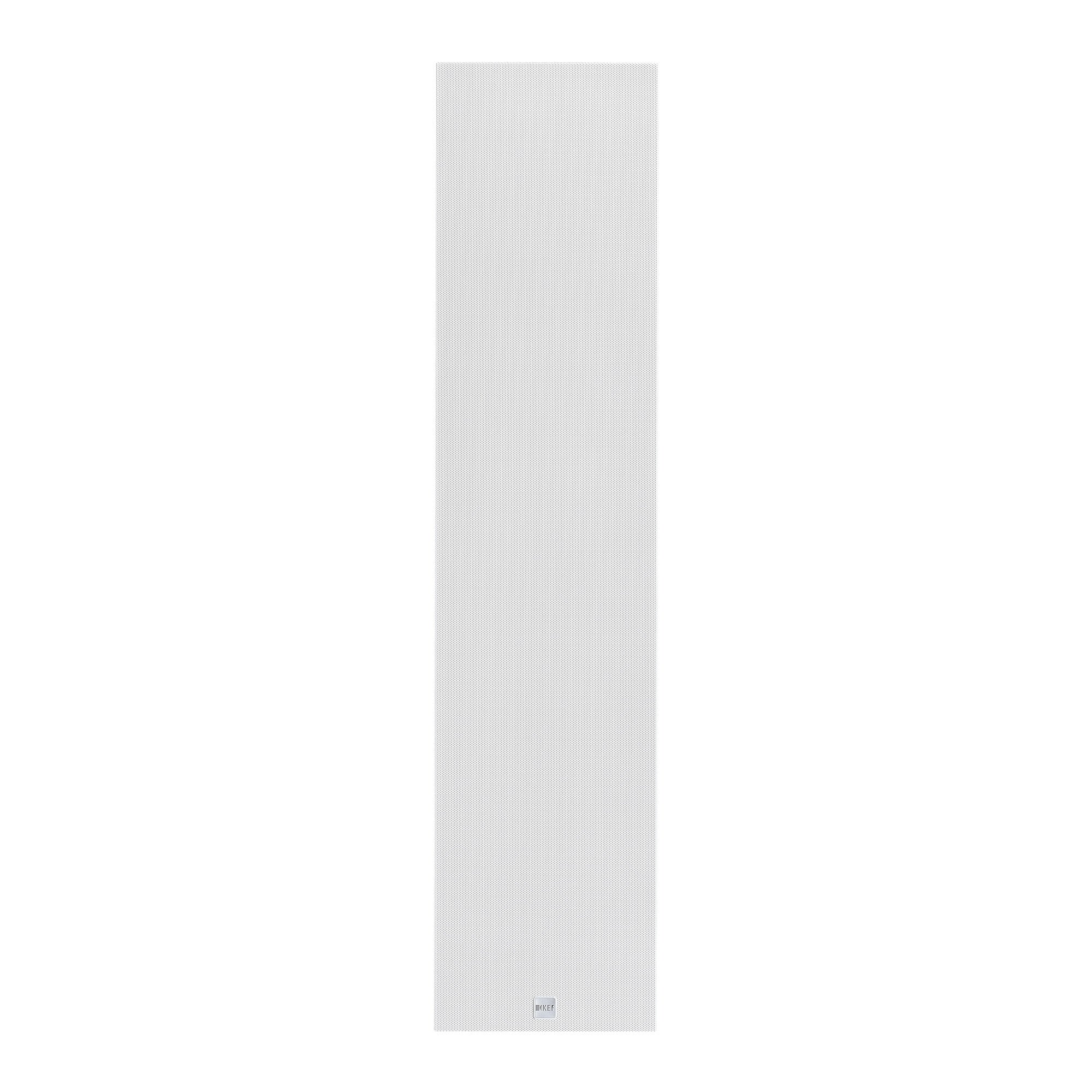

Supplied with a paintable magnetic metal grille; optional black cloth grille available separately
Finish: Aluminium Black/Grey (hairline black aluminium baffle with grey Uni-Q array)

In detail

About the Ci5160REFM-THX

Overview

The Ci5160REFM-THX is a Ci-Reference in-wall speaker built around KEF's 12th generation Uni-Q driver array with Metamaterial Absorption Technology (MAT). It is KEF's first in-wall speaker to carry THX Certified Dominus, the highest THX performance class, and is intended for large dedicated home theatres and living spaces.

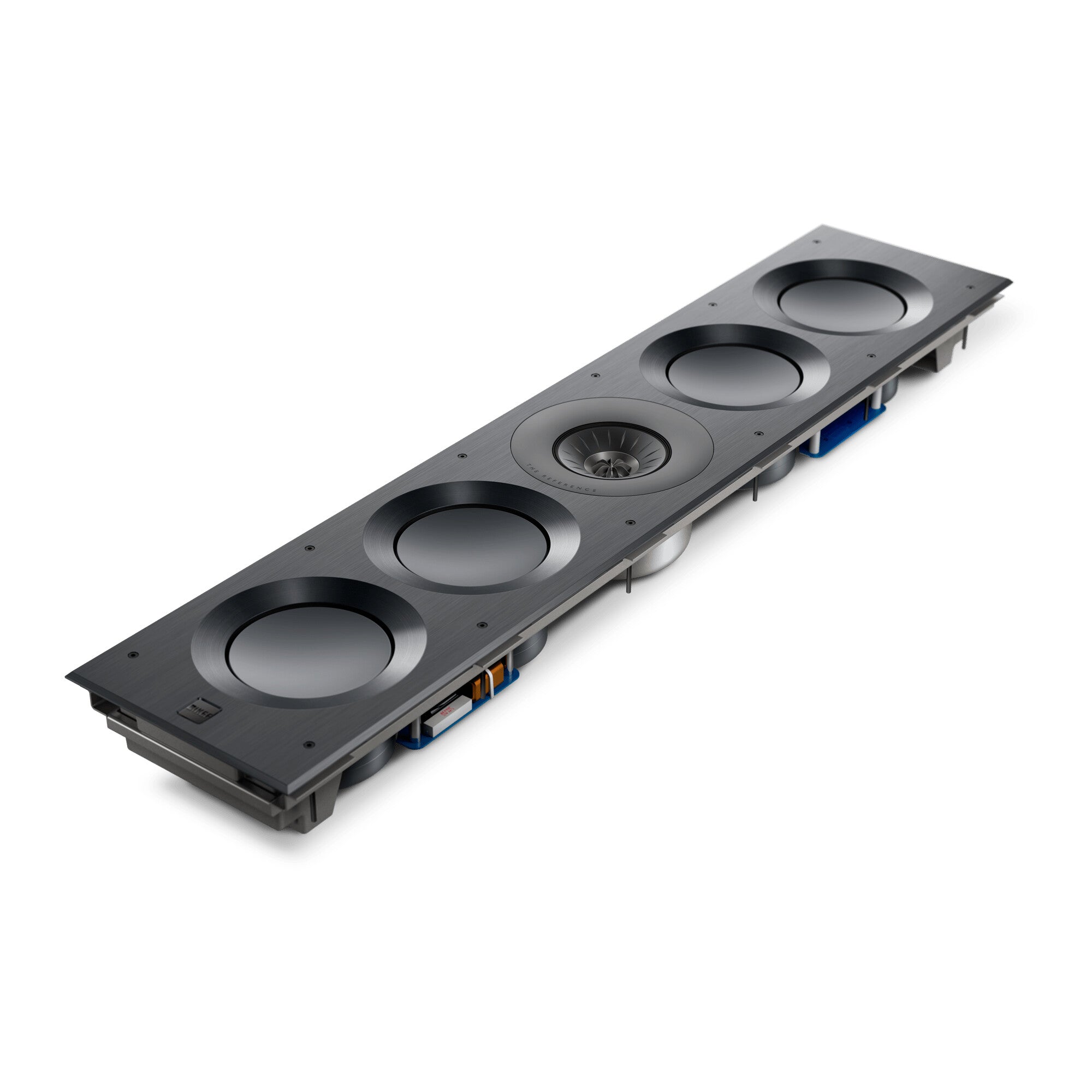

Four 160 mm bass drivers sit above and below the Uni-Q array on an 11 mm precision-machined aluminium baffle. KEF designs, engineers and hand-builds the Ci-Reference range in Maidstone, UK.

Drivers and Technology

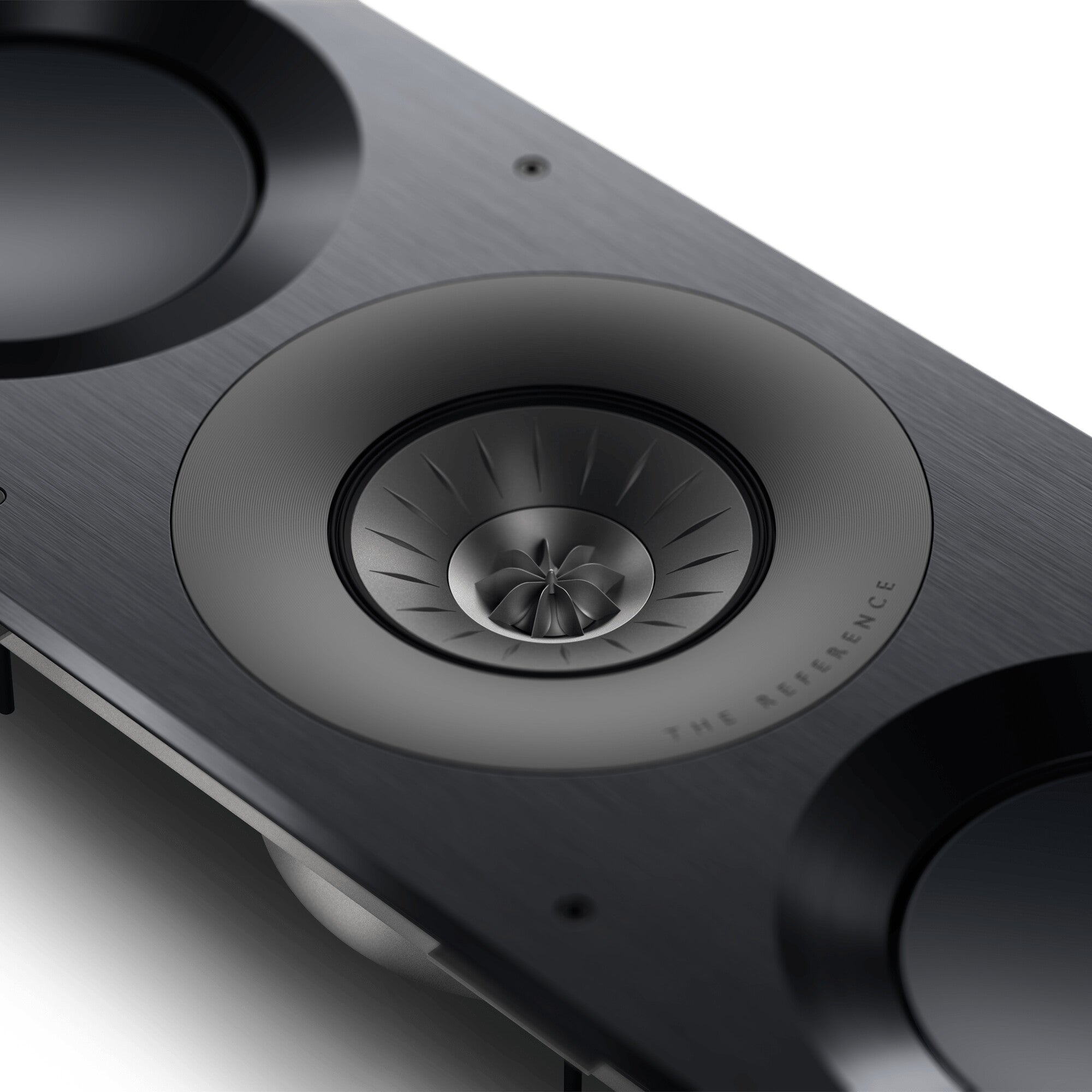

Three-way design with a 125 mm Uni-Q midrange and 25 mm vented aluminium dome tweeter at its acoustic centre
Metamaterial Absorption Technology behind the tweeter, which KEF rates as absorbing 99% of unwanted rear sound
4 x 160 mm aluminium cone bass drivers with a vented motor system designed for in-wall use
Bass extension to 32 Hz (-10 dB) as rated by KEF
THX Certified Dominus
