- Nominal impedance
- 8 ohms
- Sensitivity
- 87dB (2.83V/1m)
- Frequency response
- 52Hz to 20kHz (±6dB), open-backed
- Recommended amplifier power
- 10 to 80W
- External dimensions (H x W x D)
- 184 x 184 x 81 mm
Price $400
Includes GST
Voted Australia's #1 Hi-Fi Retailer, Sound+Image Awards 2023. Family owned since 2010.
Planning a cinema around it?
Our designers match it to your room, screen and seating, then install and calibrate the lot. Start with it in our 3D builder, or talk to us.
Delivery and collection
Free standard shipping on orders of $300 or more within Australia, and $15 on smaller orders. Western Australia is quoted on request.
Pick up from our Belrose showroom: call ahead so we can have it ready.
Set-up and installation
Our team can deliver, install and set up your system, from speaker placement to a full cinema calibration. Ask us for a quote when you order.
Returns
Your rights under Australian Consumer Law always apply. Read our returns policy.
KEF Ci130.2CS
Specifications
- Model
- Ci130.2CS
- Series
- C Series
- Design
- 2-way square in-wall / in-ceiling speaker, open-backed
- Drive units
- LF: 130mm (5.25 in.) Uni-Q, HF: 16mm (0.6 in.) aluminium dome with Tangerine waveguide
- Frequency response
- 52Hz to 20kHz (±6dB), open-backed
- Crossover frequency
- 2.8kHz
- Sensitivity
- 87dB (2.83V/1m)
- Nominal impedance
- 8 ohms
- Max SPL
- 102dB
- Nominal coverage
- 140°
- Recommended amplifier power
- 10 to 80W
- Recommended high-pass filter
- 55Hz
Installation
- Square format that KEF lists for both in-ceiling and in-wall installation
- Cut-out size 158 x 158 mm (H x W)
- Mounting depth from surface 77.1 mm

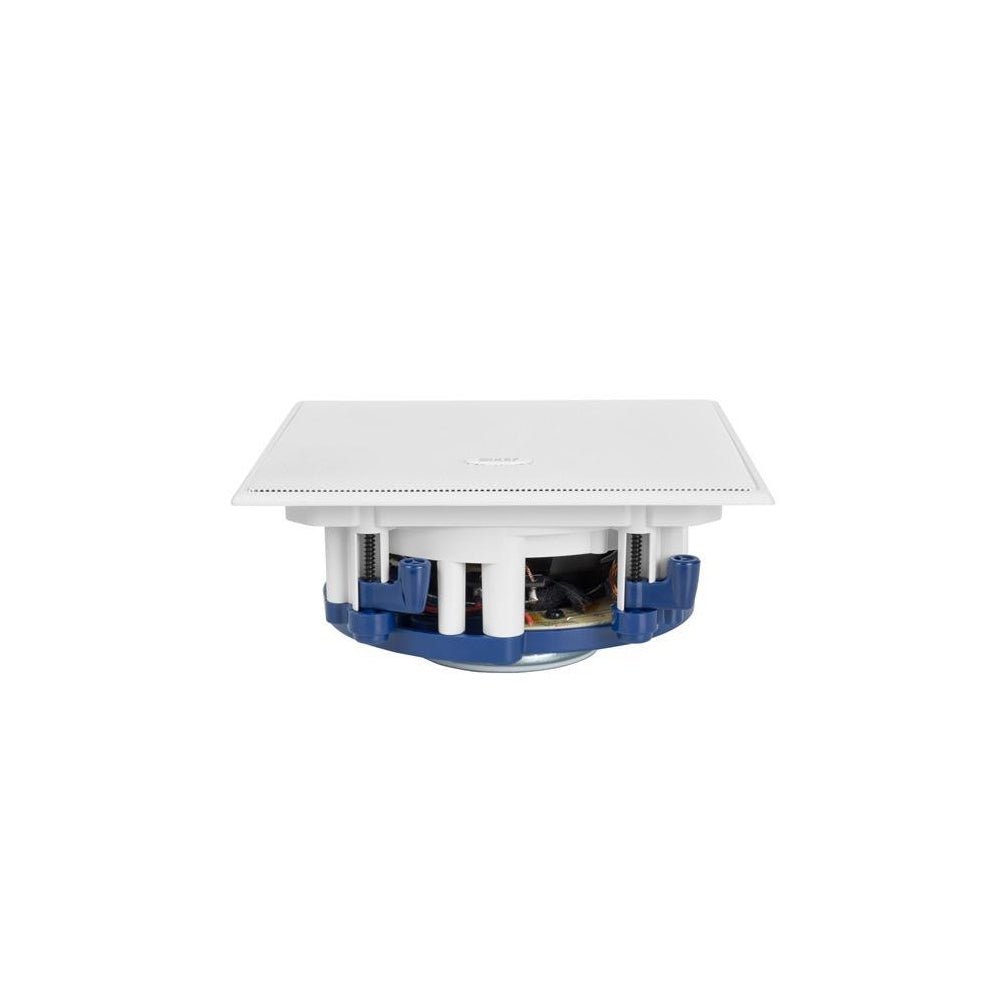

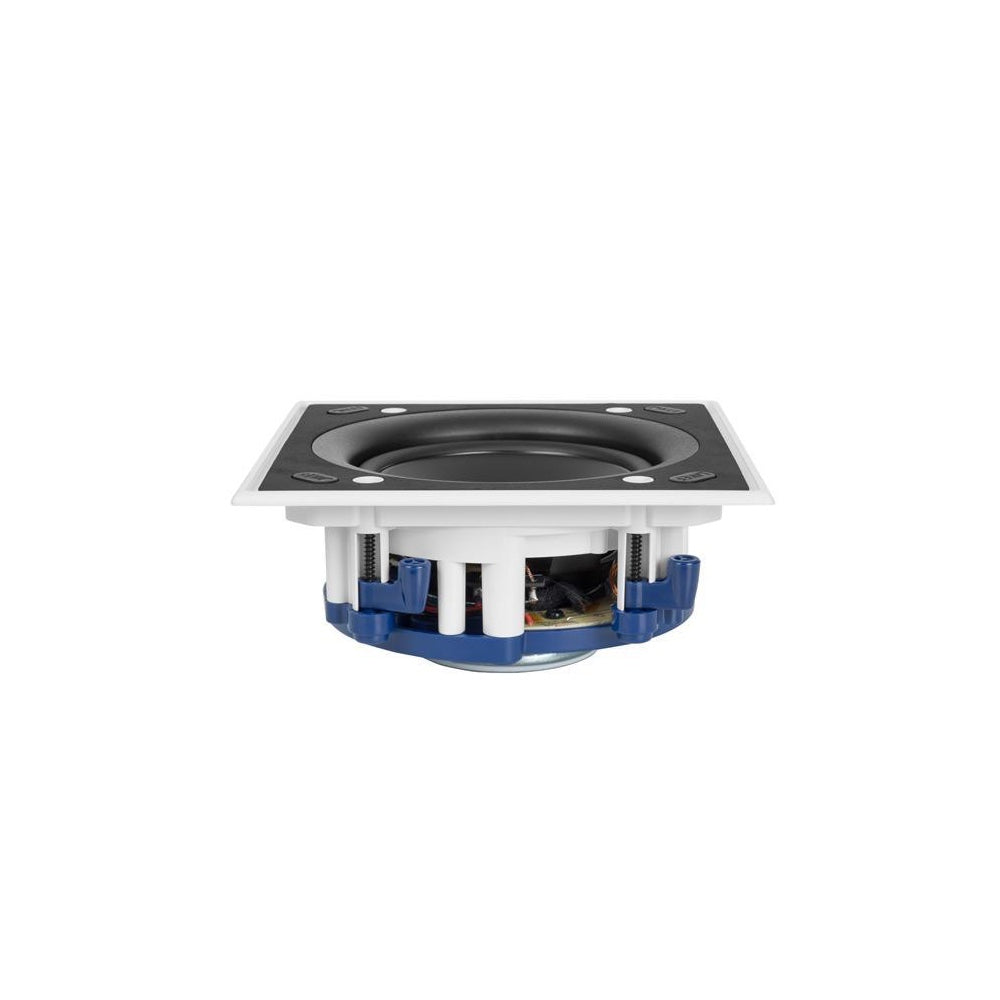

- Open-backed design, secured by screw-driven clamps that grip the wall or ceiling board
- Optional RIF130S rough-in frame and RNC130S rear enclosure (sold separately)
- KEF recommends a rear volume of 20L (minimum 12L)
In detail
About the Ci130.2CS
Overview

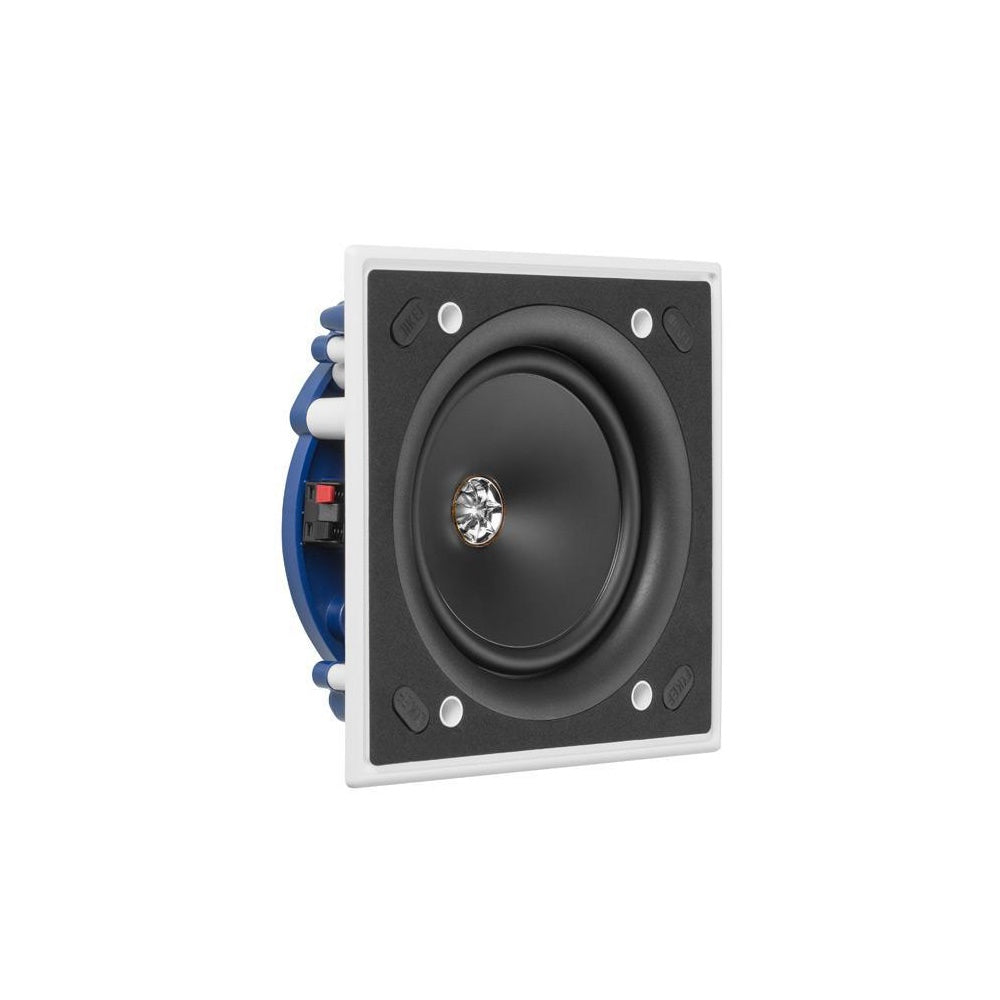

The KEF Ci130.2CS is a square shallow-mount custom install speaker from KEF's C Series architectural range, built to sit flush in a dry-lined or stud partition wall or ceiling. It uses a 130mm (5.25 in.) Uni-Q driver array with the tweeter mounted at the acoustic centre of the bass/midrange cone, so both drivers radiate from a single point. KEF rates its nominal coverage at 140°.
An Ultra-Thin Bezel (UTB) keeps the visible rim narrow, and the grille attaches magnetically. Both the grille and bezel can be painted to match the surrounding surface. KEF lists the Ci130.2CS as weather resistant and IP64 certified, with a UV-protected bezel and grille.
Drivers and Technology

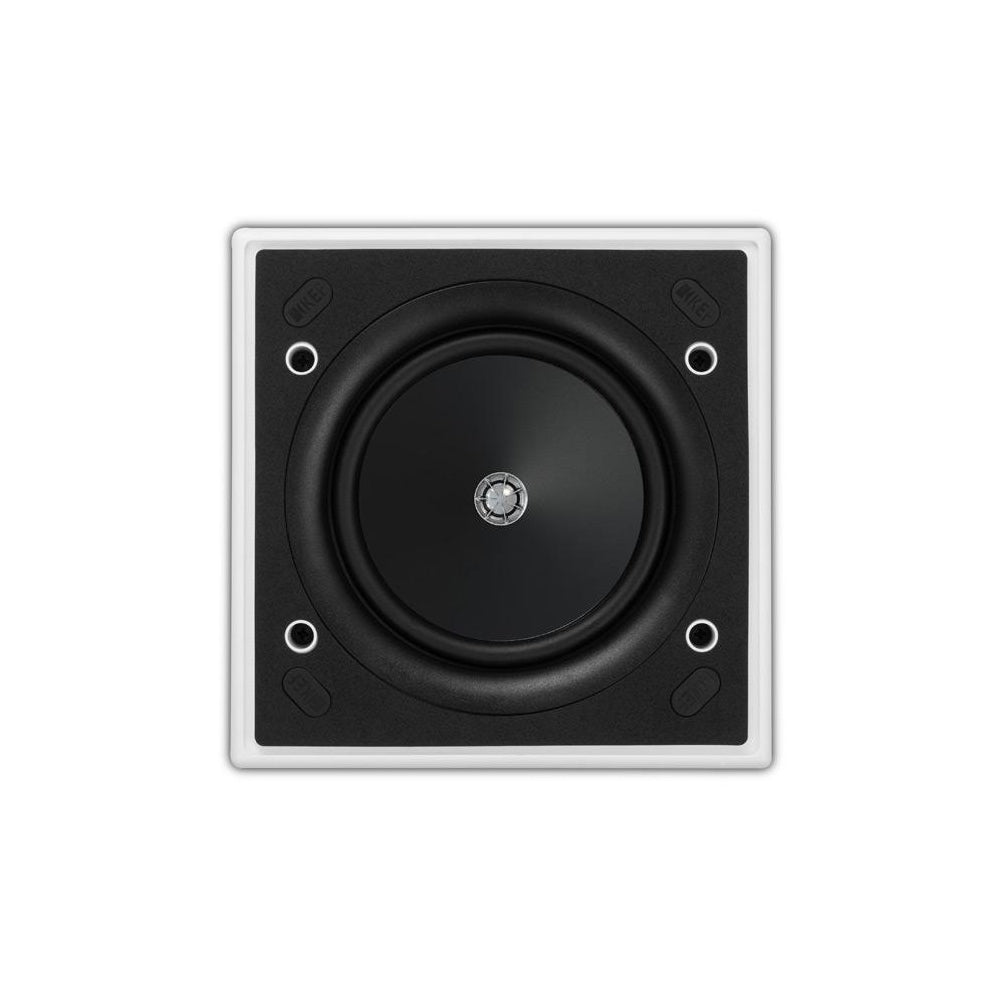

- KEF Uni-Q coincident driver array, tweeter mounted at the acoustic centre of the woofer
- 130mm (5.25 in.) bass/midrange driver
- 16mm (0.6 in.) aluminium dome tweeter with Tangerine waveguide
- Nominal coverage of 140°, rated by KEF
- Crossover at 2.8kHz

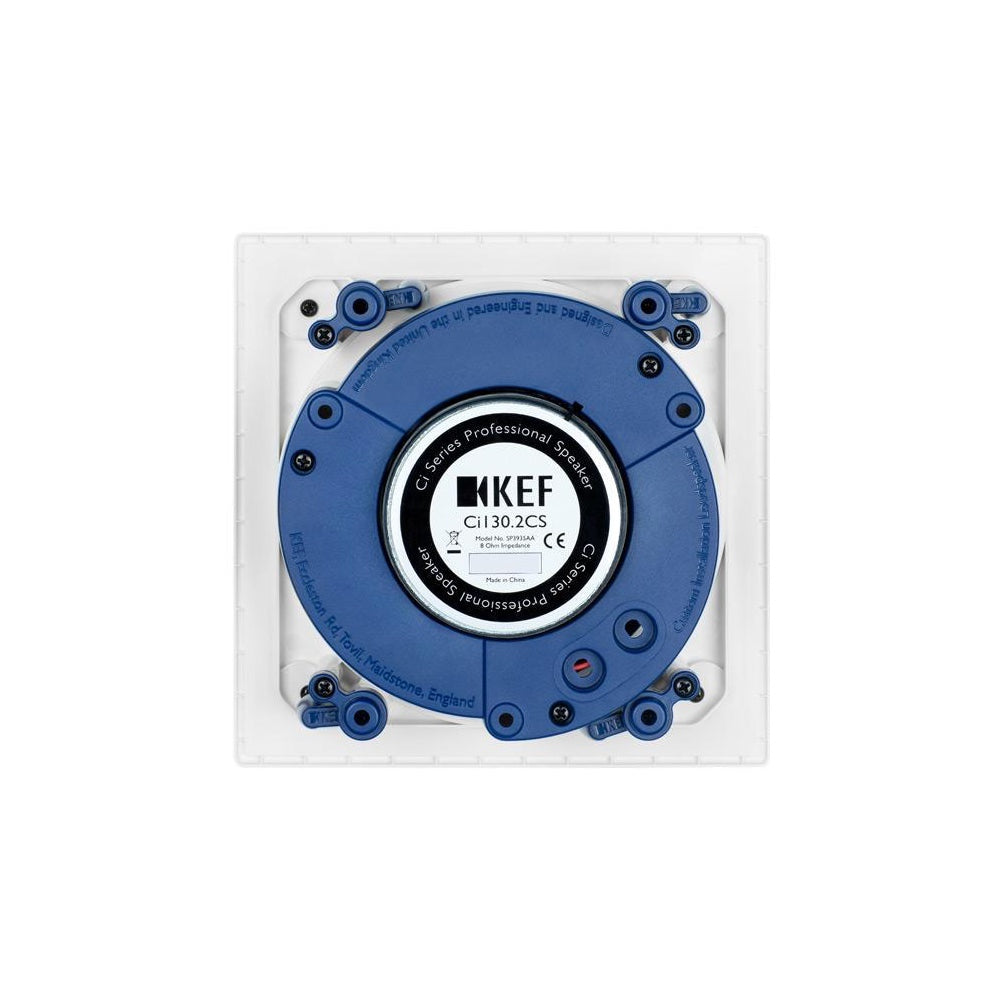

- Covered crossover circuit, which KEF says adds rigidity and protects the crossover components
Grille and Finish

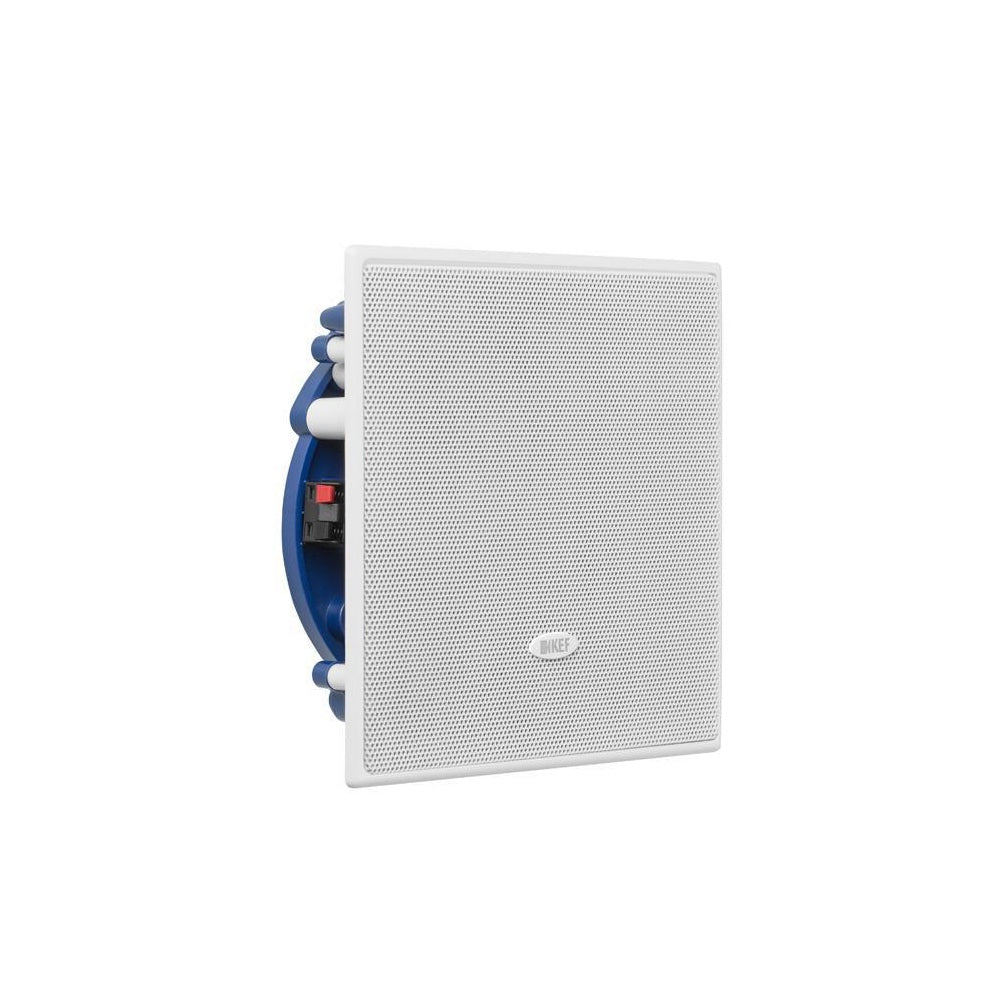

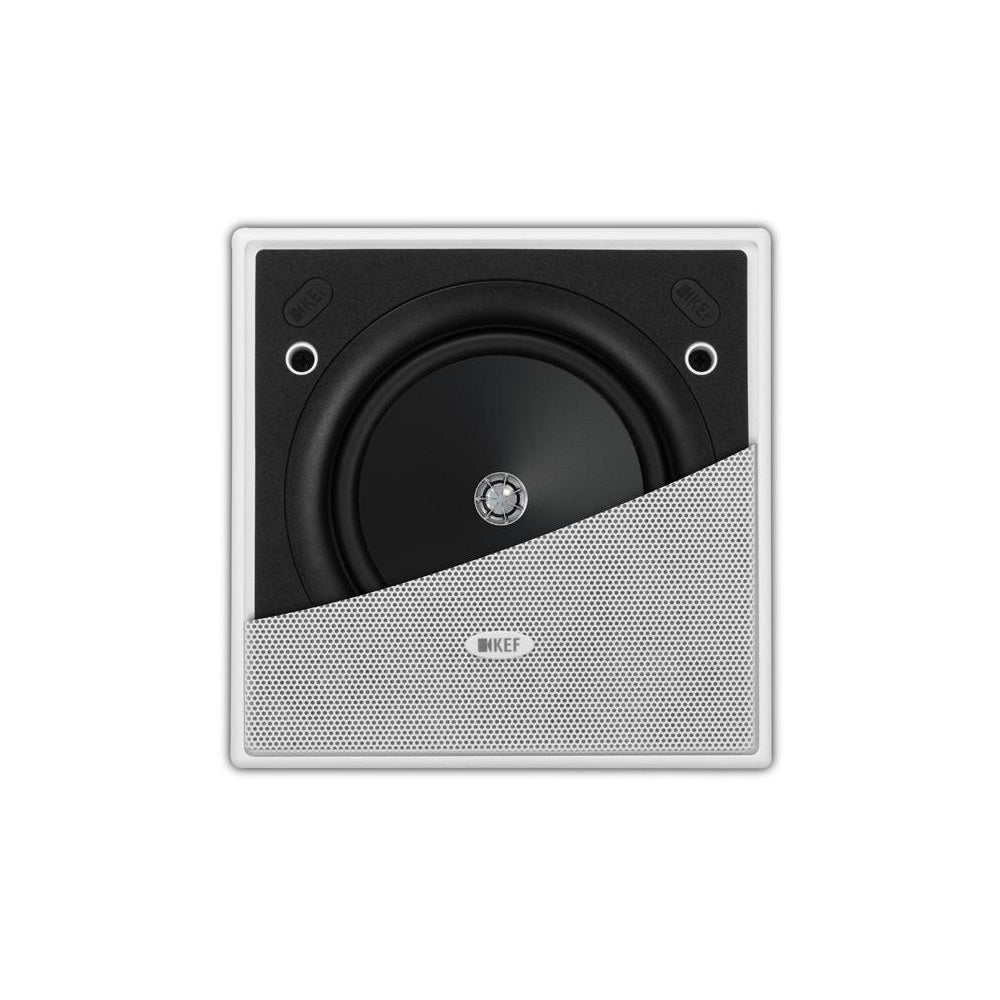

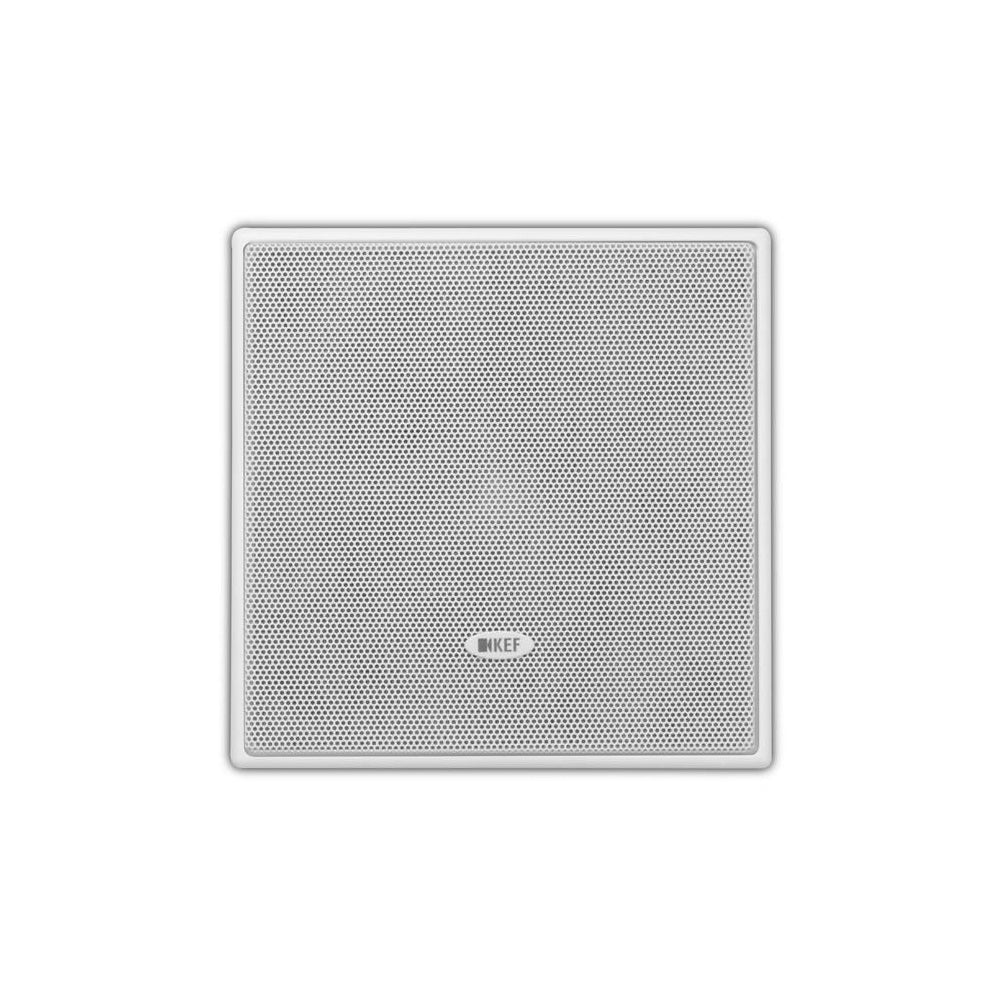

- Grille attaches magnetically
- Ultra-Thin Bezel (UTB), no more than 5mm wide according to KEF
- Grille and bezel are white and can be painted; a paint shield is included for the grille
- Weather resistant construction with UV-protected bezel and grille, IP64 certified
