RX500A

Immersive Dolby Atmos Home Theatre with 8K Video and Wireless Streaming

The Yamaha RX500A AV Receiver brings immersive surround sound, advanced video performance and convenient wireless music streaming together in one versatile home theatre component.

With seven channels of amplification, the RX500A supports traditional 7.2-channel surround sound or a 5.2.2-channel Dolby Atmos system with dedicated height speakers. It also features DTS:X, HDMI 2.1 connectivity, 4K/120Hz and 8K/60Hz pass-through, automatic room correction and built-in Wi-Fi for effortless entertainment throughout the home.

Whether you are watching films, gaming on a next-generation console or streaming high-resolution music, the Yamaha RX500A delivers a spacious, engaging experience while remaining straightforward to set up and operate.

Cinematic 7.2-Channel Surround Sound

The RX500A features seven powered channels and dual subwoofer outputs, giving you the flexibility to build a home theatre system that suits your room.

Choose a conventional 7.2-channel speaker configuration for enveloping surround sound or create a 5.2.2-channel Dolby Atmos system using in-ceiling or upward-firing height speakers. Virtual height processing is also available for layouts without dedicated overhead speakers.

With support for Dolby Atmos and DTS:X, the receiver places dialogue, music and effects throughout a three-dimensional sound field. Sounds can move naturally around and above the listening position, creating greater scale, depth and realism.

Powerful, Controlled Amplification

The Yamaha RX500A delivers up to 70 watts per channel into 8 ohms, measured from 20 Hz to 20 kHz with two channels driven. Its seven-channel amplifier design provides the control and dynamic capability needed for films, music, television and gaming.

A carefully considered internal layout, stable power delivery and Yamaha’s sound-focused engineering help preserve clarity during both subtle scenes and demanding cinematic moments.

Automatic Room Correction

Every room affects how a speaker system sounds. Furniture, walls, flooring and speaker placement can introduce tonal imbalances or reduce the accuracy of surround effects.

The included setup microphone measures the room’s acoustic characteristics and automatically adjusts the receiver for more balanced performance. This helps optimise speaker output for the listening environment without requiring complicated manual calibration.

8K HDMI for Movies and Gaming

Four HDMI inputs provide space for compatible game consoles, streaming devices, Blu-ray players and other home entertainment sources.

The RX500A supports:

• 8K video at 60 Hz

• 4K video at 120 Hz

• HDMI eARC and ARC

• Dolby Vision

• HDR10+

• Hybrid Log-Gamma

• Variable Refresh Rate

• Auto Low Latency Mode

• Quick Media Switching

• HDCP 2.3

• HDMI-CEC

These technologies help deliver detailed HDR images, smoother motion and responsive gameplay when used with compatible televisions, projectors, consoles and source devices.

HDMI eARC Connectivity

HDMI eARC sends high-quality audio from a compatible television to the RX500A through a single HDMI cable.

This simplifies connection for content played through smart television apps while supporting advanced surround sound formats. HDMI-CEC compatibility can also allow connected equipment to respond to common television commands, depending on the devices being used.

Built-In Wi-Fi Music Streaming

Connect the RX500A to your home network through Wi-Fi or Ethernet and stream music, podcasts, internet radio and other audio content directly through your home theatre speakers.

Supported streaming options include:

• Spotify Connect

• Google Cast

• Apple AirPlay 2

• TIDAL Connect

• Qobuz Connect

• Internet radio

• Podcasts

The receiver also supports network playback of common audio formats, including FLAC, WAV, AIFF, Apple Lossless, MP3, WMA and MPEG-4 AAC.

Bluetooth Multipoint

Bluetooth 5.3 with Multipoint allows two compatible mobile devices to remain paired with the receiver.

This makes it easier to switch between phones, tablets or other Bluetooth sources without repeatedly disconnecting and pairing each device.

Simple Guided Setup

The Yamaha RX500A is designed to make installation approachable for both first-time users and experienced home theatre enthusiasts.

An on-screen guide walks you through connecting the television, speakers and external sources. Clearly organised settings make it easier to configure speaker layouts, inputs and sound preferences once the hardware has been connected.

Sound Modes for Every Type of Entertainment

A selection of listening modes allows the RX500A to adapt to different content and situations.

Use Movie mode for cinematic impact, Stereo or Pure Direct for music listening, All-Channel Stereo for room-filling playback or Night mode for more balanced listening at lower volumes. Straight mode can be used when you want the receiver to reproduce the incoming audio format with minimal additional processing.

Custom Scene Presets

Four programmable Scene buttons provide instant access to frequently used entertainment settings.

Each Scene can recall a preferred input, sound mode and related system configuration. This makes it easy to move between television, gaming, films and music without adjusting several settings individually each time.

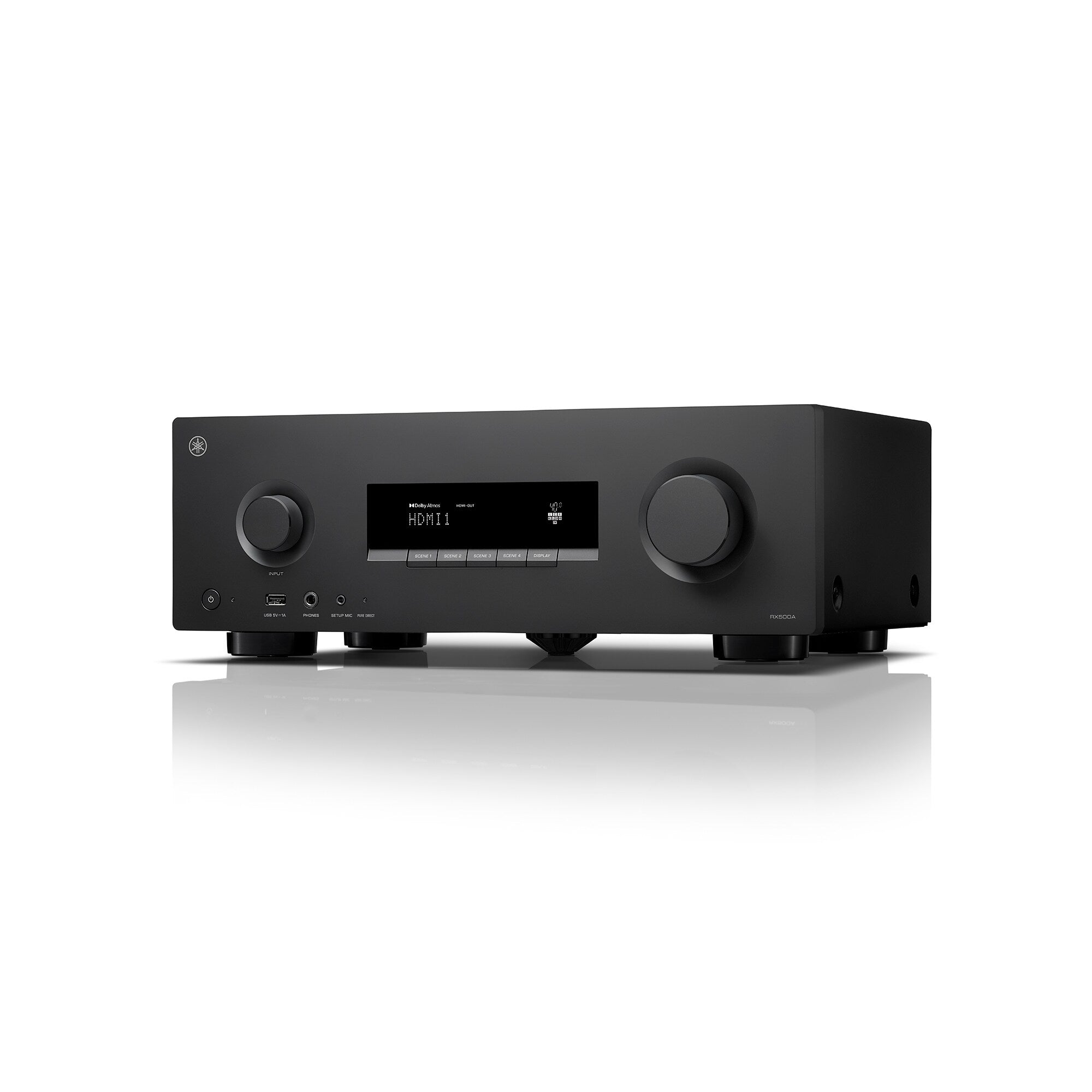

Anti-Resonance Technology

The RX500A incorporates Yamaha’s Anti-Resonance Technology Wedge, a centre-mounted fifth foot positioned beneath the receiver.

This structural design helps disperse unwanted mechanical vibration, supporting stable operation and more focused sound reproduction.

Reliable Yamaha Engineering

High-bandwidth HDMI switching and multichannel amplification generate heat, making effective internal design important for long-term performance.

The RX500A uses robust circuit engineering and a large heatsink positioned above the HDMI circuitry to help manage operating temperatures and protect sensitive components. Its internal signal paths and component placement are also refined through listening-based evaluation.

Key Features

• 7.2-channel AV receiver

• Flexible 5.2.2-channel Dolby Atmos configuration

• Dolby Atmos and DTS:X decoding

• 70 watts per channel into 8 ohms with two channels driven

• Four HDMI inputs and one HDMI output

• 4K/120Hz and 8K/60Hz HDMI support

• Dolby Vision, HDR10+ and Hybrid Log-Gamma

• VRR, ALLM and QMS gaming features

• HDMI eARC and ARC

• Automatic room correction with included setup microphone

• Built-in Wi-Fi and Ethernet

• Spotify Connect, Google Cast and AirPlay 2

• TIDAL Connect and Qobuz Connect

• Bluetooth 5.3 with Multipoint

• Dual subwoofer pre-outputs

• Zone B speaker functionality

• Bi-amp capability

• Four programmable Scene presets

• Yamaha Anti-Resonance Technology Wedge

• Front USB audio playback

• FM radio tuner

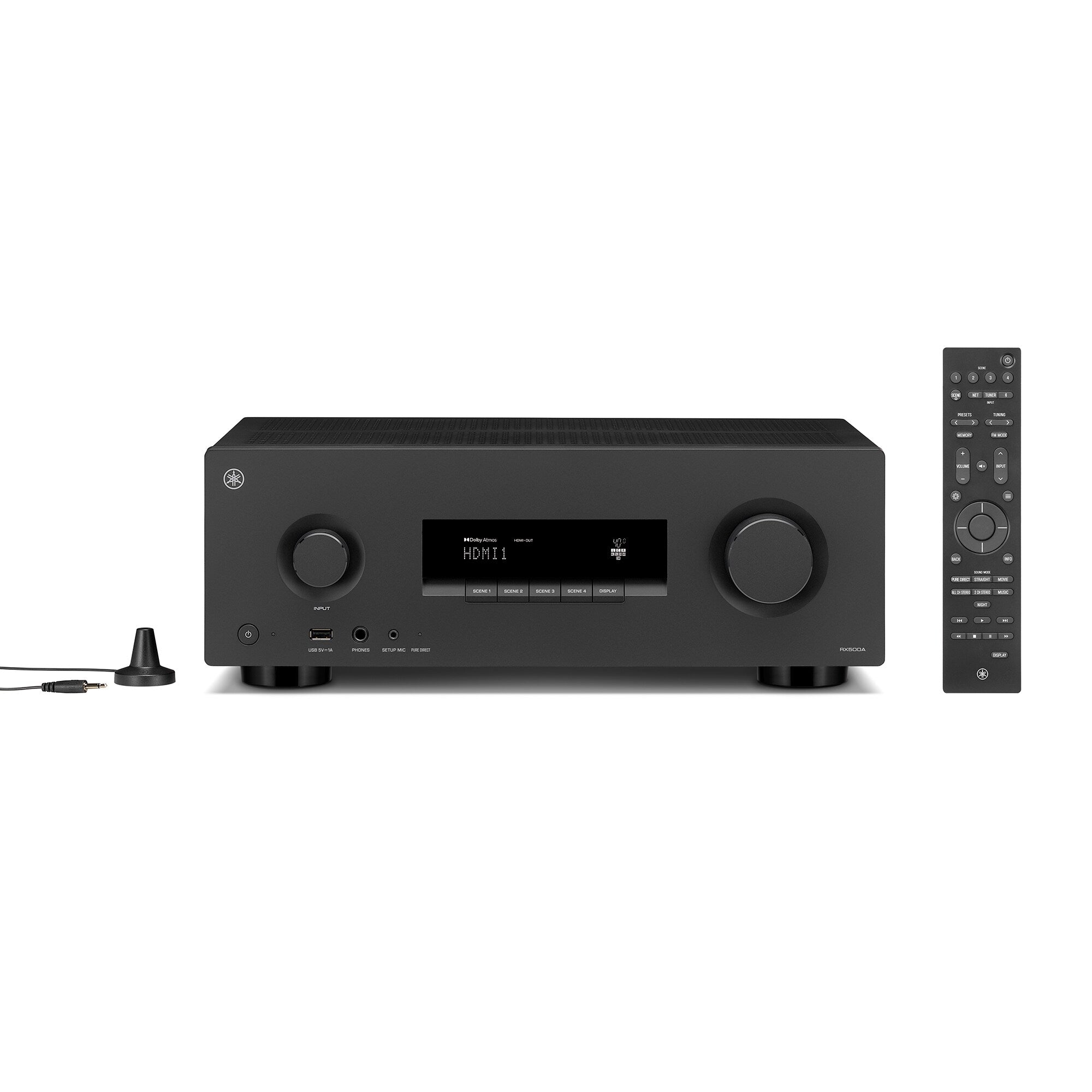

Included Accessories

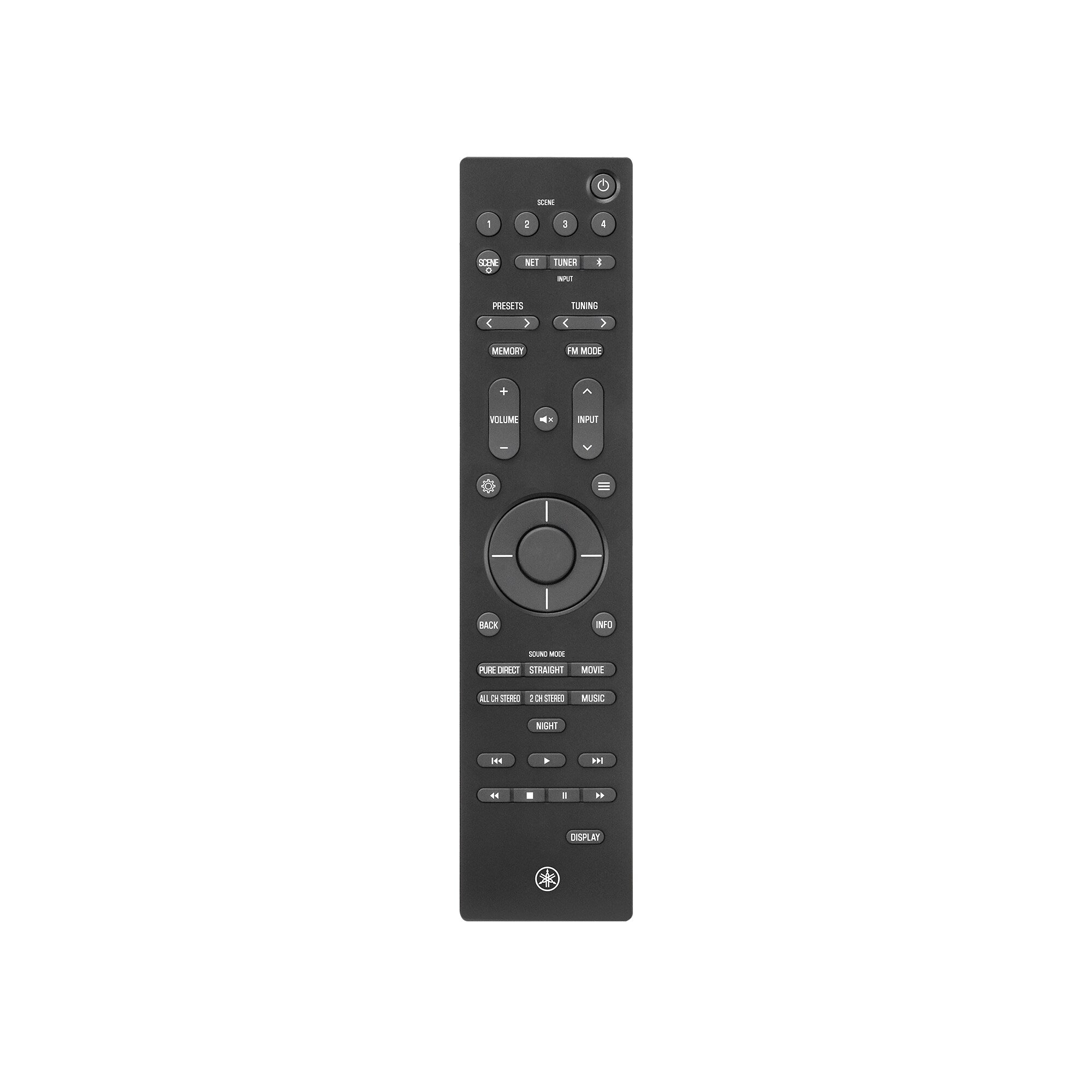

• Remote control

• Batteries

• FM antenna

• Room-correction setup microphone

• Microphone stand

• Quick guide

• Safety guide
