SKU SP3938AA
KEF - Ci130.2CR - In-Ceiling Speakers
by KEF
$400.00
Lightning Fast Free Delivery*
Don't wait to start your audio adventure. With our lightning-fast delivery, your new high-fidelity audio equipment will be at your doorstep before you know it.
Check Out Our Thousands Of Reviews
Our services hit the high notes, but don't just take our word for it. Scroll down to read the rave reviews from our chorus of happy customers. They've heard the difference, and you can too.
Overview
The KEF Ci130.2CR is a round in-ceiling speaker from KEF's Ci C Series, using a 130mm Uni-Q driver array with a 16mm aluminium dome tweeter at the acoustic centre of the bass/midrange cone. KEF specifies it for background and foreground music in homes, hotels, corridors and similar spaces, and its weather-resistant build suits bathrooms and kitchens.

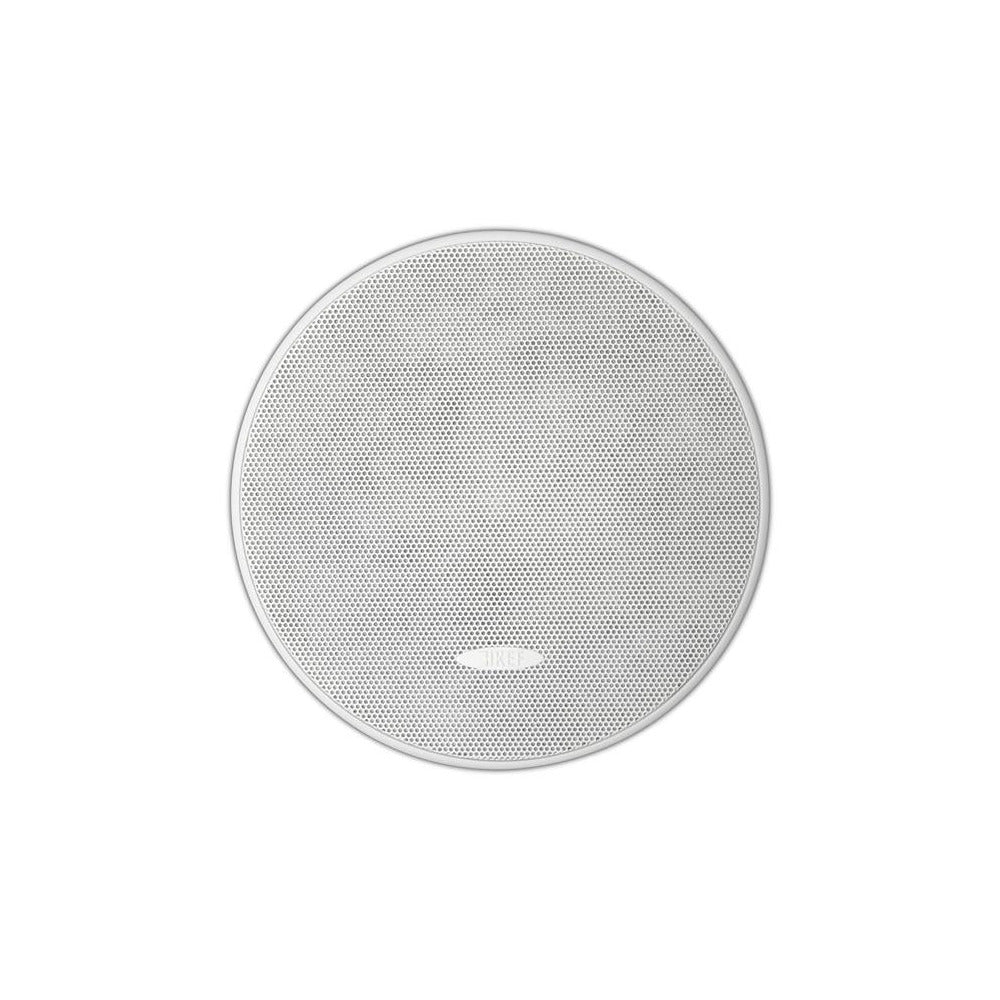

The Ultra-Thin Bezel (UTB) and magnetic grille are both paintable, so the speaker can be matched to the ceiling colour.
Drivers and Technology

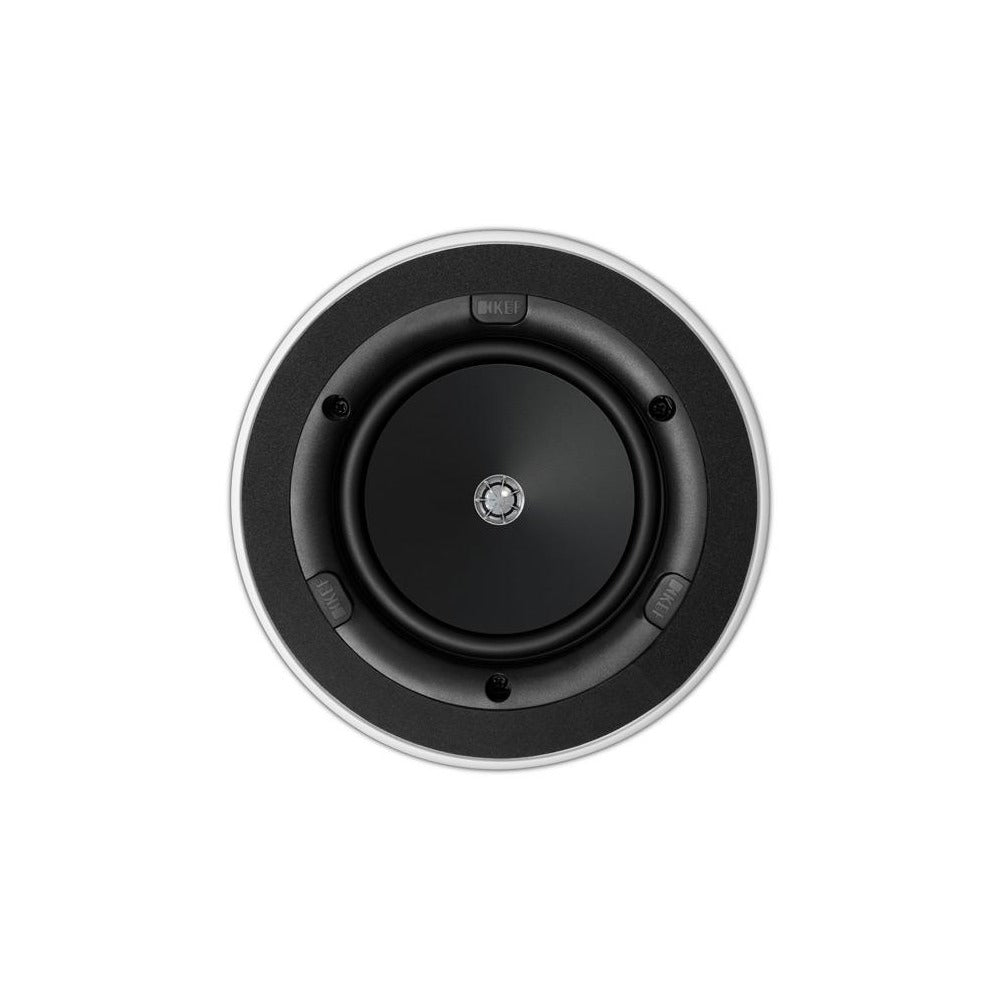

- 130mm (5.25in.) Uni-Q driver array (single point source design)
- 16mm (0.6in.) aluminium dome tweeter with KEF's Tangerine waveguide
- Nominal coverage of 140° (rated by KEF)
- Weather-resistant construction: UV-protected ABS baffle, coated grille and moisture-resistant fittings
- IP64 certified by KEF
Installation
- Cut-out diameter: 158mm (KEF's universal 130mm round cut-out)
- Mounting depth from surface: 78mm
- Ultra-Thin Bezel (UTB), paintable, no more than 5mm wide
- Magnetic grille, paintable (KEF specifies a paint shield for painting)

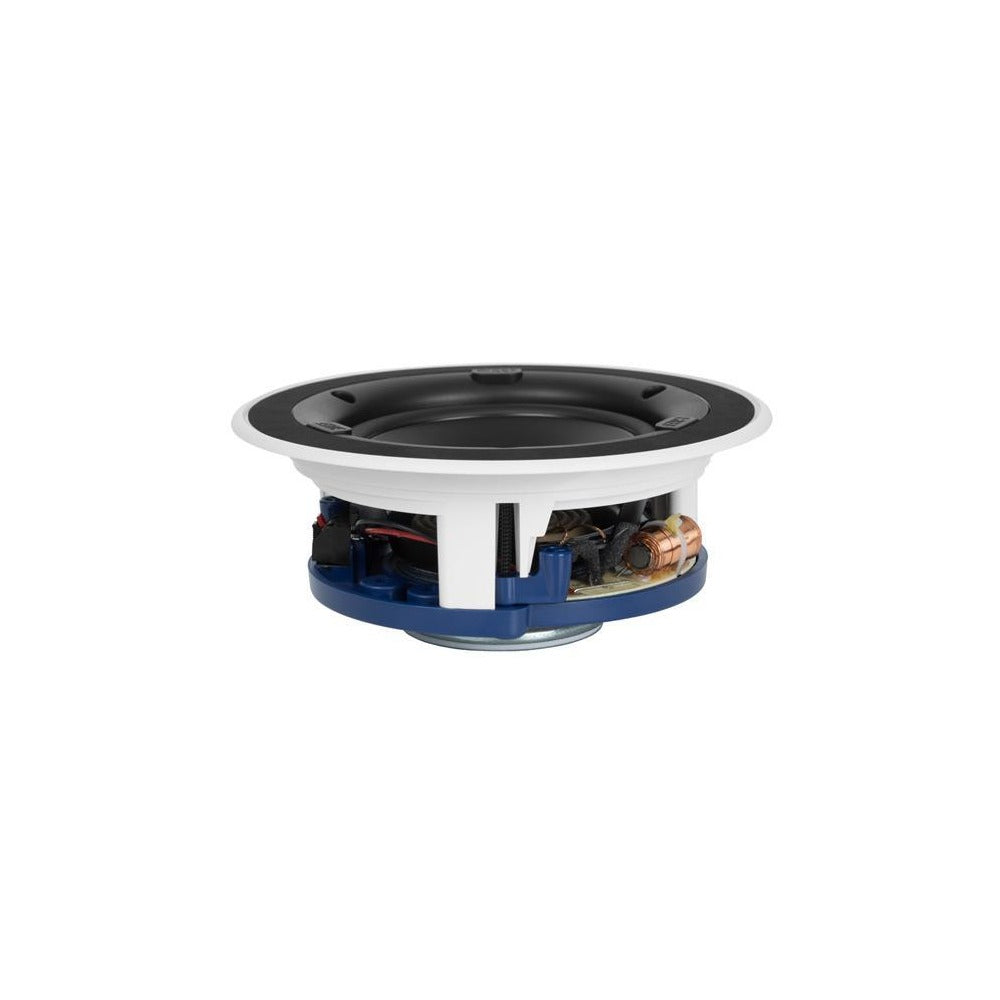

- Open-backed design
- Optional rough-in frame (RIF130R) and rear enclosure (RNC130R) available separately
Specifications
| Model | Ci130.2CR |
| Series | Ci C Series |
| Design | 2-way round in-ceiling speaker, Uni-Q driver array, open-backed |
| Drive units | LF/MF: 130mm (5.25in.) Uni-Q HF: 16mm (0.6in.) aluminium dome with Tangerine waveguide |
| Frequency response (±6dB, open-backed) | 52Hz - 20kHz |
| Crossover frequency | 2.7kHz |
| Recommended amplifier power | 10 - 80W |
| Recommended high-pass filter | 55Hz |
| Sensitivity (2.83V/1m) | 87dB |
| Nominal impedance | 8 ohms |
| Max SPL | 102dB |
| Nominal coverage | 140° |
| External dimensions | 193.4mm diameter x 83.5mm deep |
| Cut-out size | 158mm diameter |
| Mounting depth from surface | 78mm |
| Net weight | 1.3kg |
| Grille | Magnetic, paintable (grille supplied with the speaker) |
| Bezel | Ultra-Thin Bezel, paintable |
| Ideal rear volume | 20L |
| Minimum rear volume | 12L |
| Optional accessories | RIF130R rough-in frame, RNC130R rear enclosure |
| Certification | IP64 |
| Unit | Sold individually |
