- Dimensions
- 197mmx197mmx64.8mm
- Product Weight
- 1.4Kg (excluding accessories)
Price $799
Includes GST
Voted Australia's #1 Hi-Fi Retailer, Sound+Image Awards 2023. Family owned since 2010.
Planning a cinema around it?
Our designers match it to your room, screen and seating, then install and calibrate the lot. Start with it in our 3D builder, or talk to us.
Delivery and collection
Free standard shipping on orders of $300 or more within Australia, and $15 on smaller orders. Western Australia is quoted on request.
Pick up from our Belrose showroom: call ahead so we can have it ready.
Set-up and installation
Our team can deliver, install and set up your system, from speaker placement to a full cinema calibration. Ask us for a quote when you order.
Returns
Your rights under Australian Consumer Law always apply. Read our returns policy.

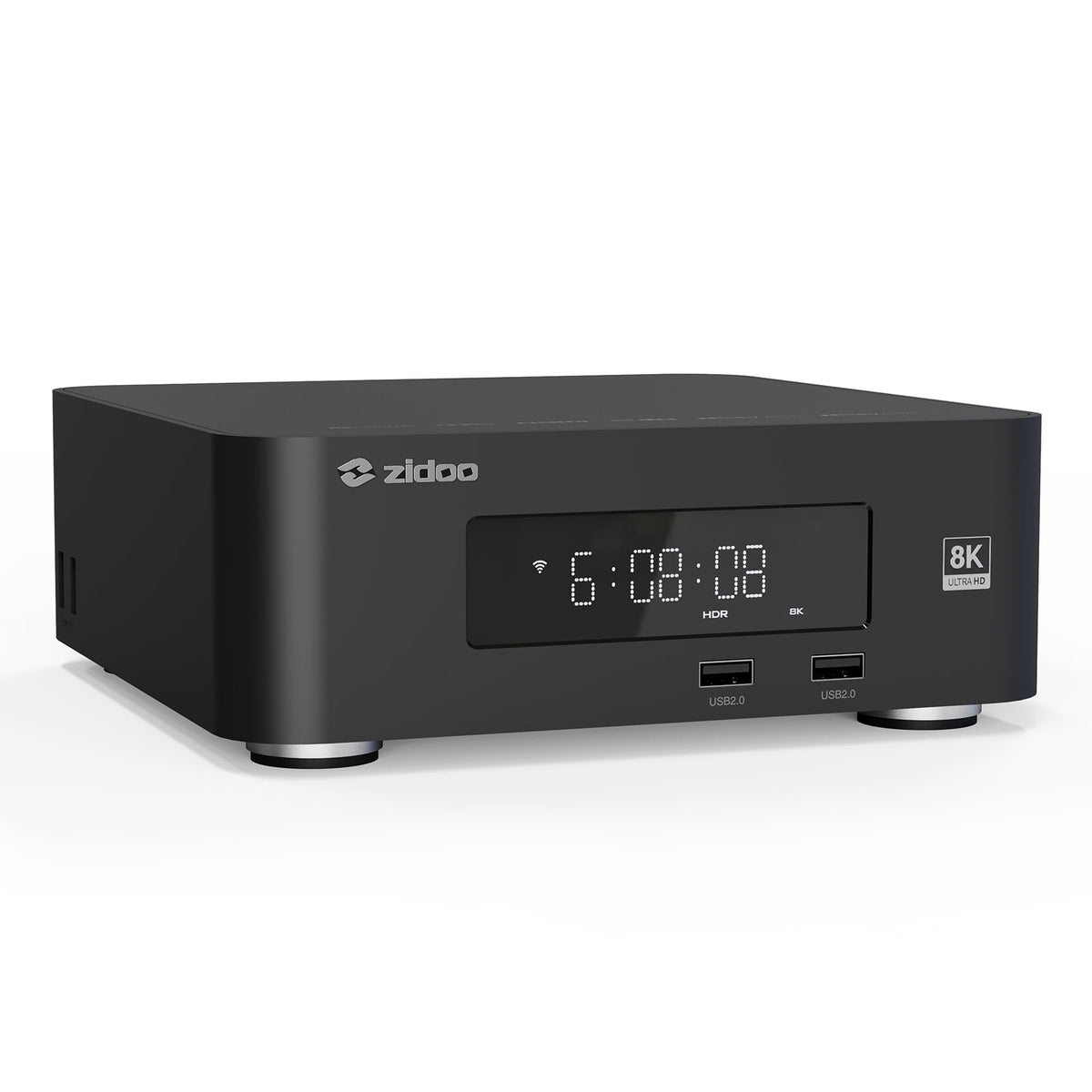

Zidoo Z30 PRO
Specifications
- Display Screen
- LED
- Chassis
- Aluminum Alloy
- OS
- Android 11
- CPU
- Amlogic S928X-K ARM Cortex-A76+Cortex-A55 (Penta-core)
- GPU
- ARM Mali-G57 MC2
- RAM
- 6GB DDR4
- Internal Storage
- 64GB eMMC
- Bluetooth
- BT 5.2
- WiFi
- 2.4G + 5G dual-band WiFi, 802.11 a/b/g/n/AC/AX 2T2R , 802.11ax MIMO OFDM
- Ethernet
- RJ-45 Ethernet jack (10/100/1000Mbps) * 1
- Video Decoding
- 8K@60p AV1/VP9/H.265/AVS3/AVS2; HDR10,HDR10+, HLG, Dolby Vision
- Audio Decoding
- Supports Dolby/DTS format (supports up to Dolby TrueHD Atmos and DTS X) decoding
Show all 21 specificationsShow fewer

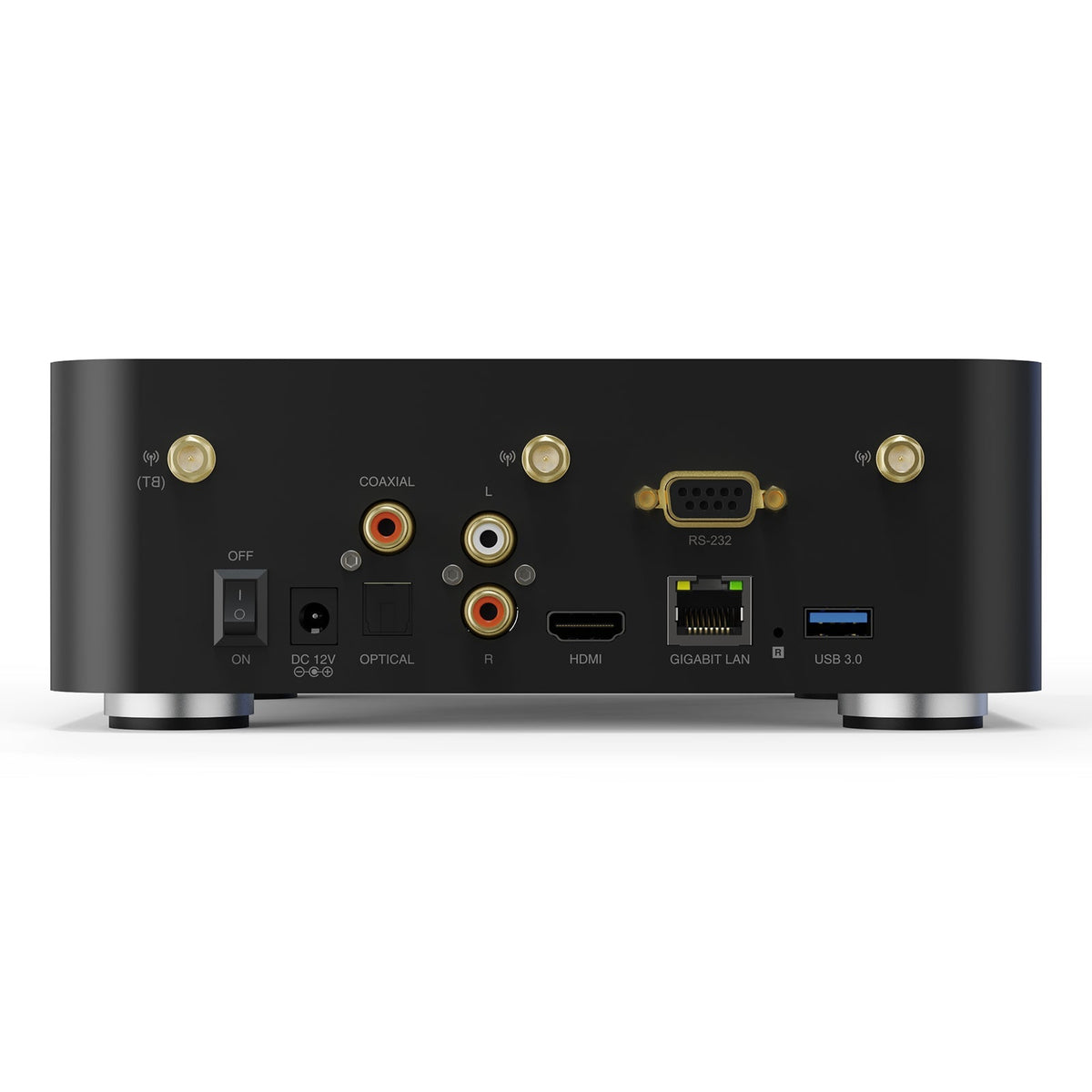

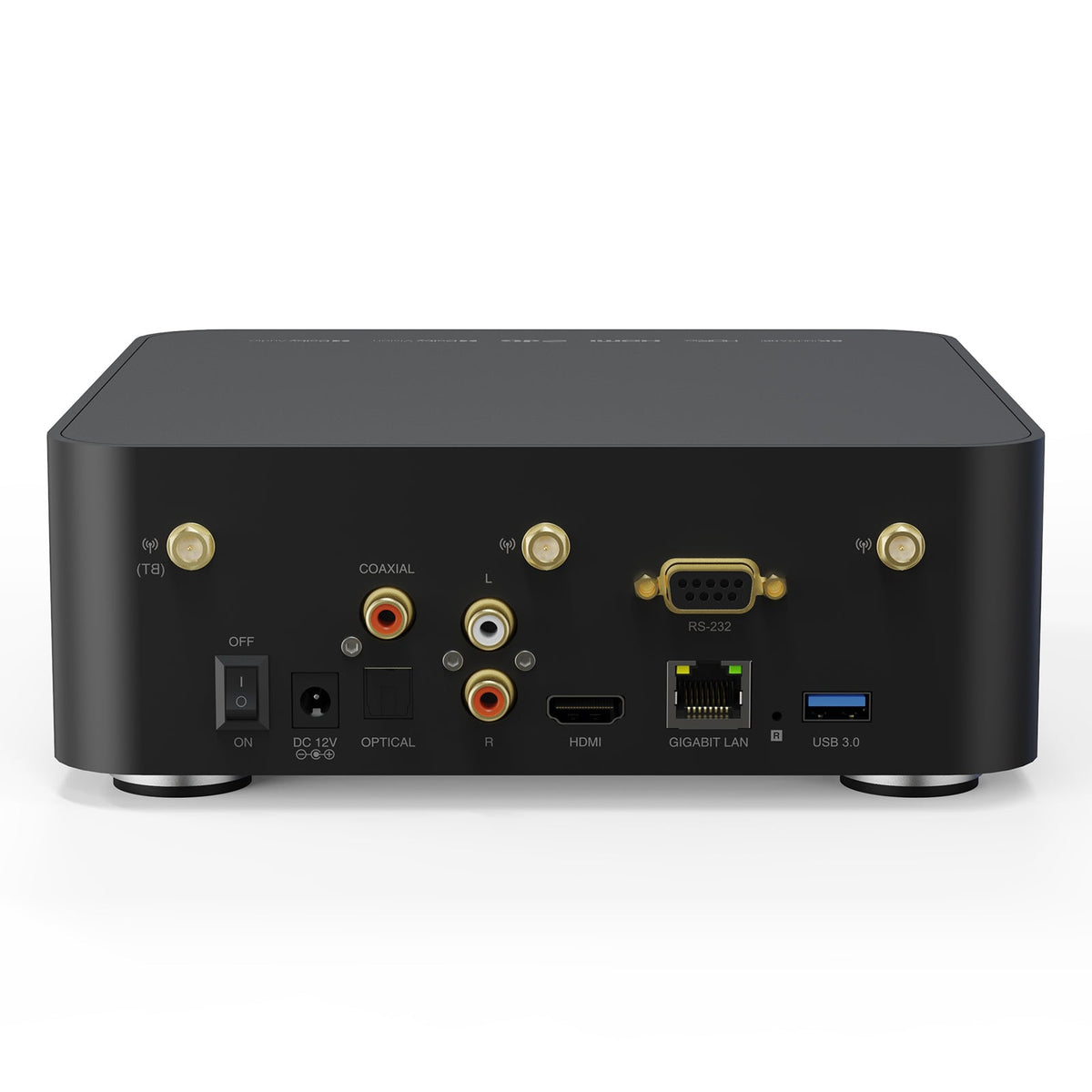

- Audio Output
- USB output, Optical output1, Coaxial output1, RCA L/R channel output*1
- Intelligent Control
- APP control for iPhone,iPad landscape mode,Android phone,Android tablet landscape mode, RS-232, TCP/IP control (supports WOL)
- SATA
- SATA 3.0 * 1
- USB
- USB 3.0 * 3, USB 2.0 * 2
- Power Supply
- DC 12V/2A
- Other Interface
- Infrared receiver1, RS2321
- Accessories
- Remote control * 1 Power adapter * 1 SATA cable *1 HDMI cable *1 High-gain antennas * 3 User manual * 1
- Dimensions
- 197mmx197mmx64.8mm
- Product Weight
- 1.4Kg (excluding accessories)
In detail

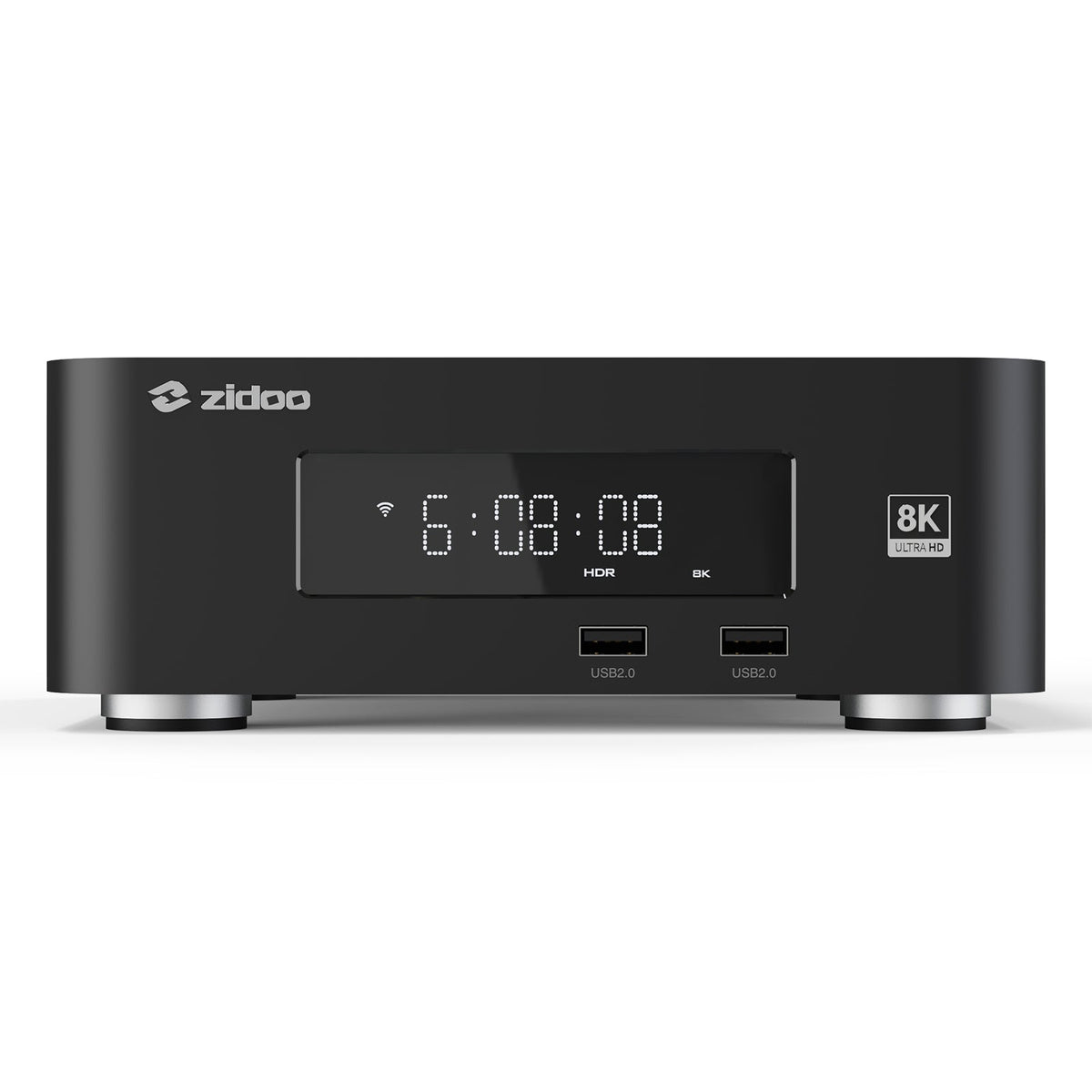

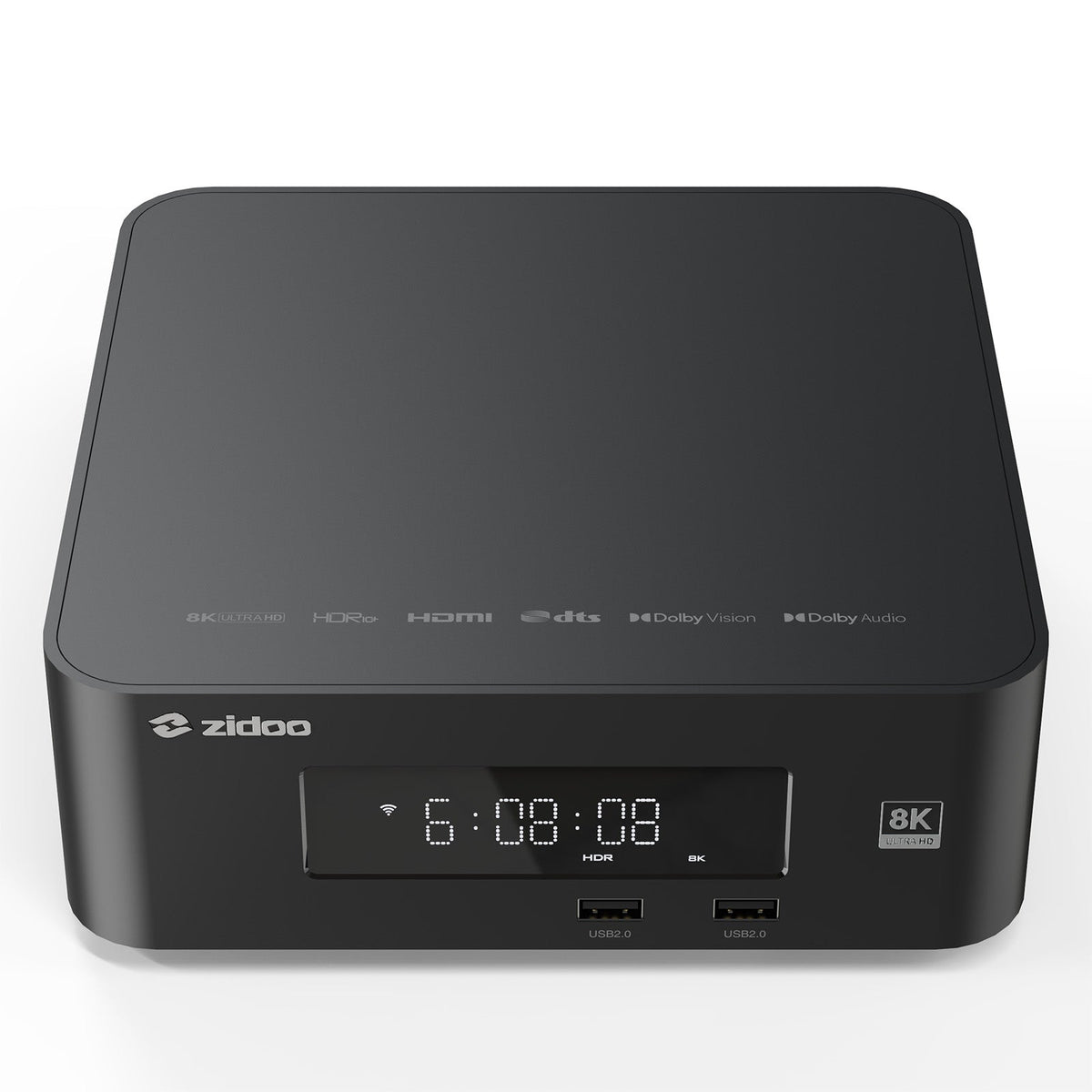

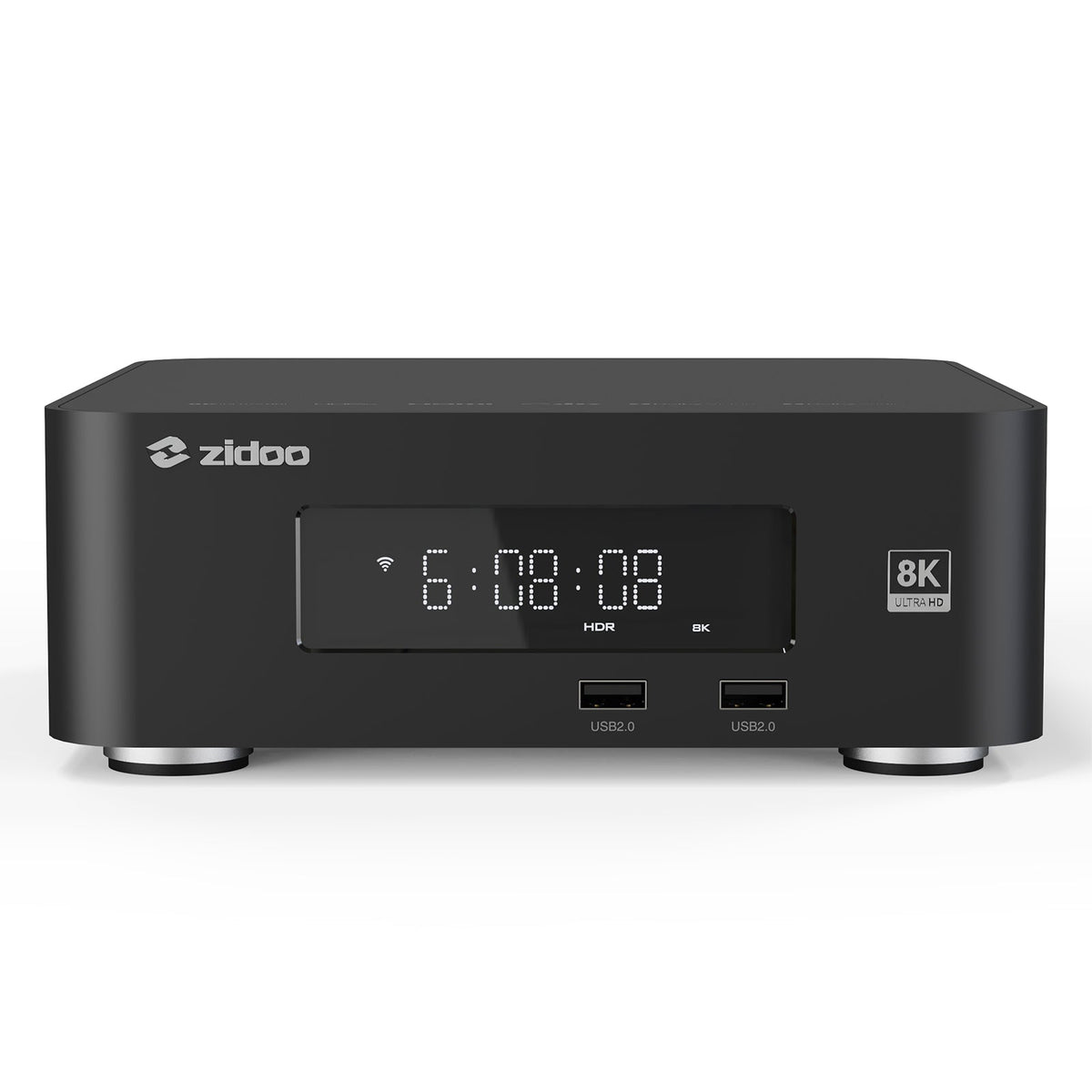

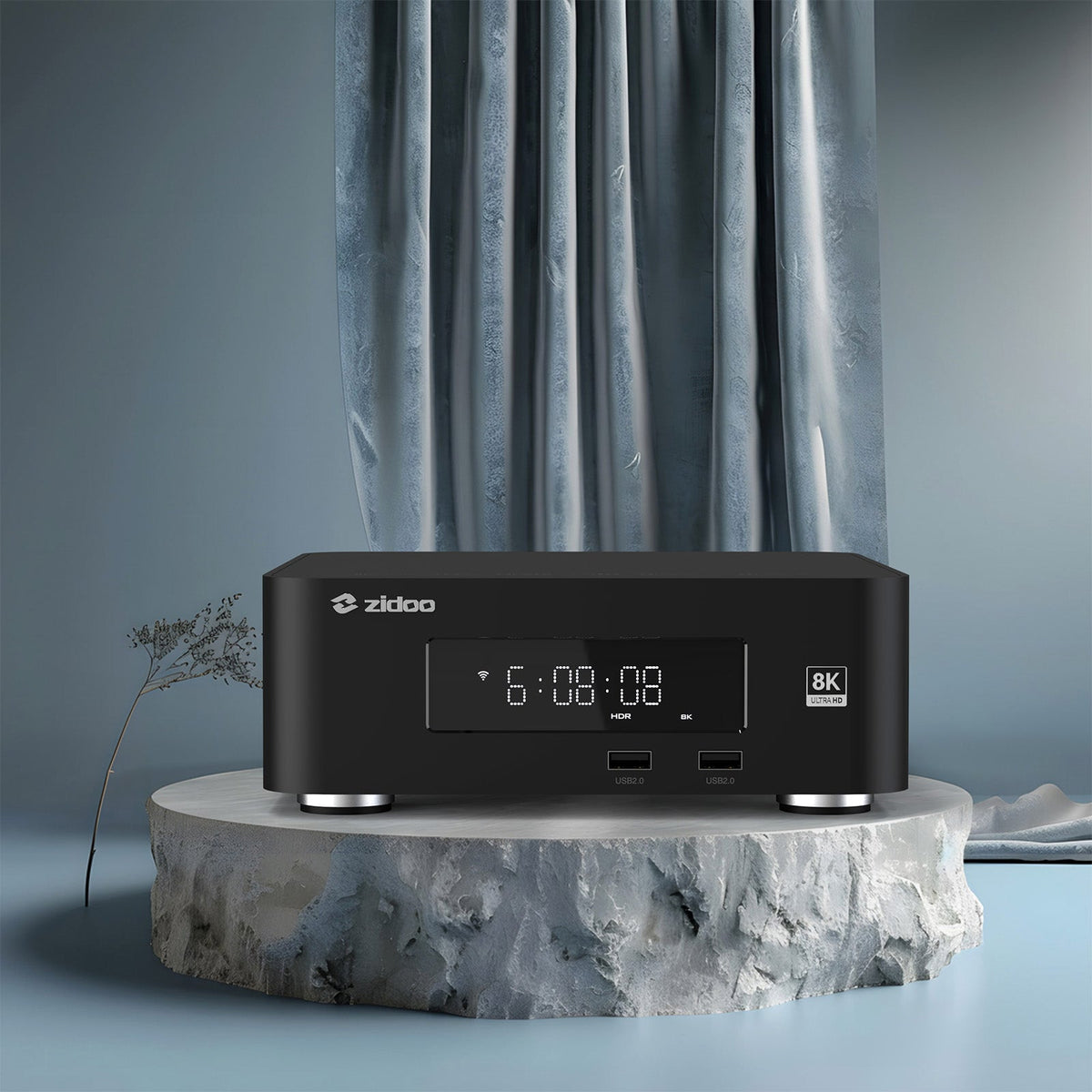

About the Z30 PRO
8K Ultimate Evolution
The Z30 PRO is an 8K media player equipped with the powerful Amlogic S928X-K chipset, 6GB DDR4 RAM and 64GB eMMC storage. It includes a built-in HDD bay, allowing the onboard storage to be expanded up to 16TB. The newly developed cross-platform player architecture, combined with the VPU video processing engine, enables effortless support for almost all Dolby Vision HDR formats with direct metadata output. Users can flexibly customise the VS10 Dolby Commercial Quality A Engine for content, getting better visual performance (even for ordinary content).
Features
- New generation Amlogic S928X-K 64-bit penta-core A76 + A55 high-performance multi-functional processor
- HDMI 2.1 supports 8K 60Hz point-to-point output
- Supports HDR (HDR10/HLG/HDR10+/Dolby Vision)
- 12-bit, BT.2020 wide colour range
- Supports Atmos/DTS X audio pass-through output
- 6GB DDR4 memory and 64GB eMMC internal storage
- Built-in VS10 engine for significantly improved image quality

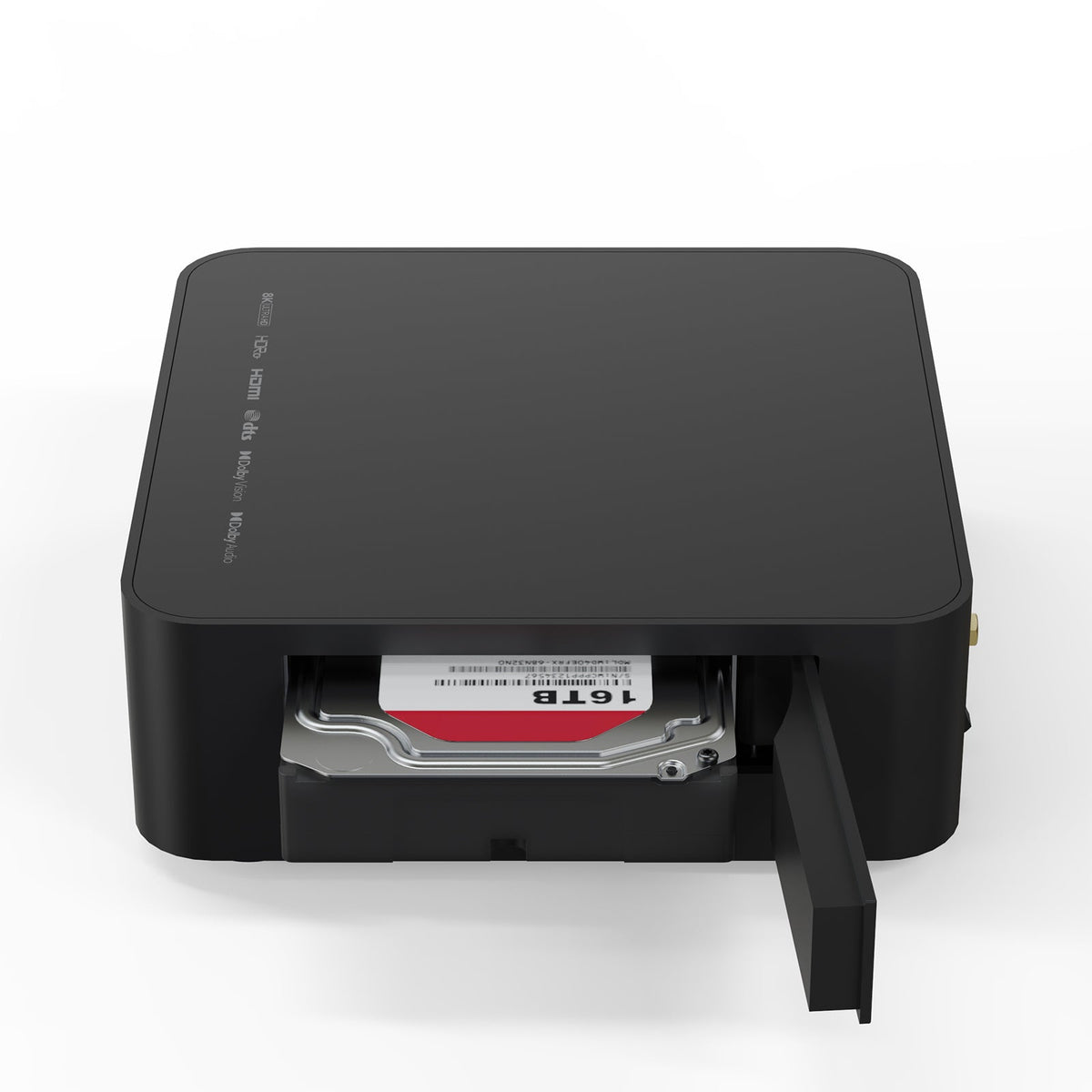

- Hidden NSS patented HDD bay supporting up to 16TB drives
- Supports acquiring and processing HDR10+ dynamic metadata, colours and brightness are processed frame by frame and scene by scene
- Advanced Dolby Vision technology supports LLDV (Player Led) and Standard mode (TV Led) output
- Automatic frame rate 23.976 and resolution switching output ensures smooth movie playback without interruption
- Supports BD/UHD Blu-ray menu playback and gapless branching playback of Blu-rays with complex MPLS structure
- Supports special effect subtitles, automatic download of network subtitles
- Supports dual forced subtitles for Blu-ray and MKV
- Supports access to network protocols like NFS, SMB v1/v2/v3, UPnP, Web DAV, and built-in SMB service
- New Poster Wall 4.0 supports movie trailers and user-friendly custom classification and management
- Supports lossless music playback in formats like DSD (SACD ISO, DSF, DFF), WAV, APE, DTS
- Upgraded music player 8.0 with brand new UI main interface, supports lossless playback and decoding, personalized settings, song data matching
- Supports HDMI 2.1® CEC control, RS232 control, Control 4, seamless integration into smart home
| Feature | Specification |
|---|---|
| Model | Z30 PRO |
| Display Screen | LED |
| Chassis | Aluminum Alloy |
| OS | Android 11 |
| CPU | Amlogic S928X-K ARM Cortex-A76+Cortex-A55 (Penta-core) |
| GPU | ARM Mali-G57 MC2 |
| RAM | 6GB DDR4 |
| Internal Storage | 64GB eMMC |
| Bluetooth | BT 5.2 |
| WiFi | 2.4G + 5G dual-band WiFi, 802.11 a/b/g/n/AC/AX 2T2R , 802.11ax MIMO OFDM |
| Ethernet | RJ-45 Ethernet jack (10/100/1000Mbps) * 1 |
| HDMI Output | HDMl2.1a, supports up to 8K@60p, HDR10+,12Bit color depth, BT2020 wide color range; Supports HDR10, HDR10+,HLG, Dolby Vision; Supports Dolby Atmos and DTS X audio pass-through |
| Video Decoding | 8K@60p AV1/VP9/H.265/AVS3/AVS2; HDR10,HDR10+, HLG, Dolby Vision |
| Audio Decoding | Supports Dolby/DTS format (supports up to Dolby TrueHD Atmos and DTS X) decoding |
| Audio Output | USB output, Optical output1, Coaxial output1, RCA L/R channel output*1 |
| Intelligent Control | APP control for iPhone,iPad landscape mode,Android phone,Android tablet landscape mode, RS-232, TCP/IP control (supports WOL) |
| SATA | SATA 3.0 * 1 |
| USB | USB 3.0 * 3, USB 2.0 * 2 |
| Power Supply | DC 12V/2A |
| Other Interface | Infrared receiver1, RS2321 |
| Accessories | Remote control * 1 Power adapter * 1 SATA cable *1 HDMI cable *1 High-gain antennas * 3 User manual * 1 |
| Dimensions | 197mmx197mmx64.8mm |
| Product Weight | 1.4Kg (excluding accessories) |

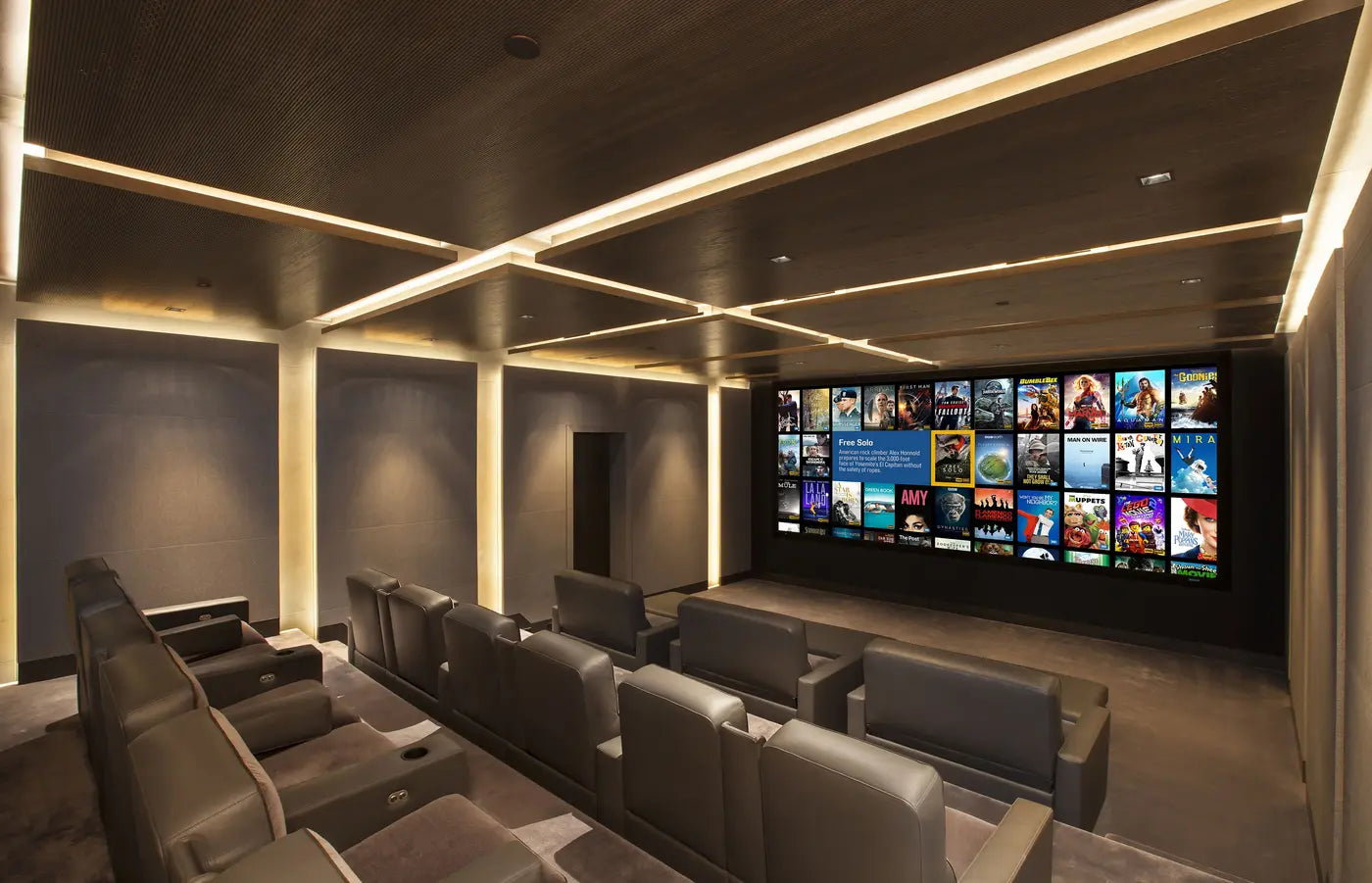

Cinema design
