- Dimensions
- 430mmx312mmx80mm
- Product Weight
- 5.9Kg (excluding accessories)
Price $2,199
Includes GST
Voted Australia's #1 Hi-Fi Retailer, Sound+Image Awards 2023. Family owned since 2010.
Planning a cinema around it?
Our designers match it to your room, screen and seating, then install and calibrate the lot. Start with it in our 3D builder, or talk to us.
Delivery and collection
Free standard shipping on orders of $300 or more within Australia, and $15 on smaller orders. Western Australia is quoted on request.
Pick up from our Belrose showroom: call ahead so we can have it ready.
Set-up and installation
Our team can deliver, install and set up your system, from speaker placement to a full cinema calibration. Ask us for a quote when you order.
Returns
Your rights under Australian Consumer Law always apply. Read our returns policy.
Zidoo UHD8000
Specifications
- Display Screen
- LED
- Chassis Material
- Aluminum Alloy
- OS
- Android 11
- CPU
- Amlogic S928X-K ARM Cortex-A76+Cortex-A55 (Penta-core)
- GPU
- ARM Mali-G57 MC2
- Storage
- 8GB DDR4 + 64GB eMMC
- Bluetooth
- BT 5.2
- Wi-Fi
- 2.4G + 5G dual-band Wi-Fi, 802.11 a/b/g/n/ac/ax 2T2R , 802.11ax MIMO OFDM
- Ethernet
- RJ-45 Ethernet jack (10/100/1000Mbps) * 1
- HDMI Output (Audio Only)
- HDMI separate audio and video output, supports Dolby Atmos and DTS X audio pass-through, as well as multi-channel PCM and DSD output
- Video Decoding
- 8K@60p AV1/VP9/H.265/AVS3/AVS2; HDR10, HDR10+, HLG, Dolby Vision
- USB Audio Input
- Supports Windows 10/11, Mac system, Android system, supports up to 2-channel DSD512, PCM 768KHz@32bit PCM decoding
Show all 21 specificationsShow fewer
- Audio Output

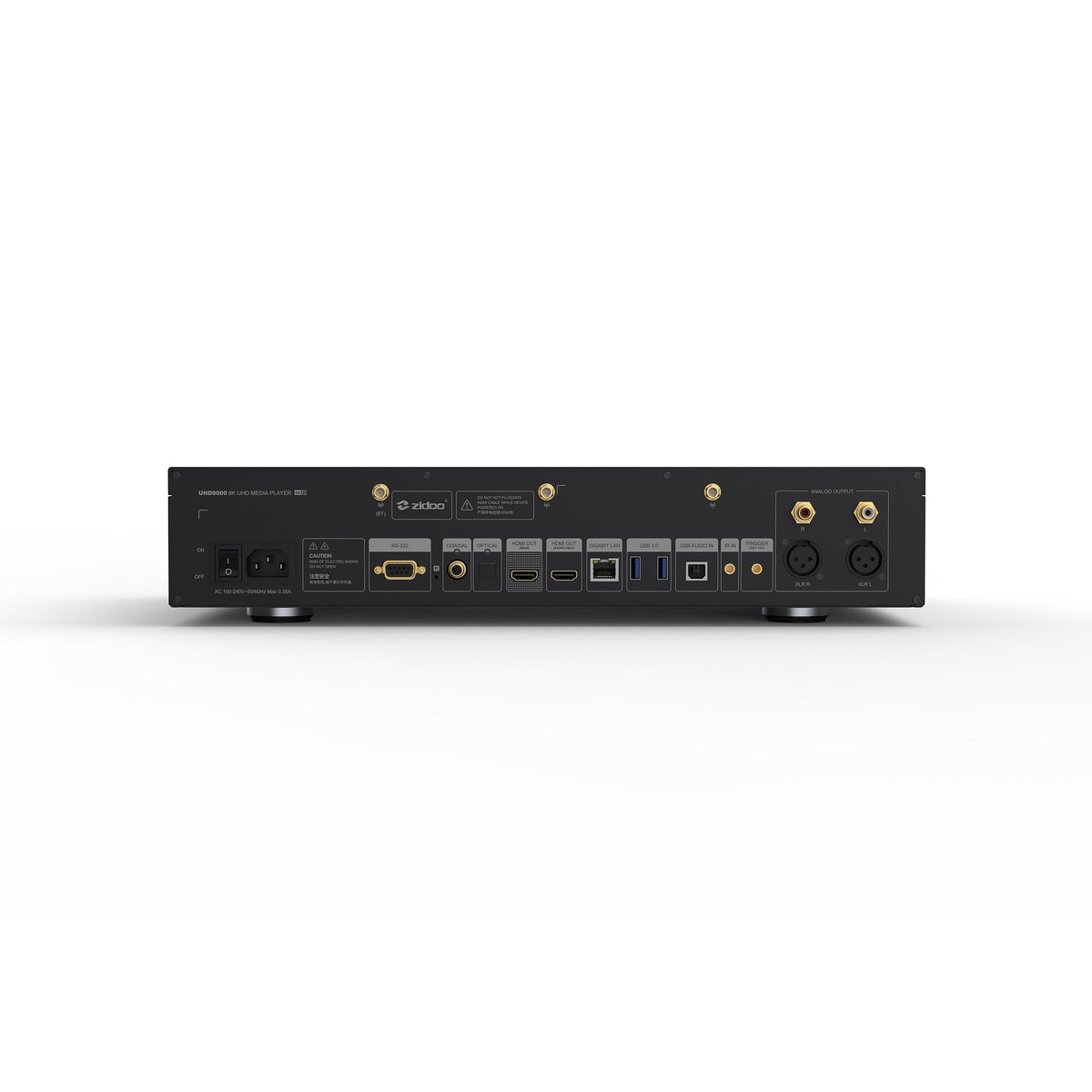

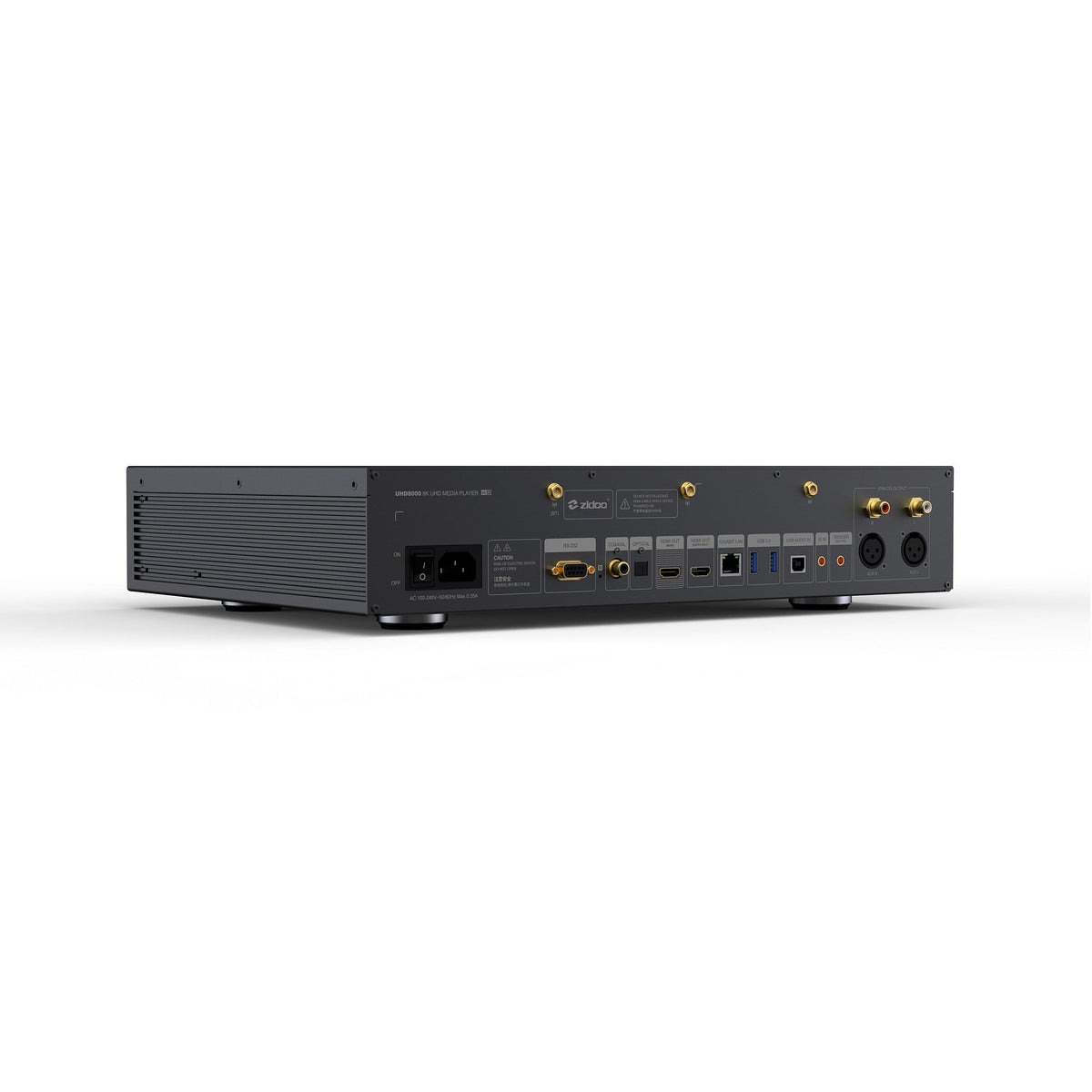

- USB output, Optical output1, Coaxial output1, RCA L/R channel output1, XLR L/R channel balanced output1
- Intelligent Control
- APP control for iPhone,iPad landscape mode,Android phone,Android tablet landscape mode, RS-232, TCP/IP control (supports WOL)
- SATA
- Two built-in 3.5''HDD bays with SATA 3.0 specification (HDDs not included)
- USB
- USB 3.0 * 2, USB 2.0 * 1
- Power Supply
- AC 110120/220240V 50/60Hz
- Other Interfaces
- Infrared receiver1, RS2321, Trigger Out 3.5 headphone jack1, IR IN 3.5 headphone jack1
- Accessories
- Remote control * 1 Power adapter * 1 SATA cable *1 HDMI cable *1 High-gain antennas * 3 User manual * 1
- Dimensions
- 430mmx312mmx80mm
- Product Weight
- 5.9Kg (excluding accessories)
In detail

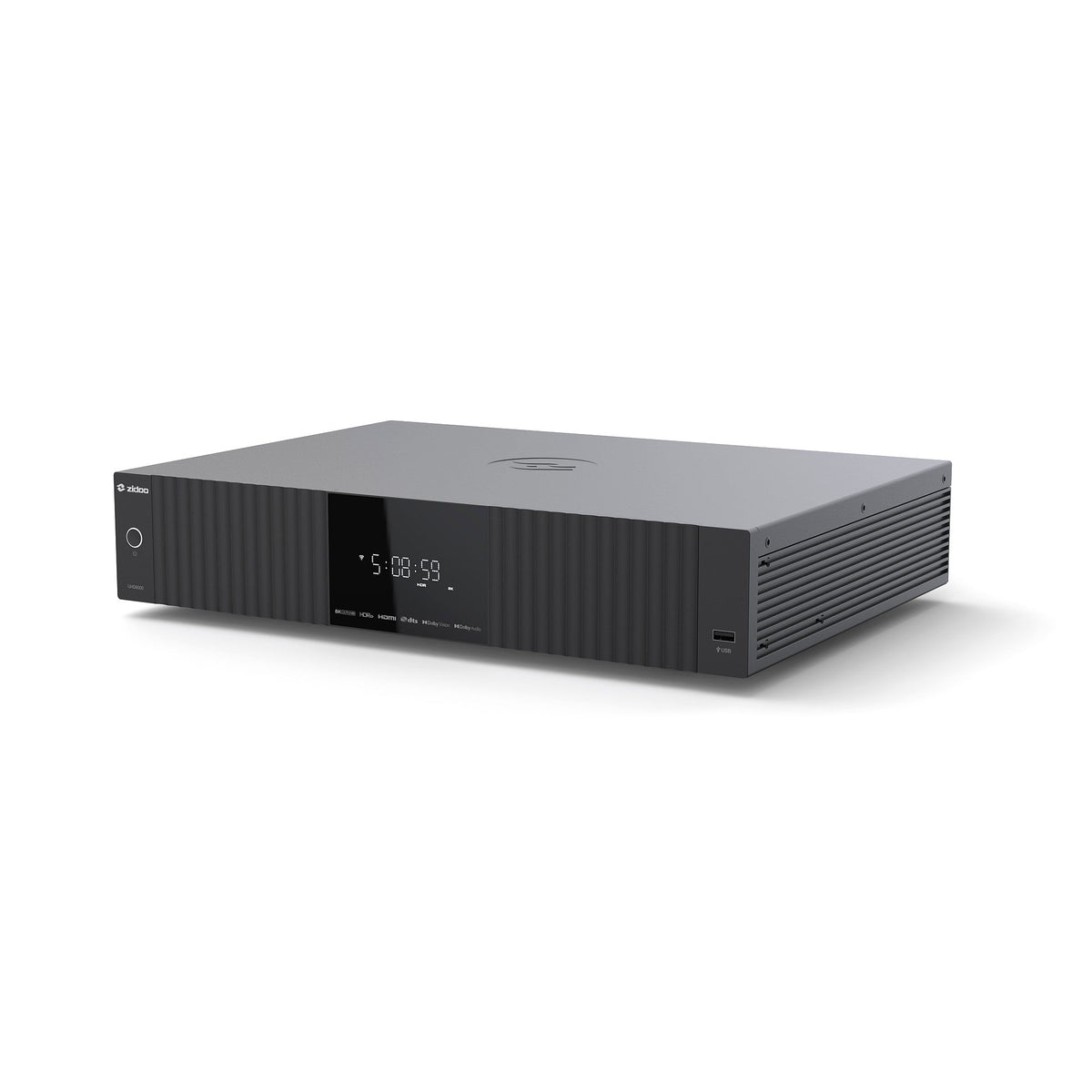

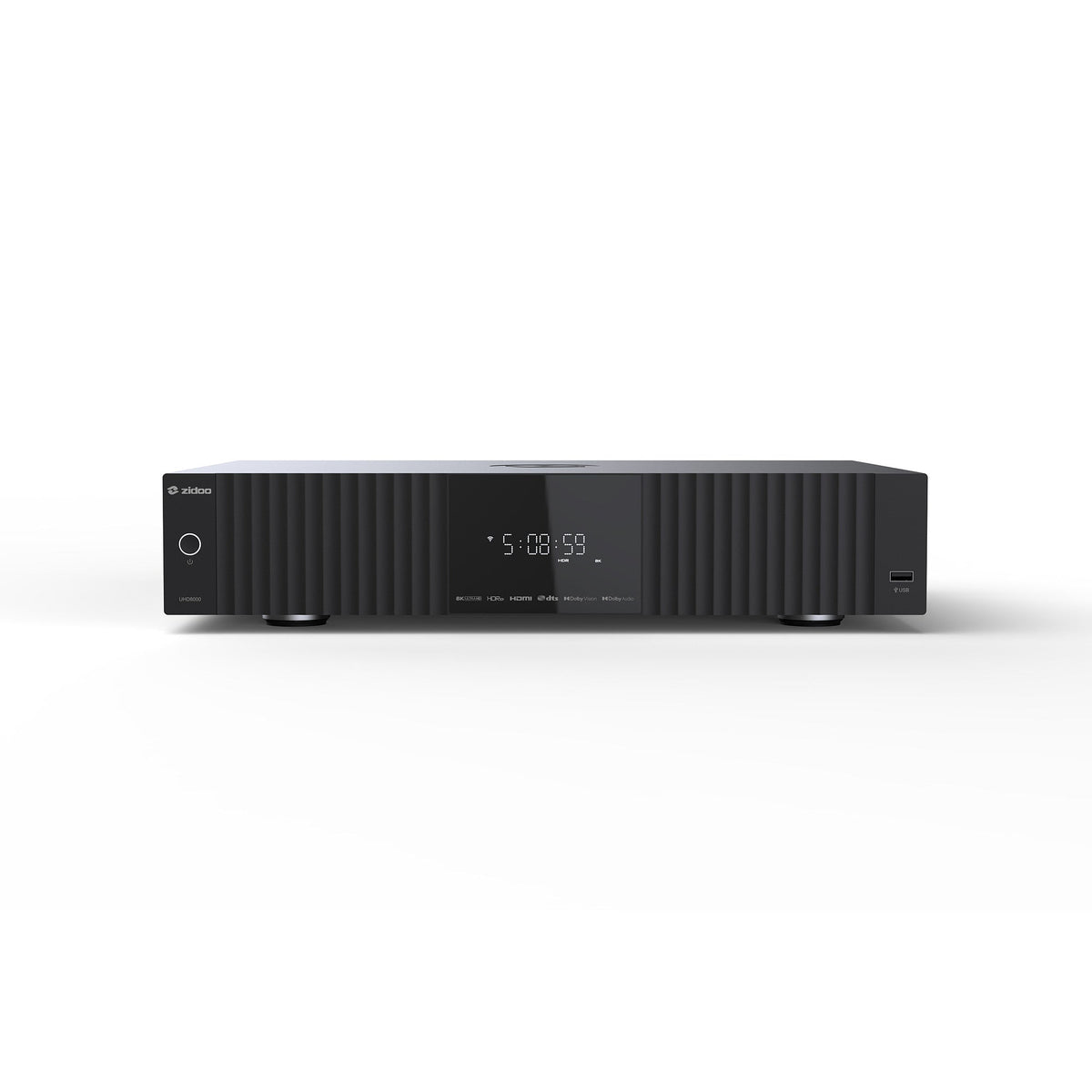

About the UHD8000

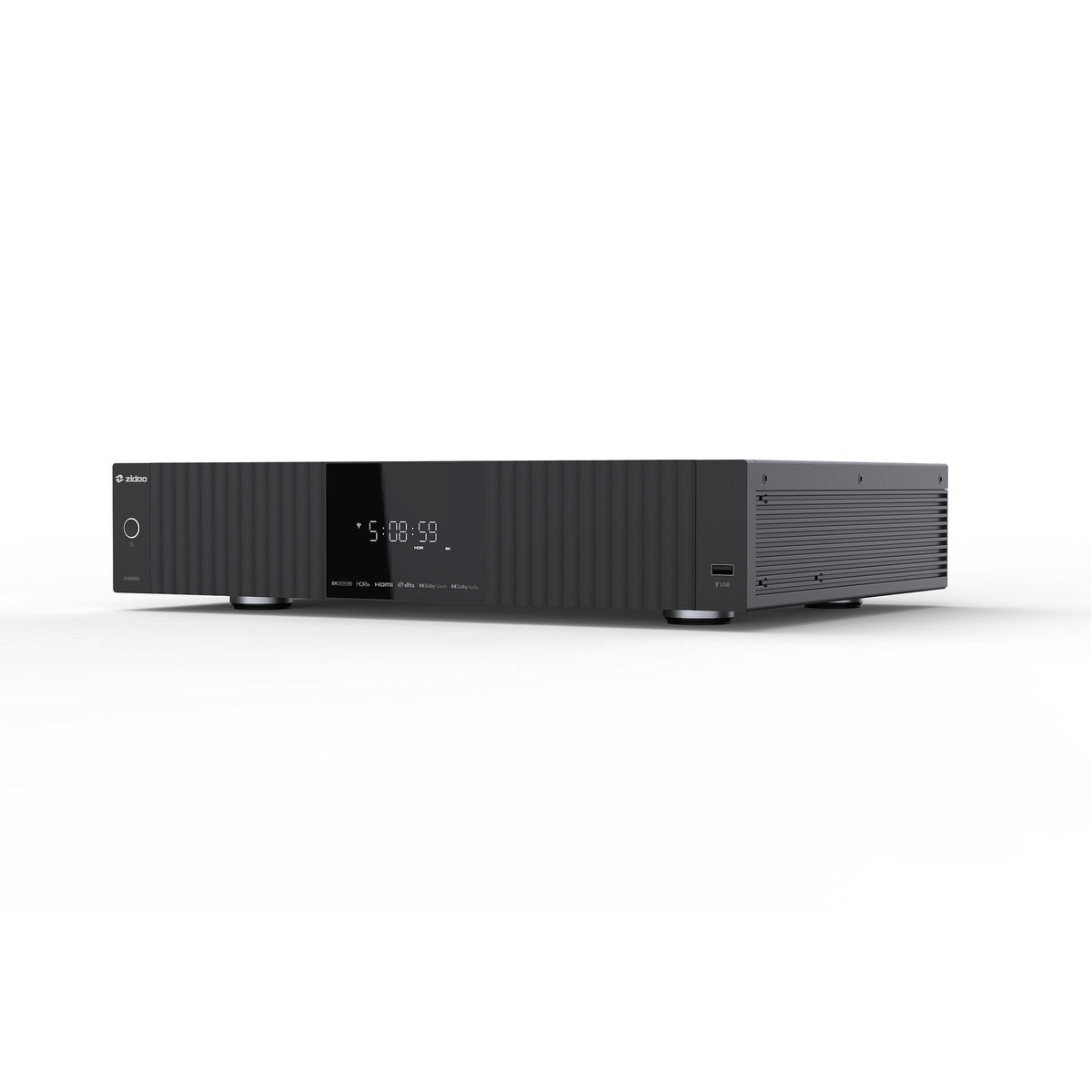

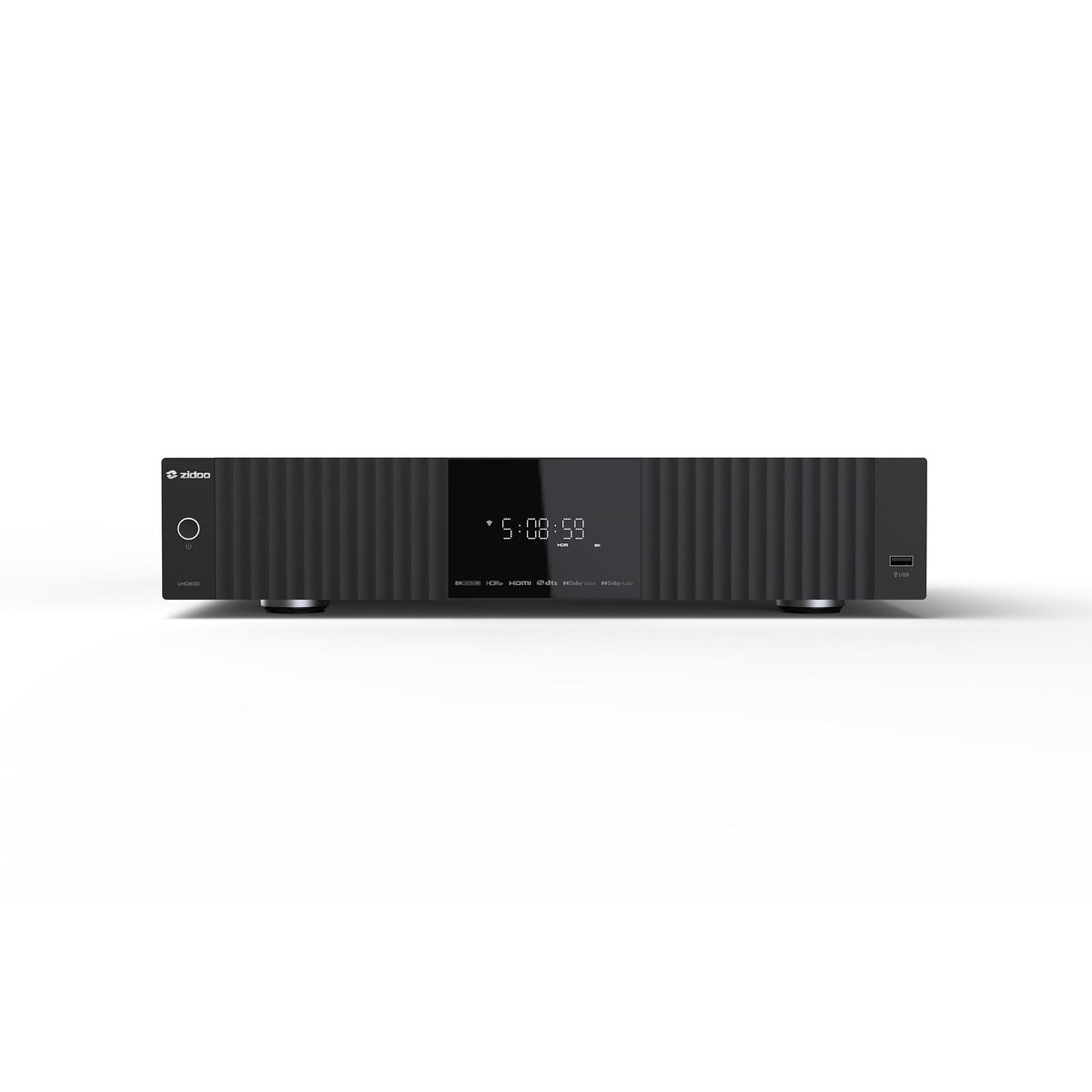

The UHD8000 is an 8K media player compatible with Dolby Vision and HDR10+ and built with high level craftsmanship all round. Equipped with a powerful Amlogic S928X-K chipset and 8GB DDR4 + 64GB eMMC of internal storage. The UHD8000 features dual HDMI port audio/video separation technology, developed by Zidoo. The HDMI main port is equipped with HDMI 2.1, supporting up to 8K/60 output. The second HDMI port is dedicated to audio only. The audio-video separation technology is better compatible with existing AV receivers and integrated receivers, no need to upgrade to 8K AV receivers.
The UHD8000 is also a high-performance music streamer & DAC, using the new ESS 9069 DAC chip for decoding and is equipped with powerful music library management functions. It supports various streaming protocols (TIDAL Connect, UPnP/DLNA, Squeeze lite) and integrates multiple music streaming services with API integration.
Features
- New generation Amlogic S928X-K 64-bit penta-core A76 + A55 high-performance multi-functional processor
- HDMI 2.1 supports 8K 60Hz point-to-point output
- Supports HDR (HDR10/HLG/HDR10+/Dolby Vision)
- 12-bit, BT.2020 wide colour range
- Supports Atmos/DTS X audio pass-through output
- 8GB DDR4 memory and 64GB eMMC internal storage
- Built-in VS10 engine for significantly improved image quality
- Dual HDMI output - audio & video can output on separate ports enabling 4K video & HD audio at the same time without requiring an AV receiver upgrade
- XMOS + ESS9069Q DAC supports decoding DSD512/PCM768KHz 32Bit
- Dual independent power supplies
- High-fidelity audio decoding output via XLR and RCA
- Supports USB DAC input

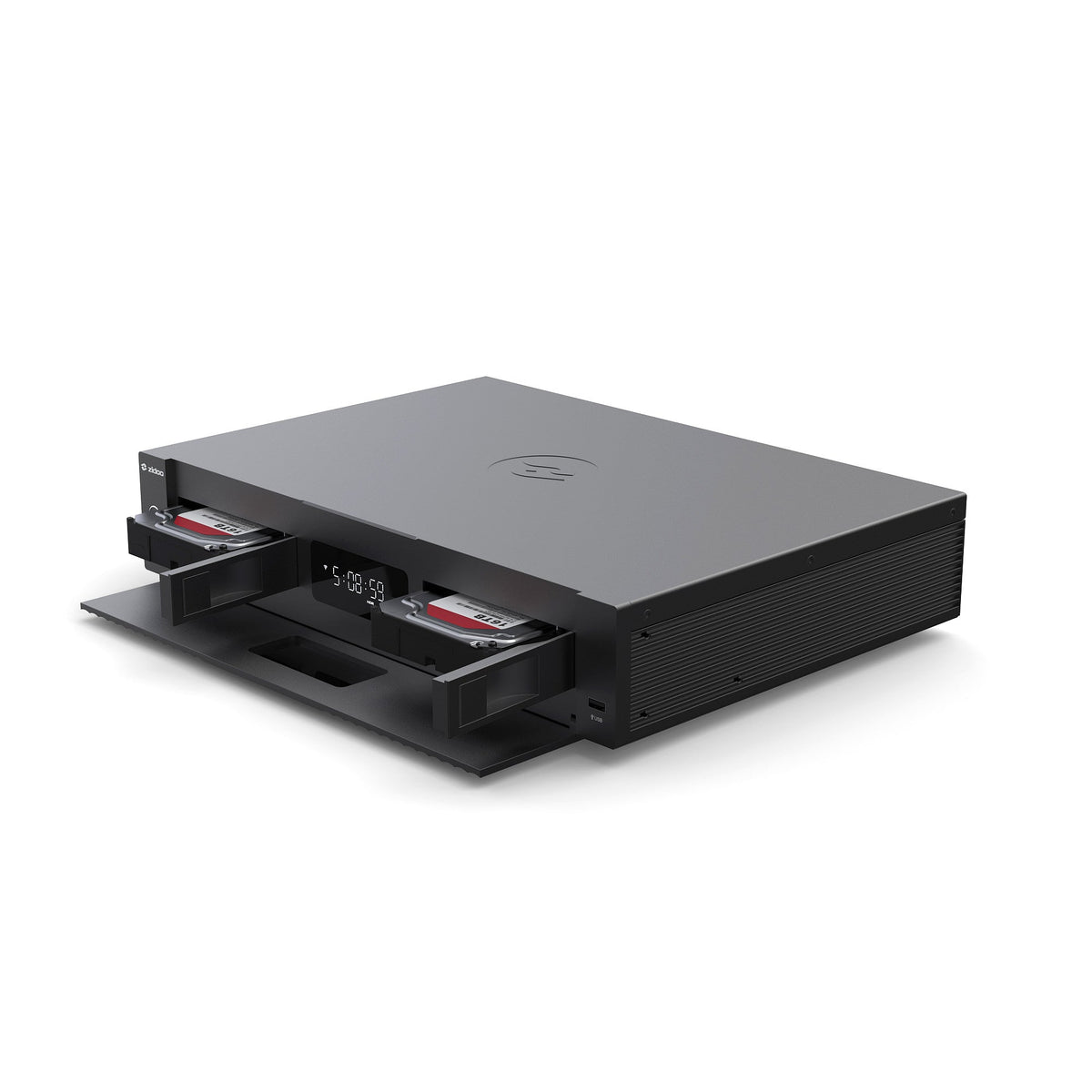

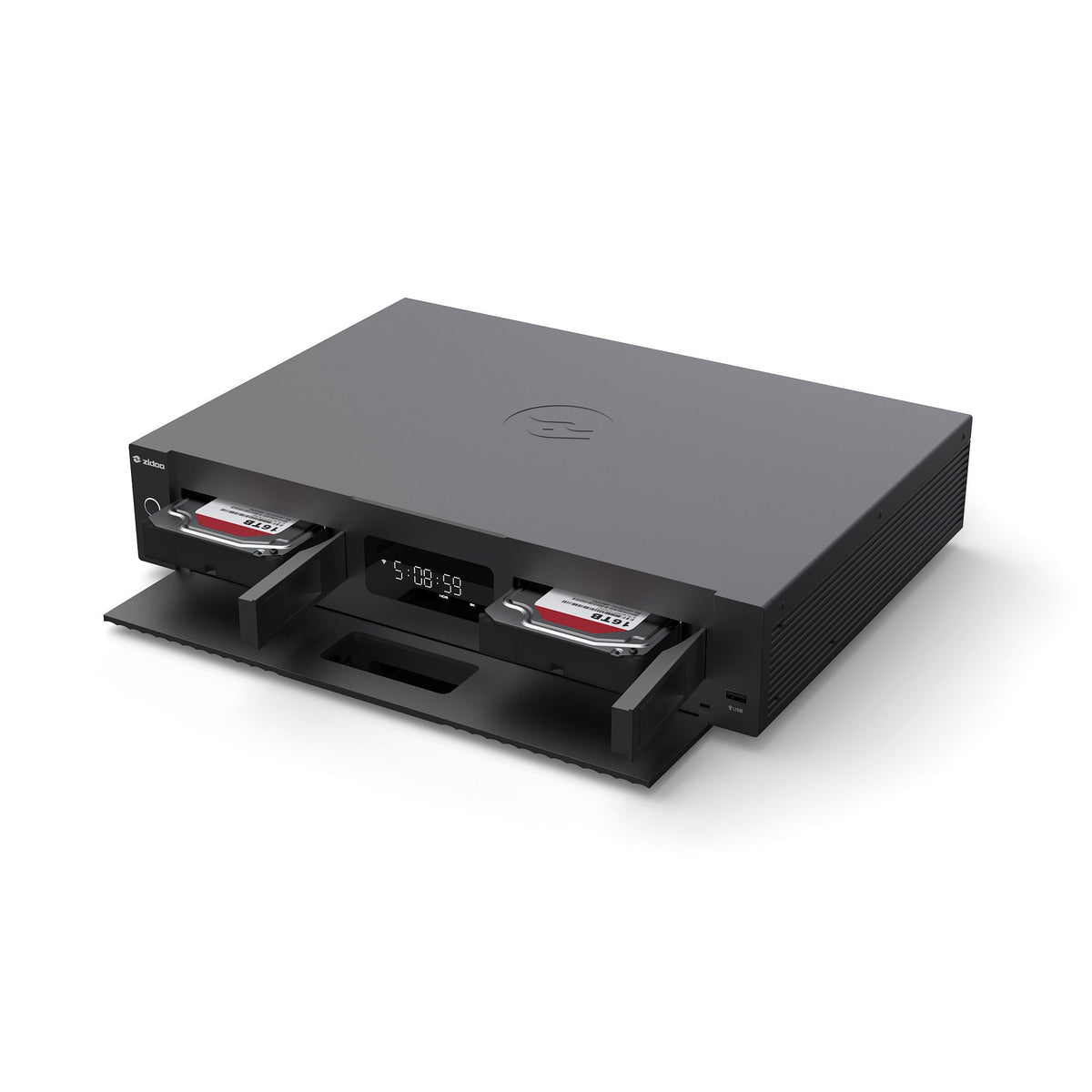

- Dual hidden NSS patented HDD bays supporting up to 16TB drives
- Supports external BD/DVD (unencrypted)/CD discs playback and CD ripping
- Supports acquiring and processing HDR10+ dynamic metadata, colours and brightness are processed frame by frame and scene by scene
- Advanced Dolby Vision technology supports LLDV (Player Led) and Standard mode (TV Led) output
- Automatic frame rate 23.976 and resolution switching output ensures smooth movie playback without interruption
- Supports BD/UHD Blu-ray menu playback and gapless branching playback of Blu-rays with complex MPLS structure
- Supports special effect subtitles, automatic download of network subtitles
- Supports dual forced subtitles for Blu-ray and MKV
- Supports access to network protocols like NFS, SMB v1/v2/v3, UPnP, Web DAV, and built-in SMB service
- New Poster Wall 4.0 supports movie trailers and user-friendly custom classification and management
- Supports lossless music playback in formats like DSD (SACD ISO, DSF, DFF), WAV, APE, DTS
- Upgraded music player 8.0 with brand new UI main interface, supports lossless playback and decoding, personalized settings, song data matching
- Supports HDMI 2.1® CEC control, RS232 control, Control 4, seamless integration into smart home
| Feature | Specification |
|---|---|
| Model | UHD8000 |
| Display Screen | LED |
| Chassis Material | Aluminum Alloy |
| OS | Android 11 |
| CPU | Amlogic S928X-K ARM Cortex-A76+Cortex-A55 (Penta-core) |
| GPU | ARM Mali-G57 MC2 |
| Storage | 8GB DDR4 + 64GB eMMC |
| Bluetooth | BT 5.2 |
| Wi-Fi | 2.4G + 5G dual-band Wi-Fi, 802.11 a/b/g/n/ac/ax 2T2R , 802.11ax MIMO OFDM |
| Ethernet | RJ-45 Ethernet jack (10/100/1000Mbps) * 1 |
| HDMI Output (Main) | HDMl 2.1a, supports up to 8K@60p, HDR10+,12Bit color depth, BT2020 wide color range; Supports HDR10, HDR10+,HLG, Dolby Vision; Supports Dolby Atmos and DTS X audio pass-through |
| HDMI Output (Audio Only) | HDMI separate audio and video output, supports Dolby Atmos and DTS X audio pass-through, as well as multi-channel PCM and DSD output |
| Video Decoding | 8K@60p AV1/VP9/H.265/AVS3/AVS2; HDR10, HDR10+, HLG, Dolby Vision |
| Audio Decoding | Supports Dolby/DTS format (up to Dolby TrueHD Atmos and DTS X) decoding, equipped with XMOS+ESS9069Q, supports up to PCM 768kHz@32Bit, DSD 512 decoding |
| Streaming | Supports DLNA/Squeeze lite/TIDAL connect streaming (supports TIDAL Connect ATMOS streaming) integrates a wide range of music streaming services |
| USB Audio Input | Supports Windows 10/11, Mac system, Android system, supports up to 2-channel DSD512, PCM 768KHz@32bit PCM decoding |
| Audio Output | USB output, Optical output1, Coaxial output1, RCA L/R channel output1, XLR L/R channel balanced output1 |
| Analog Audio Characteristics | Frequency range: 20Hz-20KHz +/-0.15dB; SNR: >123dBrA THD+N:<0.00015%; Output level: (XLR) 4.2Vrms. (RCA) 2.1Vrms.; DNR:>123dB; Crosstalk:135dBrA |
| Intelligent Control | APP control for iPhone,iPad landscape mode,Android phone,Android tablet landscape mode, RS-232, TCP/IP control (supports WOL) |
| SATA | Two built-in 3.5''HDD bays with SATA 3.0 specification (HDDs not included) |
| USB | USB 3.0 * 2, USB 2.0 * 1 |
| Power Supply | AC 110 |
| Other Interfaces | Infrared receiver1, RS2321, Trigger Out 3.5 headphone jack1, IR IN 3.5 headphone jack1 |
| Accessories | Remote control * 1 Power adapter * 1 SATA cable *1 HDMI cable *1 High-gain antennas * 3 User manual * 1 |
| Dimensions | 430mmx312mmx80mm |
| Product Weight | 5.9Kg (excluding accessories) |
Cinema design
Part of something bigger.
The UHD8000 is one piece of a room. We design the screen, speakers, acoustics and seating around it, then install and calibrate the lot, so it all works as one.
