Zidoo NEO α(Alpha)
Specifications
- Model
- NEO α(Alpha)
- Display
- 5-inch OLED HD touch screen
- Chassis
- Aviation aluminum alloy
- CPU
- Realtek RTD1619DR ARM Cortex-A55(hexa-core)
- GPU
- ARM Mali-G51 MP3
- DAC
- ESS 9038Pro
- Audio Processor
- XMOS XU216
- Internal SSD
- 512G SSD (M.2 SATA 3.0 2280 interface protocol, up to 1TB)
- SATA
- Internal SATA3.0 HDD bay*1 (support 2.5/3.5 inch HDD，hard drives are not included)
- Wi-Fi
- 2.4G+5G dual band WiFi, 802.11 a/b/g/n/AC 2T2R MIMO 867Mbps
- Ethernet
- RJ-45(10/100/1000Mbps)
- HDMI Main Output
- HDMI 2.0a support 4K@60fps/12Bit/HDR/BT2020/YCbCr 4:4:4 video ouput, Support audio passthrough
Show all 31 specificationsShow fewer
- HDMI DSD Audio Output
- HDMI 1.4, Music: support DSD 64 2CH/5.1CH(DSD Native), Movie: support audio passthrough
- Video Decoding
- 4K@60p HEVC/H.265 12Bit HDR10, HDR10+, Dolby Vision
- Audio Decoding
- Support true-hd HD audio passthrough, stereo PCM decoding
- DAC Audio Decoding
- Support up to stereo DSD512, PCM 768KHz 32Bit, MQA
- Bluetooth Audio Input
- Qualcomm QCC5125 bluetooth module(BT5.0), Support audio protocols such as SBC/AAC/aptX/aptX LL/aptX HD/LDAC
- USB Audio Input
- USB Audio compatible system: Windows（7，10）、Mac、Android、iOS, Support up to stereo DSD512, PCM 768KHz 32Bit, MQA
- Digital Audio Input
- USB DAC input, Coaxial input, Optical input, Bluetooth audio input
- Digital Audio Output
- Optical output, HDMI output, USB Audio output, Bluetooth audio output
- Analog Audio Output
- Preamplifier output: XLR(balanced), RCA, Headphone amplifier output: 6.35mm single end
- USB
- USB3.0*2，USB2.0*2
- Control Methods
- Remote control, Mobile APP control, Touch screen control, TCP/IP control（WOL), RS232 serial port control, IR IN interface control
- Headphone Impedance
- 16-300Ω (loe-gain mode: 16-32Ω/high-gain mode: 32-300Ω)
- XLR(balanced) Output
- Output Level(Vrms): 4.3 Vrms, THD+N: -115dB（0.000167%@1kHz）, Noise: less than 2uVrms, SNR: 127dB@1kHz, frequency response: ±0.25dB(20Hz-20kHz), CROSSTALK: -130dB@1kHz, DNR: 127dB@1kHz
- RCA(single-ended) Output
- Output Level(Vrms): 2.1 Vrms, THD+N: -114dB(0.000185%@1kHz), Noise: less than 2uVrms, SNR: 124dB@1kHz, frequency response: ±0.25dB(20Hz-20kHz), CROSSTALK: -126dB@1kHz, DNR: 125dB@1kHz
- Headphone 6.35mm Single-Ended Output(low-gain mode)
- Output Level(Vrms): 1.1 Vrms, THD+N: -109dB(0.00035%@1kHz), Noise: less than 2uVrms, SNR: 123dB@1kHz, frequency response: ±0.25dB(20Hz-20kHz), CROSSTALK: -123dB@1kHz, DNR: 123dB@1kHz, Max Power: 76mW(16Ω)/38mW(32Ω)
- Headphone 6.35mm Single-Ended Output(high-gain mode)
- Output Level(Vrms): 3.4 Vrms, THD+N: -111dB(0.00035%@1kHz), Noise: less than 2uVrms, SNR: 124dB@1kHz, frequency response: ±0.25dB(20Hz-20kHz), CROSSTALK: -123dB@1kHz, DNR: 124dB@1kHz, Max Power: 361mW(32Ω)/39mW(300Ω)
- Power Supply
- AC 110~240V 50/60Hz
- Dimensions
- 430mm(W)*300mm(D)*105mm(H)
- Packing List
- Remote control*1, Power cable*1, Hard drive fixing screws*4, Screwdriver*1, User Manual*1
In detail

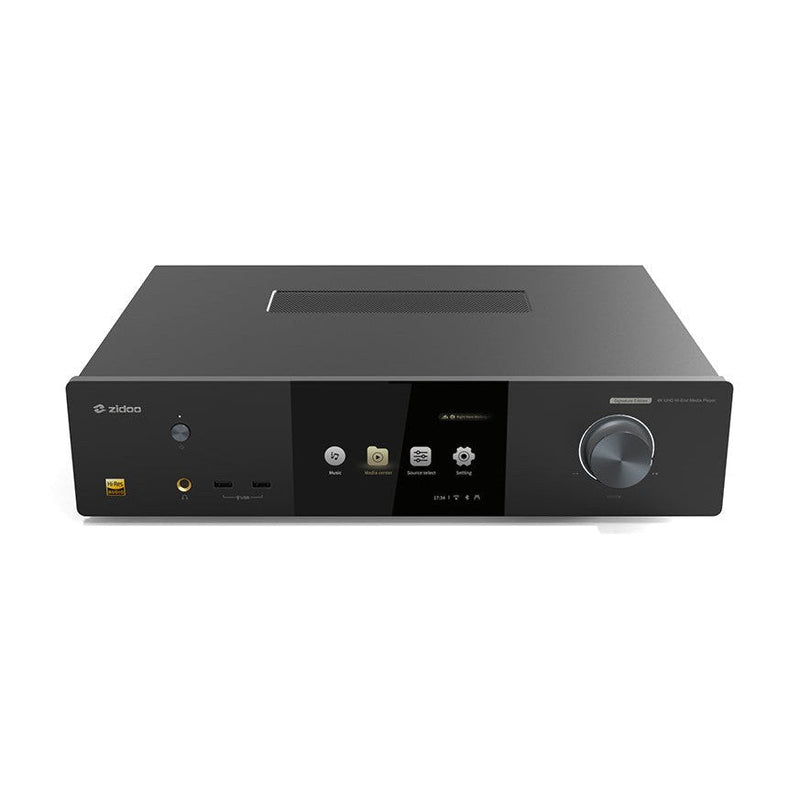

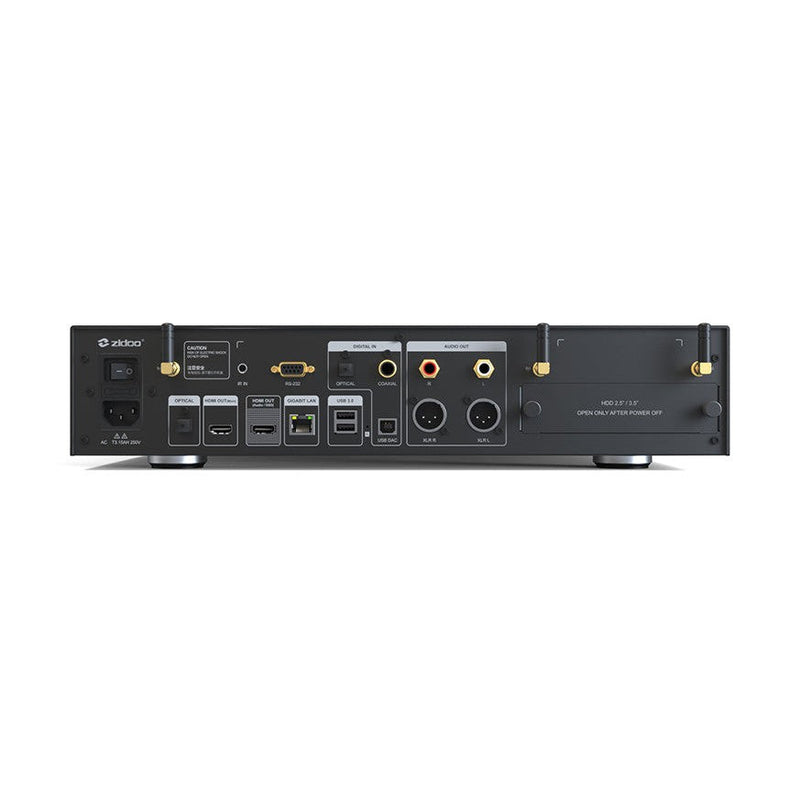

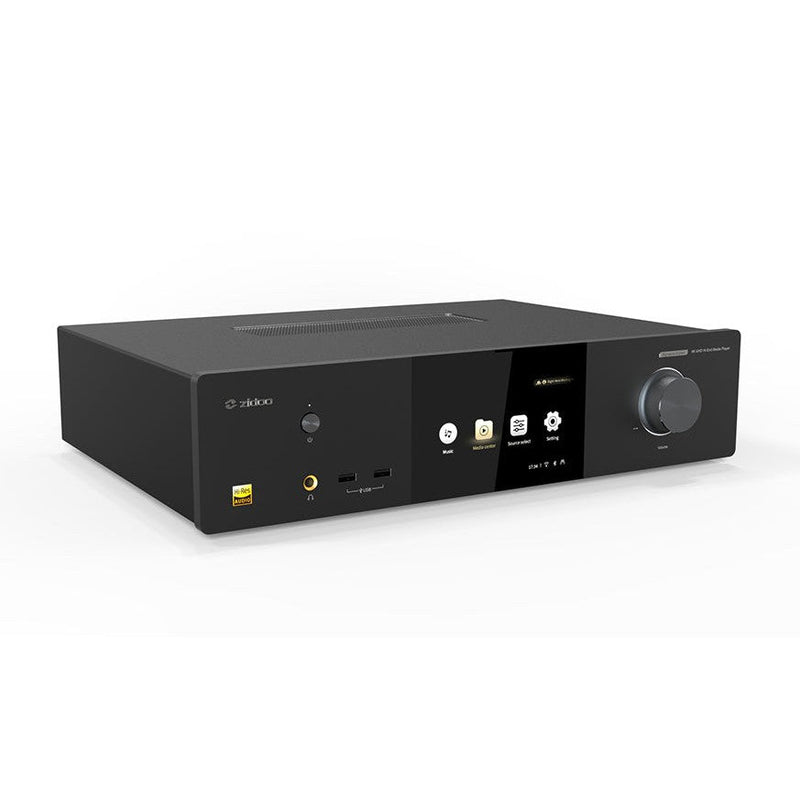

About the NEO α(Alpha)
Now discontinued
- 4K UHD Media Player
- Music Streamer
- AV Media Centre
- 430mm Standard Dimension, All-aluminium Thickened Chassis & Silent Passive Heat Dissipation
- 4G DDR4 RAM & 32G eMMC Storage + 512G SSD Local Media Storage
- Hi-Fi & Monitoring Headphone Amplifier
- Hi-Fi Music & Bluetooth Decoder
- Dolby & DTS Advanced Surround Audio Formats
- XLR Balanced & RCA Analog Audio Preamp Output
- 5-inch OLED Touch-Screen Display
- Dual Independent Large Toroidal Linear Power Supplies
The NEO α(Alpha) is Zidoo's flagship high-end audio-visual integrated solution for 2022. It converges years of technologies and brings the ultimate audio visual experience for enthusiasts. Supporting 4K@60Hz UHD image quality and Dolby Vision high dynamic range technology, as well as cutting edge audio processing, the Zidoo NEO α(Alpha) is built to amaze. Once again Zidoo have built the NEO α(Alpha) from the ground up with top materials and luxurious components, including double toroidal linear power supplies, a flagship ES9038Pro DAC chip, a high-end digital decoder solution and a 5-inch OLED touch screen.
