- Input Impedance
- 33 kΩ
- Frequency Response
- 20 Hz – 20 kHz (±0.1 dB)
- Dimensions (W × H × D)
- 210 × 85 × 277 mm
- Weight
- 3.6 kg
Price $1,899
Includes GST
Voted Australia's #1 Hi-Fi Retailer, Sound+Image Awards 2023. Family owned since 2010.
Hear the KHV200s before you decide
Book a private listening session in Belrose and ask for the KHV200s: we will confirm what we can set up for you. Or audition it at home.
Delivery and collection
Free standard shipping on orders of $300 or more within Australia, and $15 on smaller orders. Western Australia is quoted on request.
Pick up from our Belrose showroom: call ahead so we can have it ready.
Set-up and installation
Our team can deliver, install and set up your system, from speaker placement to a full cinema calibration. Ask us for a quote when you order.
Returns
Your rights under Australian Consumer Law always apply. Read our returns policy.
Vincent KHV200s
Specifications
- Frequency Response
- 20 Hz – 20 kHz (±0.1 dB)
- Total Harmonic Distortion (THD)
- < 0.01% (1 kHz; 0.1 W; 32 Ω)
- Signal-to-Noise Ratio (SNR)
- > 95 dB
- Input Impedance
- 33 kΩ
- Max Input Voltage
- 4 Veff
- Nominal Amplification – Headphone Out
- Low Gain: -2.66 dB, High Gain: +13.64 dB
- Nominal Amplification – Preamp Out
- Low Gain: -11.06 dB, High Gain: +5.13 dB
- Nominal Amplification – Record Out
- 0 dB
- Inputs
- 2 × Stereo RCA
- Outputs
- 1 × Stereo RCA Pre Out, 1 × Stereo RCA Rec Out, 1 × 6.3 mm Stereo Jack Headphone, 1 × XLR 4-pin Stereo Headphone
- Tubes
- 2 × E180F / 6SCH9P, 1 × ECC82
- Colour Options
- Black / Silver
Show all 14 specificationsShow fewer
- Weight
- 3.6 kg
- Dimensions (W × H × D)
- 210 × 85 × 277 mm
In detail

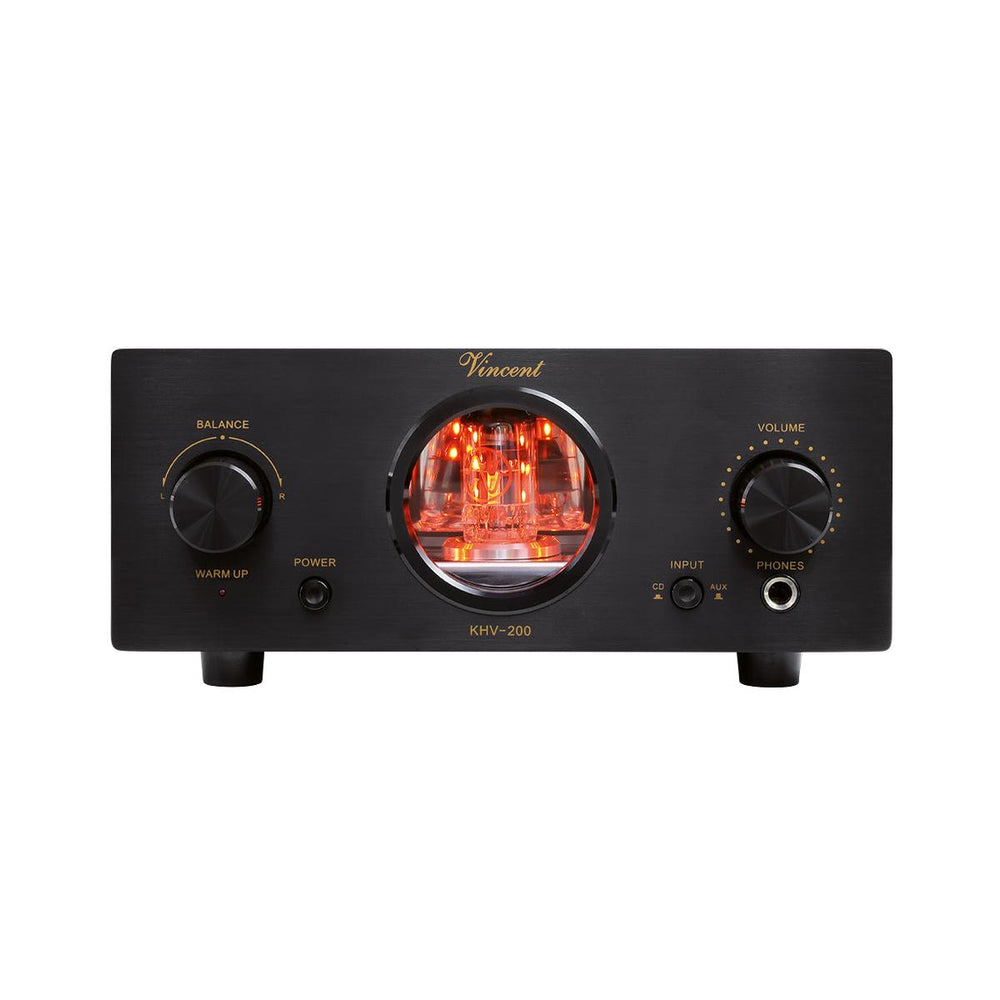

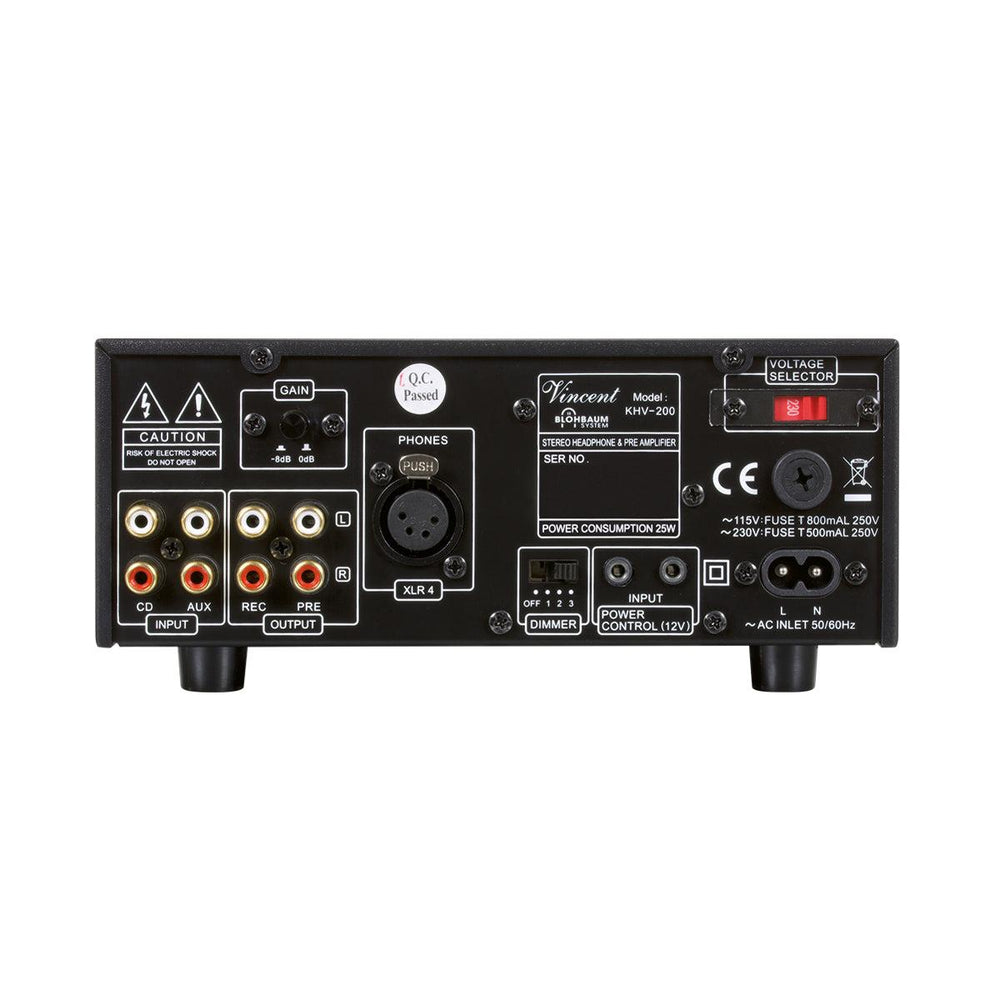

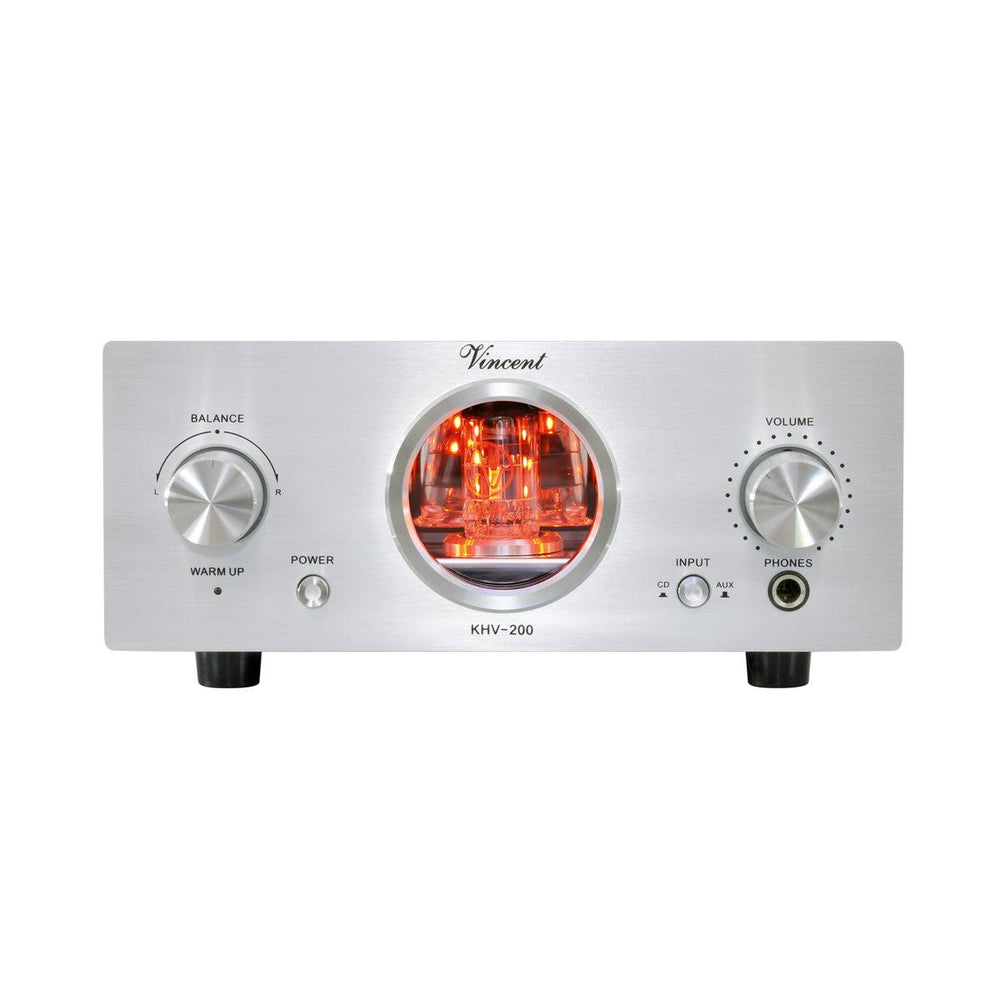

About the KHV200s
To get the best sound quality of your headphones, an external headphone amplifier is needed. In collaboration with degreed engineer Frank Blöhbaum we developed the KHV-200. It was designed that almost every headphone could be driven with the best sound quality. Beside a 6.3mm headphone socket it also has an 4 pin XLR socket for the connection of high end headphones.
Technical Specifications
| Specification | Details |
|---|---|
| Frequency Response | 20 Hz – 20 kHz (±0.1 dB) |
| Total Harmonic Distortion (THD) | < 0.01% (1 kHz; 0.1 W; 32 Ω) |
| Signal-to-Noise Ratio (SNR) | > 95 dB |
| Input Impedance | 33 kΩ |
| Max Input Voltage | 4 Veff |
| Nominal Amplification – Headphone Out | Low Gain: -2.66 dB, High Gain: +13.64 dB |
| Nominal Amplification – Preamp Out | Low Gain: -11.06 dB, High Gain: +5.13 dB |
| Nominal Amplification – Record Out | 0 dB |
| Inputs | 2 × Stereo RCA |
| Outputs | 1 × Stereo RCA Pre Out 1 × Stereo RCA Rec Out 1 × 6.3 mm Stereo Jack Headphone 1 × XLR 4-pin Stereo Headphone |
| Tubes | 2 × E180F / 6SCH9P, 1 × ECC82 |
| Colour Options | Black / Silver |
| Weight | 3.6 kg |
| Dimensions (W × H × D) | 210 × 85 × 277 mm |
