SKU SP3894AA
KEF - Ci200RS-THX - In-Wall Speakers
by KEF
$1,200.00
Lightning Fast Free Delivery*
Don't wait to start your audio adventure. With our lightning-fast delivery, your new high-fidelity audio equipment will be at your doorstep before you know it.
Check Out Our Thousands Of Reviews
Our services hit the high notes, but don't just take our word for it. Scroll down to read the rave reviews from our chorus of happy customers. They've heard the difference, and you can too.
Overview

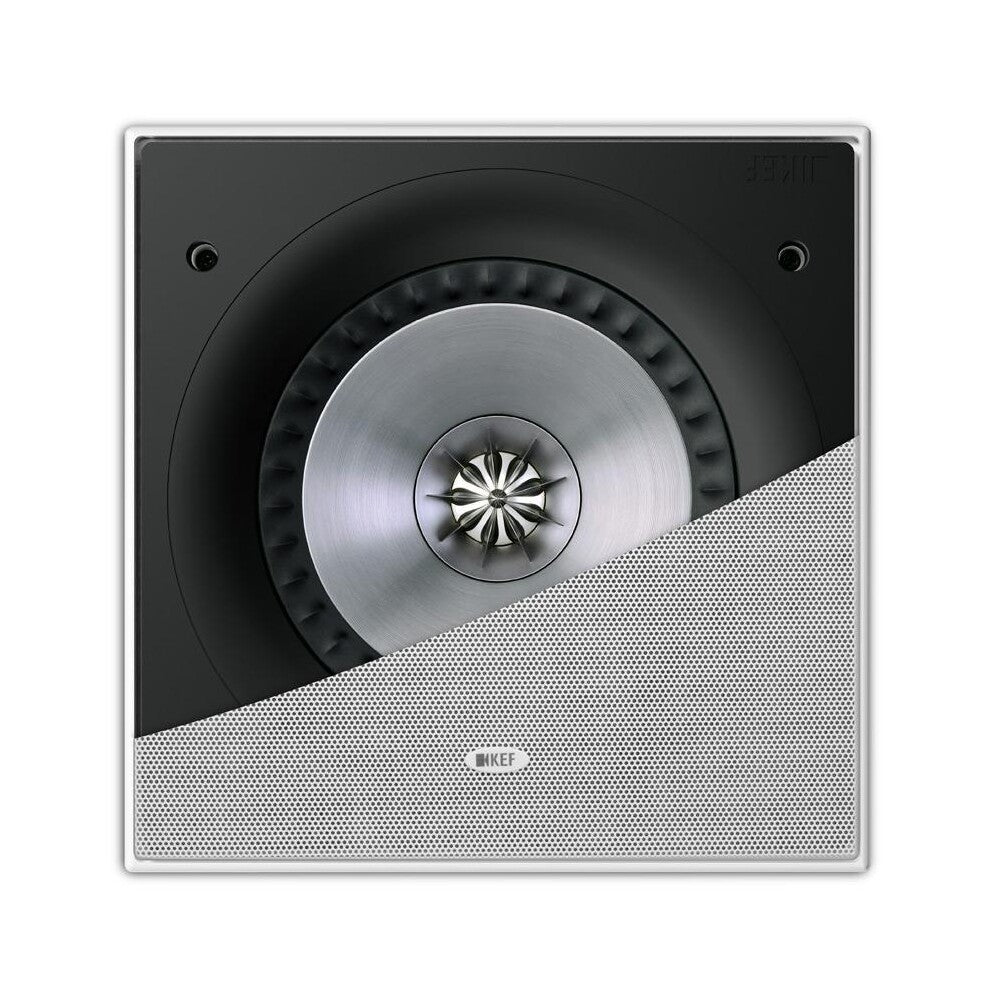

The Ci200RS-THX is a square Ci-R Series architectural speaker certified to THX Certified Ultra. KEF presents it as the in-wall partner to the round Ci200RR-THX, and it can also be fitted in a ceiling.

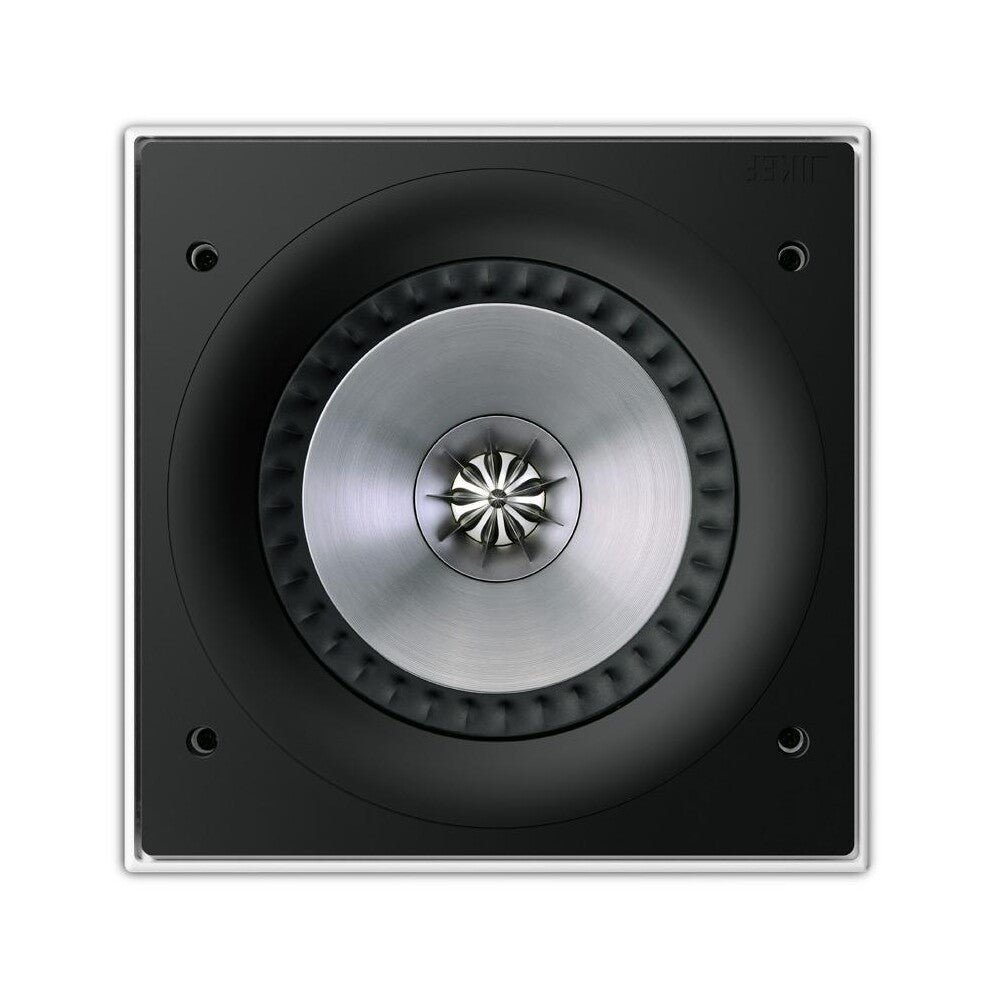

Its Uni-Q driver pairs a 200 mm aluminium woofer with a large magnet and Z-Flex surround with a 38 mm vented aluminium dome tweeter and tangerine waveguide.
Drivers and Technology
- 200 mm (8 in.) Uni-Q driver with Z-Flex surround
- 38 mm (1.5 in.) vented aluminium dome tweeter with tangerine waveguide
- Two-way design, crossover at 2.2 kHz
- THX Certified Ultra
Installation
- In-wall or in-ceiling mounting, square cut-out 240 x 240 mm
- Mounting depth from surface 127 mm
- Ideal rear volume 20 L, minimum rear volume 10 L
- Optional RIF200S rough-in frame (sold separately)

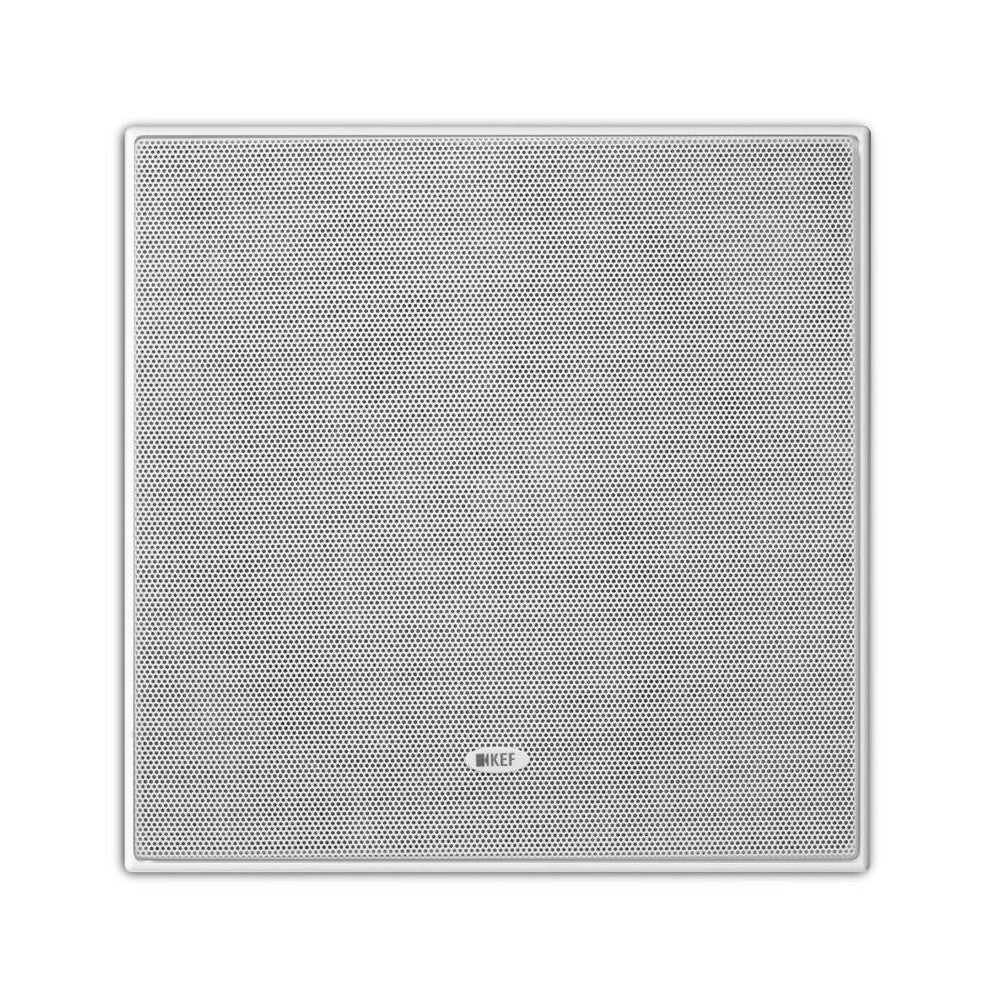

- Ultra-Thin Bezel (UTB) with paintable magnetic grille
- IP64 dust and water rating
Specifications
| Design | Two-way square in-wall / in-ceiling speaker, Ci-R Series |
| Drive Units | LF: 200 mm (8 in.) Uni-Q HF: 38 mm (1.5 in.) |
| Frequency Response (±6 dB, open-backed) | 33 Hz - 28 kHz |
| Frequency Range (-10 dB) | 28 Hz - 35 kHz |
| Crossover Frequency | 2.2 kHz |
| Sensitivity (2.83 V/1 m) | 90 dB |
| Nominal Impedance | 4 ohms |
| Nominal Coverage | 120° |
| Maximum SPL | 106 dB |
| Recommended Amplifier Power | 10 - 190 W |
| Recommended High-Pass Filter | 35 Hz - 80 Hz (80 Hz for THX specification) |
| Product Dimensions (H x W x D) | 273 x 273 x 132.6 mm |
| Cut-Out Dimensions (H x W) | 240 x 240 mm |
| Mounting Depth From Surface | 127 mm |
| Ideal / Minimum Rear Volume | 20 L / 10 L |
| Optional Rough-In Frame | RIF200S |
| Net Weight | 3.6 kg |
| Dust and Water Rating | IP64 |
| Certification | THX Certified Ultra |
| Unit | Sold individually |
