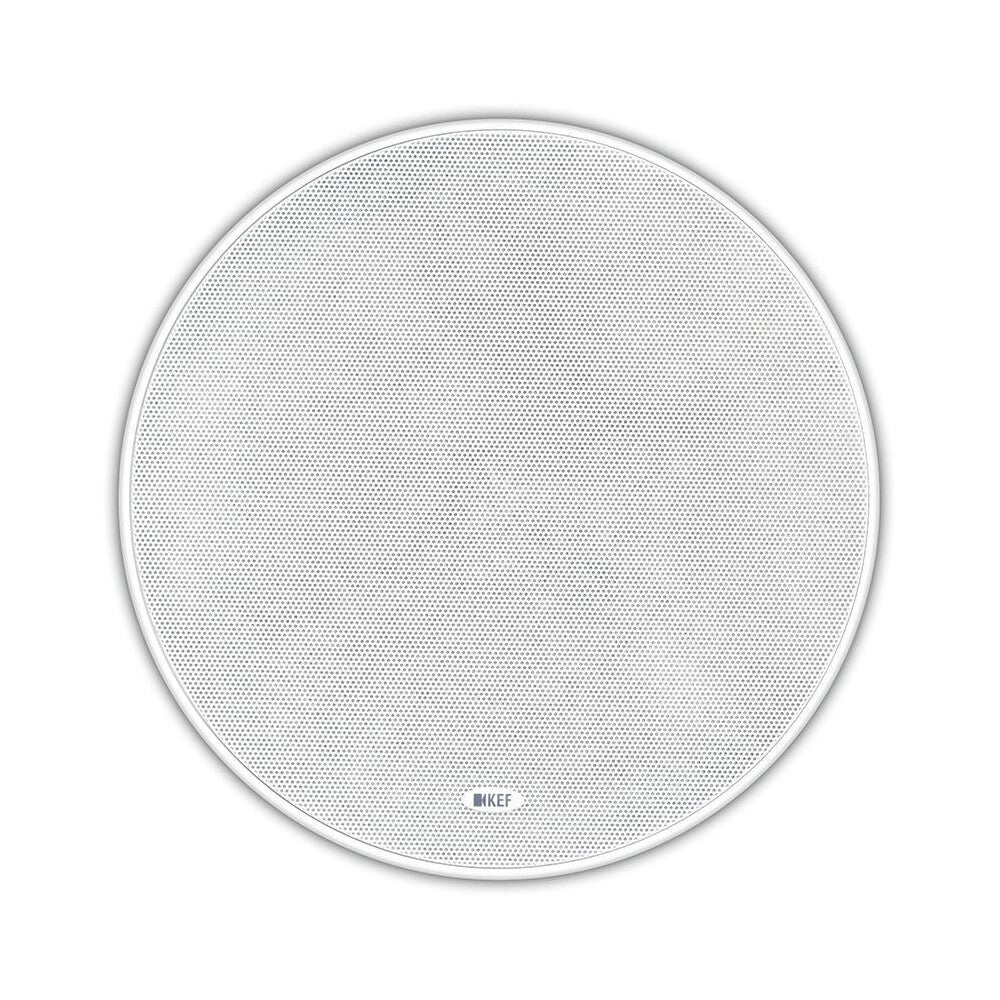

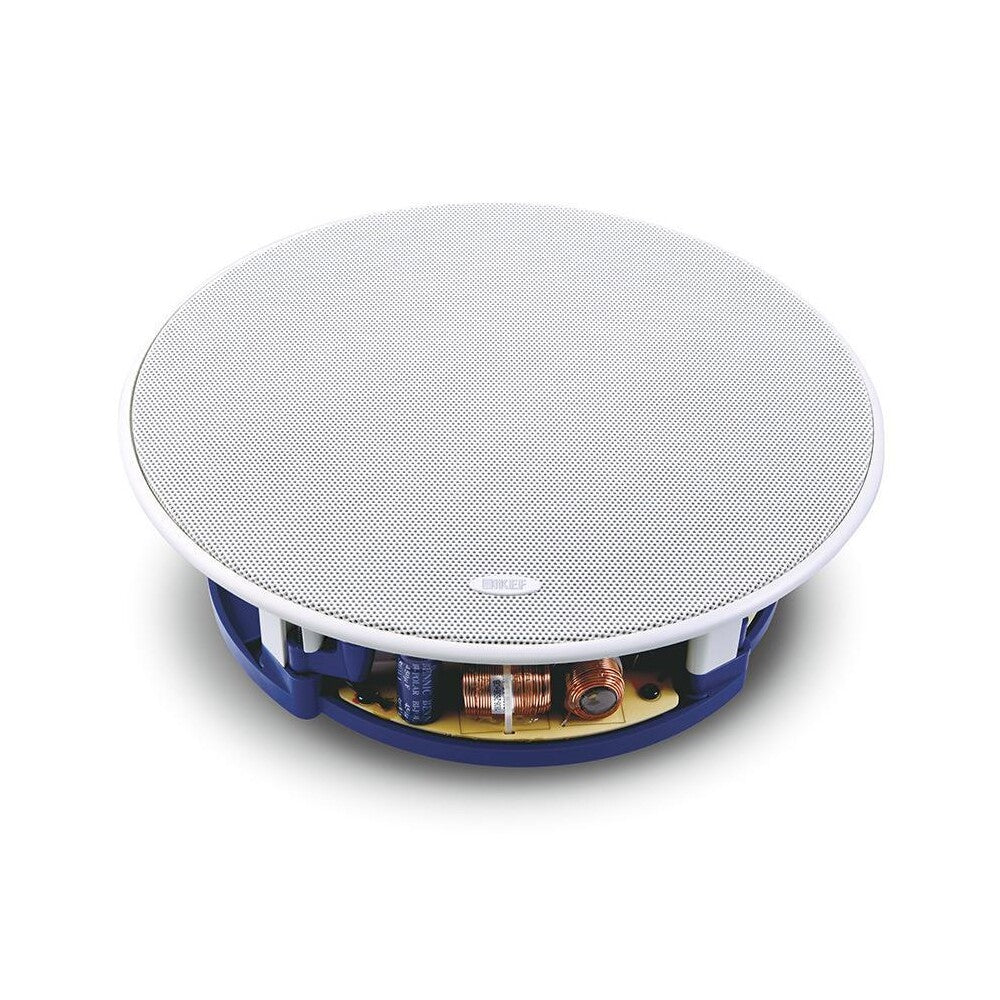

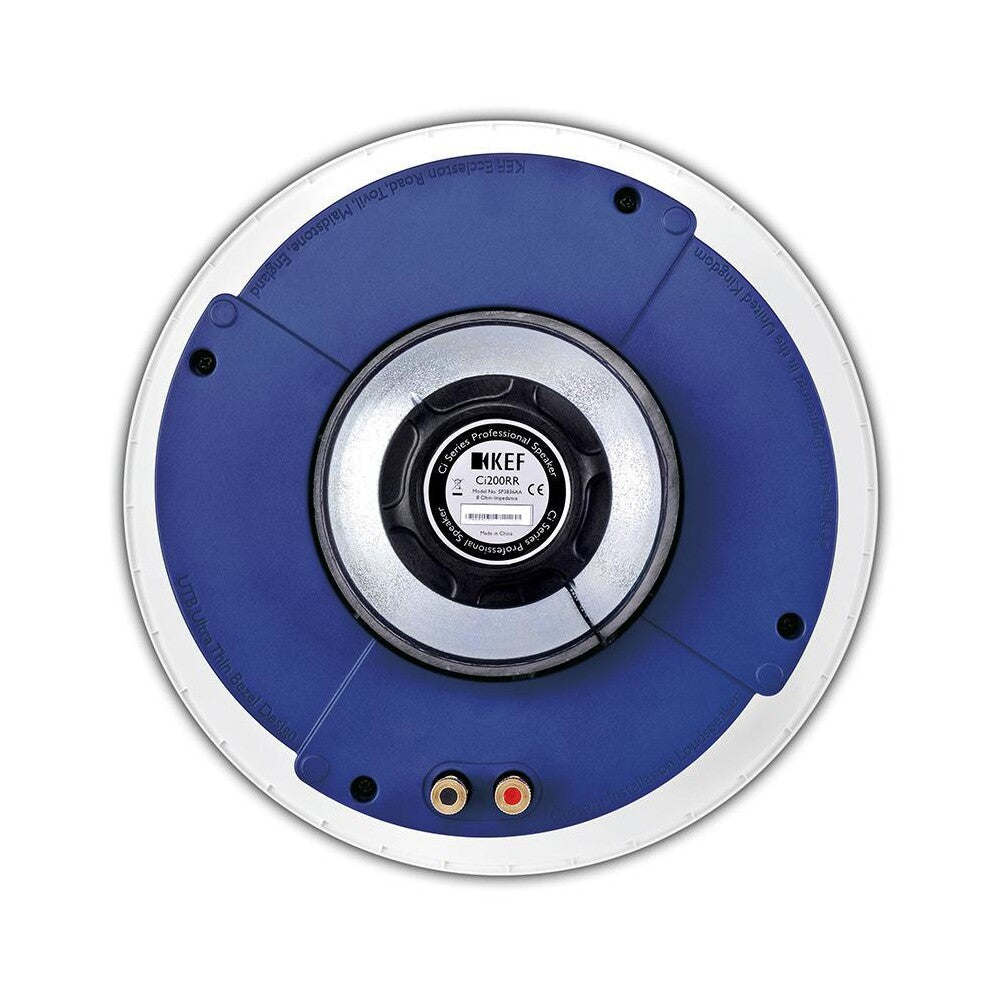

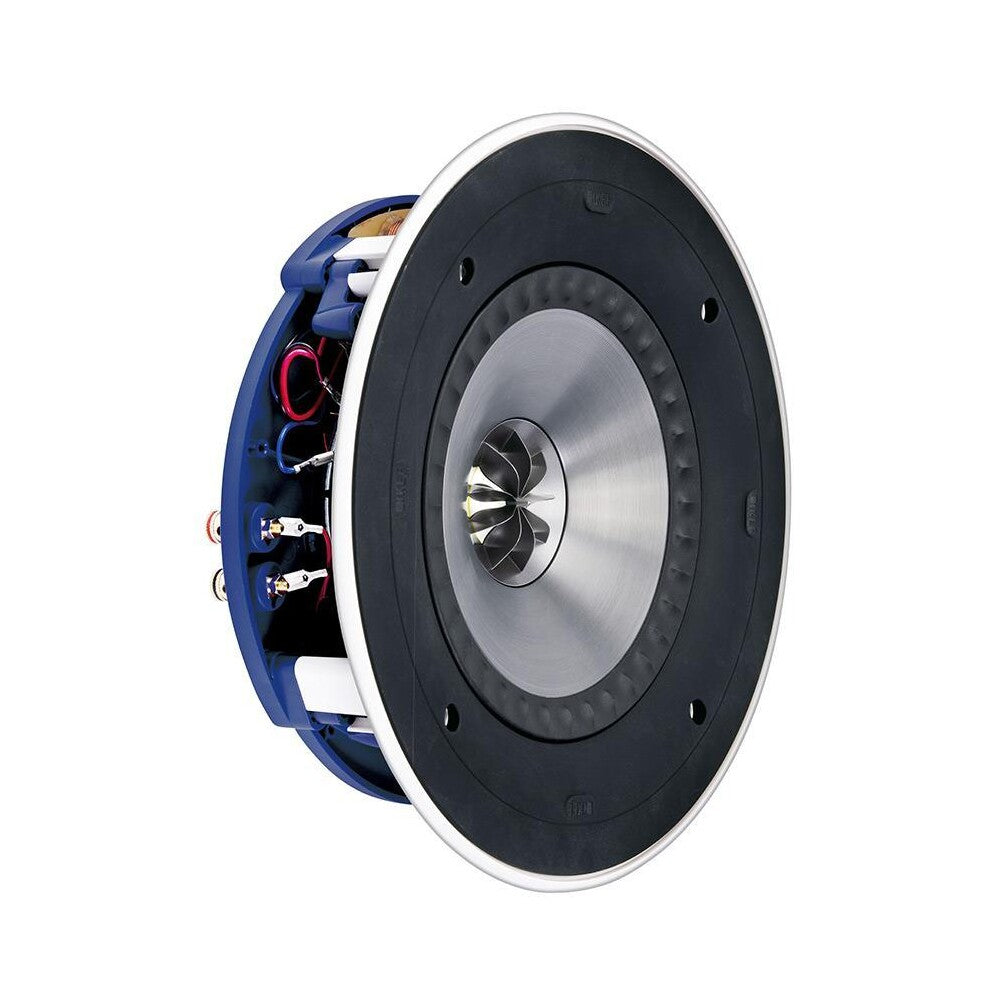

KEF - Ci200RR-THX - In-Ceiling Speakers
by KEF
$1,200.00
Lightning Fast Free Delivery*
Don't wait to start your audio adventure. With our lightning-fast delivery, your new high-fidelity audio equipment will be at your doorstep before you know it.
Check Out Our Thousands Of Reviews
Our services hit the high notes, but don't just take our word for it. Scroll down to read the rave reviews from our chorus of happy customers. They've heard the difference, and you can too.
Overview
The Ci200RR-THX is a round Ci-R Series in-ceiling speaker certified to THX Certified Ultra. KEF designed it as an in-ceiling LCR (left, centre, right) speaker for home theatres, including large rooms.

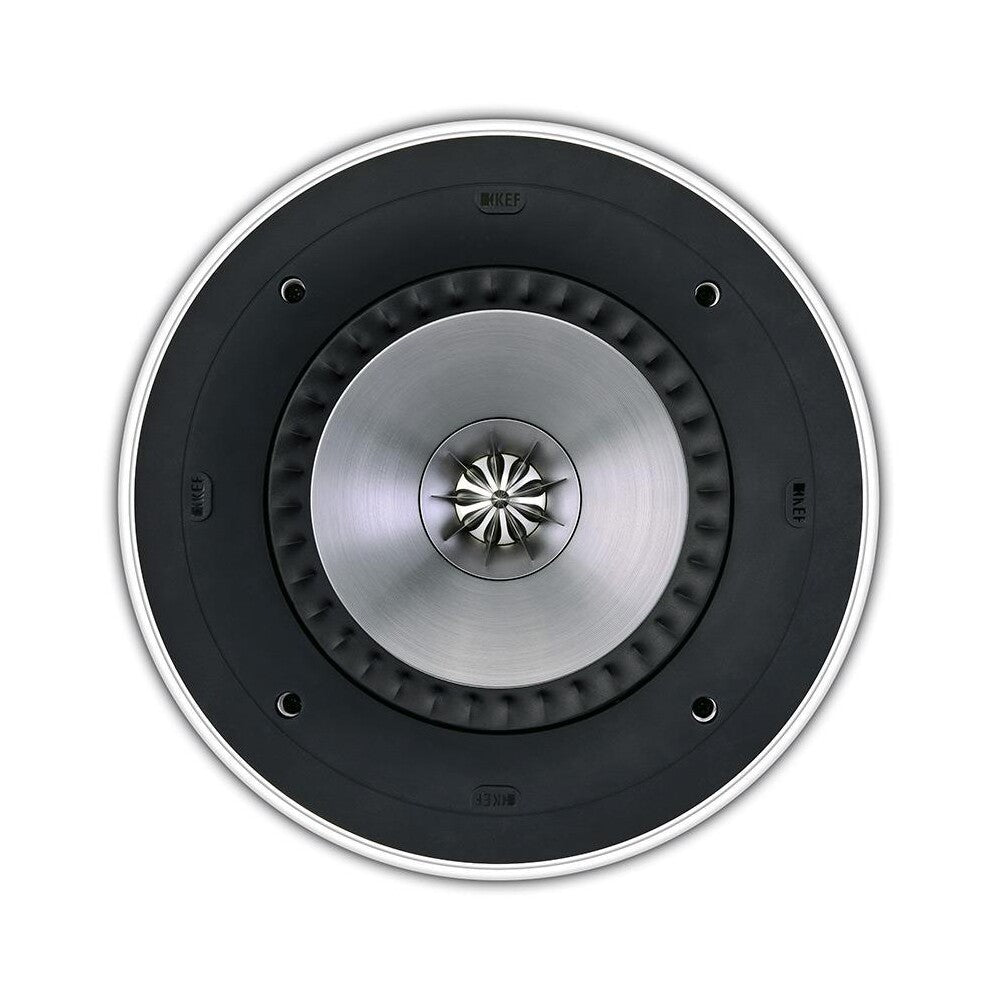

Its Uni-Q driver pairs a 200 mm aluminium woofer with a large magnet and Z-Flex surround with a 38 mm vented aluminium dome tweeter and tangerine waveguide.
Drivers and Technology
- 200 mm (8 in.) Uni-Q driver with Z-Flex surround
- 38 mm (1.5 in.) vented aluminium dome tweeter with tangerine waveguide
- Two-way design, crossover at 2.2 kHz
- THX Certified Ultra
Installation
- In-ceiling mounting, 238 mm round cut-out
- Mounting depth from surface 126.5 mm
- Ideal rear volume 20 L, minimum rear volume 10 L
- Optional RIF200R rough-in frame (sold separately)
- Ultra-Thin Bezel (UTB) with paintable magnetic grille
- IP64 dust and water rating
Specifications
| Design | Two-way in-ceiling speaker, Ci-R Series |
| Drive Units | LF: 200 mm (8 in.) Uni-Q HF: 38 mm (1.5 in.) |
| Frequency Response (±6 dB, open-backed) | 33 Hz - 28 kHz |
| Frequency Range (-10 dB) | 28 Hz - 45 kHz |
| Crossover Frequency | 2.2 kHz |
| Sensitivity (2.83 V/1 m) | 90 dB |
| Nominal Impedance | 4 ohms |
| Nominal Coverage | 120° |
| Maximum SPL | 106 dB |
| Recommended Amplifier Power | 10 - 190 W |
| Recommended High-Pass Filter | 35 Hz - 80 Hz (80 Hz for THX specification) |
| Product Dimensions | 290 mm diameter x 132.6 mm depth |
| Cut-Out Dimensions | 238 mm diameter |
| Mounting Depth From Surface | 126.5 mm |
| Ideal / Minimum Rear Volume | 20 L / 10 L |
| Optional Rough-In Frame | RIF200R |
| Net Weight | 3.6 kg |
| Dust and Water Rating | IP64 |
| Certification | THX Certified Ultra |
| Unit | Sold individually |
