SKU SP3773AA
KEF - Ci200QS - In-Ceiling Speakers
by KEF
$800.00
Lightning Fast Free Delivery*
Don't wait to start your audio adventure. With our lightning-fast delivery, your new high-fidelity audio equipment will be at your doorstep before you know it.
Check Out Our Thousands Of Reviews
Our services hit the high notes, but don't just take our word for it. Scroll down to read the rave reviews from our chorus of happy customers. They've heard the difference, and you can too.
Overview

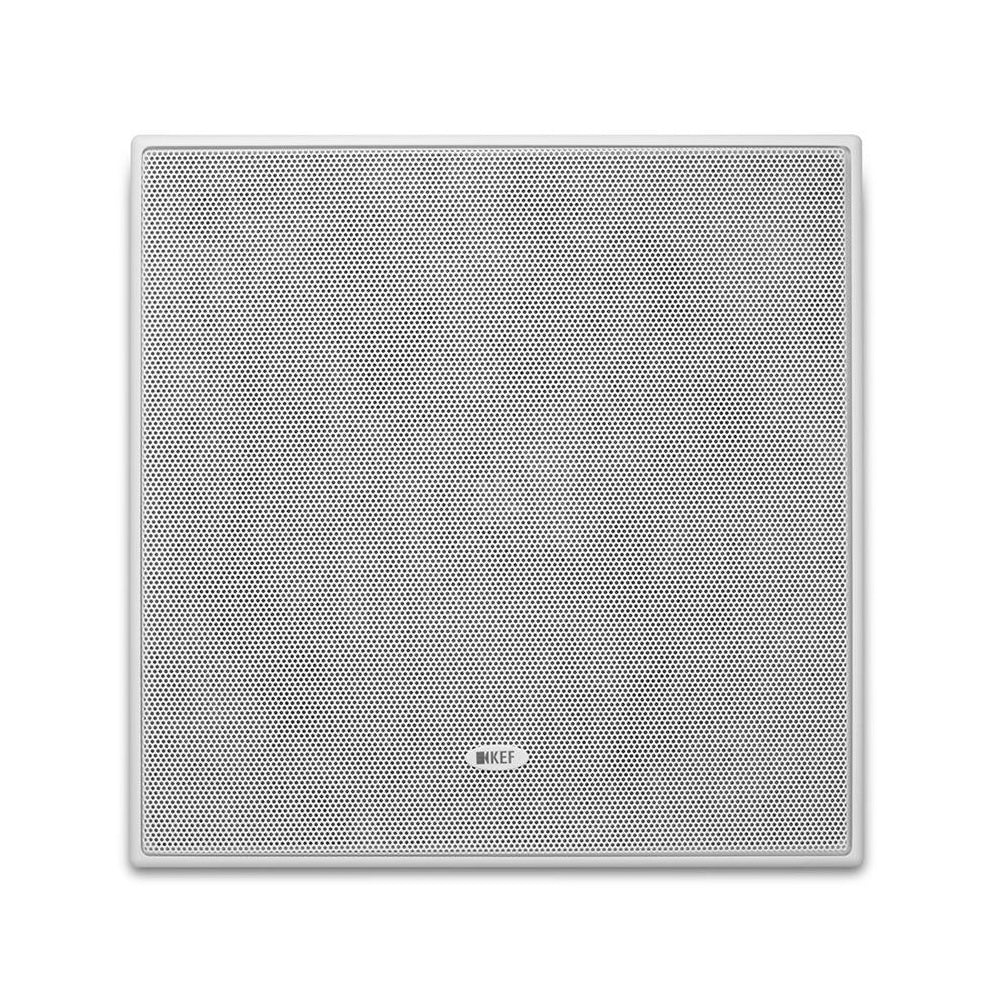

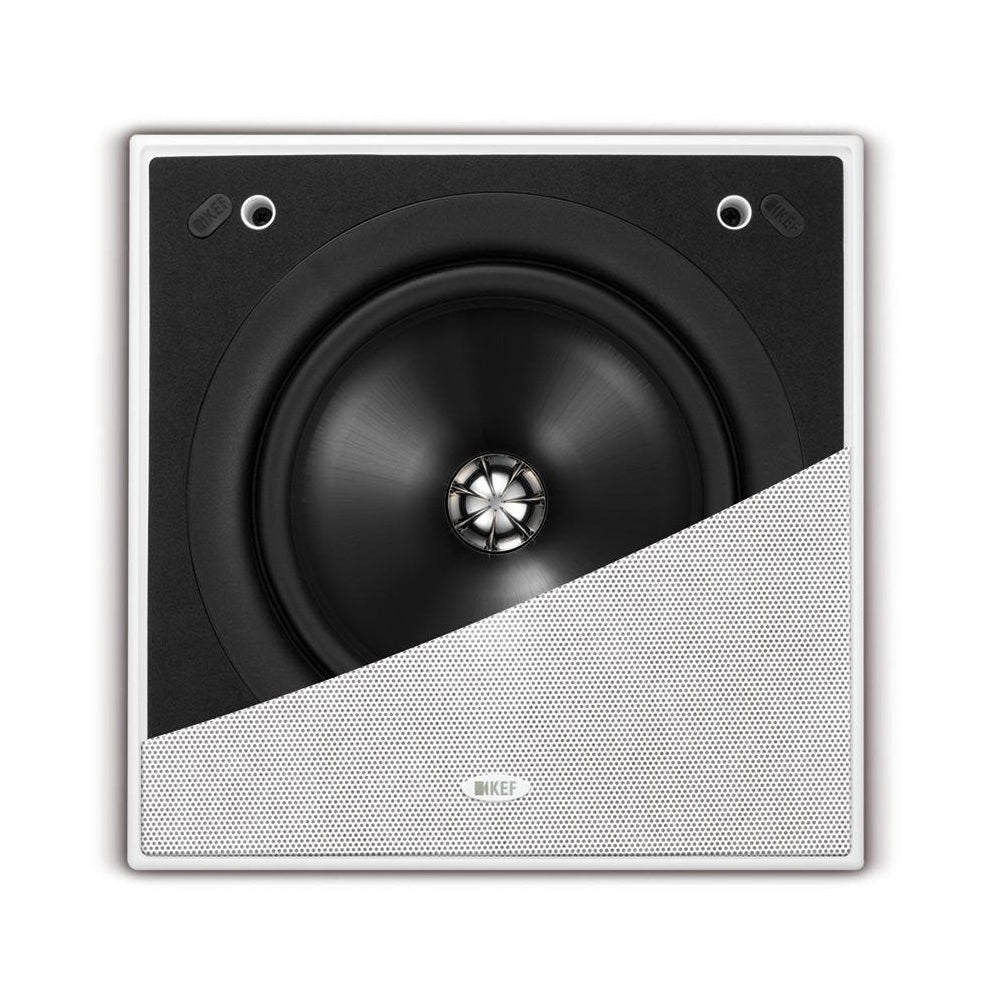

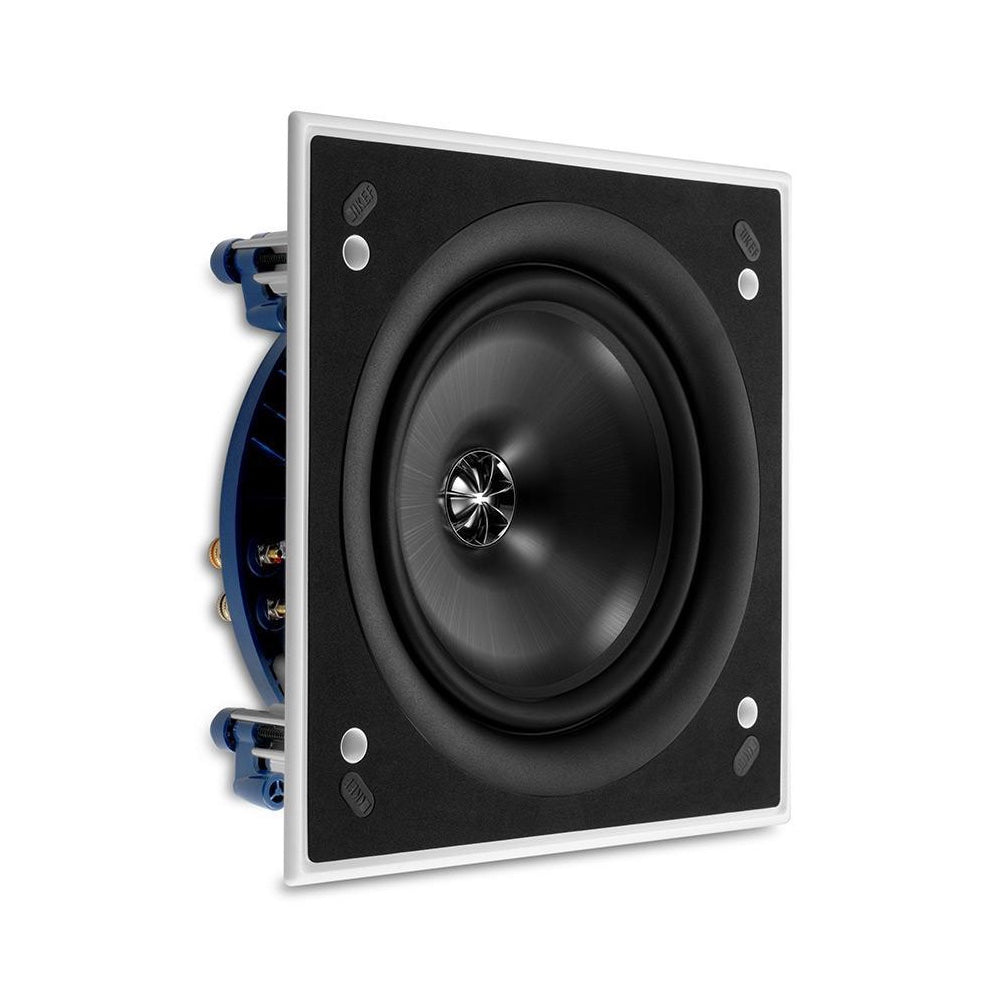

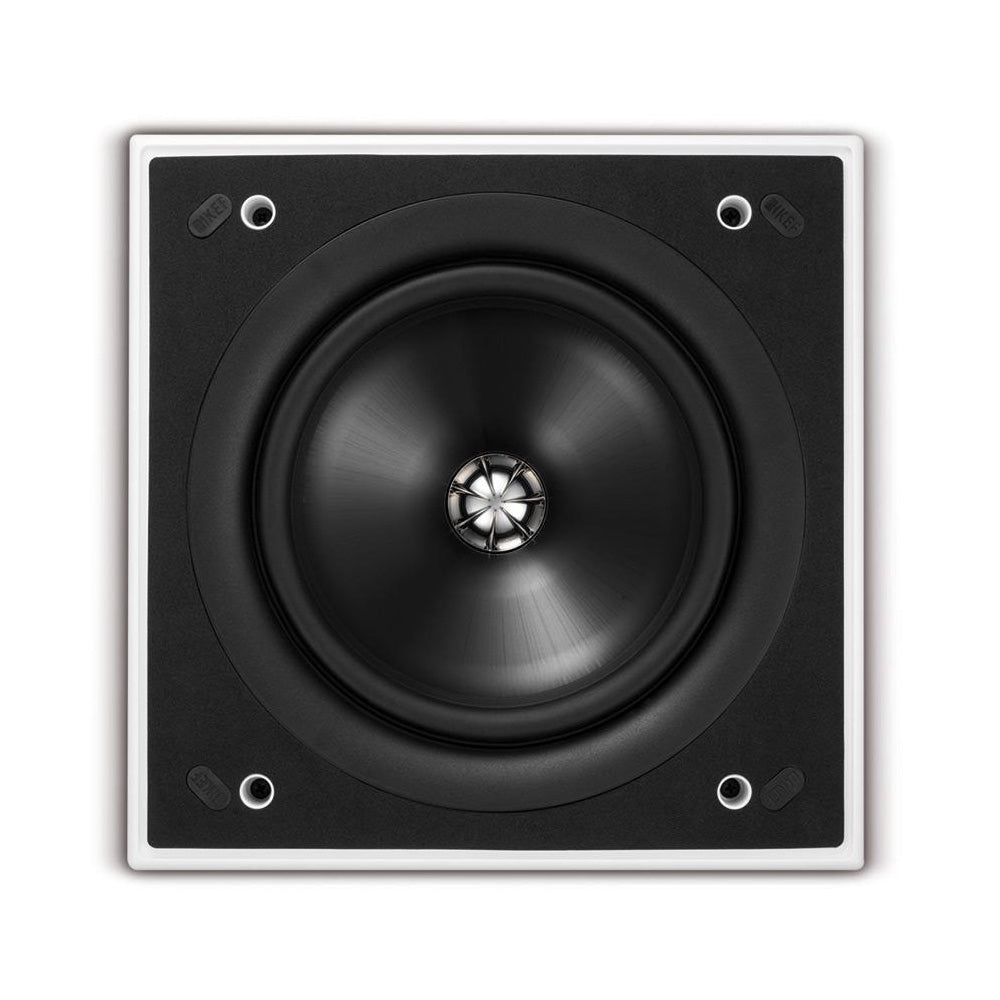

The KEF Ci200QS is a square custom install speaker from KEF's Q Series architectural range, built to sit flush in a dry-lined or stud partition wall or ceiling. It uses a 200mm (8 in.) Uni-Q driver array with the tweeter mounted at the acoustic centre of the bass/midrange cone, so both drivers radiate from a single point. KEF rates its nominal coverage at 115°.
An Ultra-Thin Bezel (UTB) keeps the visible rim narrow, and the grille attaches magnetically. Both the grille and bezel can be painted to match the surrounding surface. KEF lists the Ci200QS as weather resistant and IP64 certified, with a UV-protected bezel and grille.
Drivers and Technology
- KEF Uni-Q coincident driver array, tweeter mounted at the acoustic centre of the woofer
- 200mm (8 in.) bass/midrange driver
- 25mm (1 in.) vented aluminium dome tweeter with Tangerine waveguide
- Nominal coverage of 115°, rated by KEF
- Crossover at 2.5kHz
Installation
- Square format that KEF lists for both in-ceiling and in-wall installation
- Cut-out size 238 x 238 mm (H x W)
- Mounting depth from surface 99.8 mm

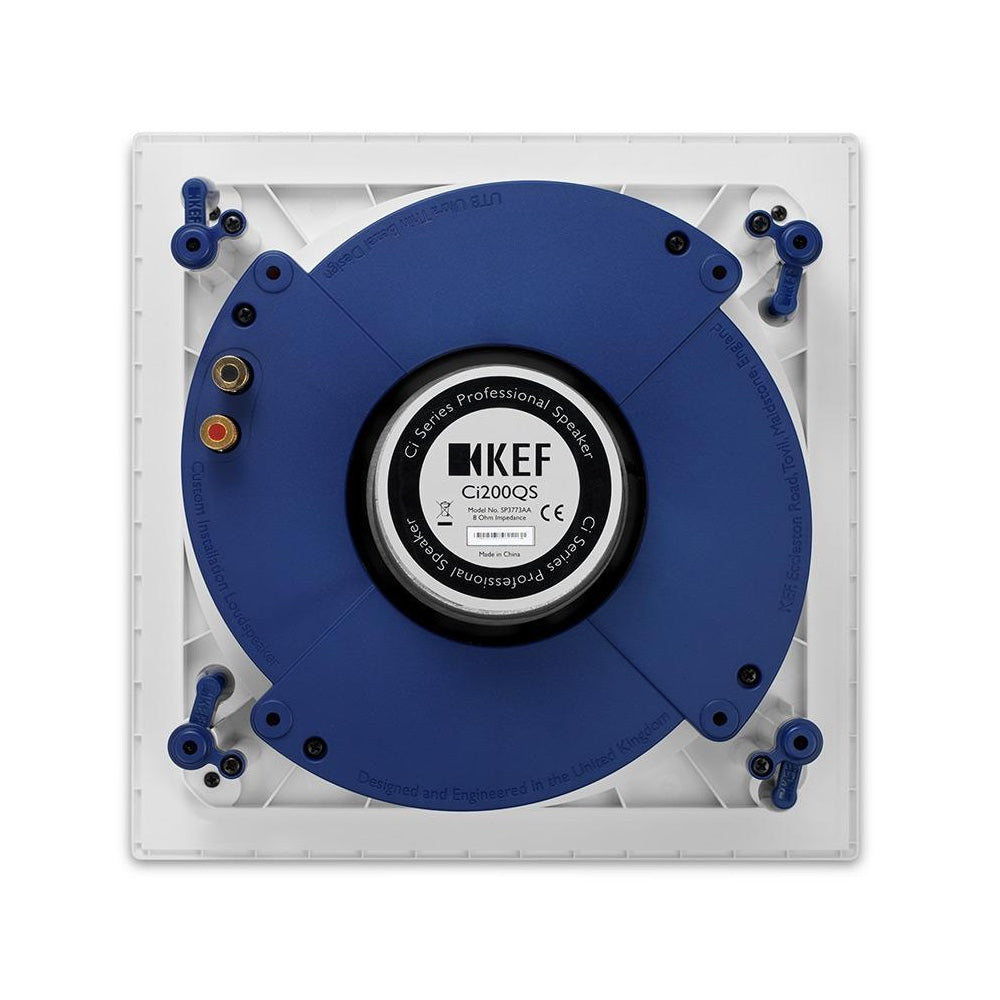

- Open-backed design, secured by screw-driven clamps that grip the wall or ceiling board
- Optional RIF200S rough-in frame and RNC200S rear enclosure (sold separately)
- KEF recommends a rear volume of 60L (minimum 35L)
Grille and Finish
- Grille attaches magnetically
- Ultra-Thin Bezel (UTB), no more than 5mm wide according to KEF
- Grille and bezel are white and can be painted; a paint shield is included for the grille
- Weather resistant construction with UV-protected bezel and grille, IP64 certified
Specifications
| Model | Ci200QS |
| Series | Q Series |
| Design | 2-way square in-wall / in-ceiling speaker, open-backed |
| Drive units | LF: 200mm (8 in.) Uni-Q HF: 25mm (1 in.) vented aluminium dome with Tangerine waveguide |
| Frequency response | 35Hz to 34kHz (±6dB), open-backed |
| Crossover frequency | 2.5kHz |
| Sensitivity | 90dB (2.83V/1m) |
| Nominal impedance | 8 ohms |
| Max SPL | 107dB |
| Nominal coverage | 115° |
| Recommended amplifier power | 10 to 150W |
| Recommended high-pass filter | 40Hz |
| External dimensions (H x W x D) | 273 x 273 x 106 mm |
| Cut-out dimensions (H x W) | 238 x 238 mm |
| Mounting depth from surface | 99.8 mm |
| Net weight | 2.4 kg |
| Ideal / minimum rear volume | 60L / 35L |
| Optional accessories | RIF200S rough-in frame, RNC200S rear enclosure |
| Certification | IP64 |
| Finish | White, paintable grille and bezel |
| Unit | Sold individually |
