- Nominal impedance
- 8 ohms
- Sensitivity (2.83V/1m)
- 90dB
- Frequency response (±6dB, open-backed)
- 35Hz - 34kHz
- Recommended amplifier power
- 10 - 150W
- External dimensions
- 289.6mm diameter x 109.8mm deep
Price $650
Includes GST
Voted Australia's #1 Hi-Fi Retailer, Sound+Image Awards 2023. Family owned since 2010.
Planning a cinema around it?
Our designers match it to your room, screen and seating, then install and calibrate the lot. Start with it in our 3D builder, or talk to us.
Delivery and collection
Free standard shipping on orders of $300 or more within Australia, and $15 on smaller orders. Western Australia is quoted on request.
Pick up from our Belrose showroom: call ahead so we can have it ready.
Set-up and installation
Our team can deliver, install and set up your system, from speaker placement to a full cinema calibration. Ask us for a quote when you order.
Returns
Your rights under Australian Consumer Law always apply. Read our returns policy.
KEF Ci200QR
Specifications
- Model
- Ci200QR
- Series
- Ci Q Series
- Design
- 2-way round in-ceiling speaker, Uni-Q driver array, open-backed
- Drive units
- LF/MF: 200mm (8in.) Uni-Q, HF: 25mm (1in.) vented aluminium dome with Tangerine waveguide
- Frequency response (±6dB, open-backed)
- 35Hz - 34kHz
- Crossover frequency
- 2.2kHz
- Recommended amplifier power
- 10 - 150W
- Recommended high-pass filter
- 40Hz
- Sensitivity (2.83V/1m)
- 90dB
- Nominal impedance
- 8 ohms
- Max SPL
- 107dB
- Nominal coverage
- 115°
Drivers and Technology
- 200mm (8in.) Uni-Q driver array with the tweeter at the acoustic centre of the cone (single point source)
- 25mm (1in.) vented aluminium dome tweeter with KEF's Tangerine waveguide
- Nominal coverage of 115° (rated by KEF)
- Gold-plated spring-loaded binding posts
- Weather-resistant construction with UV-protected ABS baffle, IP64 certified by KEF
Installation
- Cut-out diameter: 240mm
- Mounting depth from surface: 103.3mm
- Ultra-Thin Bezel (UTB), paintable, no more than 5mm wide

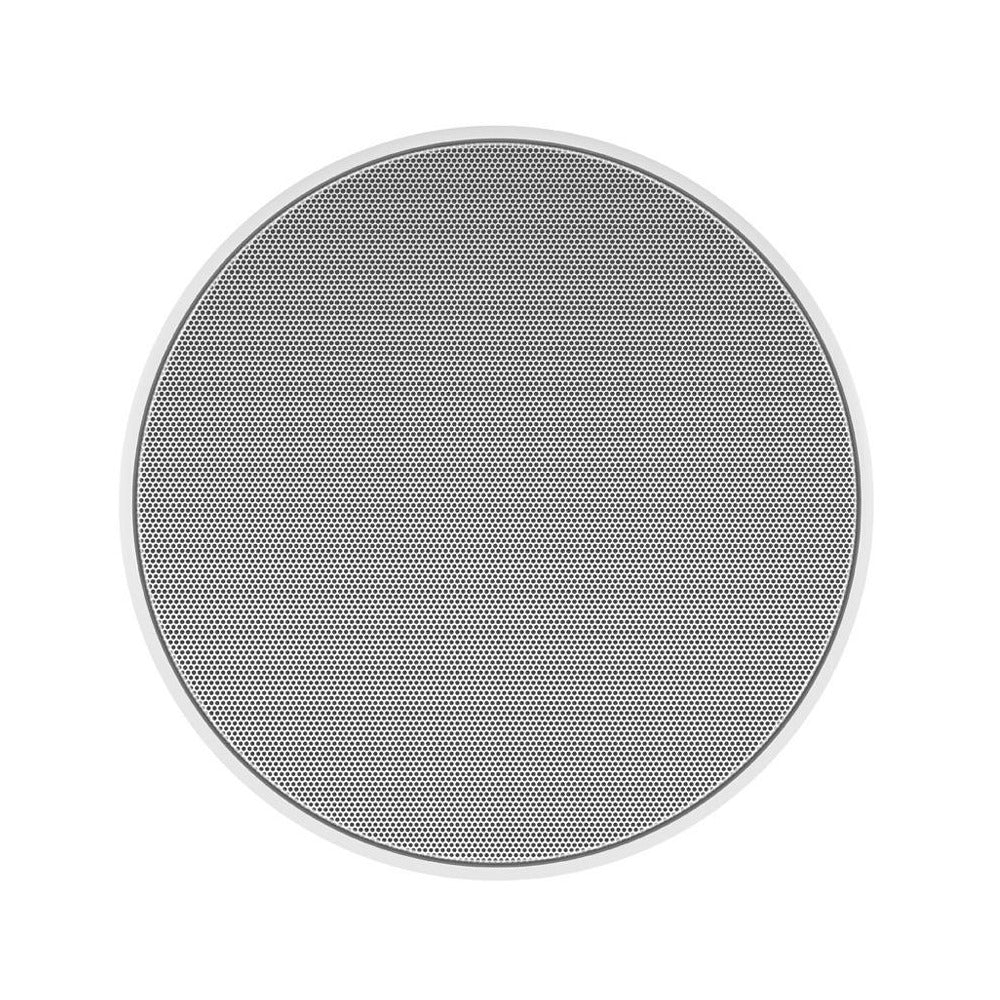

- Magnetic grille, paintable (KEF specifies a paint shield for painting)
- Open-backed design
- Optional rough-in frame (RIF200R) and rear enclosure (RNC200R) available separately
In detail
About the Ci200QR
Overview

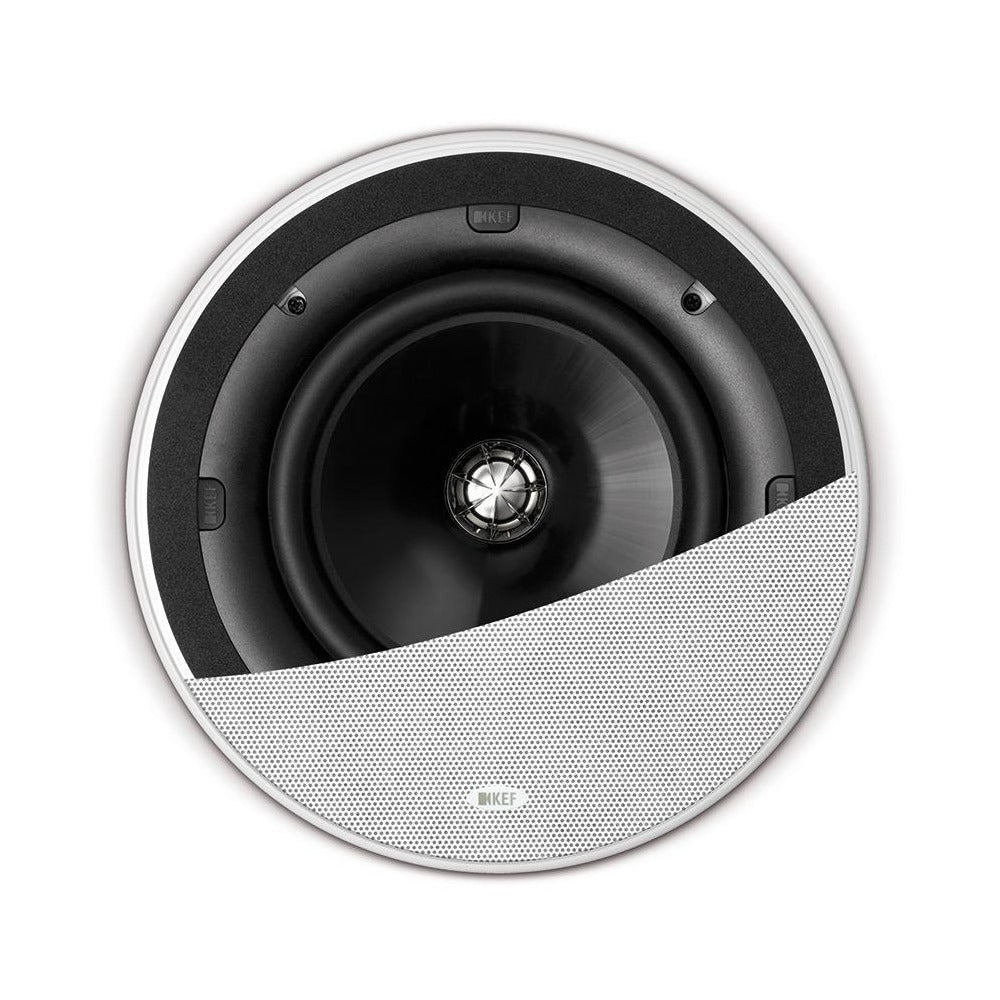

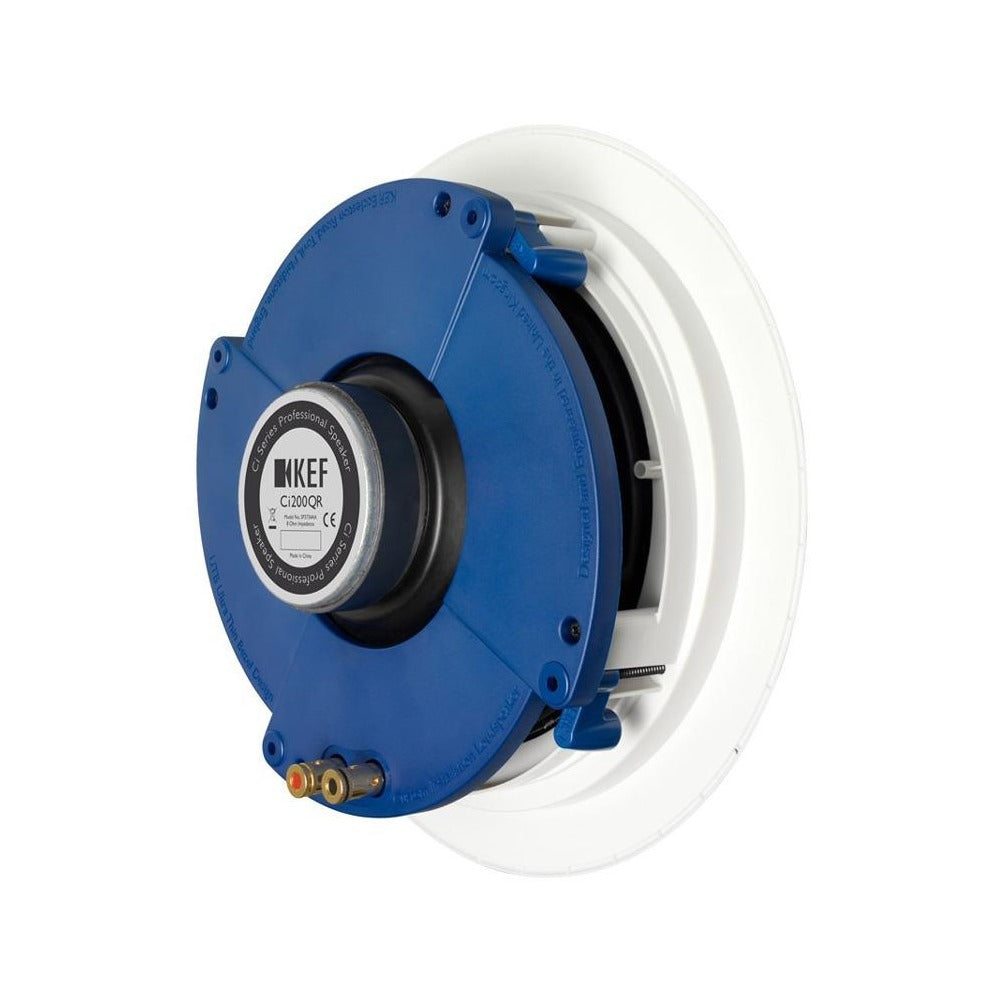

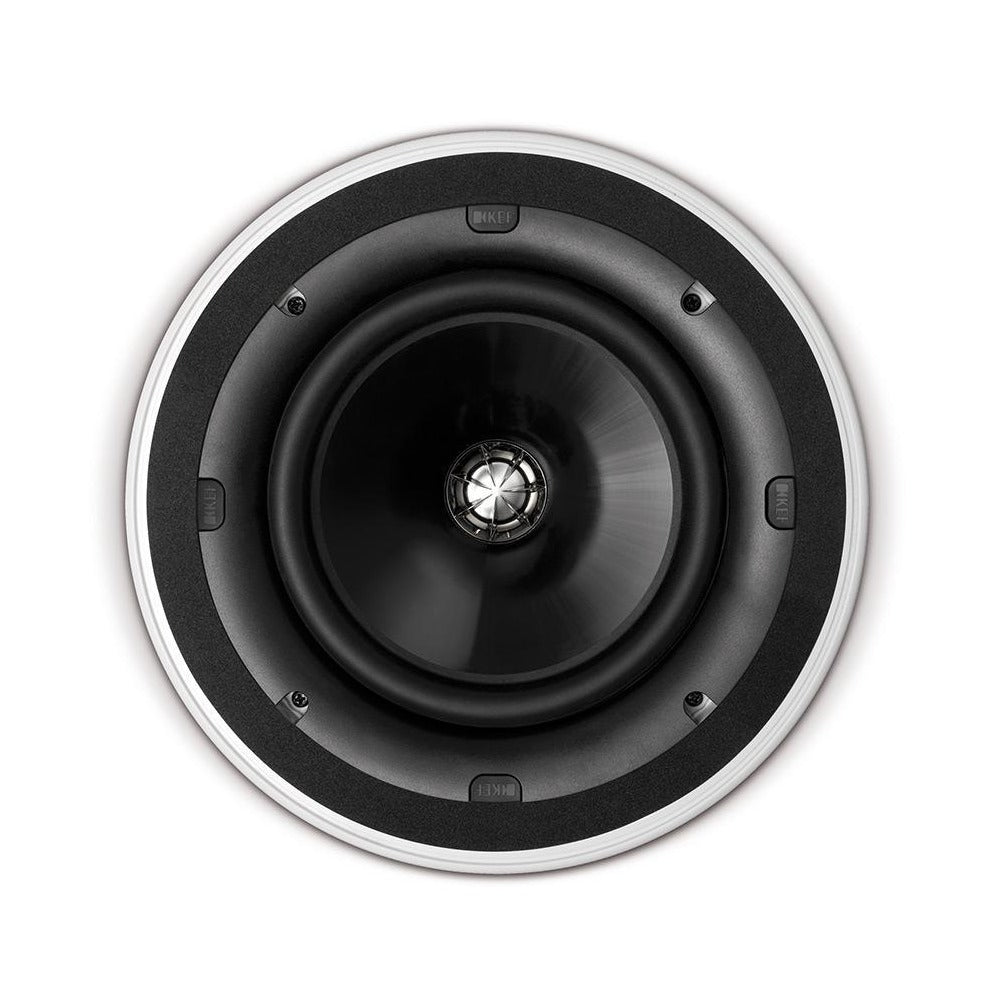

The KEF Ci200QR is a round in-ceiling speaker from KEF's Ci Q Series, built around a 200mm Uni-Q driver array with a 25mm aluminium dome tweeter mounted at the acoustic centre of the bass/midrange cone. KEF designed it for flush-mount ceiling installs in homes and commercial spaces where wide, even coverage is needed from a discreet speaker.
KEF rates its nominal coverage at 115°. The Ultra-Thin Bezel (UTB) keeps the visible rim to no more than 5mm, and the magnetic grille and bezel can both be painted to match the ceiling.
