Pre-order
- Nominal impedance
- 8 ohms
- Sensitivity
- 90dB (2.83V/1m)
- Frequency response
- 35Hz to 34kHz (±6dB), open-backed
- Recommended amplifier power
- 10 to 150W
- External dimensions (H x W x D)
- 369 x 273 x 106 mm
Price $850
Includes GST
Voted Australia's #1 Hi-Fi Retailer, Sound+Image Awards 2023. Family owned since 2010.
Planning a cinema around it?
Our designers match it to your room, screen and seating, then install and calibrate the lot. Start with it in our 3D builder, or talk to us.
Delivery and collection
Free standard shipping on orders of $300 or more within Australia, and $15 on smaller orders. Western Australia is quoted on request.
Pick up from our Belrose showroom: call ahead so we can have it ready.
Set-up and installation
Our team can deliver, install and set up your system, from speaker placement to a full cinema calibration. Ask us for a quote when you order.
Returns
Your rights under Australian Consumer Law always apply. Read our returns policy.
KEF Ci200QL
Specifications
- Model
- Ci200QL
- Series
- Q Series
- Design
- 2-way rectangular in-wall / in-ceiling speaker, open-backed
- Drive units
- LF: 200mm (8 in.) Uni-Q, HF: 25mm (1 in.) vented aluminium dome with Tangerine waveguide
- Frequency response
- 35Hz to 34kHz (±6dB), open-backed
- Crossover frequency
- 2.5kHz
- Sensitivity
- 90dB (2.83V/1m)
- Nominal impedance
- 8 ohms
- Max SPL
- 107dB
- Nominal coverage
- 115°
- Recommended amplifier power
- 10 to 150W
- Recommended high-pass filter
- 40Hz
Drivers and Technology
- KEF Uni-Q coincident driver array, tweeter mounted at the acoustic centre of the woofer
- 200mm (8 in.) bass/midrange driver
- 25mm (1 in.) vented aluminium dome tweeter with Tangerine waveguide
- Nominal coverage of 115°, rated by KEF
- Crossover at 2.5kHz
Installation
- Rectangular format that KEF lists as an in-wall speaker, also suited to ceilings per KEF
- Cut-out size 334 x 238 mm (H x W)
- Mounting depth from surface 99.8 mm

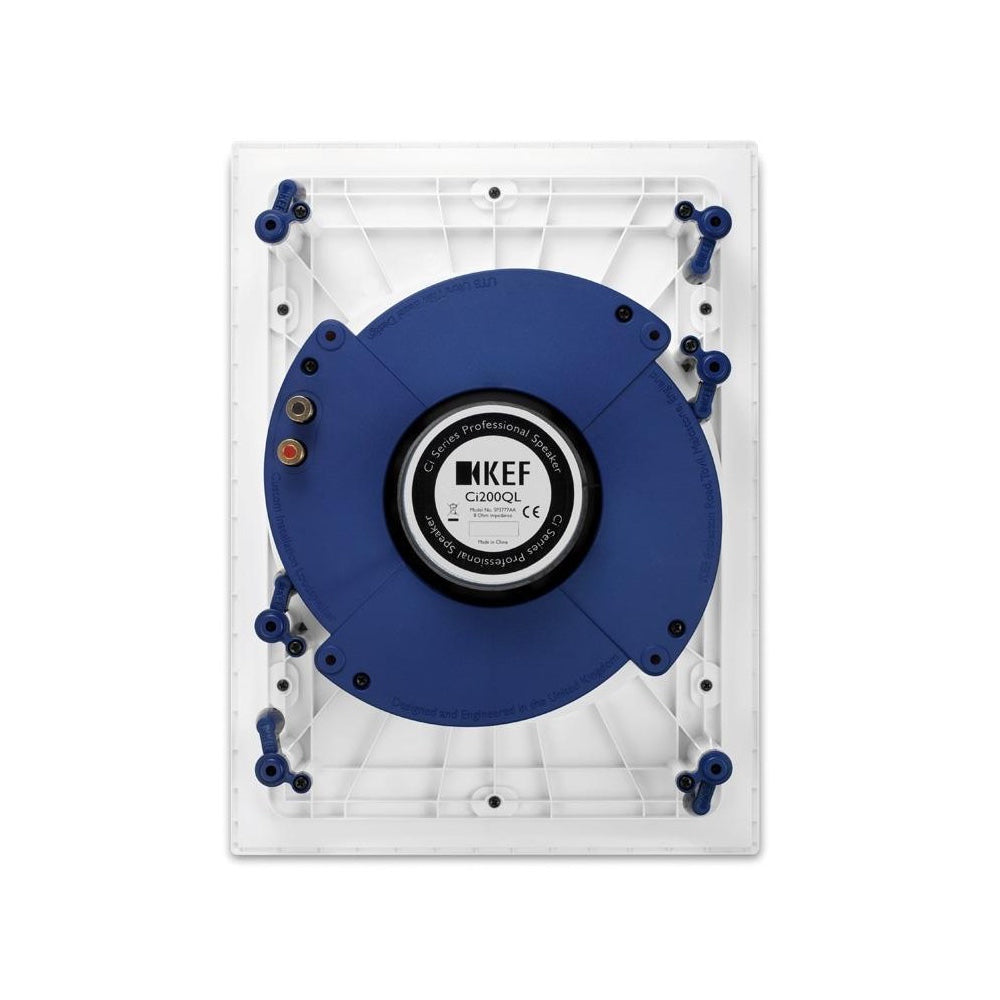

- Open-backed design, secured by screw-driven clamps that grip the wall or ceiling board
- Optional RIF200L rough-in frame and RNC200L rear enclosure (sold separately)
- KEF recommends a rear volume of 60L (minimum 35L)
In detail
About the Ci200QL
Overview

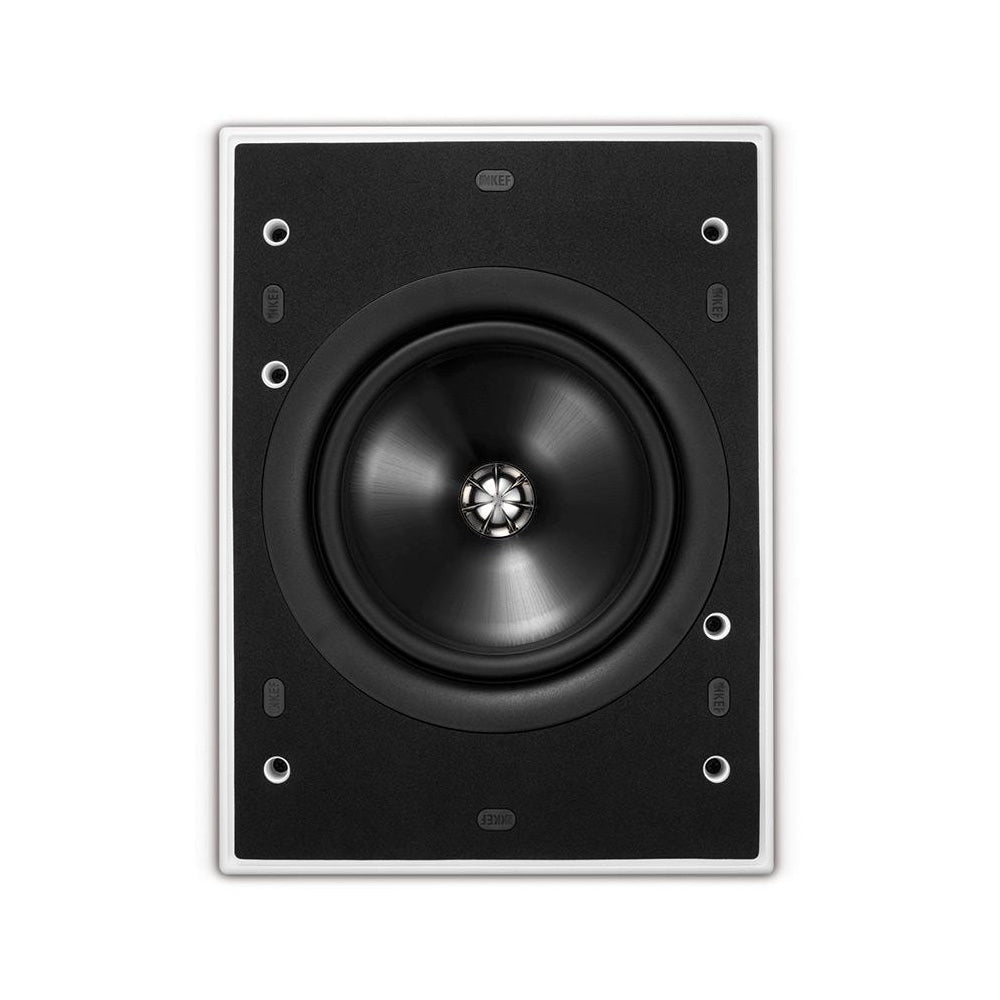

The KEF Ci200QL is a rectangular custom install speaker from KEF's Q Series architectural range, built to sit flush in a dry-lined or stud partition wall or ceiling. It uses a 200mm (8 in.) Uni-Q driver array with the tweeter mounted at the acoustic centre of the bass/midrange cone, so both drivers radiate from a single point. KEF rates its nominal coverage at 115°.
An Ultra-Thin Bezel (UTB) keeps the visible rim narrow, and the grille attaches magnetically. Both the grille and bezel can be painted to match the surrounding surface. KEF lists the Ci200QL as weather resistant and IP64 certified, with a UV-protected bezel and grille.
Grille and Finish

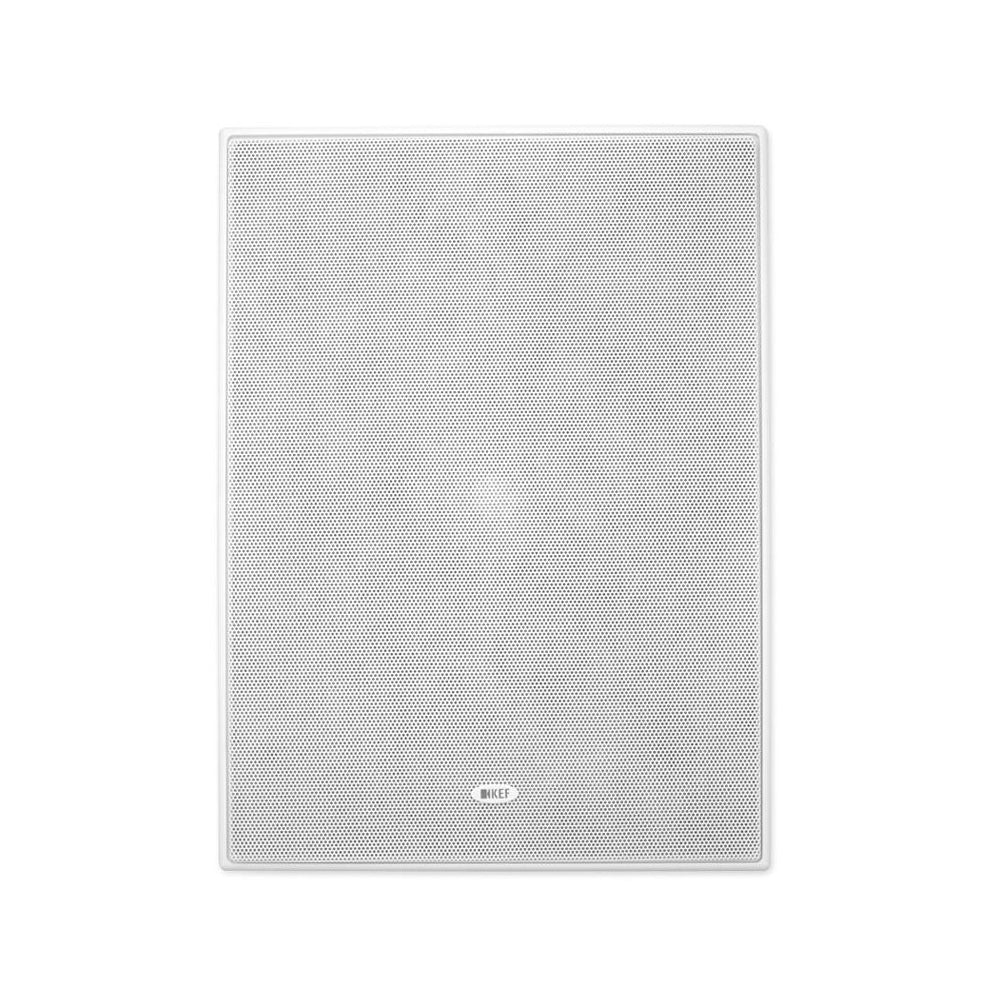

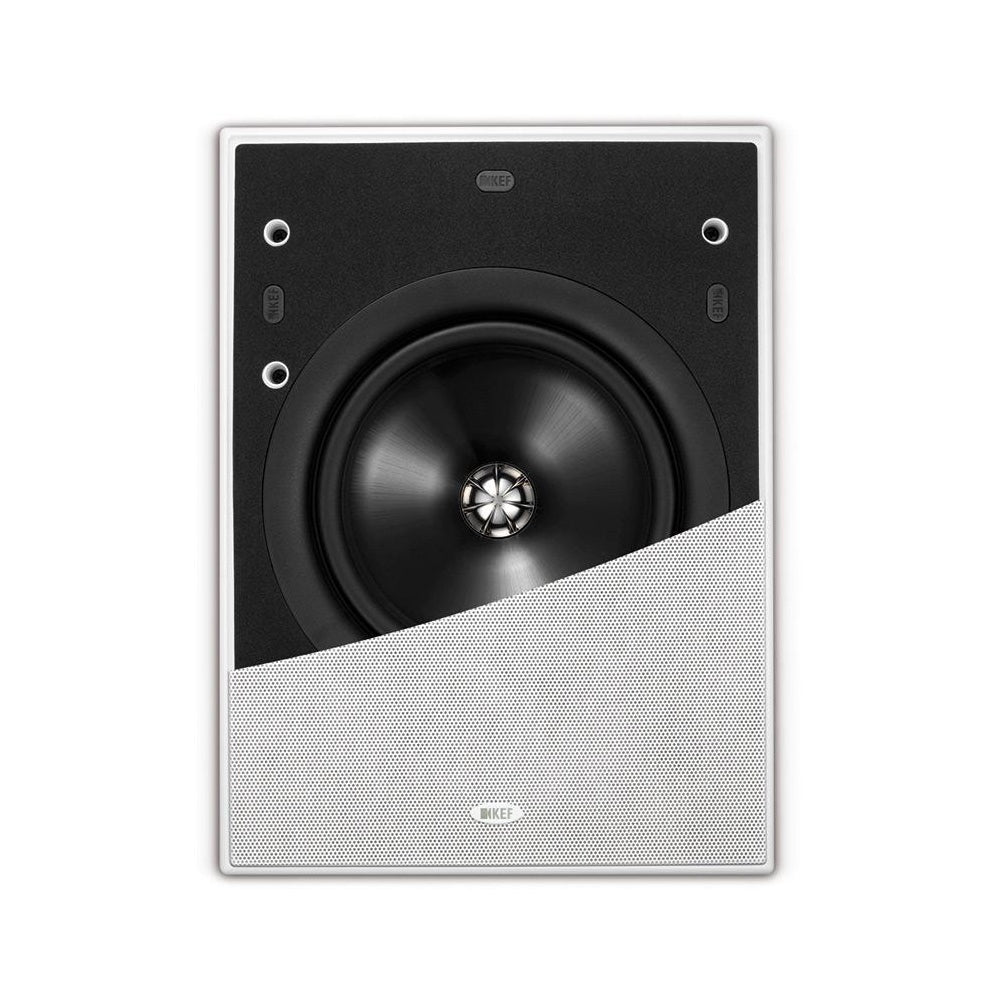

- Grille attaches magnetically
- Ultra-Thin Bezel (UTB), no more than 5mm wide according to KEF
- Grille and bezel are white and can be painted; a paint shield is included for the grille
- Weather resistant construction with UV-protected bezel and grille, IP64 certified
