Ci200.2CR

In-Ceiling Speakers

Nominal impedance: 8 ohms
Sensitivity (2.83V/1m): 90dB
Frequency response (±6dB, open-backed): 45Hz - 20kHz
Recommended amplifier power: 10 - 125W
External dimensions: 289.6mm diameter x 103.3mm deep

All specifications

Price $500

Includes GST

Voted Australia's #1 Hi-Fi Retailer, Sound+Image Awards 2023. Family owned since 2010.

Planning a cinema around it?

Our designers match it to your room, screen and seating, then install and calibrate the lot. Start with it in our 3D builder, or talk to us.

Delivery and collection

Free standard shipping on orders of $300 or more within Australia, and $15 on smaller orders. Western Australia is quoted on request.

Pick up from our Belrose showroom: call ahead so we can have it ready.

Set-up and installation

Our team can deliver, install and set up your system, from speaker placement to a full cinema calibration. Ask us for a quote when you order.

Returns

Your rights under Australian Consumer Law always apply. Read our returns policy.

KEF Ci200.2CR

Specifications

Model: Ci200.2CR
Series: Ci C Series
Design: 2-way round in-ceiling speaker, Uni-Q driver array, open-backed
Drive units: LF/MF: 200mm (8in.) Uni-Q, HF: 16mm (0.6in.) aluminium dome with Tangerine waveguide
Frequency response (±6dB, open-backed): 45Hz - 20kHz
Frequency range (-10dB): 35Hz - 45kHz
Crossover frequency: 2.4kHz
Recommended amplifier power: 10 - 125W
Recommended high-pass filter: 40Hz
Sensitivity (2.83V/1m): 90dB
Nominal impedance: 8 ohms
Max SPL: 106dB
Nominal coverage: 115°
External dimensions: 289.6mm diameter x 103.3mm deep
Cut-out size: 240mm diameter
Mounting depth from surface: 97.2mm
Net weight: 1.6kg

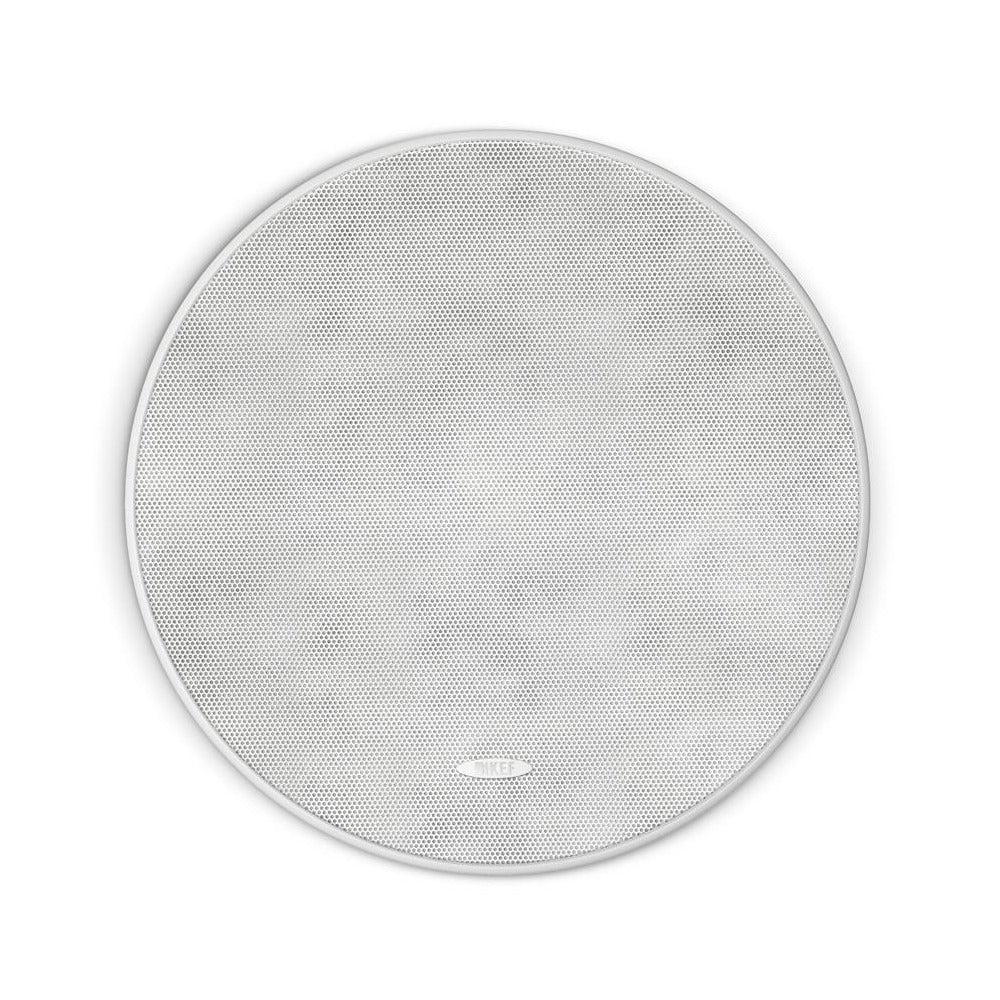

Grille: Magnetic, paintable (grille supplied with the speaker)
Bezel: Ultra-Thin Bezel, paintable
Ideal rear volume: 60L
Minimum rear volume: 30L
Optional accessories: RIF200R rough-in frame, RNC200R rear enclosure
Certification: IP64
Unit: Sold individually

Drivers and Technology

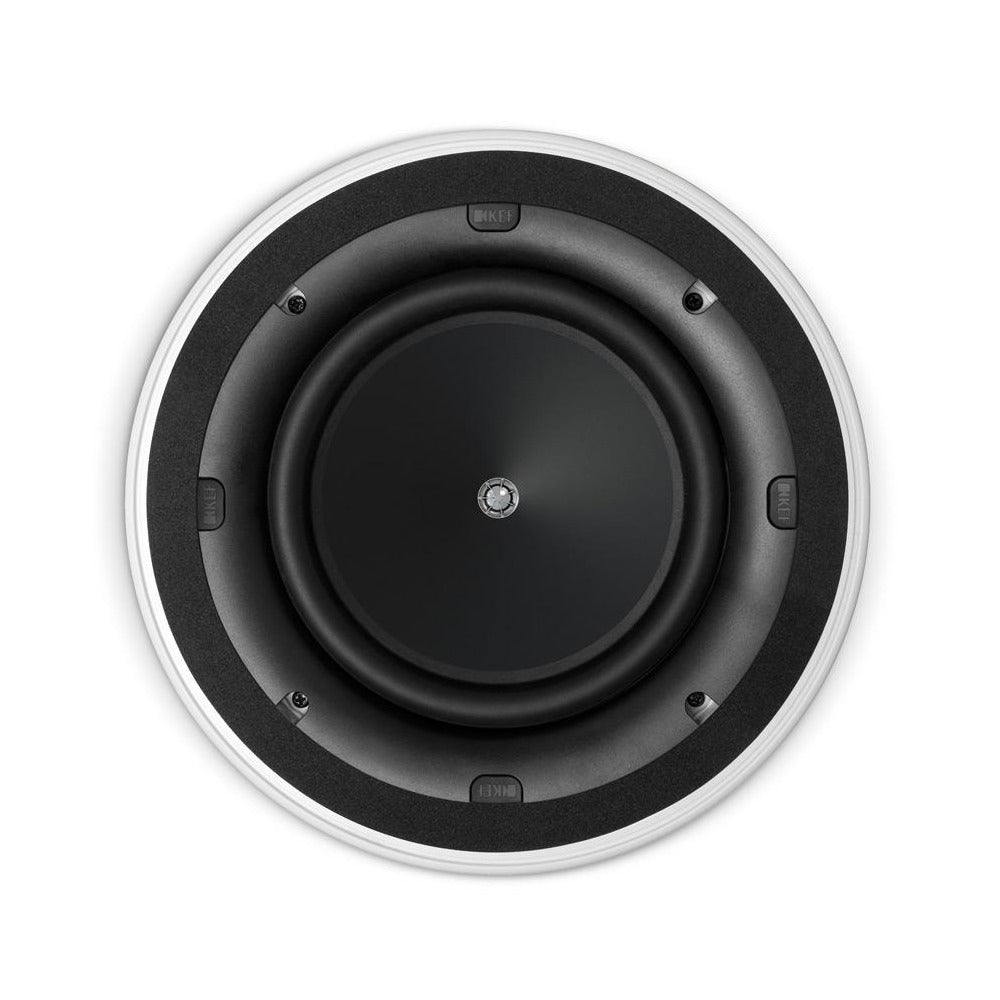

200mm (8in.) Uni-Q driver array (single point source design)
16mm (0.6in.) aluminium dome tweeter with KEF's Tangerine waveguide
Nominal coverage of 115° (rated by KEF)
Weather-resistant construction: UV-protected ABS baffle, coated grille and moisture-resistant fittings
IP64 certified by KEF

Installation

Cut-out diameter: 240mm (KEF's universal 200mm round cut-out)
Mounting depth from surface: 97.2mm
Ultra-Thin Bezel (UTB), paintable, no more than 5mm wide
Magnetic grille, paintable (KEF specifies a paint shield for painting)

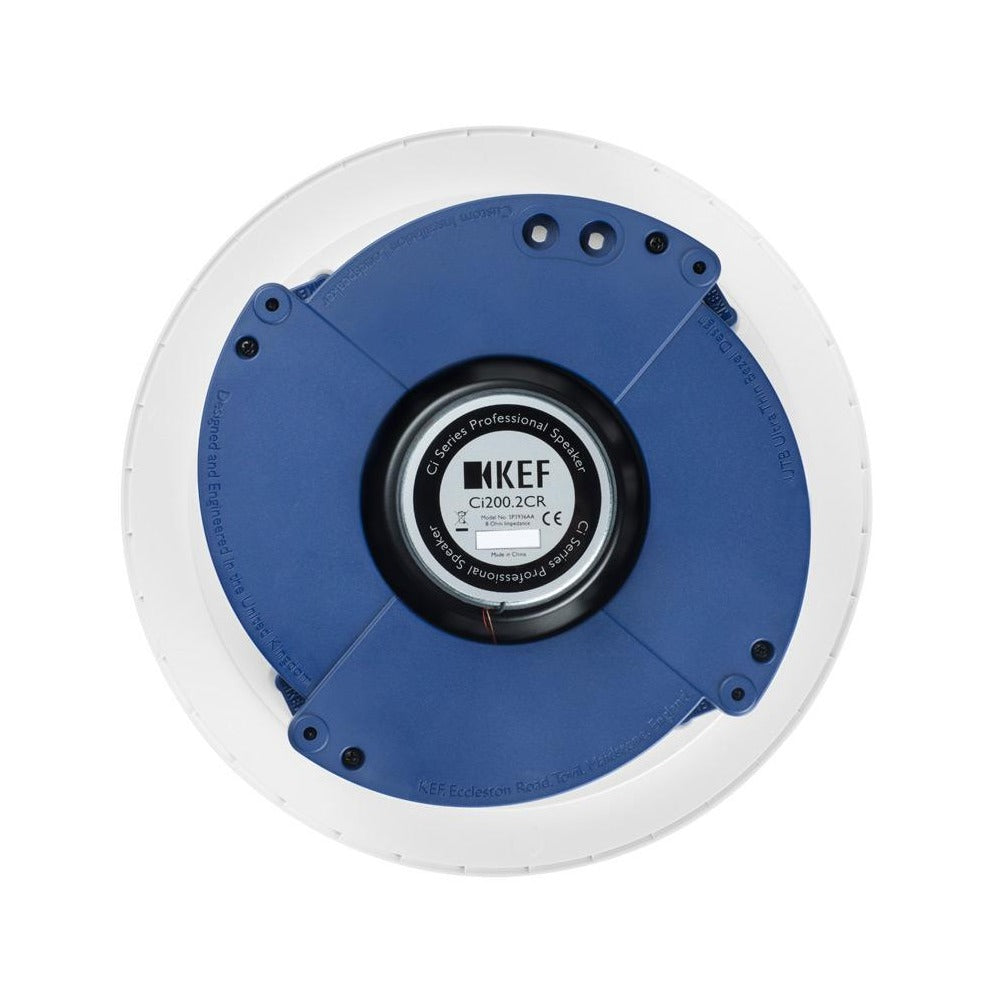

Open-backed design
Optional rough-in frame (RIF200R) and rear enclosure (RNC200R) available separately

In detail

About the Ci200.2CR

Overview

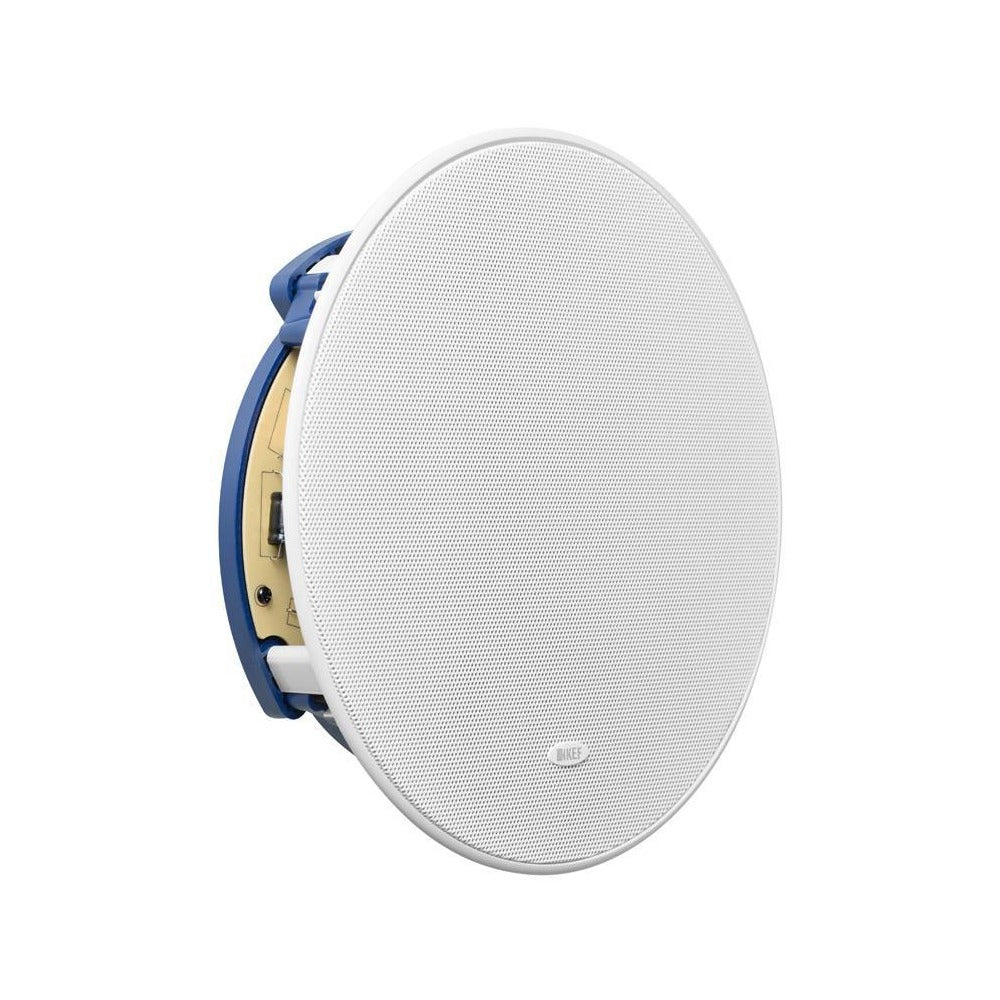

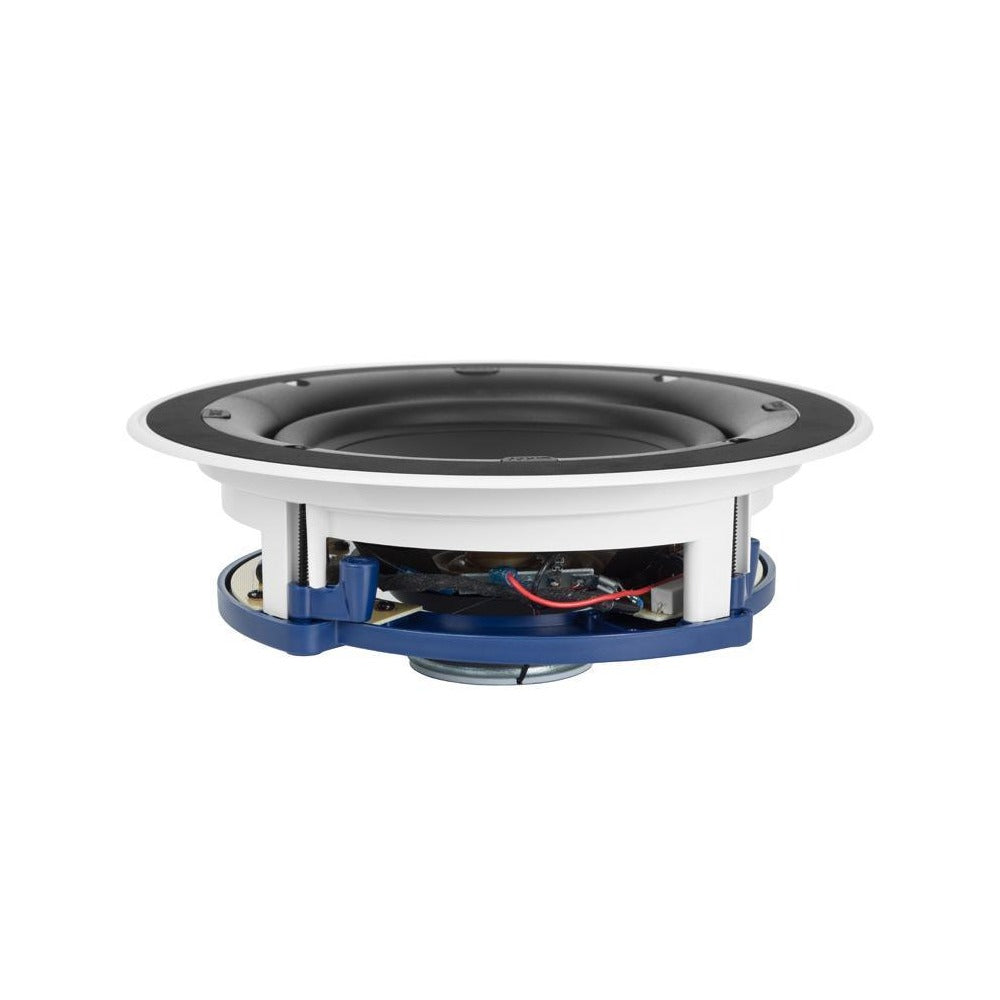

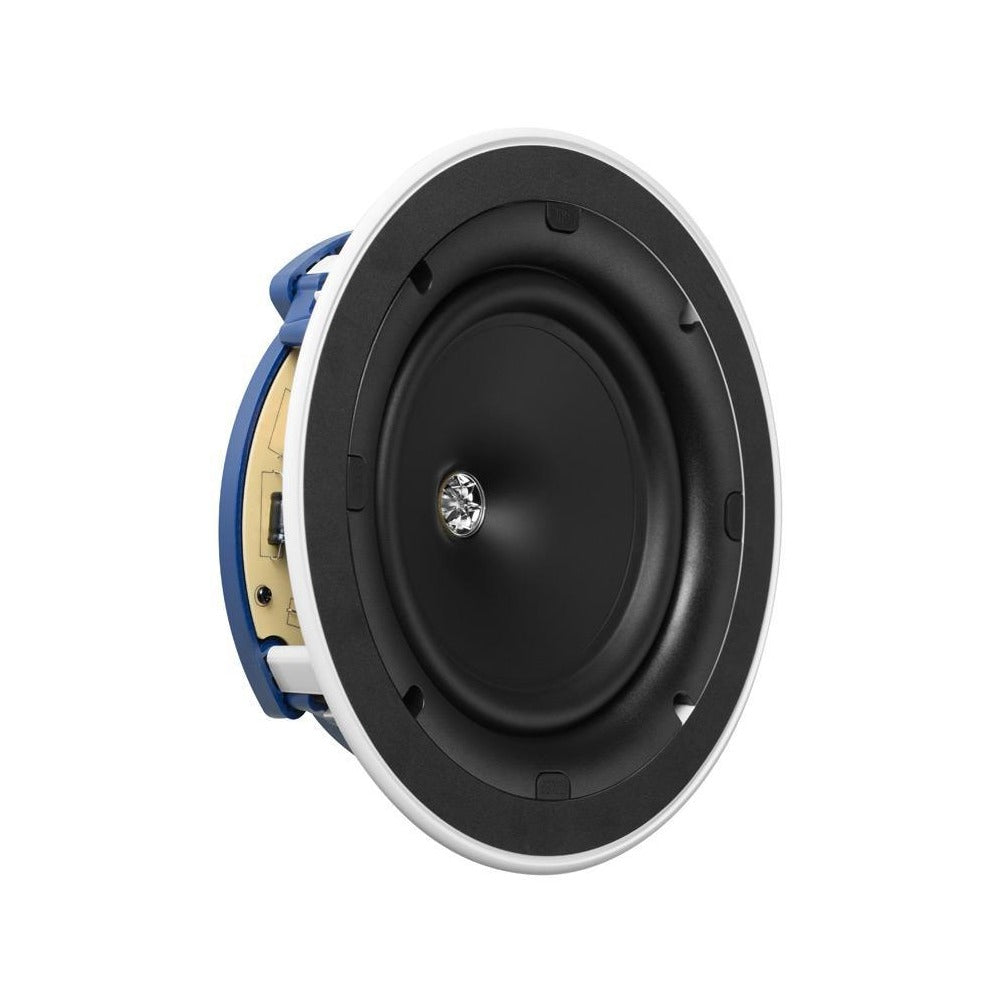

The KEF Ci200.2CR is a round in-ceiling speaker from KEF's Ci C Series, using a 200mm Uni-Q driver array with a 16mm aluminium dome tweeter at the acoustic centre of the bass/midrange cone. KEF specifies it for background and foreground music in homes, hotels, corridors and similar spaces, and its weather-resistant build suits bathrooms and kitchens.

The Ultra-Thin Bezel (UTB) and magnetic grille are both paintable, so the speaker can be matched to the ceiling colour.
