- Nominal impedance
- 8 ohms
- Sensitivity (2.83V/1m)
- 87dB
- Frequency response (±6dB, open-backed)
- 110Hz - 24kHz
- Recommended amplifier power
- 10 - 100W
- External dimensions
- 222.8 x 222.8 x 41mm (H x W x D)
Price $600
Includes GST
Voted Australia's #1 Hi-Fi Retailer, Sound+Image Awards 2023. Family owned since 2010.
Planning a cinema around it?
Our designers match it to your room, screen and seating, then install and calibrate the lot. Start with it in our 3D builder, or talk to us.
Delivery and collection
Free standard shipping on orders of $300 or more within Australia, and $15 on smaller orders. Western Australia is quoted on request.
Pick up from our Belrose showroom: call ahead so we can have it ready.
Set-up and installation
Our team can deliver, install and set up your system, from speaker placement to a full cinema calibration. Ask us for a quote when you order.
Returns
Your rights under Australian Consumer Law always apply. Read our returns policy.
KEF Ci160TS
Specifications
- Model
- Ci160TS
- Series
- Ci T Series
- Design
- 2-way ultra-slim square flush-mount speaker, open-backed
- Drive units
- LF/MF: 115mm (4.5in.) dual-layer low-profile driver, HF: 25mm (1in.) vented aluminium with Tangerine waveguide
- Frequency response (±6dB, open-backed)
- 110Hz - 24kHz
- Frequency range (-10dB)
- 69Hz - 45kHz
- Crossover frequency
- 1.7kHz
- Recommended amplifier power
- 10 - 100W
- Recommended high-pass filter
- 70Hz
- Sensitivity (2.83V/1m)
- 87dB
- Nominal impedance
- 8 ohms
- Max SPL
- 101dB
Drivers and Technology

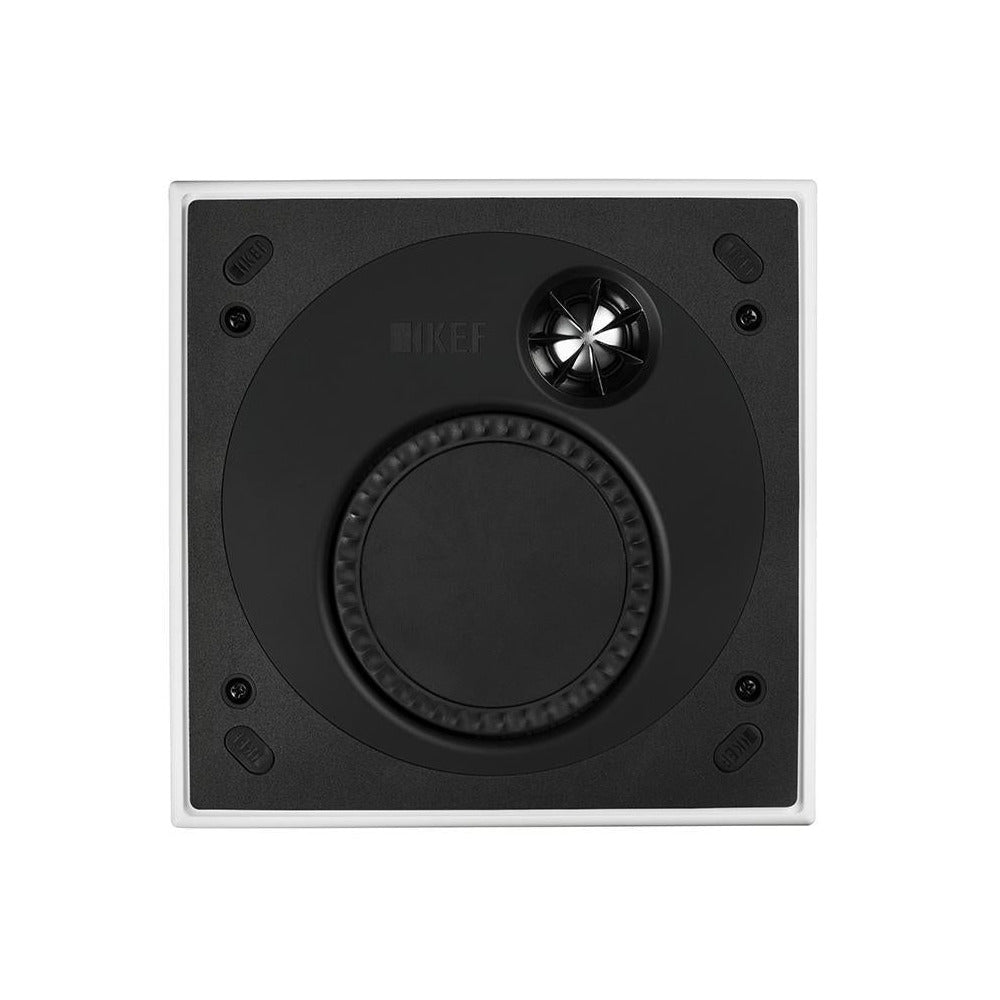

- 115mm (4.5in.) low-profile dual-layer mid/bass driver with a flat diaphragm
- 25mm (1in.) vented aluminium tweeter with KEF's Tangerine waveguide
- Nominal coverage of 160° (rated by KEF)
- Weather-resistant: UV-protected ABS baffle and moisture-resistant components, IP64 certified by KEF
Installation
- Cut-out size: 194 x 194mm

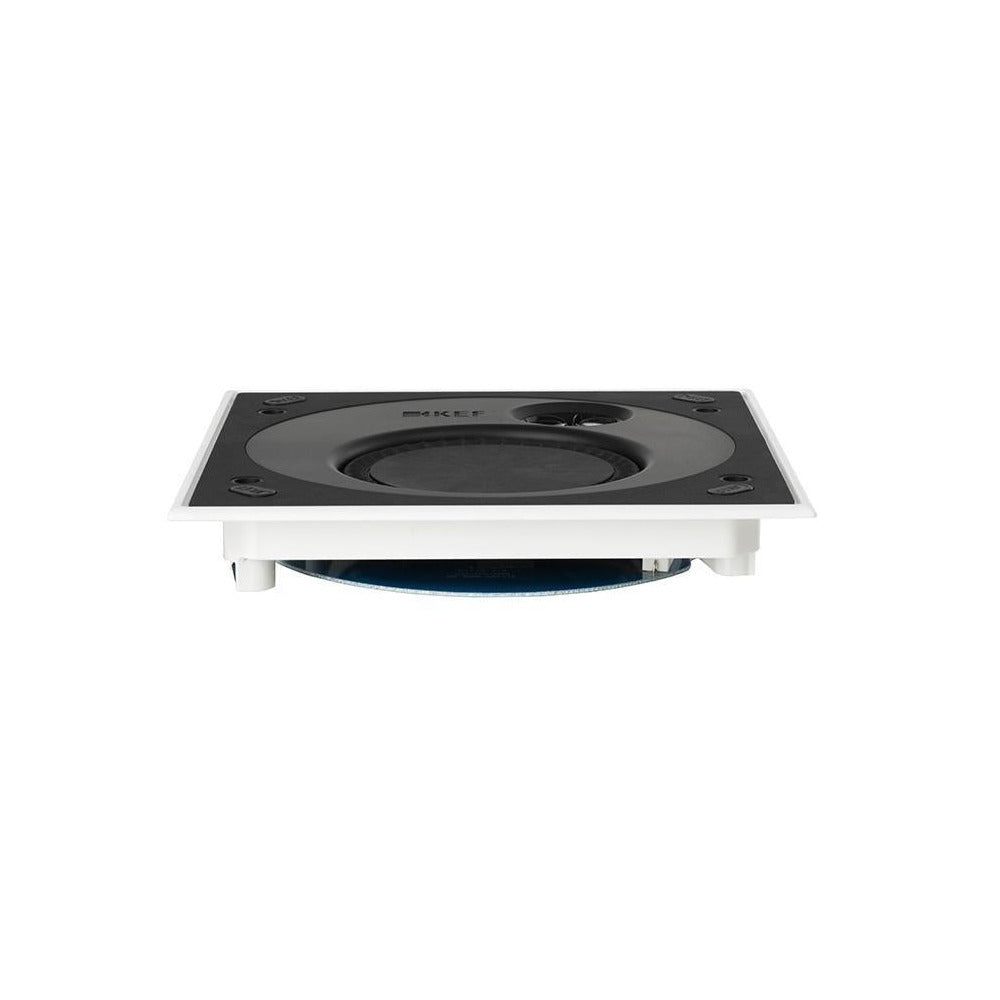

- Mounting depth from surface: under 36mm

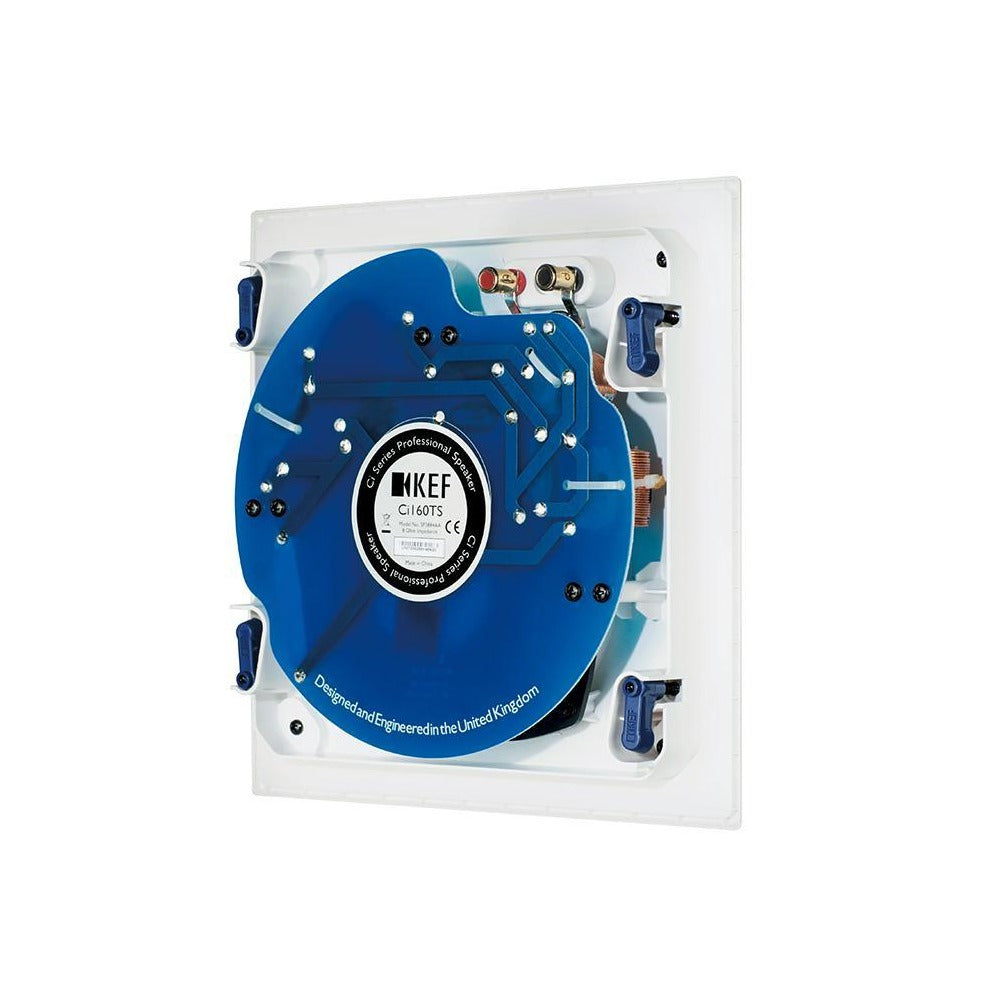

- Mounts with traditional dog-leg clamps, or screws directly to a solid surface
- Ultra-Thin Bezel (UTB), paintable, no more than 5mm wide

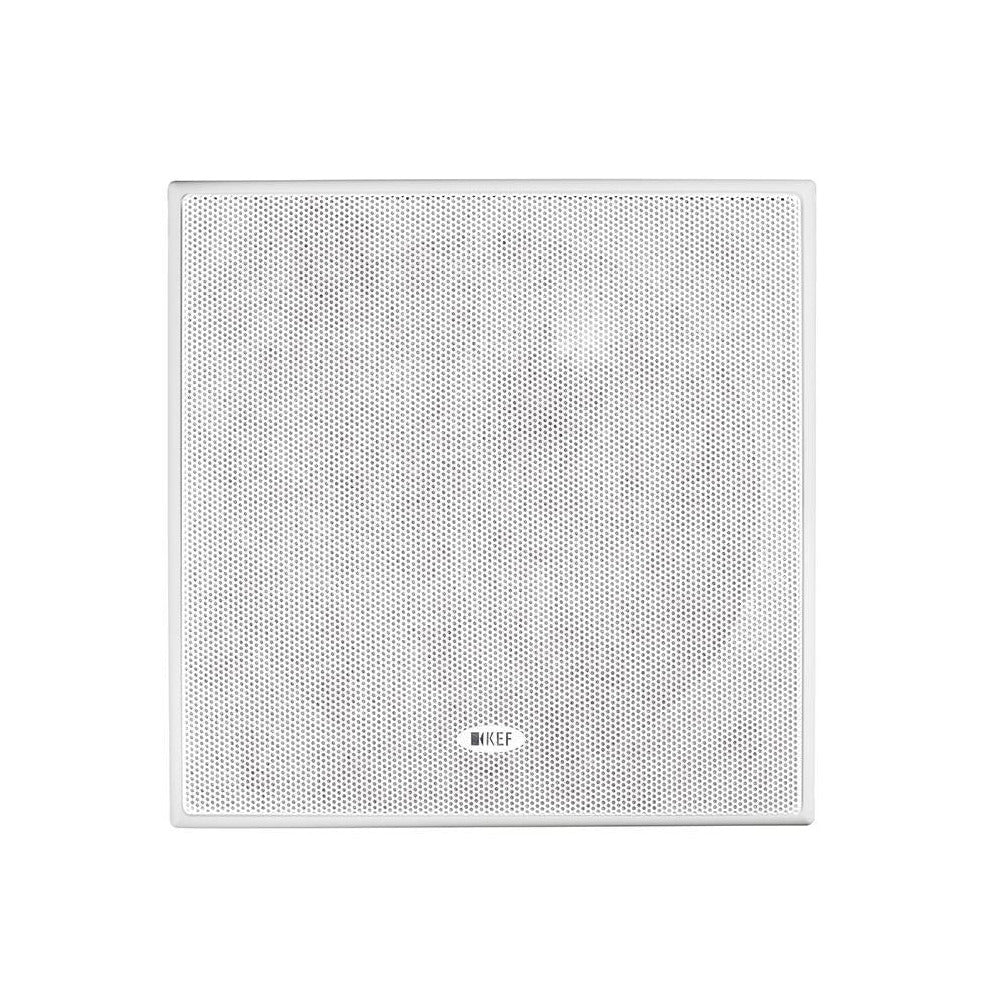

- Magnetic grille assembly, paintable
- Optional rough-in frame (RIF160S) and rear enclosure (RNC160S) available separately
In detail
About the Ci160TS
Overview
The KEF Ci160TS is an ultra-slim square flush-mount speaker from KEF's Ci T Series, made for ceilings or walls where there is very little cavity depth. KEF rates the overall depth at about 40mm and the mounting depth at under 36mm, achieved with a flat 115mm (4.5in.) dual-layer mid/bass driver and a 25mm (1in.) vented aluminium tweeter.
KEF specifies it for apartments and other shallow ceiling spaces, and its moisture-resistant build suits bathrooms and similar areas. The Ultra-Thin Bezel and magnetic grille are paintable.
