SKU SP3830AA
KEF - Ci160TR - In-Ceiling Speakers
by KEF
$600.00
Lightning Fast Free Delivery*
Don't wait to start your audio adventure. With our lightning-fast delivery, your new high-fidelity audio equipment will be at your doorstep before you know it.
Check Out Our Thousands Of Reviews
Our services hit the high notes, but don't just take our word for it. Scroll down to read the rave reviews from our chorus of happy customers. They've heard the difference, and you can too.
Overview
The KEF Ci160TR is an ultra-slim round flush-mount speaker from KEF's Ci T Series, made for ceilings where there is very little cavity depth. KEF rates the overall depth at about 40mm and the mounting depth at under 36mm, achieved with a flat 115mm (4.5in.) dual-layer mid/bass driver and a 25mm (1in.) vented aluminium tweeter.
KEF specifies it for apartments and other shallow ceiling spaces, and its moisture-resistant build suits bathrooms and similar areas. The Ultra-Thin Bezel and magnetic grille are paintable.
Drivers and Technology
- 115mm (4.5in.) low-profile dual-layer mid/bass driver with a flat diaphragm

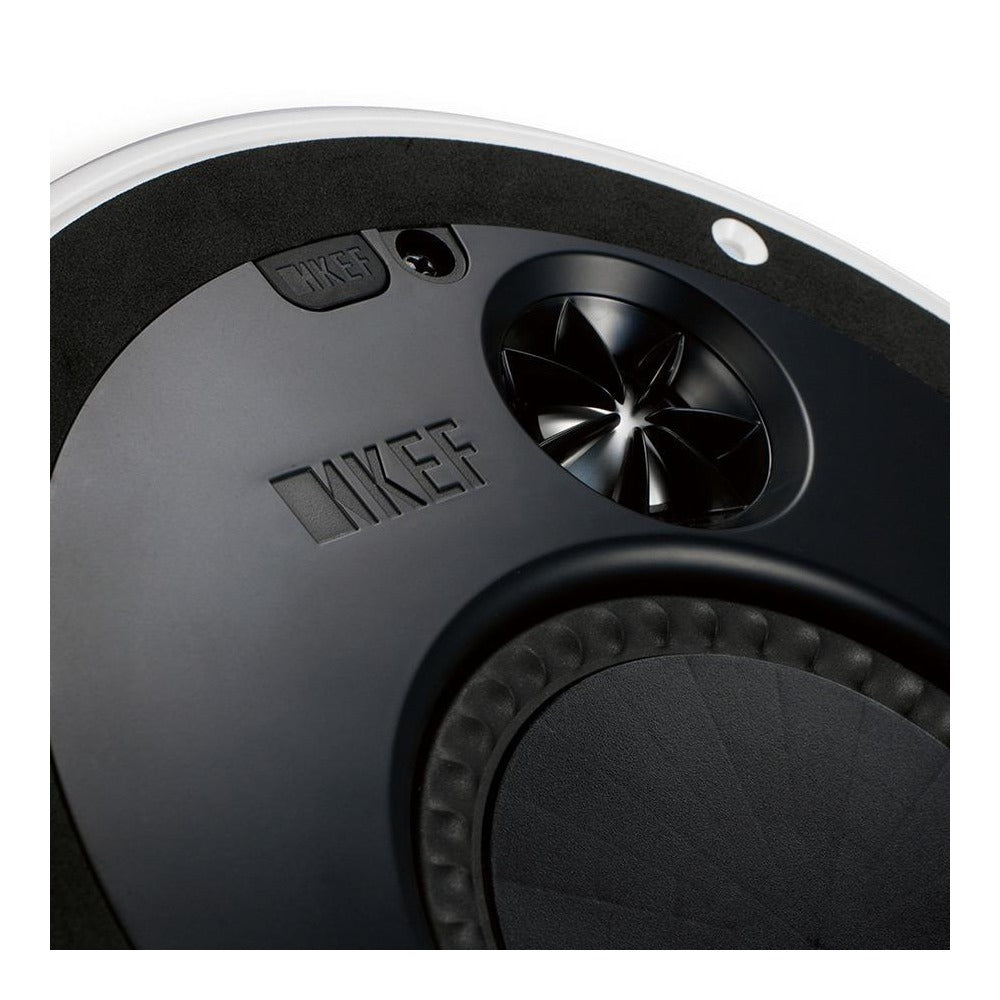

- 25mm (1in.) vented aluminium tweeter with KEF's Tangerine waveguide
- Nominal coverage of 160° (rated by KEF)
- Weather-resistant: UV-protected ABS baffle and moisture-resistant components, IP64 certified by KEF
Installation
- Cut-out size: 196mm diameter
- Mounting depth from surface: under 36mm

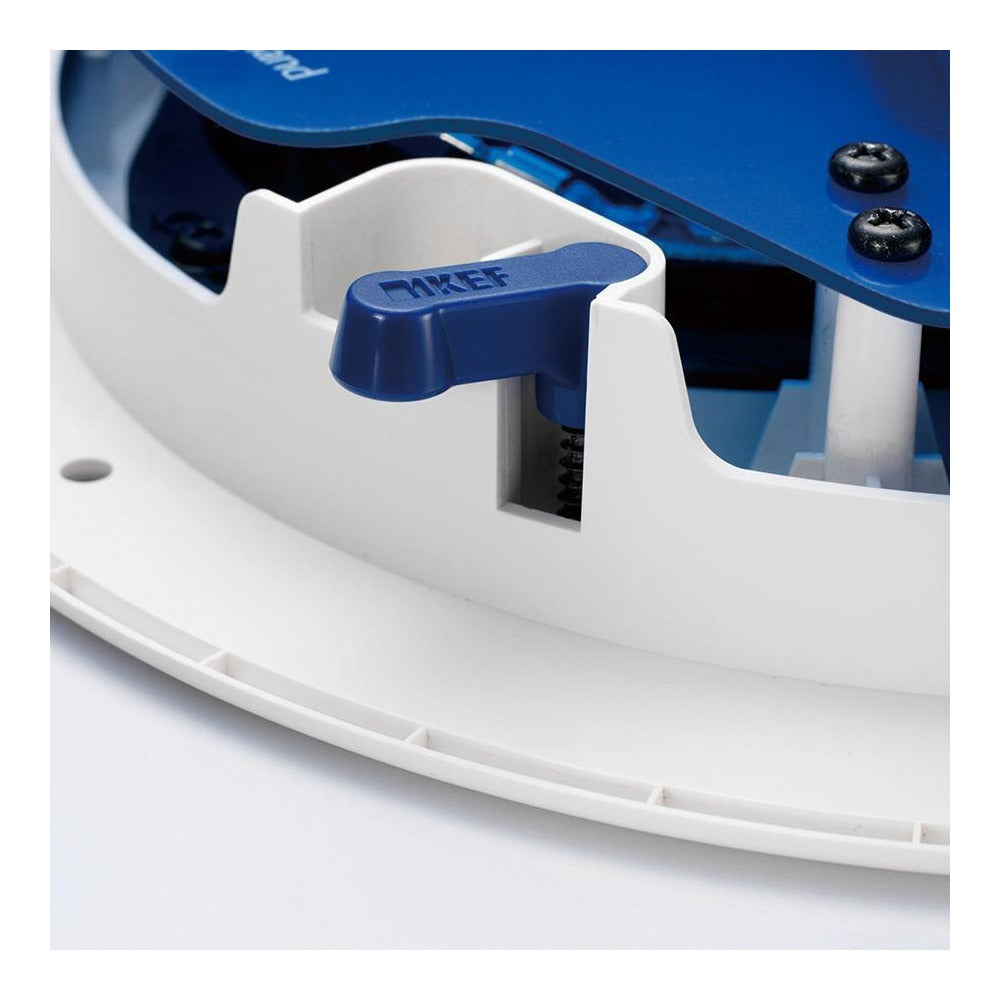

- Mounts with traditional dog-leg clamps, or screws directly to a solid surface
- Ultra-Thin Bezel (UTB), paintable, no more than 5mm wide

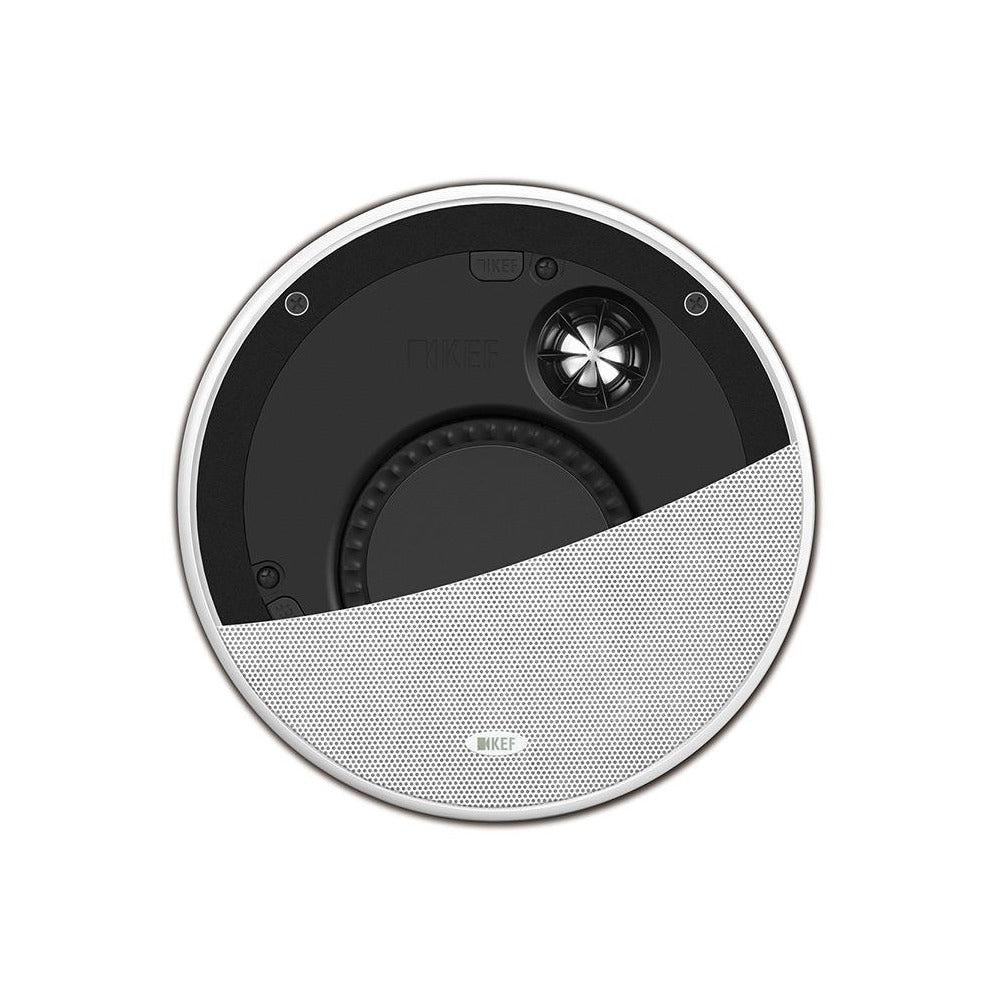

- Magnetic grille assembly, paintable
- Optional rough-in frame (RIF160R) and rear enclosure (RNC160R) available separately
Specifications
| Model | Ci160TR |
| Series | Ci T Series |
| Design | 2-way ultra-slim round flush-mount speaker, open-backed |
| Drive units | LF/MF: 115mm (4.5in.) dual-layer low-profile driver HF: 25mm (1in.) vented aluminium with Tangerine waveguide |
| Frequency response (±6dB, open-backed) | 110Hz - 24kHz |
| Frequency range (-10dB) | 69Hz - 45kHz |
| Crossover frequency | 1.7kHz |
| Recommended amplifier power | 10 - 100W |
| Recommended high-pass filter | 70Hz |
| Sensitivity (2.83V/1m) | 87dB |
| Nominal impedance | 8 ohms |
| Max SPL | 101dB |
| Nominal coverage | 160° |
| External dimensions | 234.6mm diameter x 40mm deep |
| Cut-out size | 196mm diameter |
| Mounting depth from surface | Under 36mm |
| Net weight | 1.0kg |
| Grille | Magnetic, paintable (grille supplied with the speaker) |
| Bezel | Ultra-Thin Bezel, paintable |
| Ideal rear volume | 3L |
| Minimum rear volume | 1L |
| Optional accessories | RIF160R rough-in frame, RNC160R rear enclosure |
| Certification | IP64 |
| Unit | Sold individually |
