- Nominal Impedance
- 4 ohms
- Sensitivity (2.83 V/1 m)
- 90 dB
- Frequency Response (±6 dB, open-backed)
- 52 Hz - 24 kHz
- Recommended Amplifier Power
- 10 - 190 W
- Product Dimensions
- 236 mm diameter x 115 mm depth
Price $1,100
Includes GST
Voted Australia's #1 Hi-Fi Retailer, Sound+Image Awards 2023. Family owned since 2010.
Planning a cinema around it?
Our designers match it to your room, screen and seating, then install and calibrate the lot. Start with it in our 3D builder, or talk to us.
Delivery and collection
Free standard shipping on orders of $300 or more within Australia, and $15 on smaller orders. Western Australia is quoted on request.
Pick up from our Belrose showroom: call ahead so we can have it ready.
Set-up and installation
Our team can deliver, install and set up your system, from speaker placement to a full cinema calibration. Ask us for a quote when you order.
Returns
Your rights under Australian Consumer Law always apply. Read our returns policy.
KEF Ci160RR-THX
Specifications
- Design
- Two-way in-ceiling speaker, Ci-R Series
- Drive Units
- LF: 165 mm (6.5 in.) Uni-Q, HF: 25 mm (1 in.)
- Frequency Response (±6 dB, open-backed)
- 52 Hz - 24 kHz
- Frequency Range (-10 dB)
- 38 Hz - 30 kHz
- Crossover Frequency
- 2.1 kHz
- Sensitivity (2.83 V/1 m)
- 90 dB
- Nominal Impedance
- 4 ohms
- Nominal Coverage
- 130°
- Maximum SPL (at 1 m)
- 105 dB
- Recommended Amplifier Power
- 10 - 190 W
- Recommended High-Pass Filter
- 38 Hz
- Product Dimensions
- 236 mm diameter x 115 mm depth
Drivers and Technology
- 165 mm (6.5 in.) Uni-Q driver with 25 mm (1 in.) tweeter
- Two-way design, crossover at 2.1 kHz
- THX Certified Ultra
Installation
- In-ceiling or in-wall mounting, 196 mm round cut-out (KEF Universal Cut-out for 160 mm models)
- Mounting depth from surface 110 mm
- Ideal rear volume 20 L, minimum rear volume 10 L
- To meet THX Certified Ultra distortion specifications, KEF specifies a 3 litre rear enclosure with the AV processor speaker size set to small

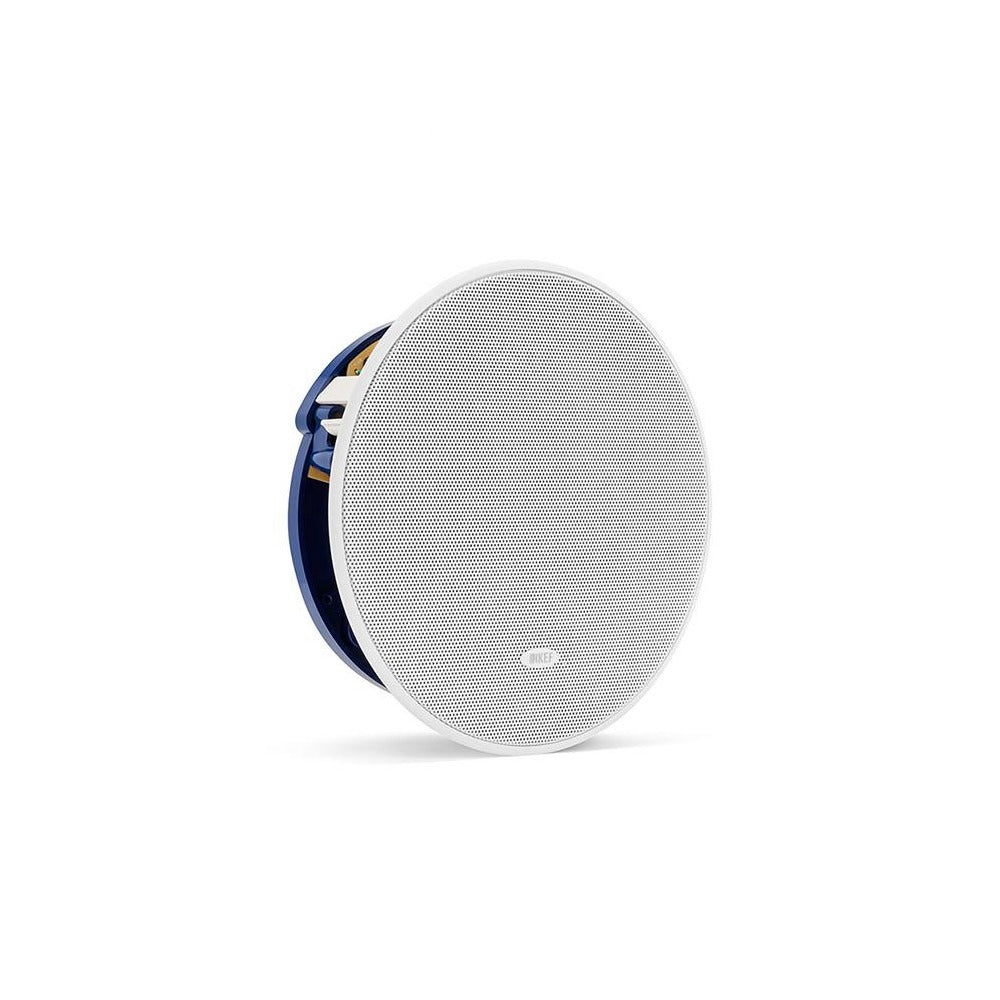

- Ultra-Thin Bezel (UTB) with paintable magnetic grille
In detail
About the Ci160RR-THX
Overview

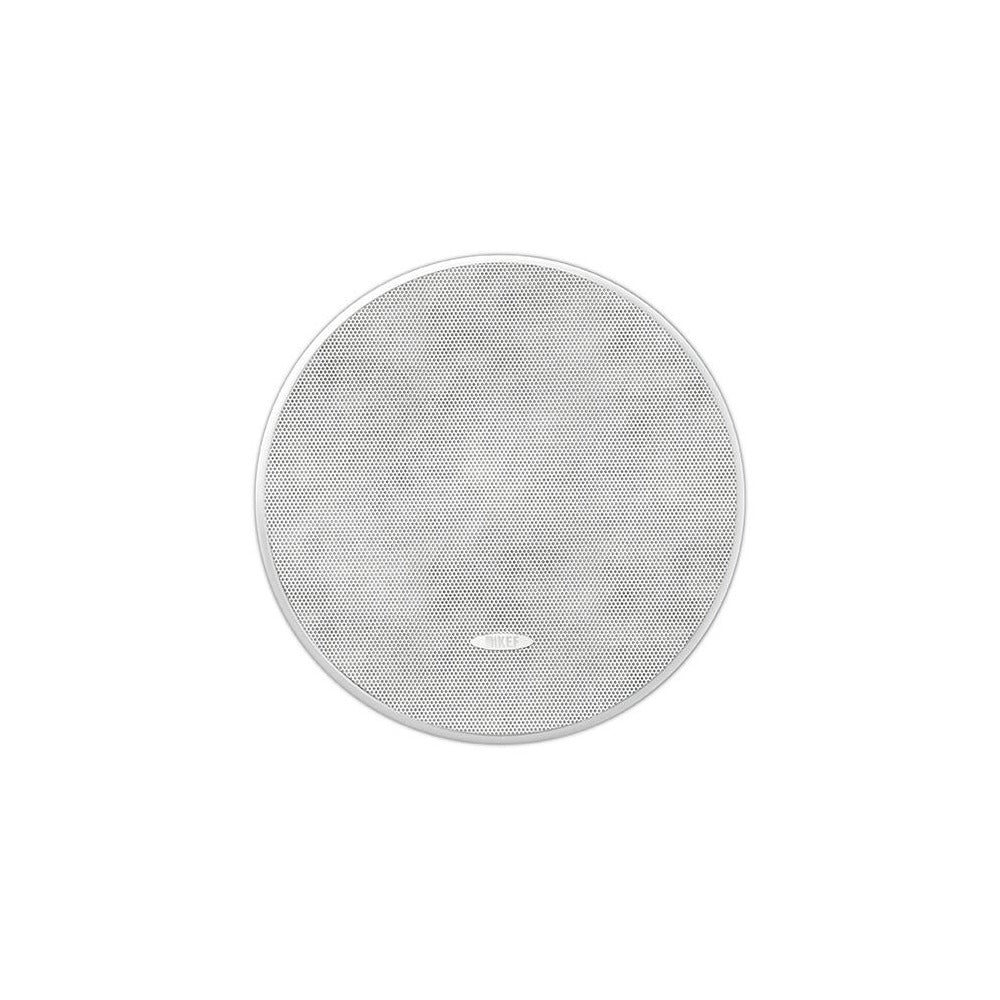

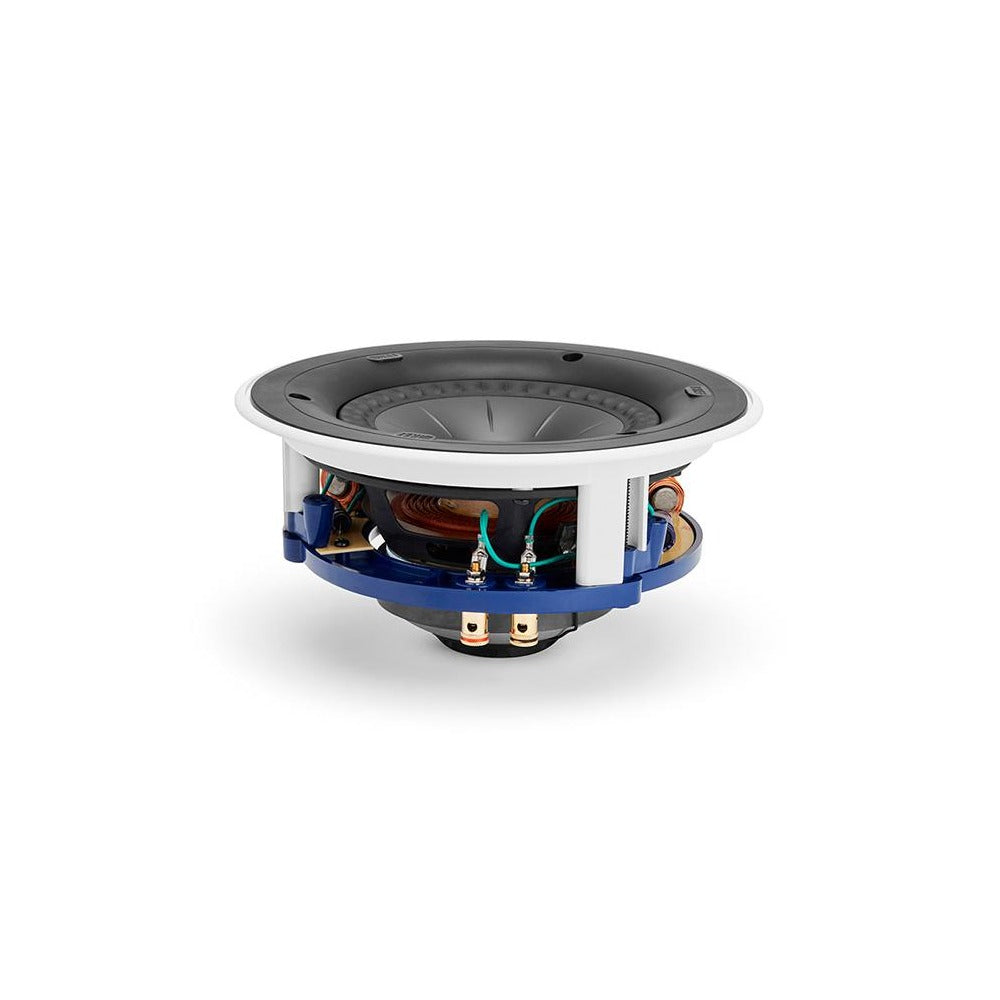

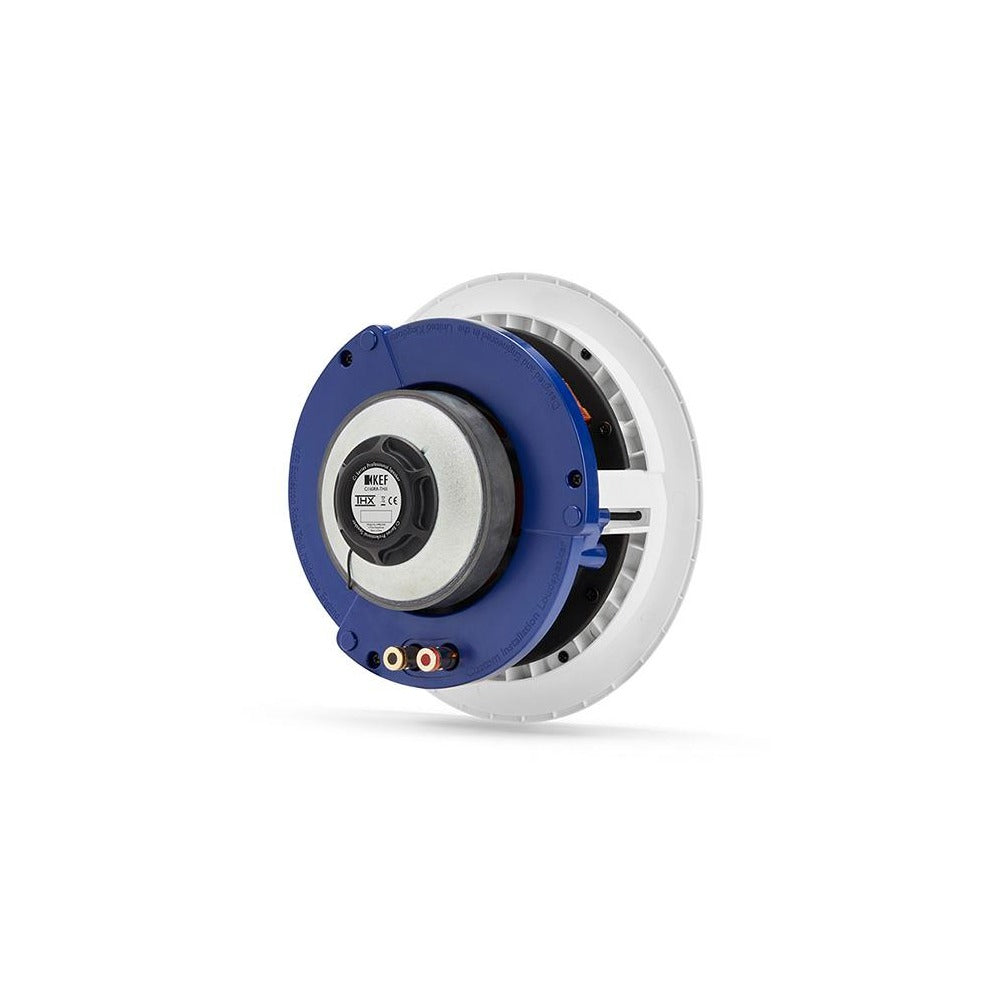

The Ci160RR-THX is a round Ci-R Series architectural speaker certified to THX Certified Ultra, designed for in-ceiling or in-wall installation in home theatres.

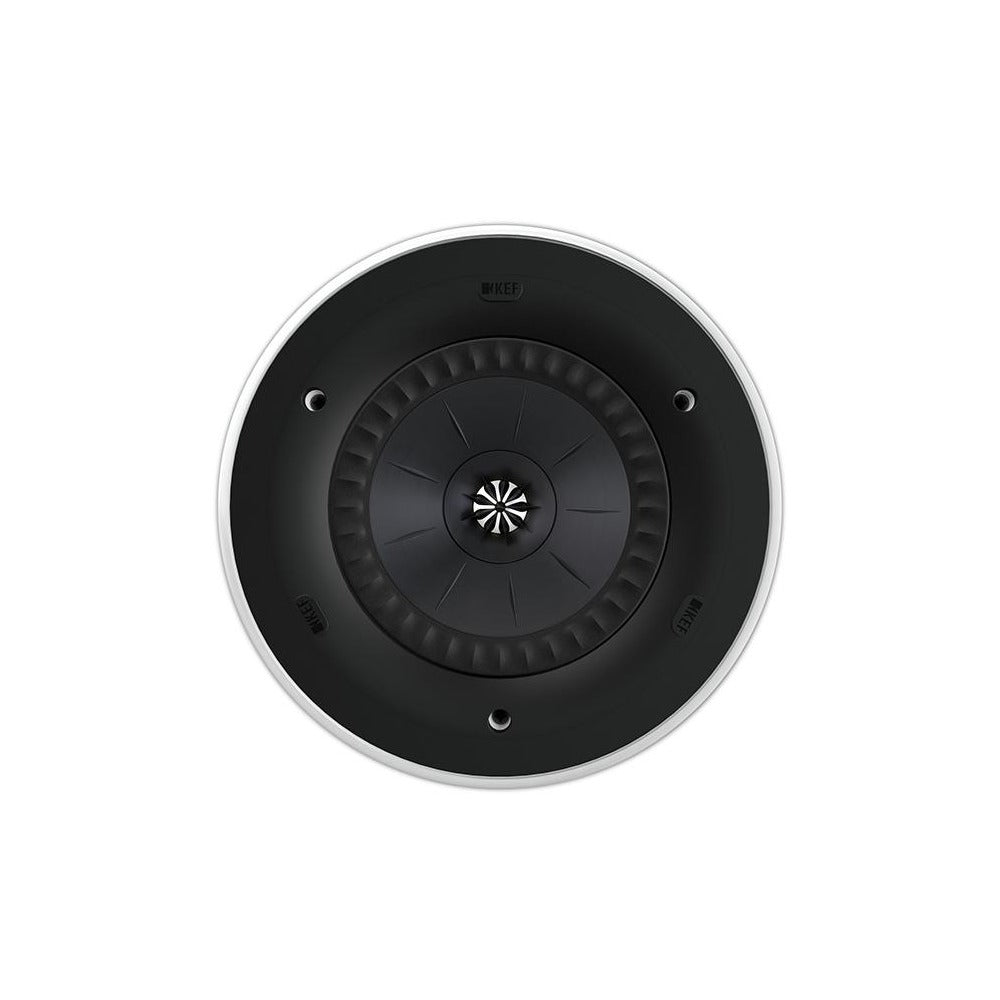

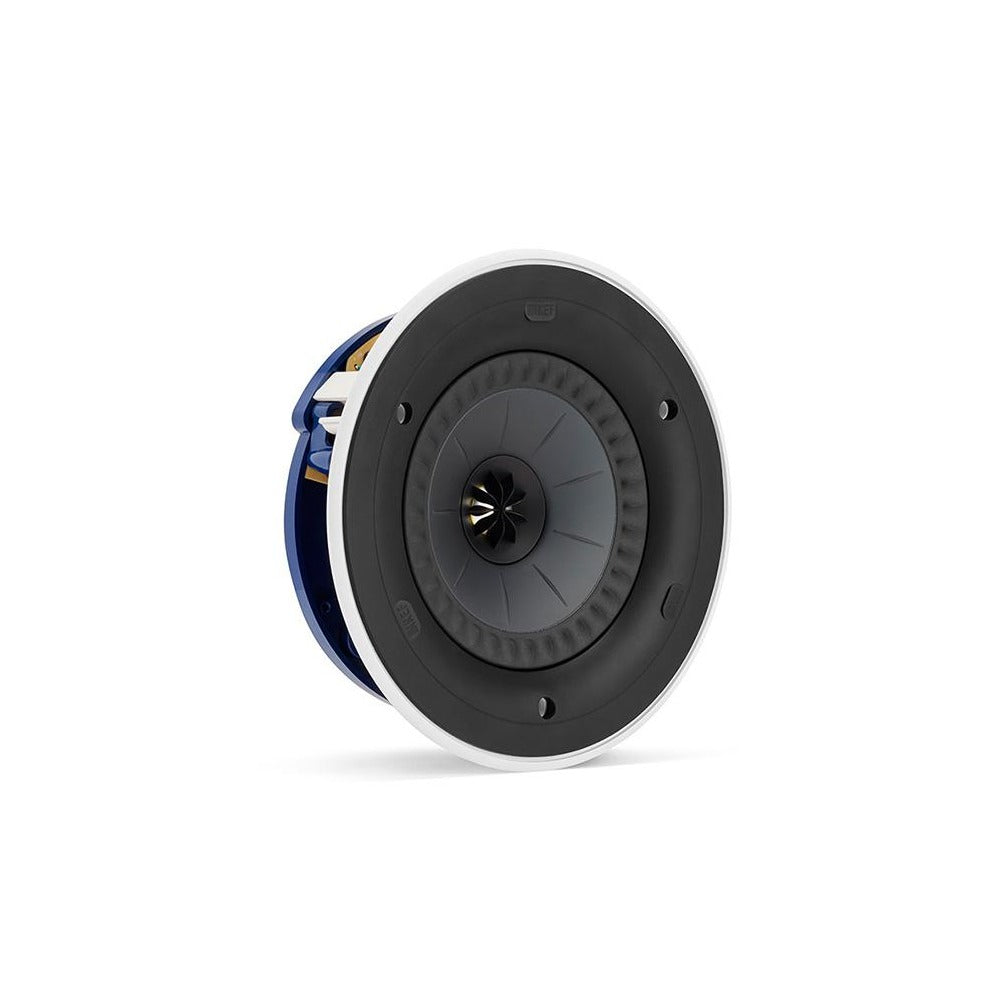

Its Uni-Q driver places a 25 mm tweeter at the acoustic centre of a 165 mm woofer. KEF's Universal Cut-out means it uses the same opening as other 160 mm KEF speakers.
