- Nominal impedance
- 8 ohms
- Sensitivity (2.83V/1m)
- 91dB
- Frequency response (±6dB, open-backed)
- 50Hz - 20kHz
- Recommended amplifier power
- 10 - 80W
- External dimensions
- 234.6mm diameter x 93mm deep
Price $630
Includes GST
Voted Australia's #1 Hi-Fi Retailer, Sound+Image Awards 2023. Family owned since 2010.
Planning a cinema around it?
Our designers match it to your room, screen and seating, then install and calibrate the lot. Start with it in our 3D builder, or talk to us.
Delivery and collection
Free standard shipping on orders of $300 or more within Australia, and $15 on smaller orders. Western Australia is quoted on request.
Pick up from our Belrose showroom: call ahead so we can have it ready.
Set-up and installation
Our team can deliver, install and set up your system, from speaker placement to a full cinema calibration. Ask us for a quote when you order.
Returns
Your rights under Australian Consumer Law always apply. Read our returns policy.
KEF Ci160CRds
Specifications
- Model
- Ci160CRds
- Series
- Ci C Series
- Design
- 2-way dual stereo round in-ceiling speaker, open-backed
- Drive units
- LF: 160mm (6.5in.) dual voice coil, HF: 2 x 19mm (0.75in.) aluminium dome with Tangerine waveguides
- Frequency response (±6dB, open-backed)
- 50Hz - 20kHz
- Frequency range (-10dB)
- 45Hz - 30kHz
- Crossover frequency
- 3.2kHz
- Recommended amplifier power
- 10 - 80W
- Recommended high-pass filter
- 50Hz
- Sensitivity (2.83V/1m)
- 91dB
- Nominal impedance
- 8 ohms
- Max SPL
- 106dB
Installation
- Cut-out size: 196mm diameter
- Mounting depth from surface: 86mm (without back can)
- Screw-down clamping system with moisture-resistant fixings
- Ultra-Thin Bezel (UTB), paintable, no more than 5mm wide
- Magnetic grille, paintable (KEF specifies a paint shield for painting)
- Open-backed design
- Optional rough-in frame (RIF160R) and rear enclosure (RNC160R) available separately
In detail
About the Ci160CRds
Overview

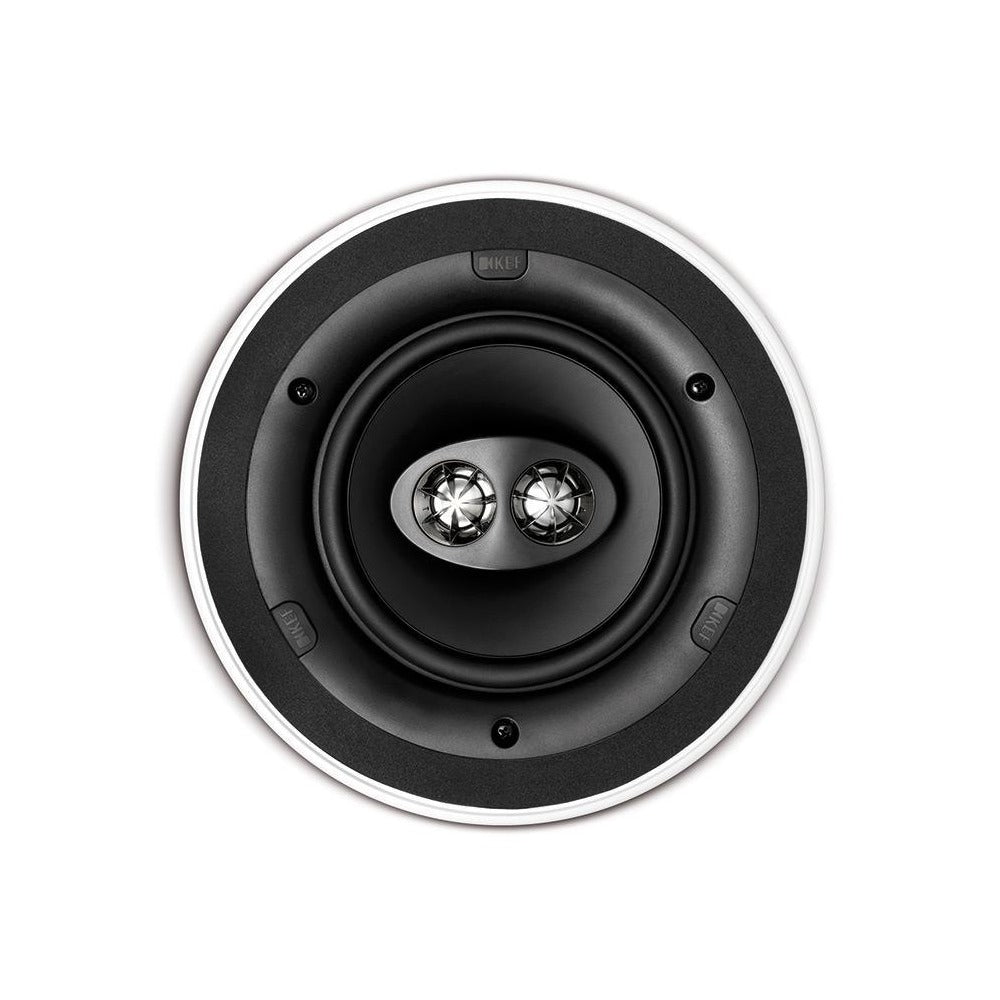

The KEF Ci160CRds is a round dual stereo in-ceiling speaker from KEF's Ci C Series. It takes both left and right channel inputs in a single speaker, using a dual voice coil 160mm (6.5in.) woofer and two 19mm (0.75in.) aluminium dome tweeters, so a full stereo signal can be played where there is only room for one speaker, such as a bathroom, hallway or under the eaves.

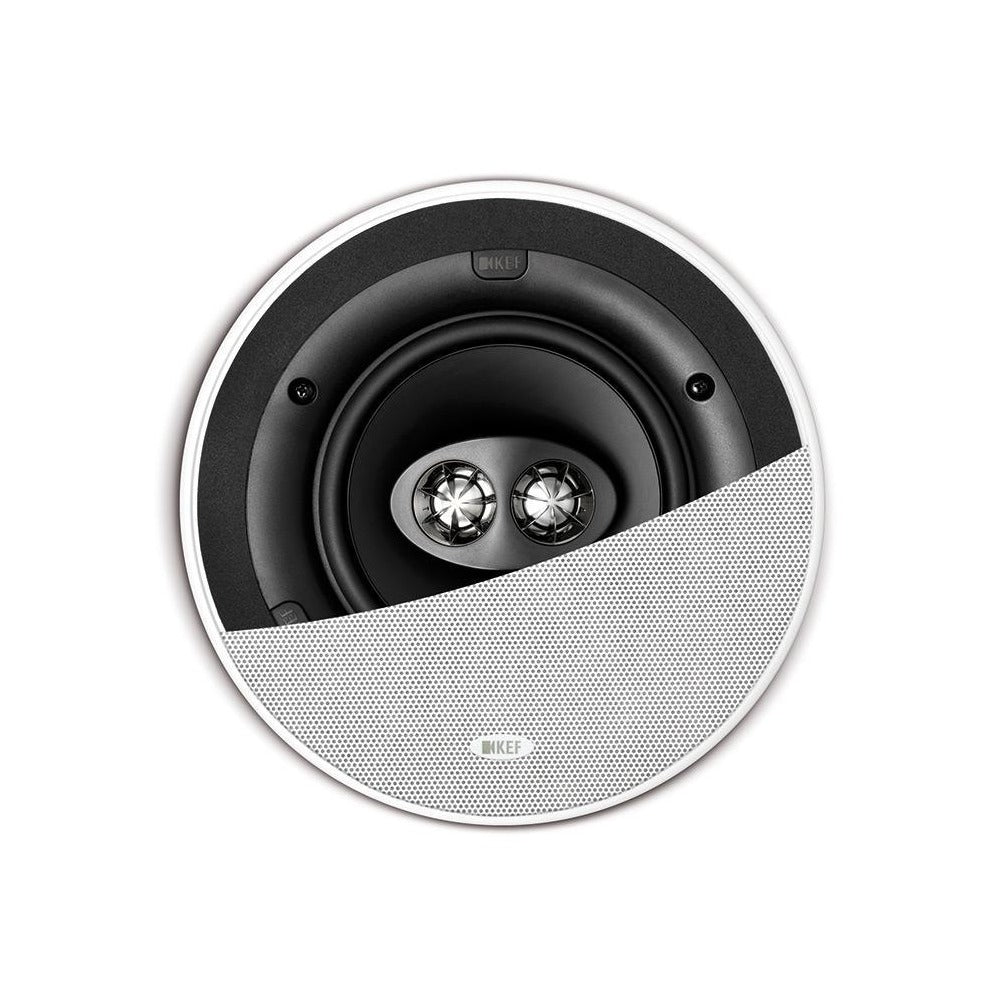

The tweeters sit on an asymmetrical centre island, angled to separate the two channels and widen dispersion. The Ultra-Thin Bezel and magnetic grille are paintable, and a screw-down clamping system with moisture-resistant fixings holds the speaker in place.
Drivers and Technology
- Dual stereo design: dual voice coil 160mm (6.5in.) woofer reproduces left and right channels
- Two 19mm (0.75in.) aluminium dome tweeters with KEF's Tangerine waveguides on an asymmetrical tweeter island
- Nominal coverage of 120° (rated by KEF)
- Covered crossover circuit
- Weather-resistant: UV-protected finish and moisture-resistant components, IP64 certified by KEF
