- Nominal impedance
- 8 ohms
- Sensitivity
- 89dB (2.83V/1m)
- Frequency response
- 52Hz to 20kHz (±6dB), open-backed
- Recommended amplifier power
- 10 to 100W
- External dimensions (H x W x D)
- 303 x 223 x 88.7 mm
Price $550
Includes GST
Voted Australia's #1 Hi-Fi Retailer, Sound+Image Awards 2023. Family owned since 2010.
Planning a cinema around it?
Our designers match it to your room, screen and seating, then install and calibrate the lot. Start with it in our 3D builder, or talk to us.
Delivery and collection
Free standard shipping on orders of $300 or more within Australia, and $15 on smaller orders. Western Australia is quoted on request.
Pick up from our Belrose showroom: call ahead so we can have it ready.
Set-up and installation
Our team can deliver, install and set up your system, from speaker placement to a full cinema calibration. Ask us for a quote when you order.
Returns
Your rights under Australian Consumer Law always apply. Read our returns policy.
KEF Ci160.2CL
Specifications
- Model
- Ci160.2CL
- Series
- C Series
- Design
- 2-way rectangular in-wall / in-ceiling speaker, open-backed
- Drive units
- LF: 160mm (6.5 in.) Uni-Q, HF: 16mm (0.6 in.) aluminium dome with Tangerine waveguide
- Frequency response
- 52Hz to 20kHz (±6dB), open-backed
- Crossover frequency
- 2.5kHz
- Sensitivity
- 89dB (2.83V/1m)
- Nominal impedance
- 8 ohms
- Max SPL
- 104dB
- Nominal coverage
- 120°
- Recommended amplifier power
- 10 to 100W
- Recommended high-pass filter
- 50Hz
Drivers and Technology
- KEF Uni-Q coincident driver array, tweeter mounted at the acoustic centre of the woofer
- 160mm (6.5 in.) bass/midrange driver
- 16mm (0.6 in.) aluminium dome tweeter with Tangerine waveguide
- Nominal coverage of 120°, rated by KEF
- Crossover at 2.5kHz
- Covered crossover circuit, which KEF says adds rigidity and protects the crossover components
Installation
- Rectangular format that KEF lists as an in-wall speaker, also suited to ceilings per KEF
- Cut-out size 274 x 194 mm (H x W)
- Mounting depth from surface 84.5 mm
- Open-backed design, secured by screw-driven clamps that grip the wall or ceiling board
- Optional RIF160L rough-in frame and RNC160L rear enclosure (sold separately)
- KEF recommends a rear volume of 35L (minimum 20L)
- Shares a common cut-out with KEF's other 160mm rectangular in-ceiling models, per KEF
In detail
About the Ci160.2CL
Overview
The KEF Ci160.2CL is a rectangular shallow-mount custom install speaker from KEF's C Series architectural range, built to sit flush in a dry-lined or stud partition wall or ceiling. It uses a 160mm (6.5 in.) Uni-Q driver array with the tweeter mounted at the acoustic centre of the bass/midrange cone, so both drivers radiate from a single point. KEF rates its nominal coverage at 120°.
An Ultra-Thin Bezel (UTB) keeps the visible rim narrow, and the grille attaches magnetically. Both the grille and bezel can be painted to match the surrounding surface. KEF lists the Ci160.2CL as weather resistant and IP64 certified, with a UV-protected bezel and grille.

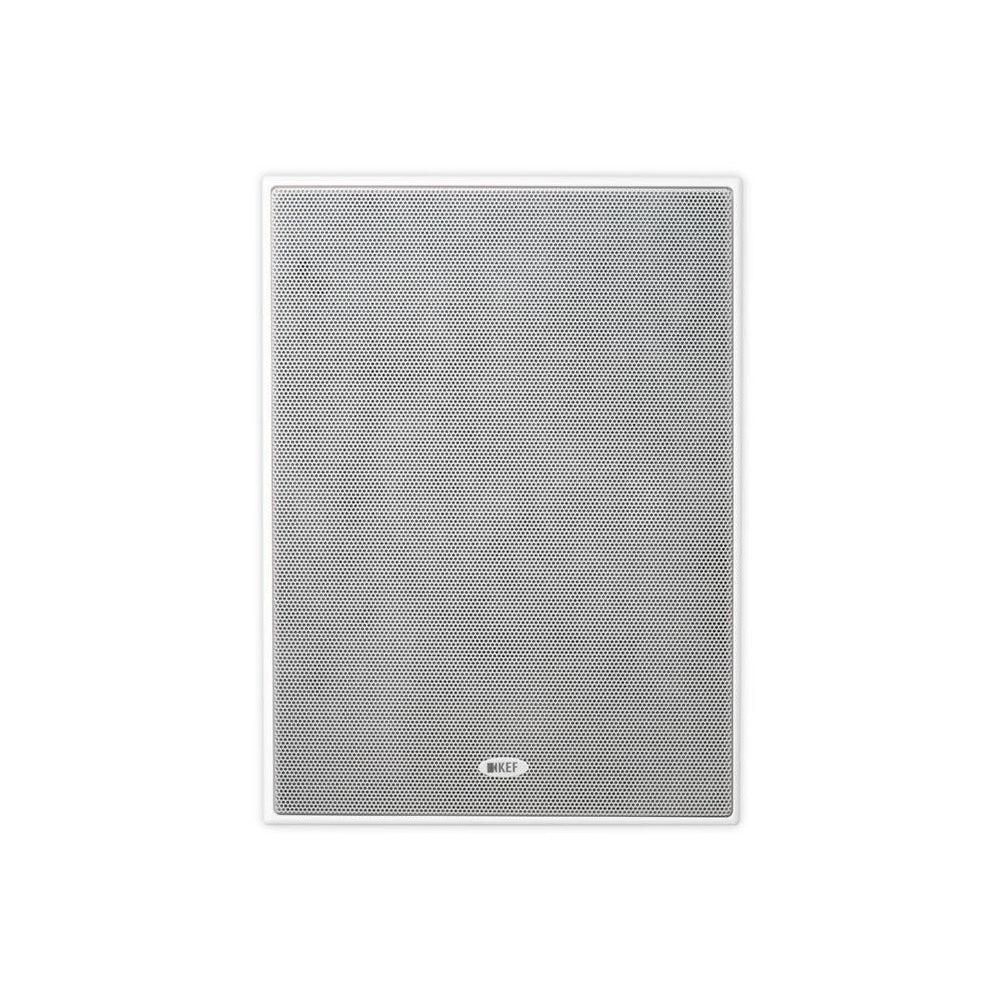

Grille and Finish
- Grille attaches magnetically
- Ultra-Thin Bezel (UTB), no more than 5mm wide according to KEF
- Grille and bezel are white and can be painted; a paint shield is included for the grille
- Weather resistant construction with UV-protected bezel and grille, IP64 certified
