Ci130QS

In-Ceiling Speakers

Nominal impedance: 8 ohms
Sensitivity: 87dB (2.83V/1m)
Frequency response: 45Hz to 34kHz (±6dB), open-backed
Recommended amplifier power: 10 to 100W
External dimensions (H x W x D): 184 x 184 x 84 mm

All specifications

Price $600

Includes GST

Voted Australia's #1 Hi-Fi Retailer, Sound+Image Awards 2023. Family owned since 2010.

Planning a cinema around it?

Our designers match it to your room, screen and seating, then install and calibrate the lot. Start with it in our 3D builder, or talk to us.

Delivery and collection

Free standard shipping on orders of $300 or more within Australia, and $15 on smaller orders. Western Australia is quoted on request.

Pick up from our Belrose showroom: call ahead so we can have it ready.

Set-up and installation

Our team can deliver, install and set up your system, from speaker placement to a full cinema calibration. Ask us for a quote when you order.

Returns

Your rights under Australian Consumer Law always apply. Read our returns policy.

KEF Ci130QS

Specifications

Model: Ci130QS
Series: Q Series
Design: 2-way square in-wall / in-ceiling speaker, open-backed
Drive units: LF: 130mm (5.25 in.) Uni-Q, HF: 19mm (0.75 in.) vented aluminium dome with Tangerine waveguide
Frequency response: 45Hz to 34kHz (±6dB), open-backed
Crossover frequency: 3.8kHz
Sensitivity: 87dB (2.83V/1m)
Nominal impedance: 8 ohms
Max SPL: 103dB
Nominal coverage: 130°
Recommended amplifier power: 10 to 100W
Recommended high-pass filter: 50Hz
External dimensions (H x W x D): 184 x 184 x 84 mm
Cut-out dimensions (H x W): 158 x 158 mm
Mounting depth from surface: 77.9 mm
Net weight: 1.4 kg
Ideal / minimum rear volume: 15L / 10L
Optional accessories: RIF130S rough-in frame, RNC130S rear enclosure
Certification: IP64
Finish: White, paintable grille and bezel
Unit: Sold individually

Drivers and Technology

KEF Uni-Q coincident driver array, tweeter mounted at the acoustic centre of the woofer
130mm (5.25 in.) bass/midrange driver
19mm (0.75 in.) vented aluminium dome tweeter with Tangerine waveguide
Nominal coverage of 130°, rated by KEF
Crossover at 3.8kHz

Installation

Square format that KEF lists for both in-ceiling and in-wall installation
Cut-out size 158 x 158 mm (H x W)
Mounting depth from surface 77.9 mm

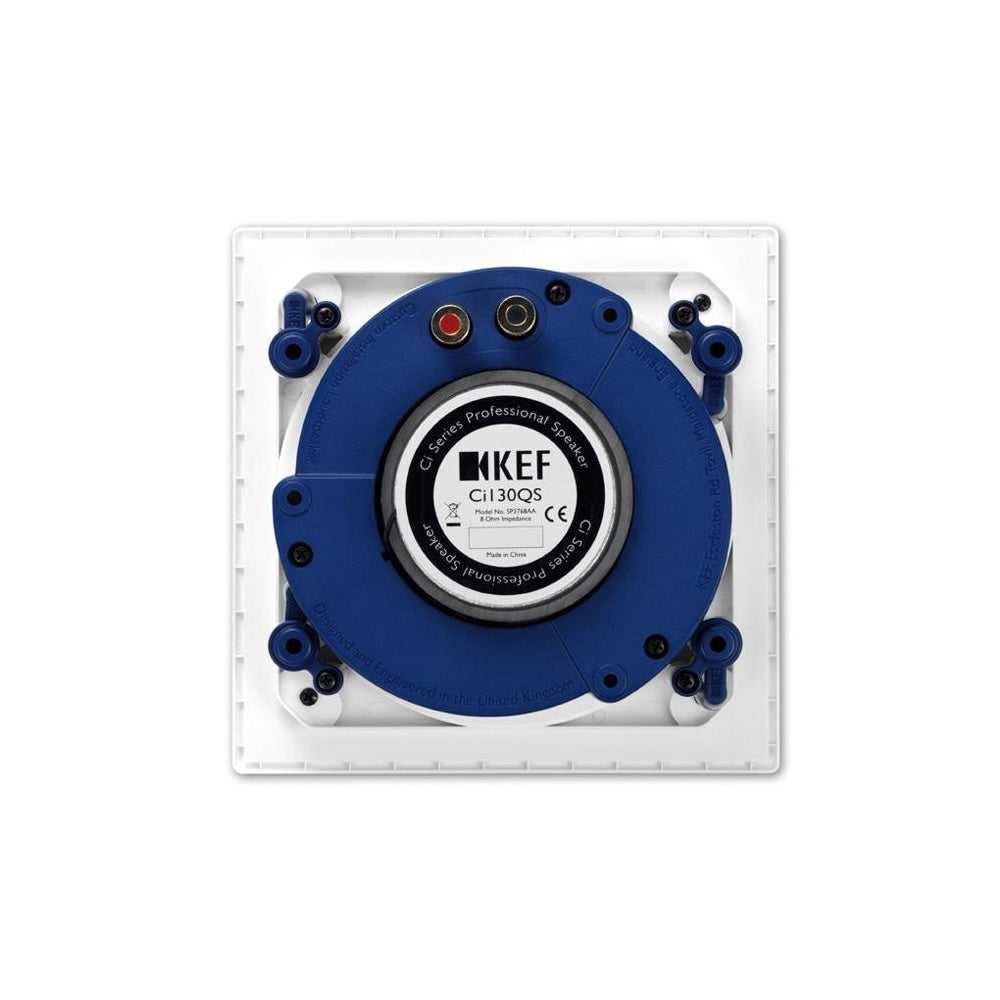

Open-backed design, secured by screw-driven clamps that grip the wall or ceiling board
Optional RIF130S rough-in frame and RNC130S rear enclosure (sold separately)
KEF recommends a rear volume of 15L (minimum 10L)

In detail

About the Ci130QS

Overview

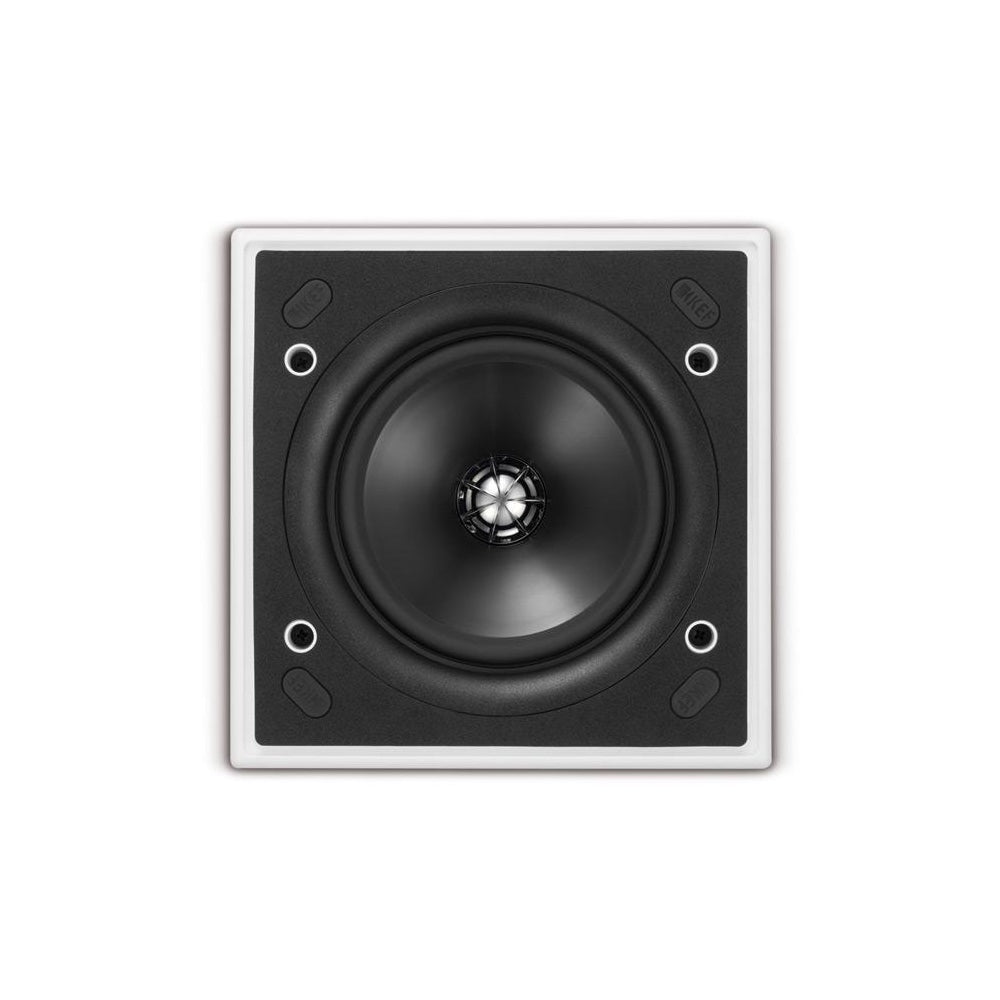

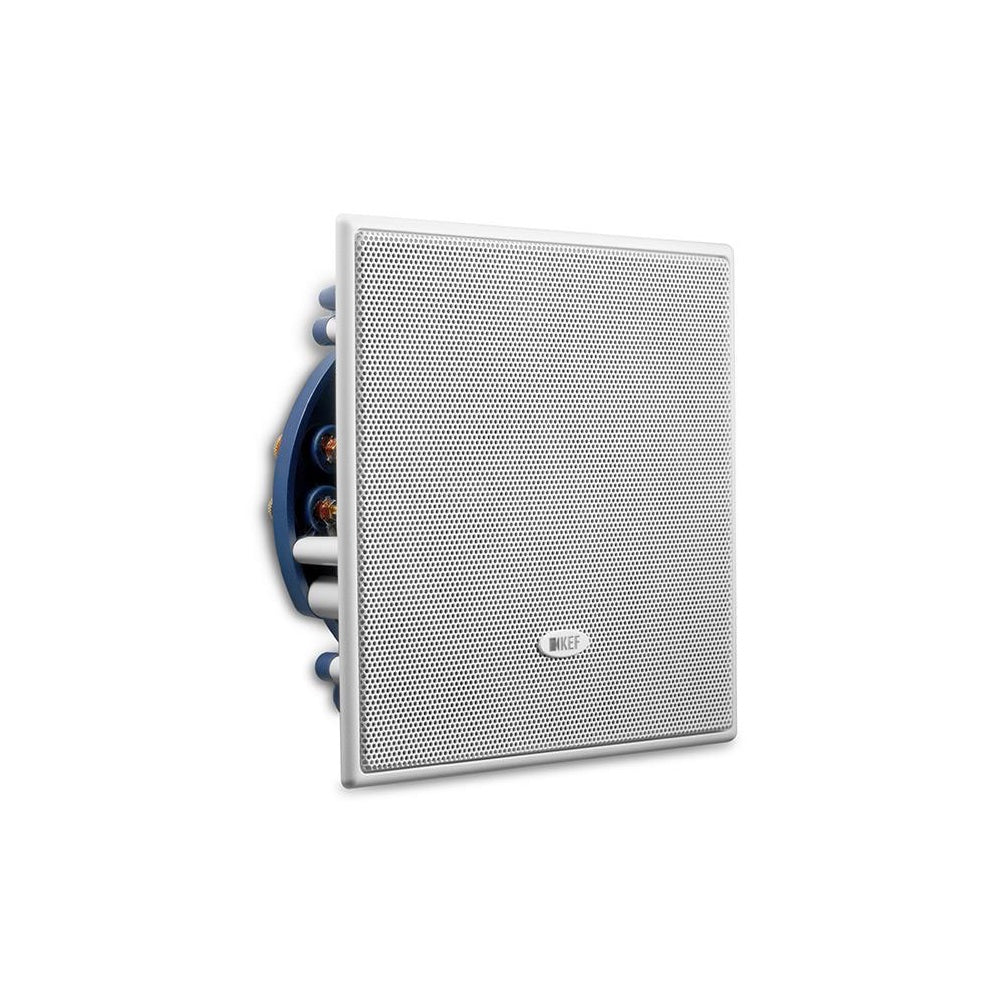

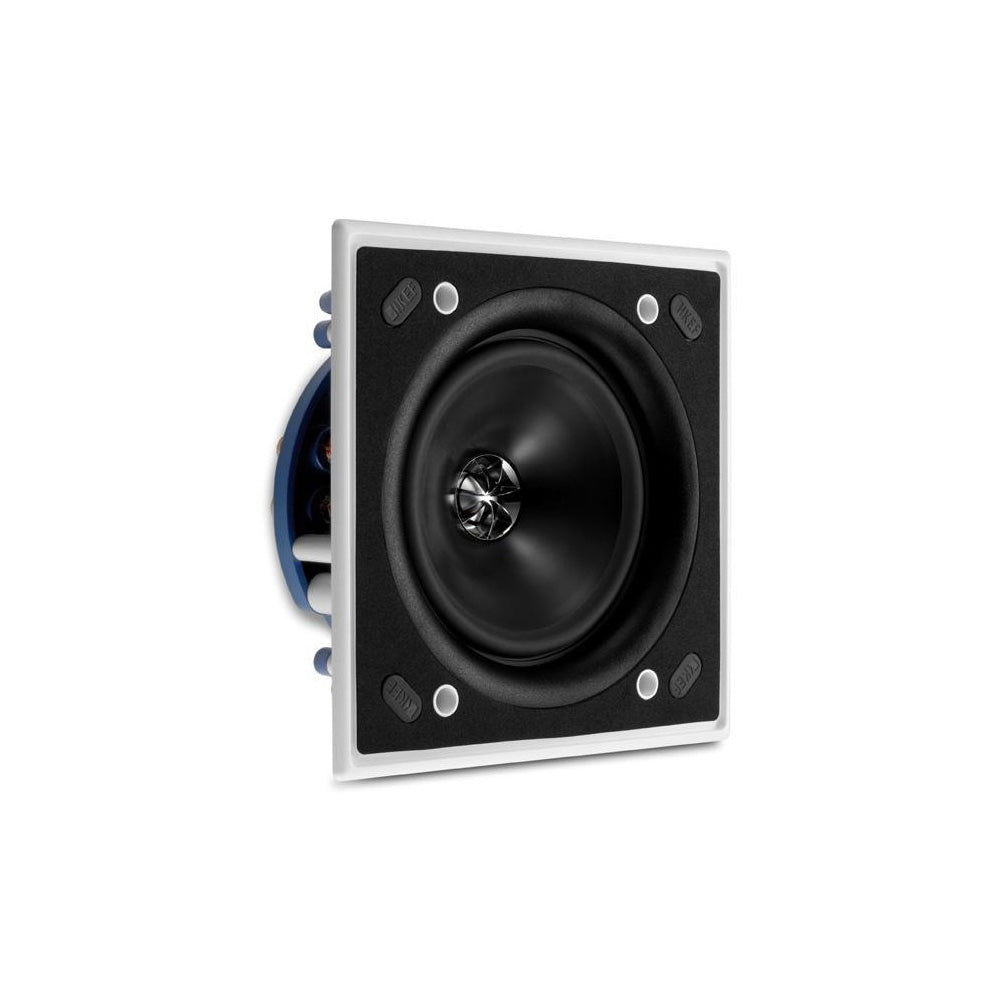

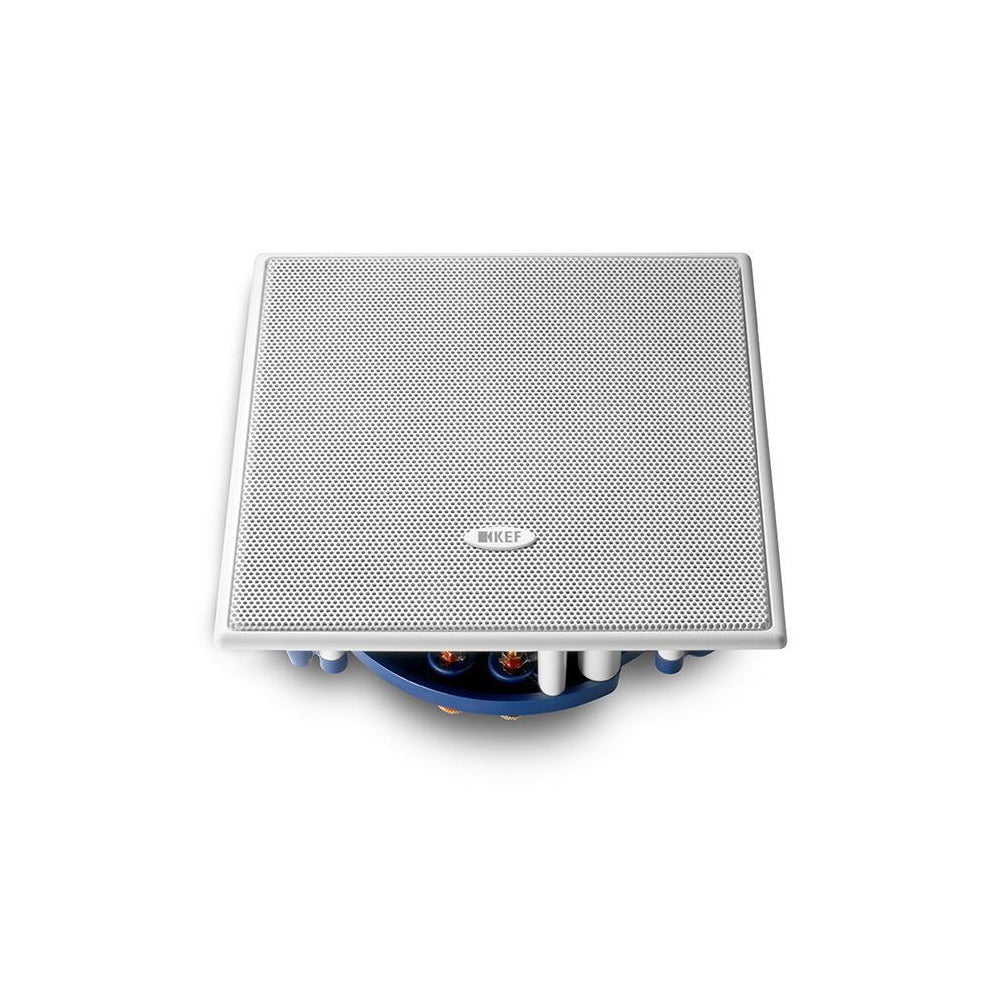

The KEF Ci130QS is a square custom install speaker from KEF's Q Series architectural range, built to sit flush in a dry-lined or stud partition wall or ceiling. It uses a 130mm (5.25 in.) Uni-Q driver array with the tweeter mounted at the acoustic centre of the bass/midrange cone, so both drivers radiate from a single point. KEF rates its nominal coverage at 130°.

An Ultra-Thin Bezel (UTB) keeps the visible rim narrow, and the grille attaches magnetically. Both the grille and bezel can be painted to match the surrounding surface. KEF lists the Ci130QS as weather resistant and IP64 certified, with a UV-protected bezel and grille.

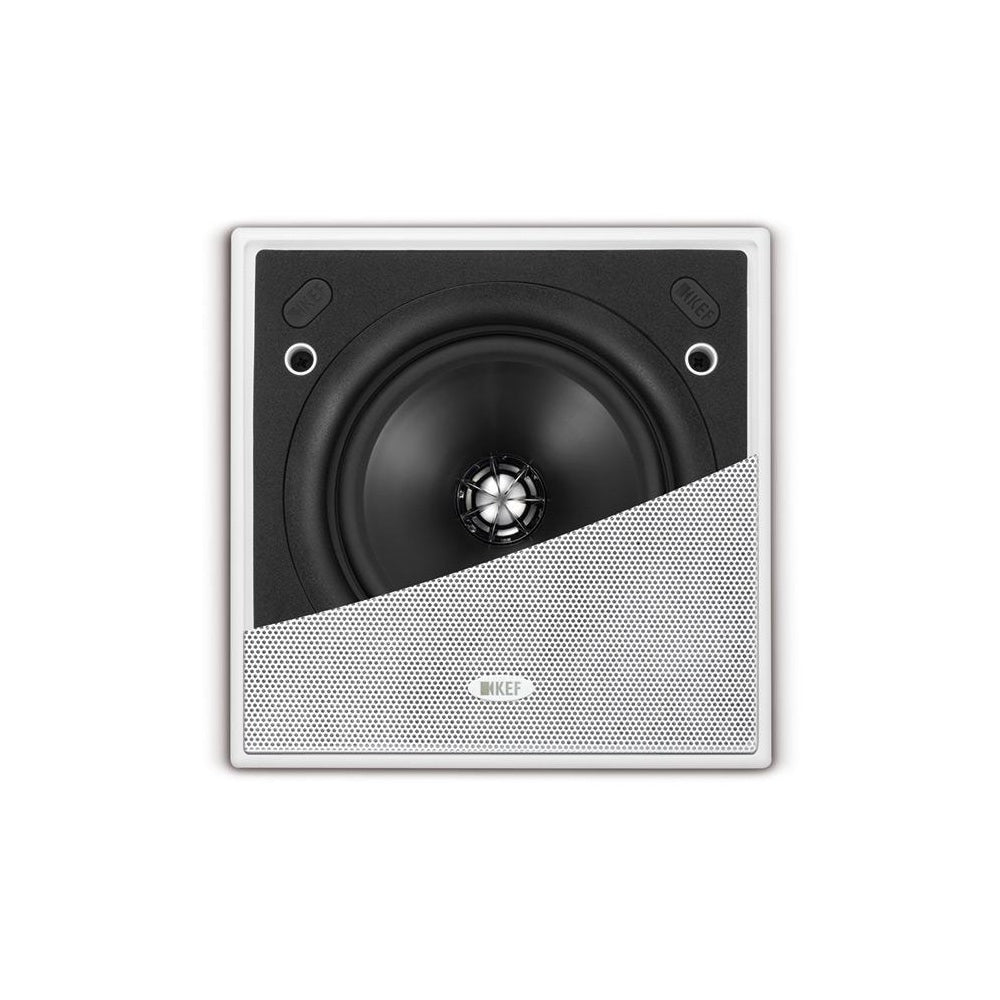

Grille and Finish

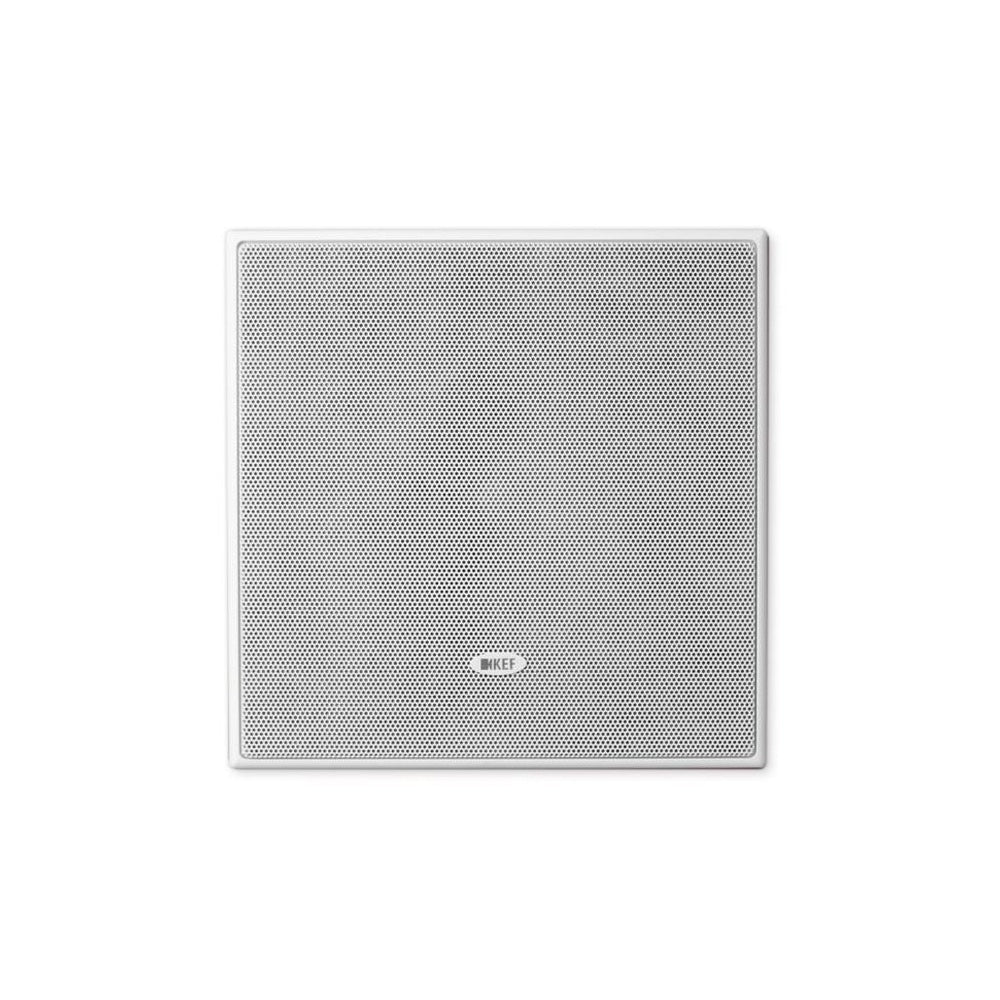

Grille attaches magnetically
Ultra-Thin Bezel (UTB), no more than 5mm wide according to KEF
Grille and bezel are white and can be painted; a paint shield is included for the grille
Weather resistant construction with UV-protected bezel and grille, IP64 certified
