SKU SP3732AA
KEF - Ci130QR - In-Ceiling Speakers
by KEF
$630.00
Lightning Fast Free Delivery*
Don't wait to start your audio adventure. With our lightning-fast delivery, your new high-fidelity audio equipment will be at your doorstep before you know it.
Check Out Our Thousands Of Reviews
Our services hit the high notes, but don't just take our word for it. Scroll down to read the rave reviews from our chorus of happy customers. They've heard the difference, and you can too.
Overview

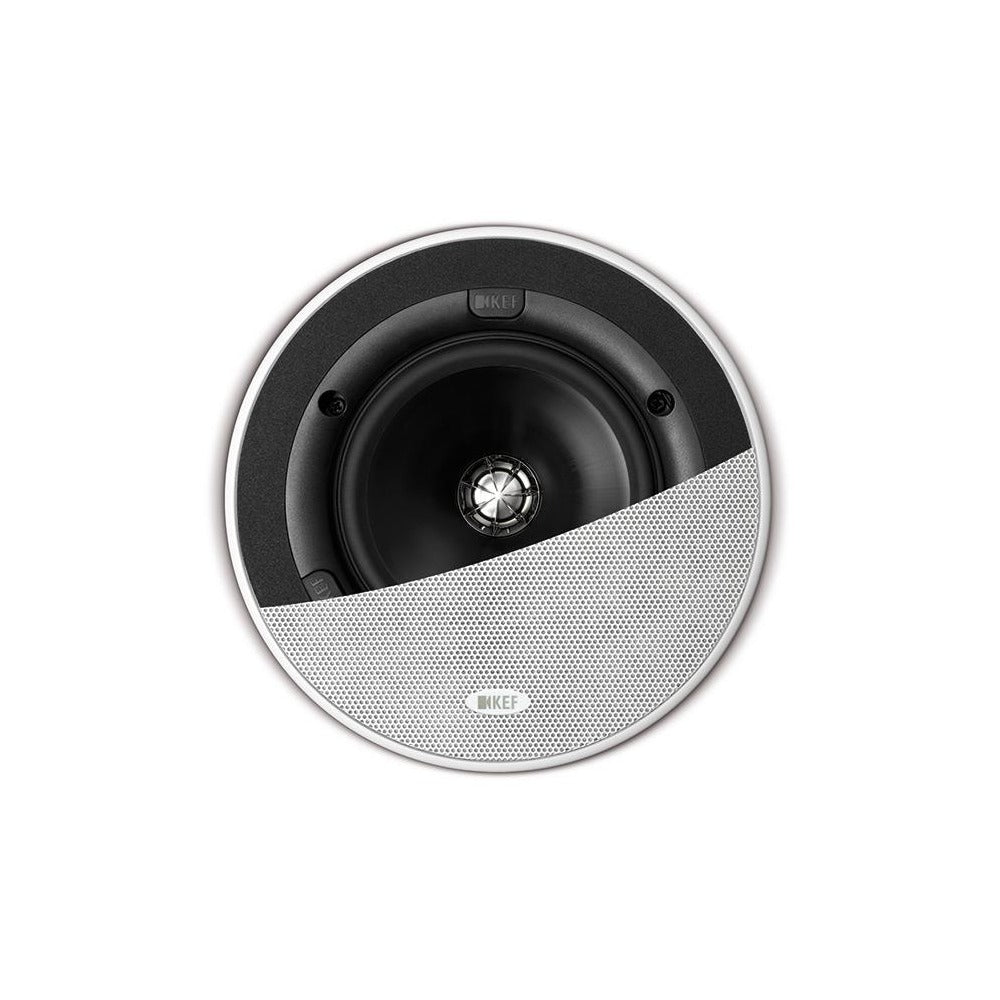

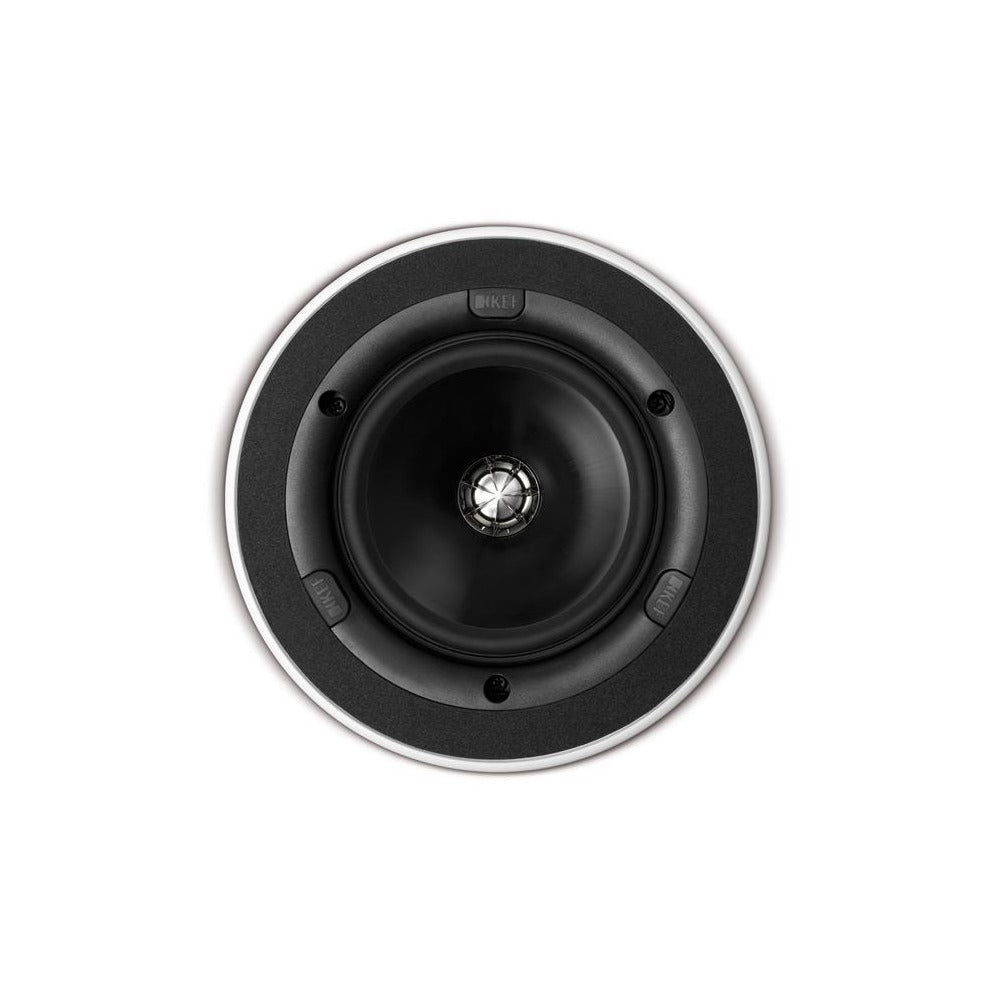

The KEF Ci130QR is a round in-ceiling speaker from KEF's Ci Q Series, built around a 130mm Uni-Q driver array with a 19mm aluminium dome tweeter mounted at the acoustic centre of the bass/midrange cone. KEF designed it for flush-mount ceiling installs in homes and commercial spaces where wide, even coverage is needed from a discreet speaker.
KEF rates its nominal coverage at 130°. The Ultra-Thin Bezel (UTB) keeps the visible rim to no more than 5mm, and the magnetic grille and bezel can both be painted to match the ceiling.
Drivers and Technology
- 130mm (5.25in.) Uni-Q driver array with the tweeter at the acoustic centre of the cone (single point source)
- 19mm (0.75in.) vented aluminium dome tweeter with KEF's Tangerine waveguide
- Nominal coverage of 130° (rated by KEF)

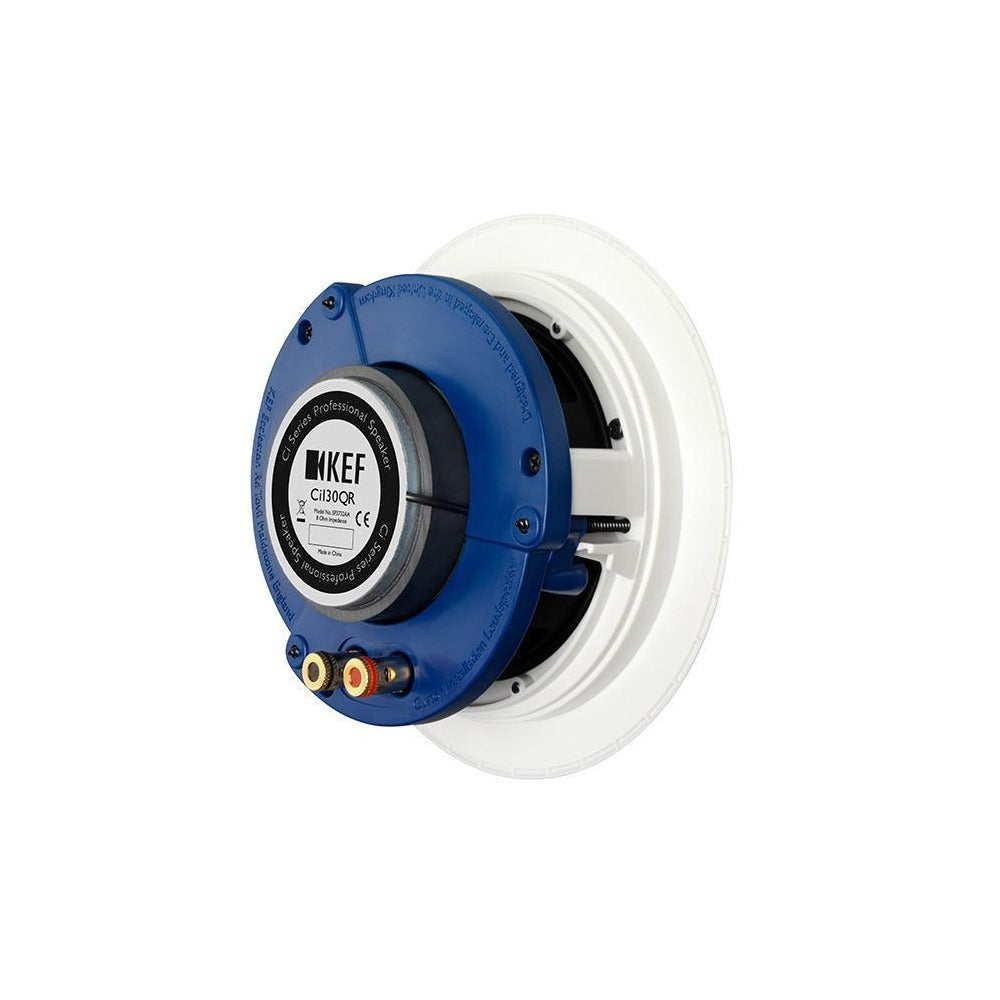

- Gold-plated spring-loaded binding posts
- Weather-resistant construction with UV-protected ABS baffle, IP64 certified by KEF
Installation
- Cut-out diameter: 158mm
- Mounting depth from surface: 77.8mm
- Ultra-Thin Bezel (UTB), paintable, no more than 5mm wide
- Magnetic grille, paintable (KEF specifies a paint shield for painting)
- Open-backed design
- Optional rough-in frame (RIF130R) and rear enclosure (RNC130R) available separately
Specifications
| Model | Ci130QR |
| Series | Ci Q Series |
| Design | 2-way round in-ceiling speaker, Uni-Q driver array, open-backed |
| Drive units | LF/MF: 130mm (5.25in.) Uni-Q HF: 19mm (0.75in.) vented aluminium dome with Tangerine waveguide |
| Frequency response (±6dB, open-backed) | 45Hz - 34kHz |
| Crossover frequency | 3.8kHz |
| Recommended amplifier power | 10 - 100W |
| Recommended high-pass filter | 50Hz |
| Sensitivity (2.83V/1m) | 87dB |
| Nominal impedance | 8 ohms |
| Max SPL | 103dB |
| Nominal coverage | 130° |
| External dimensions | 193.4mm diameter x 83mm deep |
| Cut-out size | 158mm diameter |
| Mounting depth from surface | 77.8mm |
| Net weight | 1.35kg |
| Grille | Magnetic, paintable (grille supplied with the speaker) |
| Bezel | Ultra-Thin Bezel, paintable |
| Ideal rear volume | 15L |
| Minimum rear volume | 10L |
| Optional accessories | RIF130R rough-in frame, RNC130R rear enclosure |
| Certification | IP64 |
| Unit | Sold individually |
