WXA-70A

Streaming Amplifier

Minimum speaker impedance: 4 ohms
Rated power output (2 channels driven, 1kHz, 0.9% THD): 65W + 65W (8 ohms)
Weight: 2.6 kg

All specifications

Price $1,999

Includes GST

Voted Australia's #1 Hi-Fi Retailer, Sound+Image Awards 2023. Family owned since 2010.

Hear the WXA-70A before you decide

Book a private listening session in Belrose and ask for the WXA-70A: we will confirm what we can set up for you. Or audition it at home.

Delivery and collection

Free standard shipping on orders of $300 or more within Australia, and $15 on smaller orders. Western Australia is quoted on request.

Pick up from our Belrose showroom: call ahead so we can have it ready.

Set-up and installation

Our team can deliver, install and set up your system, from speaker placement to a full cinema calibration. Ask us for a quote when you order.

Returns

Your rights under Australian Consumer Law always apply. Read our returns policy.

Yamaha WXA-70A

Specifications

Model: WXA-70A
Type: Wireless streaming amplifier, 2-channel digital amplifier
Rated power output (2 channels driven, 20Hz to 20kHz, 0.06% THD, AES-17): 55W + 55W (8 ohms), 70W + 70W (6 ohms), 105W + 105W (4 ohms)
Rated power output (2 channels driven, 1kHz, 0.9% THD): 65W + 65W (8 ohms)
1-channel driven output (1kHz, 0.9% THD): 70W / 90W / 130W (8 / 6 / 4 ohms)
Maximum effective power (JEITA, 1kHz, 10% THD, 1 channel): 85W / 110W / 165W (8 / 6 / 4 ohms)
Minimum speaker impedance: 4 ohms
Total harmonic distortion: 0.02% (speaker out, AES-17, 20Hz to 20kHz)
Frequency response: 10Hz to 38kHz (+0/-3dB), digital and analogue inputs
Signal-to-noise ratio (AES-17, IHF-A): Optical/USB/Bluetooth: 110dB, AUX: 98dB
Subwoofer pre-out: 4.0V / 470 ohms
Maximum allowable input (AUX): 2.4V or more
DAC: ESS SABRE ES9039Q2M
Tone controls: Bass: ±6dB in 0.5dB steps (350Hz), Treble: ±6dB in 0.5dB steps (3.5kHz)
Subwoofer crossover: 40, 60, 80, 90, 100, 110, 120, 160 or 200Hz, 24dB/oct
YPAO: PEQ, Reflected Sound Control (R.S.C.), YPAO Volume
Audio inputs: HDMI (eARC/ARC, CEC) x 1, Optical x 1 (2-channel PCM, 32kHz to 192kHz), Analogue RCA (AUX) x 1, USB Type-A x 1 (music playback and firmware updates)
HDMI eARC/ARC audio: 2-channel PCM, up to 192kHz/24-bit
Outputs: Speaker terminals (L/R) x 1, Subwoofer pre-out (RCA) x 1
Other connections: 12V trigger out x 1, remote in x 1, YPAO microphone x 1, Ethernet x 1 (100Base-TX/10Base-T), Wi-Fi antenna
Streaming services: AirPlay, Google Cast, Spotify Connect, TIDAL Connect, Qobuz Connect, Roon Ready, internet radio, podcasts, music server, MusicCast
Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax, 2.4GHz/5GHz, WPA2-PSK and WPA3-SAE, WPS
Bluetooth: Ver. 5.3, Class 1, A2DP and AVRCP, SBC and AAC
File formats (network/USB): FLAC, WAV and AIFF up to 384kHz; ALAC up to 96kHz; MP3, WMA and MPEG-4 AAC up to 48kHz; DSD 2.8MHz, 5.6MHz and 11.2MHz
Power supply (Australian model): AC 230V to 240V, 50Hz
Power consumption: 68W
Standby power consumption: 0.5W (HDMI Control, network and Bluetooth standby all off); otherwise 2.0W
Dimensions (W x H x D): 220 x 73 x 267 mm (220 x 155 x 267 mm with antenna upright)
Weight: 2.6 kg
Finishes: Black, Silver
Unit: Sold individually

In detail

About the WXA-70A

Overview

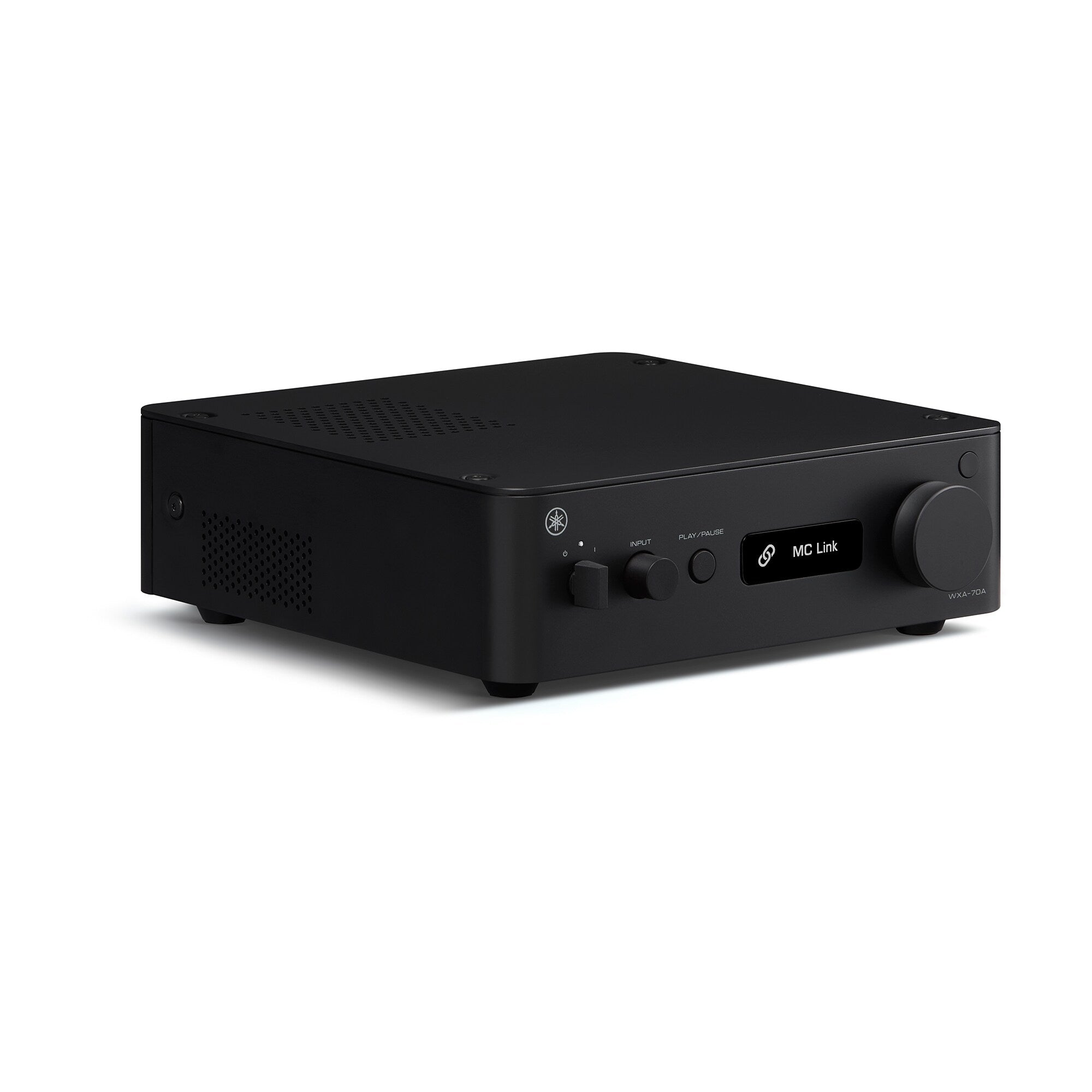

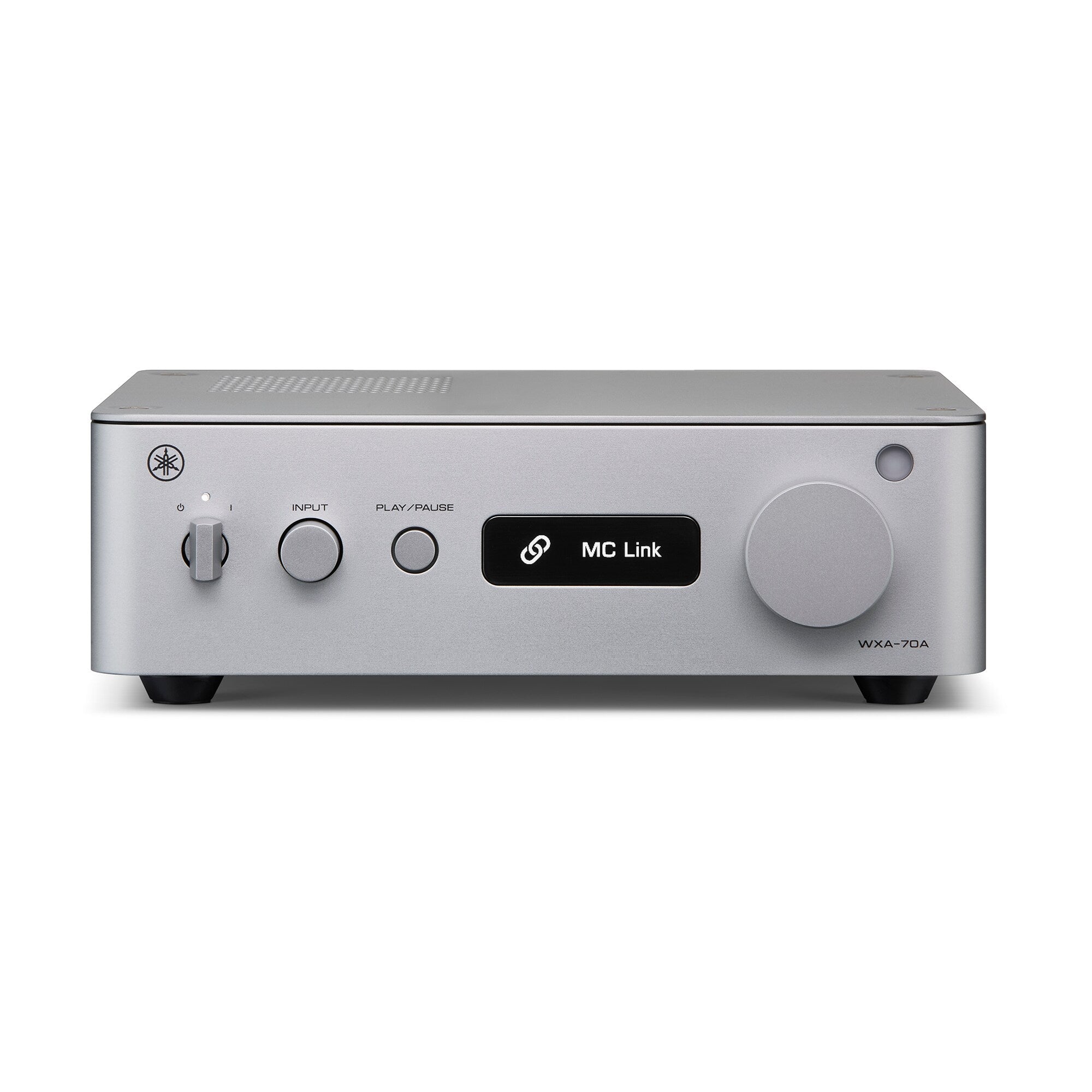

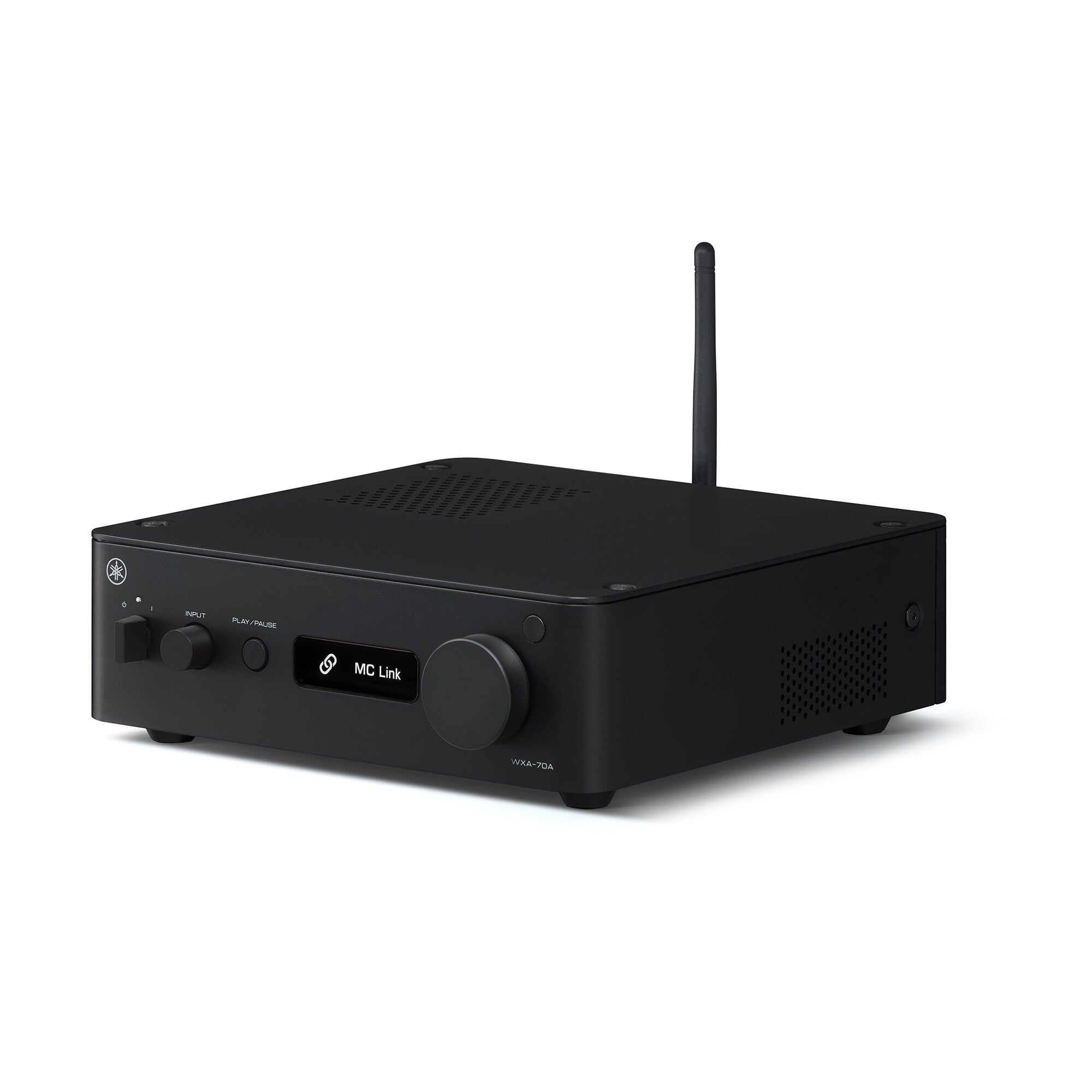

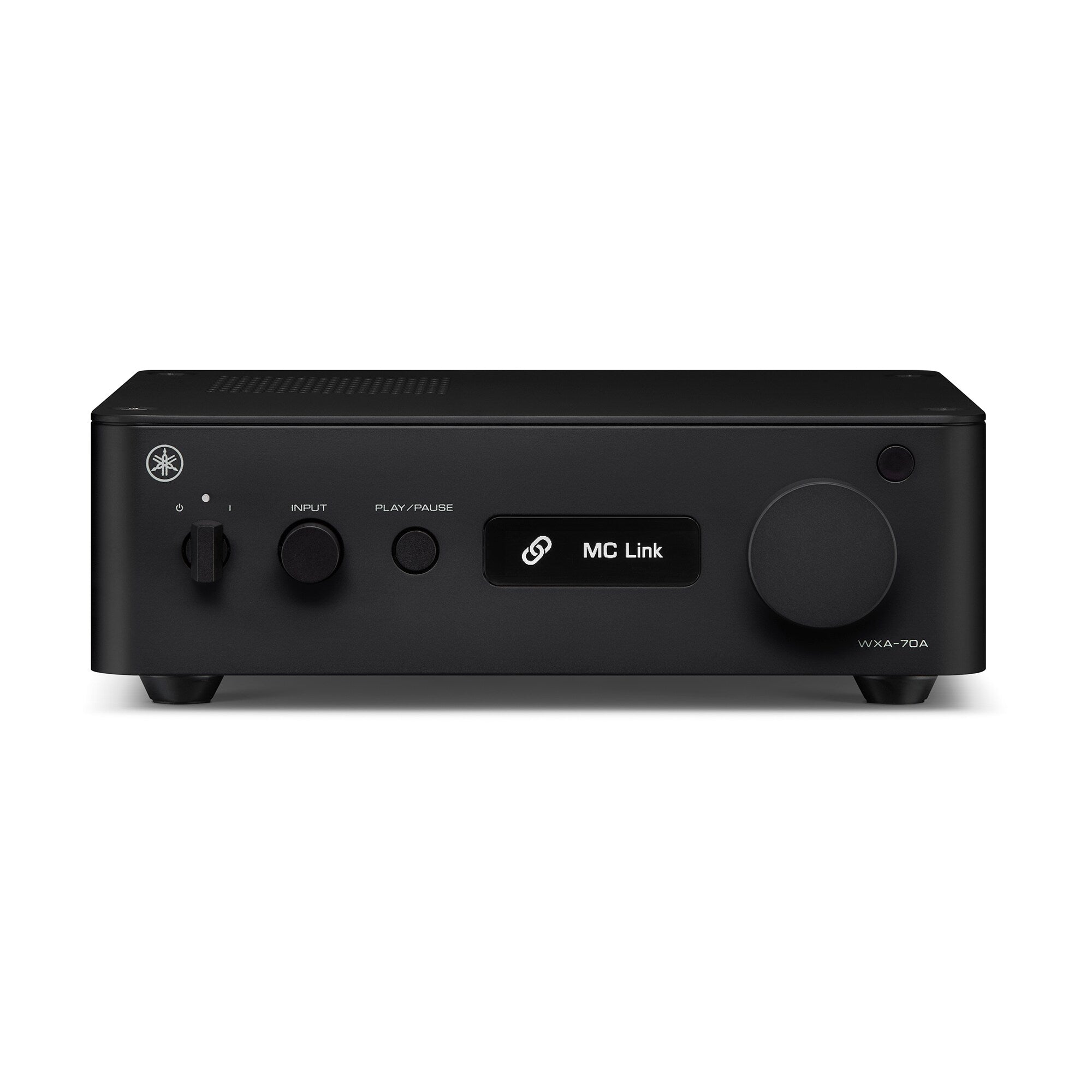

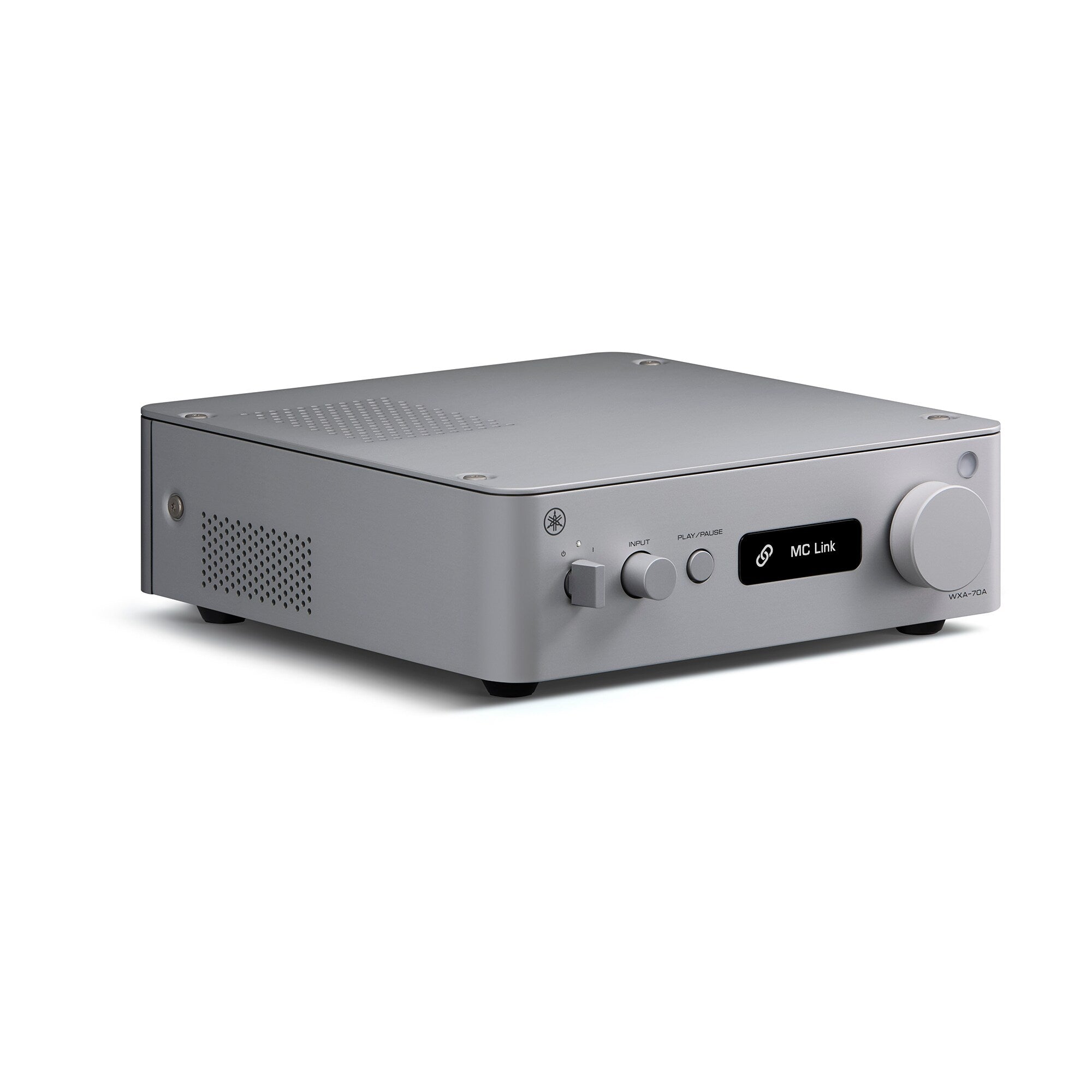

The Yamaha WXA-70A is a compact streaming amplifier for a pair of passive speakers. It brings together Wi-Fi streaming, Bluetooth, TV sound over HDMI eARC and wired analogue, optical and USB sources, and it is a MusicCast device, so it can be controlled with the MusicCast Controller app and grouped with other MusicCast products around the home. Yamaha rates it at 55W + 55W into 8 ohms (20Hz to 20kHz, 0.06% THD, both channels driven).

Inside, Yamaha uses an ESS SABRE ES9039Q2M DAC with its DAC on Pure Ground circuit layout, and YPAO room calibration (including R.S.C. Reflected Sound Control) runs through the supplied microphone. The aluminium enclosure is 220mm wide, and for custom installations it offers Control4 compatibility, Web Setup, an IR input and a 12V trigger output.

Streaming and MusicCast

Wi-Fi (IEEE 802.11 a/b/g/n/ac/ax, 2.4GHz and 5GHz) and wired Ethernet
AirPlay 2, Google Cast, Spotify Connect, TIDAL Connect, Qobuz Connect and Roon Ready
Internet radio, podcasts and music server (PC/NAS) playback
MusicCast multi-room audio, including MusicCast Link
Bluetooth 5.3 with SBC and AAC
Network and USB playback of FLAC, WAV and AIFF up to 384kHz, ALAC up to 96kHz and DSD up to 11.2MHz

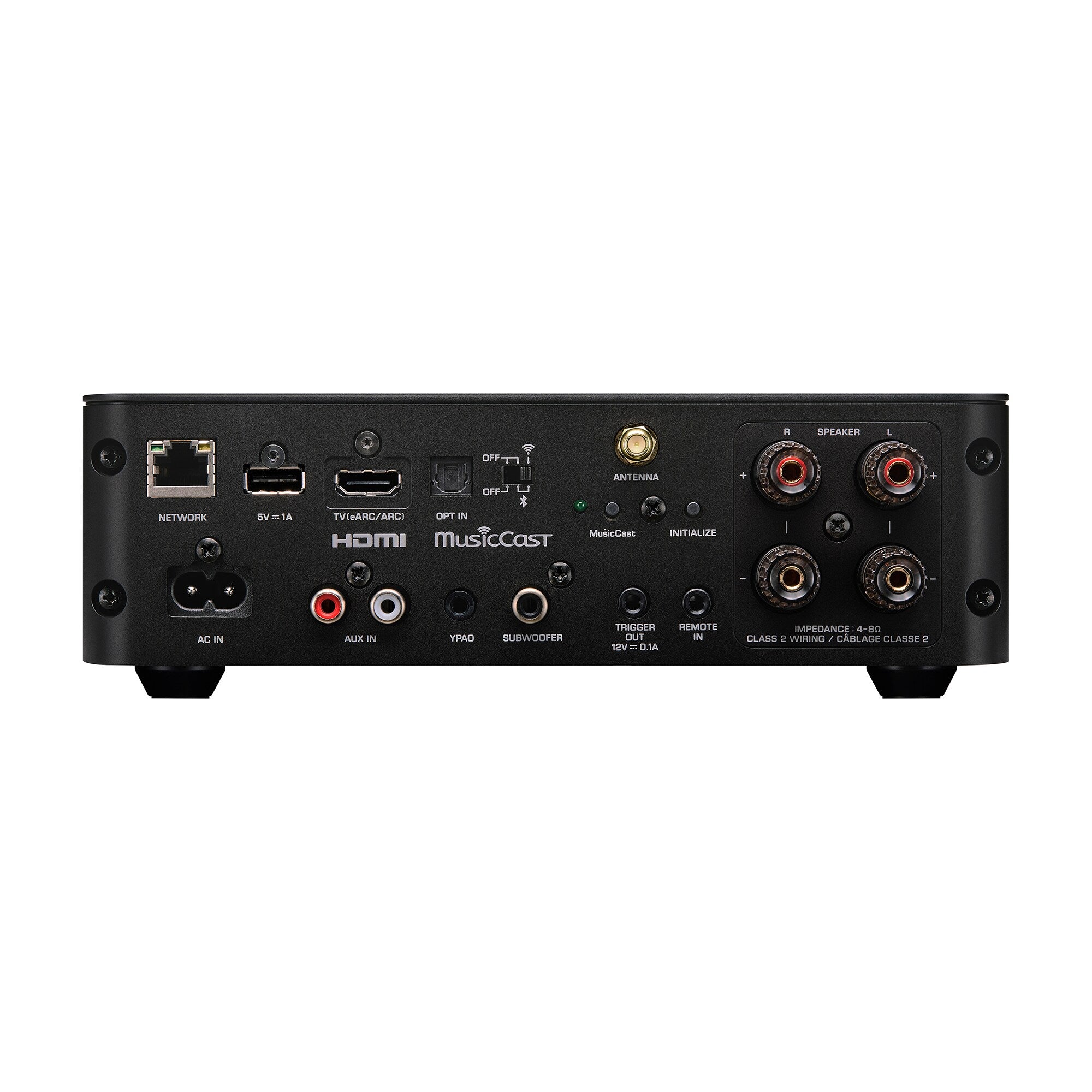

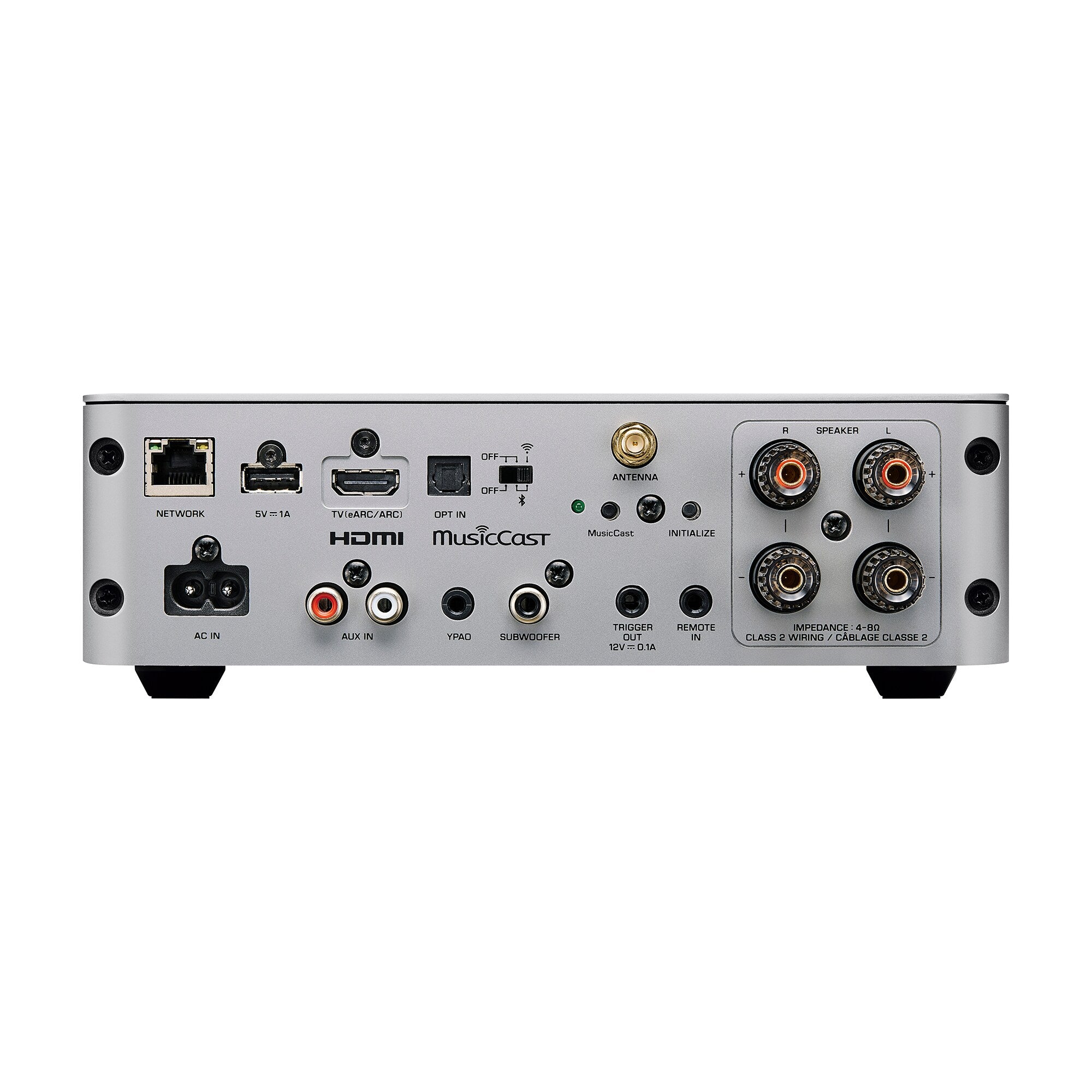

Connectivity

HDMI eARC/ARC for TV sound, with power and volume control from the TV remote (CEC)
Optical digital input
Analogue RCA (AUX) input for a CD player or other source; a turntable needs its own phono preamplifier, as there is no phono input
USB Type-A for music playback and firmware updates
Speaker terminals (minimum impedance 4 ohms) and a subwoofer pre-out
12V trigger output, remote (IR) input and YPAO microphone input
A rear switch turns off Wi-Fi, or Wi-Fi and Bluetooth together, for installations

Sound and Setup

ESS SABRE ES9039Q2M DAC
YPAO room calibration with PEQ, Reflected Sound Control (R.S.C.) and YPAO Volume
Dialogue Level adjustment for TV and film dialogue
Bass and treble controls (±6dB in 0.5dB steps)
Subwoofer crossover adjustable from 40Hz to 200Hz (24dB/oct)
Front panel OLED display, remote control and MusicCast Controller app

In the Box

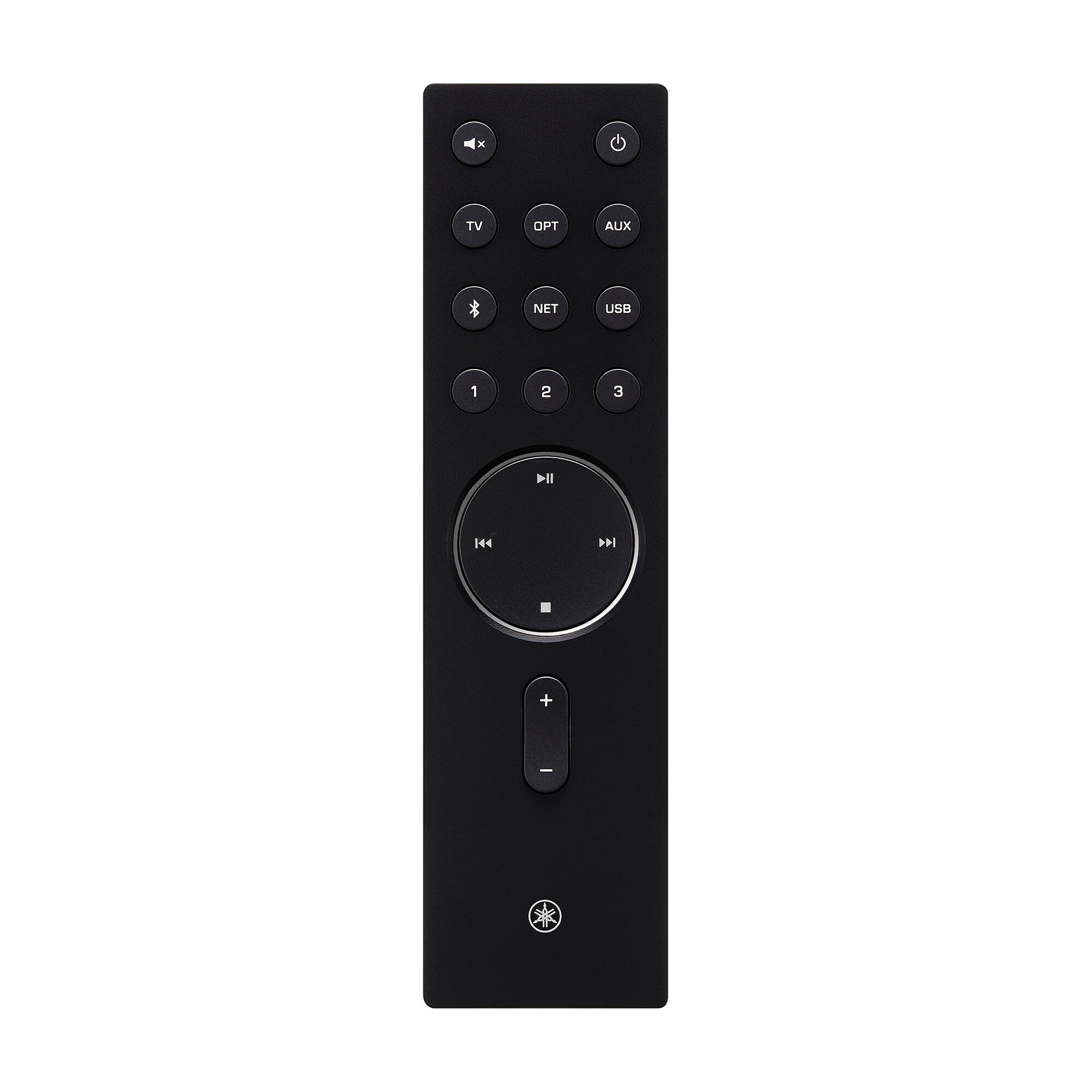

Remote control
AAA batteries (x 2)
YPAO microphone (6m)
Power cord
Quick Guide
Safety Guide
