Eversolo T10 High-End Streaming Transport

Pure Digital Streaming for Reference Systems

The Eversolo T10 is a high-end streaming transport designed for Hi-Fi systems built around a separate digital-to-analogue converter.

It combines advanced clock management, isolated digital outputs, extensive music streaming, expandable internal storage and an 8.6-inch touchscreen within a precision-engineered chassis. By focusing entirely on digital playback and signal transmission, the T10 provides a refined source for premium DACs and audio systems.

Dedicated Digital Transport Architecture

Unlike an all-in-one music streamer, the Eversolo T10 does not perform digital-to-analogue conversion.

Instead, it retrieves, manages and delivers digital audio to an external DAC through USB Audio, IIS, AES/EBU, coaxial or optical connections. This gives listeners the freedom to select a DAC that matches their system and upgrade components independently.

Precision OCXO Clock System

The T10 combines an oven-controlled crystal oscillator with phase-locked loop technology to maintain a highly stable timing reference.

The OCXO uses thermal regulation to minimise frequency drift, while the PLL further refines the clock signal. This architecture is designed to reduce timing errors and preserve signal integrity before audio reaches the connected DAC.

External Master Clock Support

For integration with advanced digital systems, the T10 accepts 10MHz and 25MHz external master clock signals.

Both 50Ω and 75Ω impedance standards are supported, allowing the transport to synchronise with a range of dedicated clock generators.

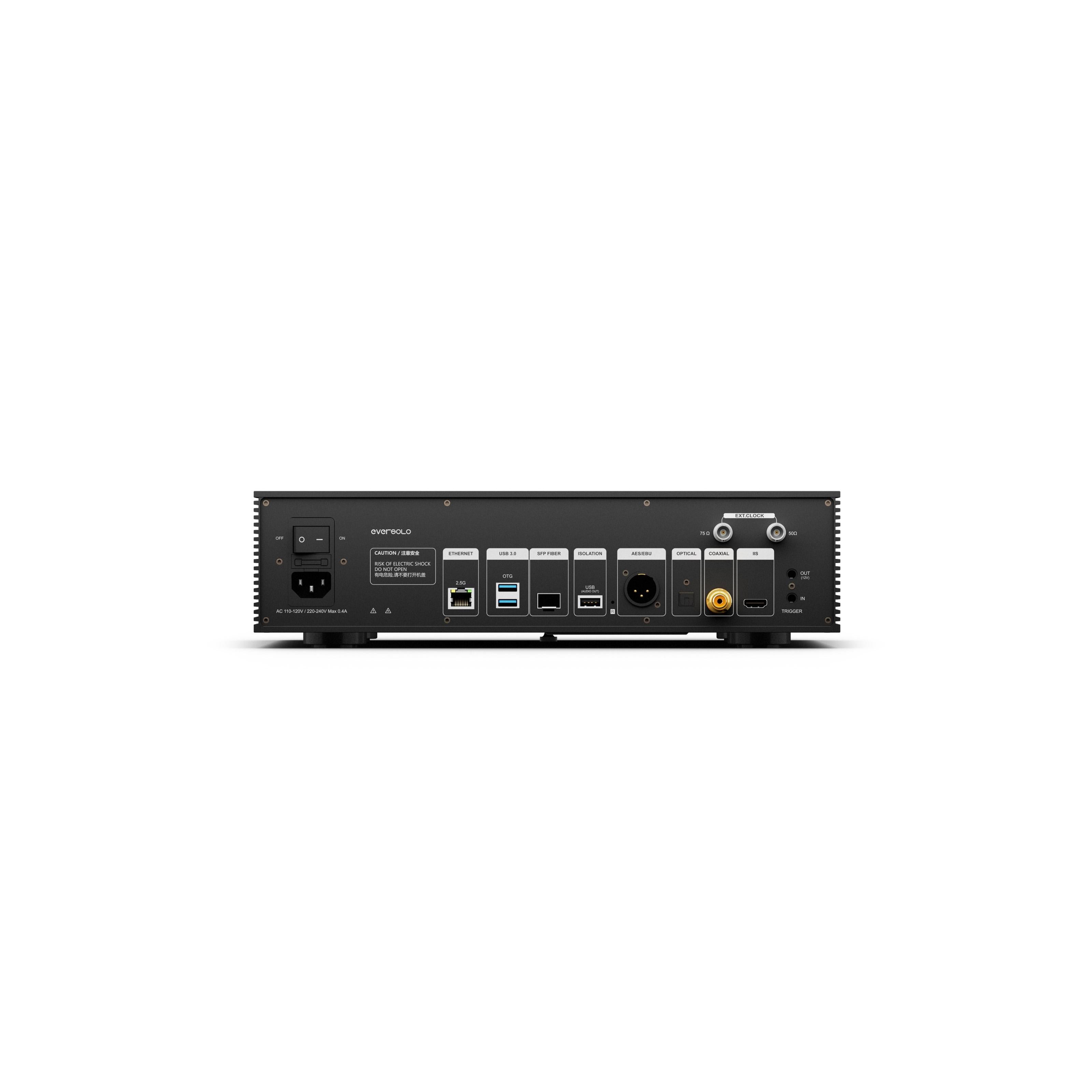

Isolated Digital Outputs

Comprehensive electrical isolation helps reduce interference, noise and crosstalk across critical signal paths.

Isolated USB Audio and IIS outputs support native DSD512 and PCM up to 768kHz/32-bit. AES/EBU, coaxial and optical outputs support PCM up to 192kHz/24-bit and DoP64.

Flexible IIS Connectivity

The HDMI-format IIS output provides eight selectable pinout configurations.

This improves compatibility with DACs that use different IIS wiring standards, making the T10 easier to integrate into a wider range of high-end digital audio systems.

High-Performance Processing Platform

A 64-bit octa-core processor is paired with 8GB of DDR memory and 64GB of eMMC storage.

This processing platform supports responsive navigation, large music libraries, multitasking and high-resolution playback without compromising the transport’s streamlined user experience.

Dual Internal SSD Storage

Two internal M.2 NVMe 3.0 2280 slots provide up to 16TB of total storage expansion.

This allows extensive local music libraries to be stored inside the player without relying entirely on external drives or network storage. Compatible NVMe SSDs are sold separately.

High-Speed Wired Networking

The T10 includes both 2.5 Gigabit Ethernet and an SFP fibre network interface.

The 2.5GbE connection supports fast transfers from NAS libraries and other network sources. The SFP interface provides an alternative fibre connection that can help electrically isolate the transport from network equipment. A compatible SFP module is sold separately.

Dual-band Wi-Fi 6 is also included for flexible wireless connectivity.

Integrated Music Streaming

The Eversolo T10 provides access to a wide selection of compatible streaming services, including:

• Apple Music

• TIDAL

• Qobuz

• Amazon Music

• Deezer

• HIGHRESAUDIO

• IDAGIO

• SoundCloud

• Presto Music

• Internet radio

It also supports compatible connection protocols such as Spotify Connect Lossless, TIDAL Connect, Qobuz Connect and DLNA. Service availability, features and subscriptions may vary by region.

Intelligent Music Library

Eversolo’s music-management platform organises local, networked and streaming content through one interface.

Features include global search, cross-platform playlists, library scanning, metadata management, full-library shuffle and support for SMB, UPnP, Emby and Jellyfin sources.

Evotune Pro Room Correction

Built-in evotune™ Pro room correction creates an acoustic model of the listening environment and generates a tailored compensation profile.

It can help manage room-related frequency issues and improve bass balance before the digital signal is delivered to the external DAC.

Advanced PCM Upsampling

The T10 supports system-wide PCM upsampling at rates of up to 16×.

Upsampling can be applied before the signal reaches the DAC, giving users additional control over how compatible digital audio is processed and transmitted.

CD Playback and Ripping

Connect a compatible external USB optical drive to play or archive CDs.

The enhanced ripping system can retrieve album artwork, track information and metadata while providing error correction and playback-history recognition for easier music-library management.

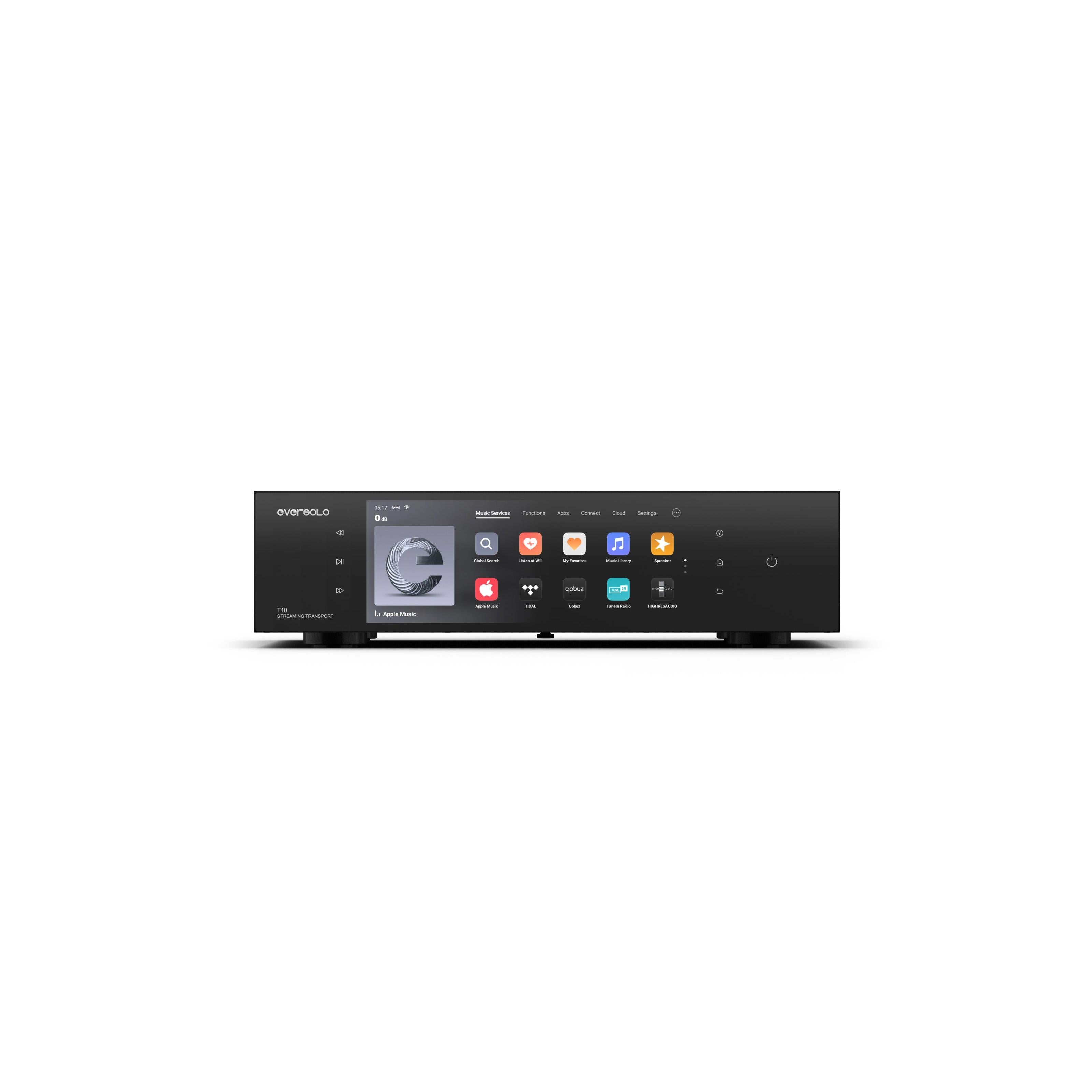

8.6-Inch Touchscreen Display

The large 8.6-inch LCD touchscreen provides direct access to music browsing, playback controls, system settings, album artwork and visual displays.

Customisable VU meters, spectrum views and ambient animations allow the display to complement both the music and listening environment.

Multiple Control Options

Control the Eversolo T10 using:

• Integrated touchscreen

• Eversolo Control mobile app

• iPhone and iPad apps

• Android devices

• Compatible television app

• Remote control

• 12V trigger output

Custom Linear Power Supply

A custom O-type linear power supply provides clean and stable power to the transport’s internal circuits.

Physical partitioning, electromagnetic shielding and dedicated power architecture help minimise interference between the display, processor, clock and digital-output sections.

Key Features

• Dedicated digital streaming transport

• External DAC required

• OCXO and PLL clock architecture

• 10MHz and 25MHz clock input

• Isolated USB Audio output

• Isolated eight-mode IIS output

• AES/EBU, coaxial and optical outputs

• Native DSD512 support

• PCM up to 768kHz/32-bit

• System-wide PCM upsampling

• 8.6-inch LCD touchscreen

• Dual internal NVMe SSD slots

• Up to 16TB storage expansion

• 2.5 Gigabit Ethernet

• SFP fibre networking

• Dual-band Wi-Fi 6

• Evotune Pro room correction

• Integrated streaming services

• CD playback and ripping support

Specifications

Important Compatibility Notes

• An external DAC is required for analogue audio playback.

• NVMe SSDs are sold separately.

• An SFP optical module is not included.

• Supported resolution can vary by output and connected DAC.

• Music-service availability and subscriptions vary by region.
