TRUEX90A

Overview

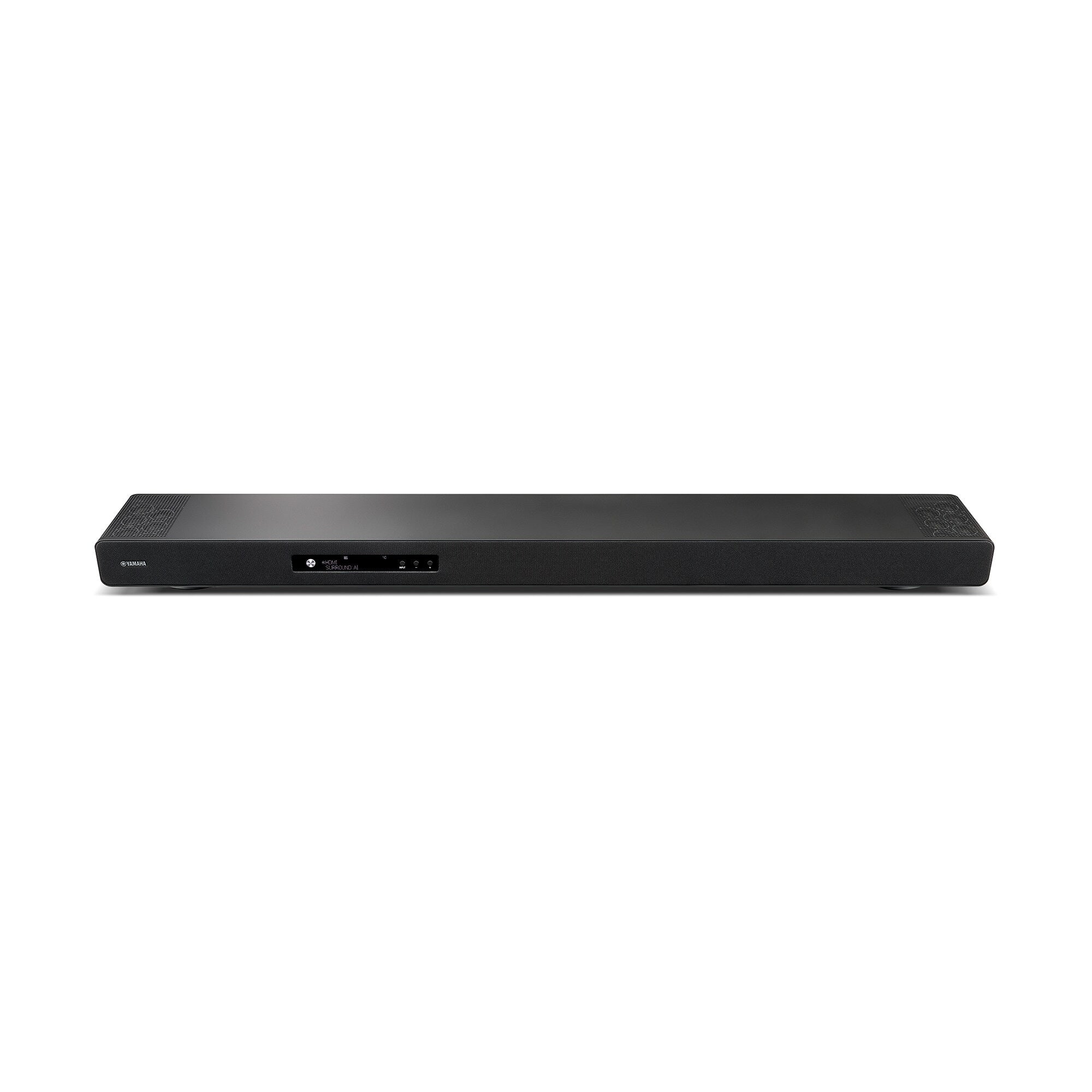

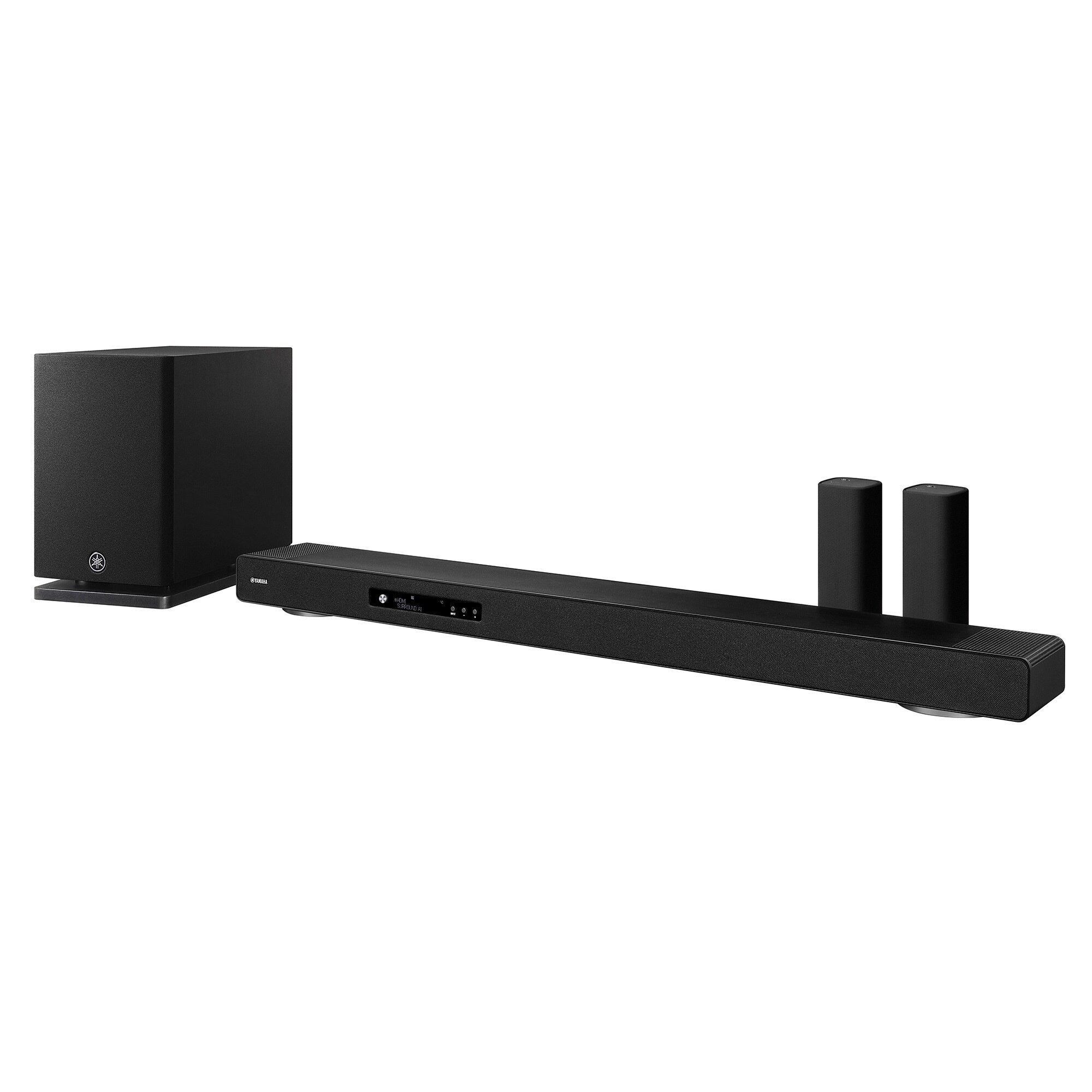

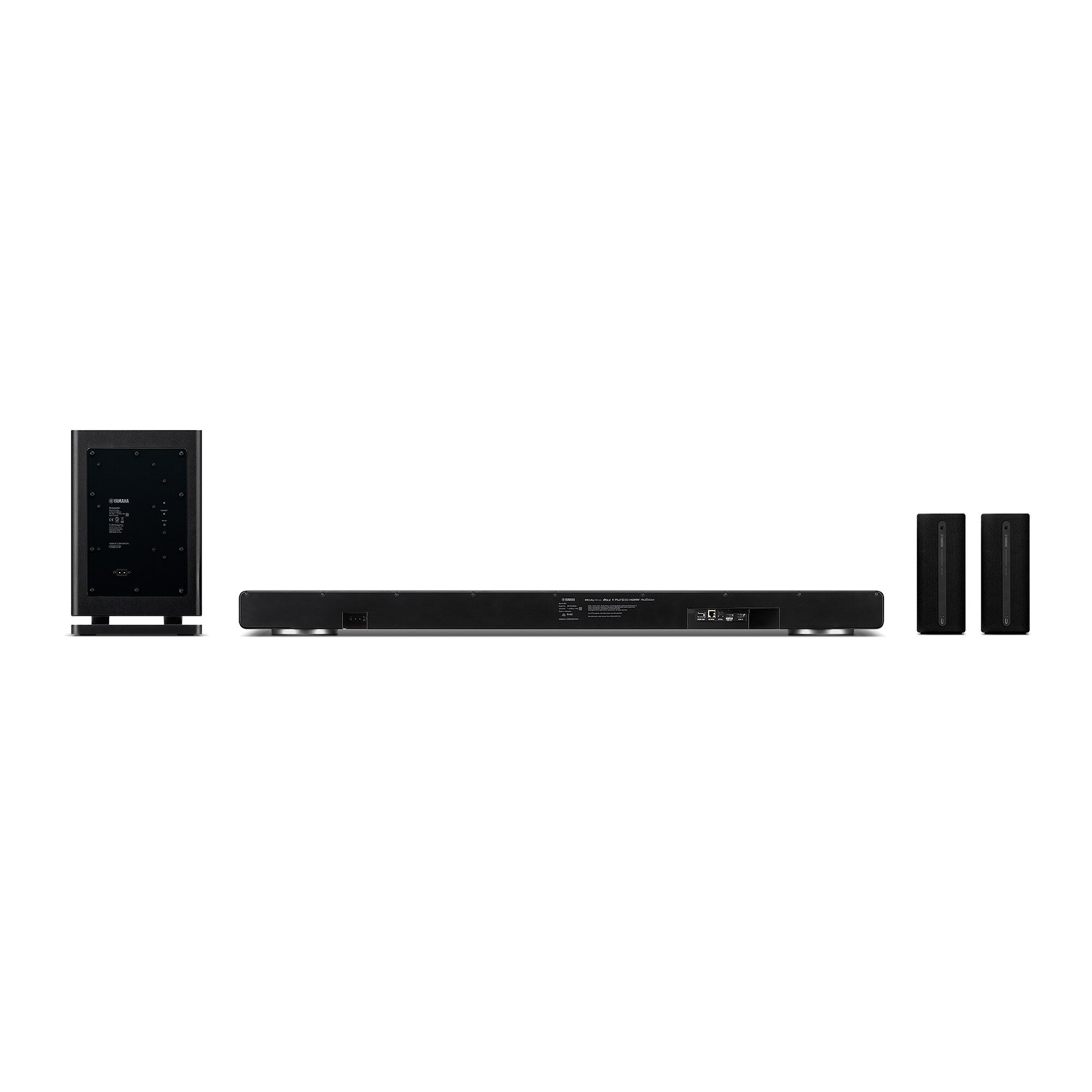

The Yamaha True X Surround 90A is a complete wireless surround system: the True X Bar 90A (SR-X90A) Dolby Atmos sound bar with its wireless subwoofer, two True X Speaker 3A (WS-X3A) rear speakers and two CC-T1A charging cradles. The rear speakers connect to the bar over True X Surround and run from built-in rechargeable batteries, so they can sit anywhere in the room without speaker cables.

Twelve top-mounted beam drivers (six per side) use Yamaha's beam speaker technology to reflect height channels from the ceiling for Dolby Atmos, DTS:X and AURO-3D. SURROUND:AI adjusts the sound field to the content in real time, and MusicCast, Wi-Fi, AirPlay 2 and Bluetooth handle music streaming.

What's in the Pack

• 1 x Yamaha True X Bar 90A (SR-X90A) sound bar
• 1 x wireless subwoofer (supplied with the SR-X90A)
• 2 x Yamaha True X Speaker 3A (WS-X3A) wireless rear speakers
• 2 x Yamaha CC-T1A charging cradles

Sound and Processing

• Dolby Atmos, DTS:X and AURO-3D decoding, with AURO-3D Auro-Matic upmixing for stereo content
• 12 DSP-controlled height beam drivers driven by a Yamaha YDA-141 amplifier
• Custom eye-shaped oval full-range drivers for the front channels
• SURROUND:AI processing on a Qualcomm QCS407 64-bit SoC

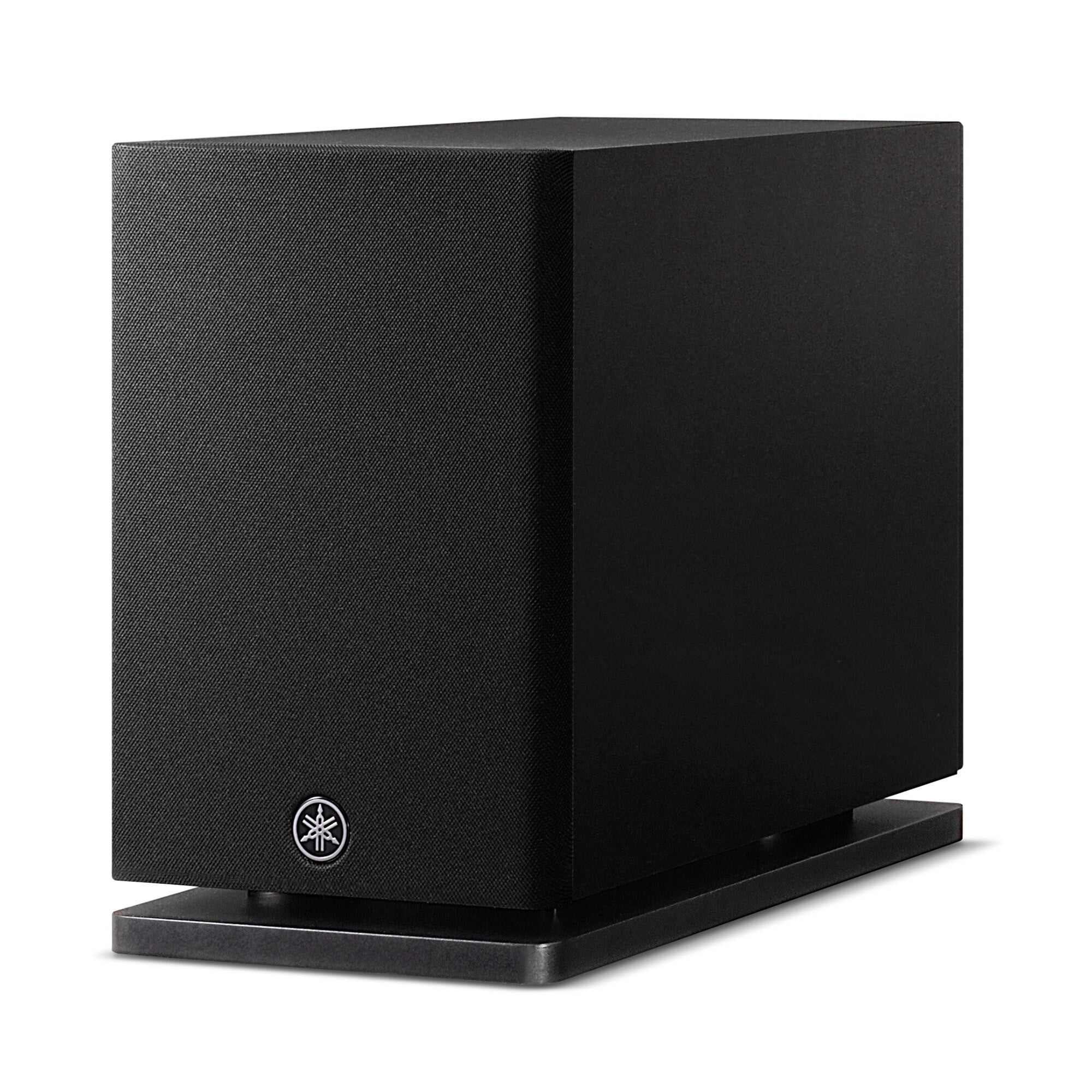

• Wireless subwoofer with Yamaha's Symmetrical Flare Port, which Yamaha rates at 20 dB less port noise than its conventional designs
• Clear Voice and Bass Extension

Connectivity and Wireless Speakers

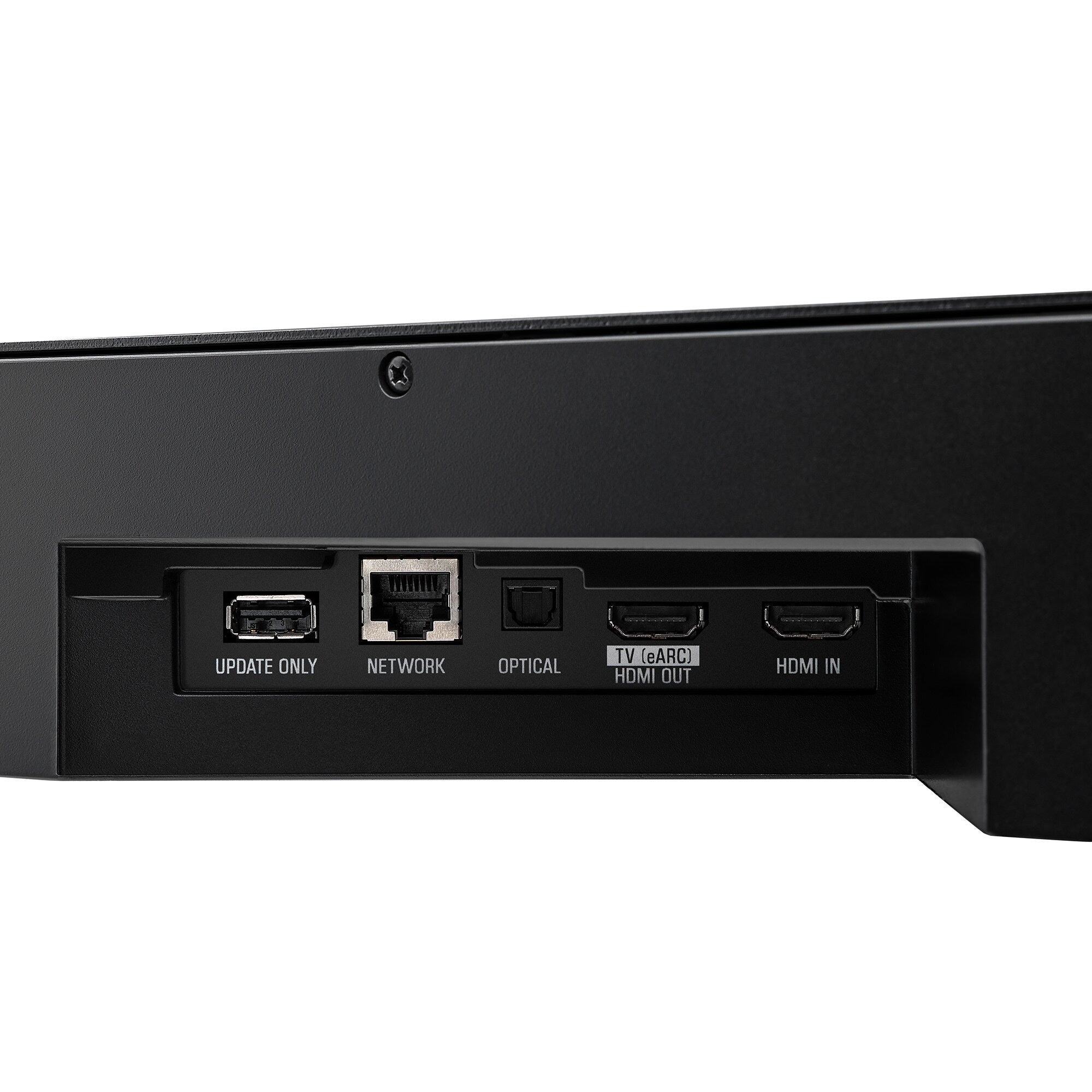

• HDMI input and HDMI eARC output with 4K pass-through and CEC control from the TV remote
• Digital optical input
• MusicCast multi-room, Wi-Fi, AirPlay 2 and Bluetooth; height beam angle and level adjustable in the MusicCast Controller app

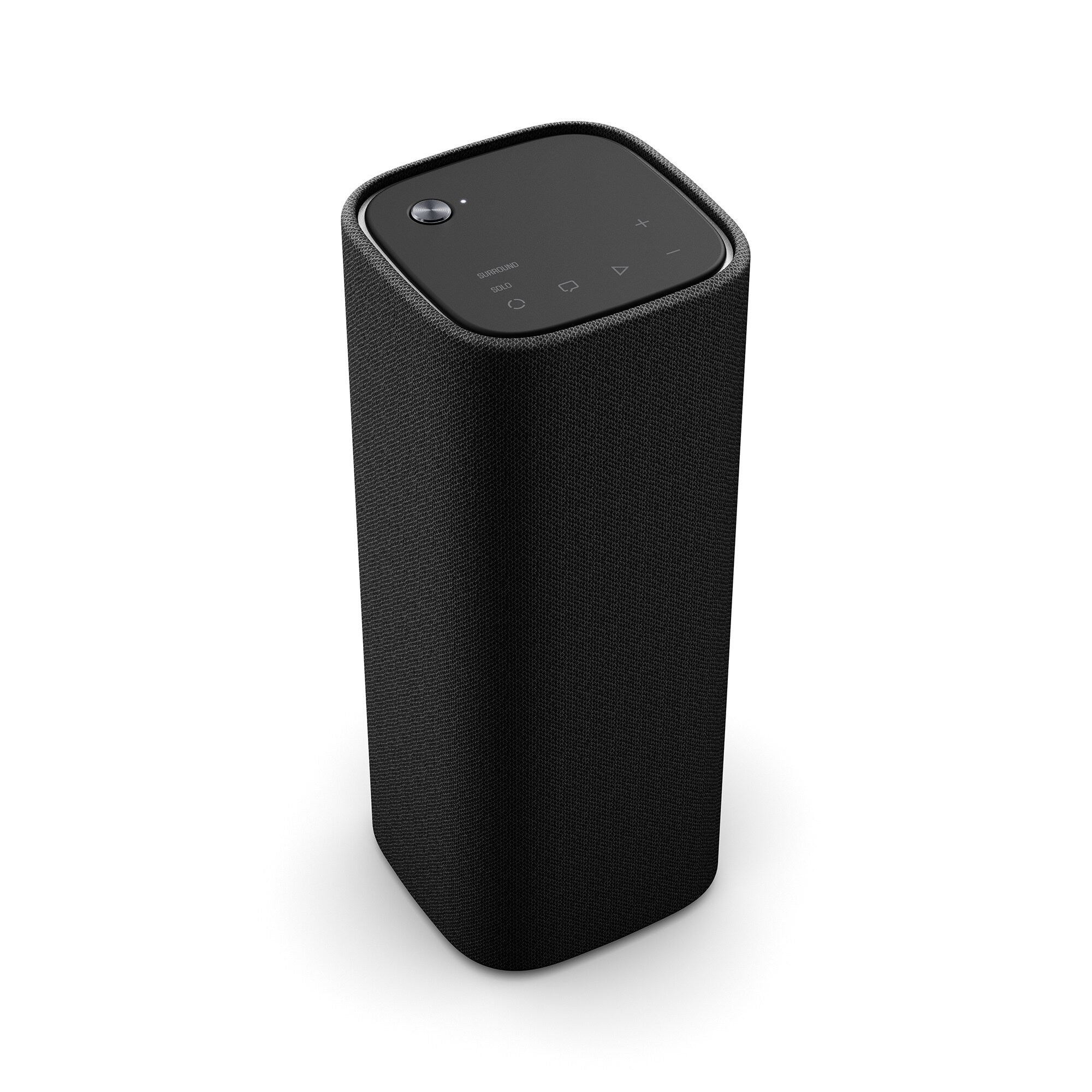

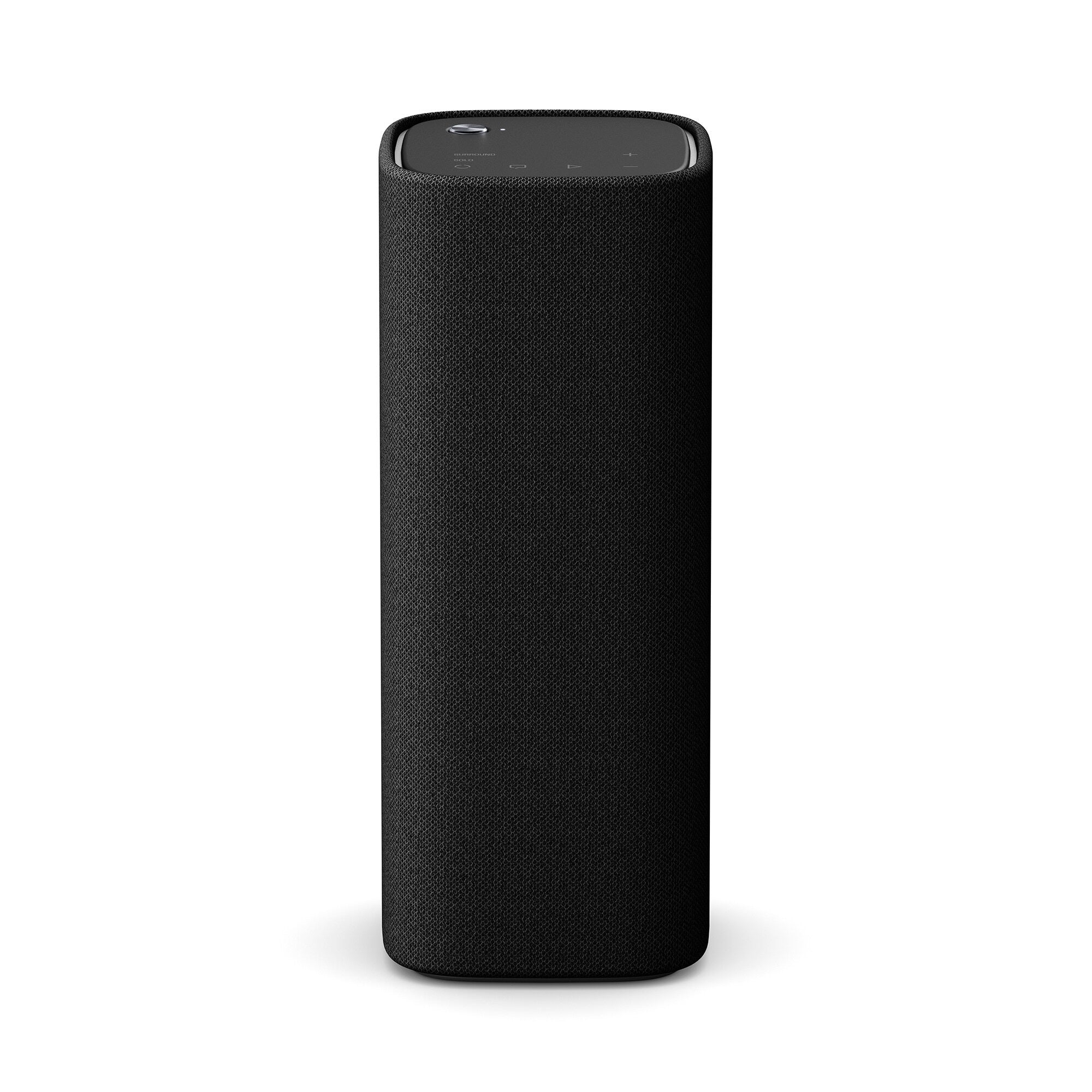

• True X Speaker 3A rear speakers switch to Solo mode for use as portable Bluetooth speakers
• Rear speakers rated IP67, with up to 12 hours of battery playback and USB-C or cradle charging
• Bar wall-mounts with the supplied metal brackets once the legs are removed (76 mm tall, 143 mm deep)
