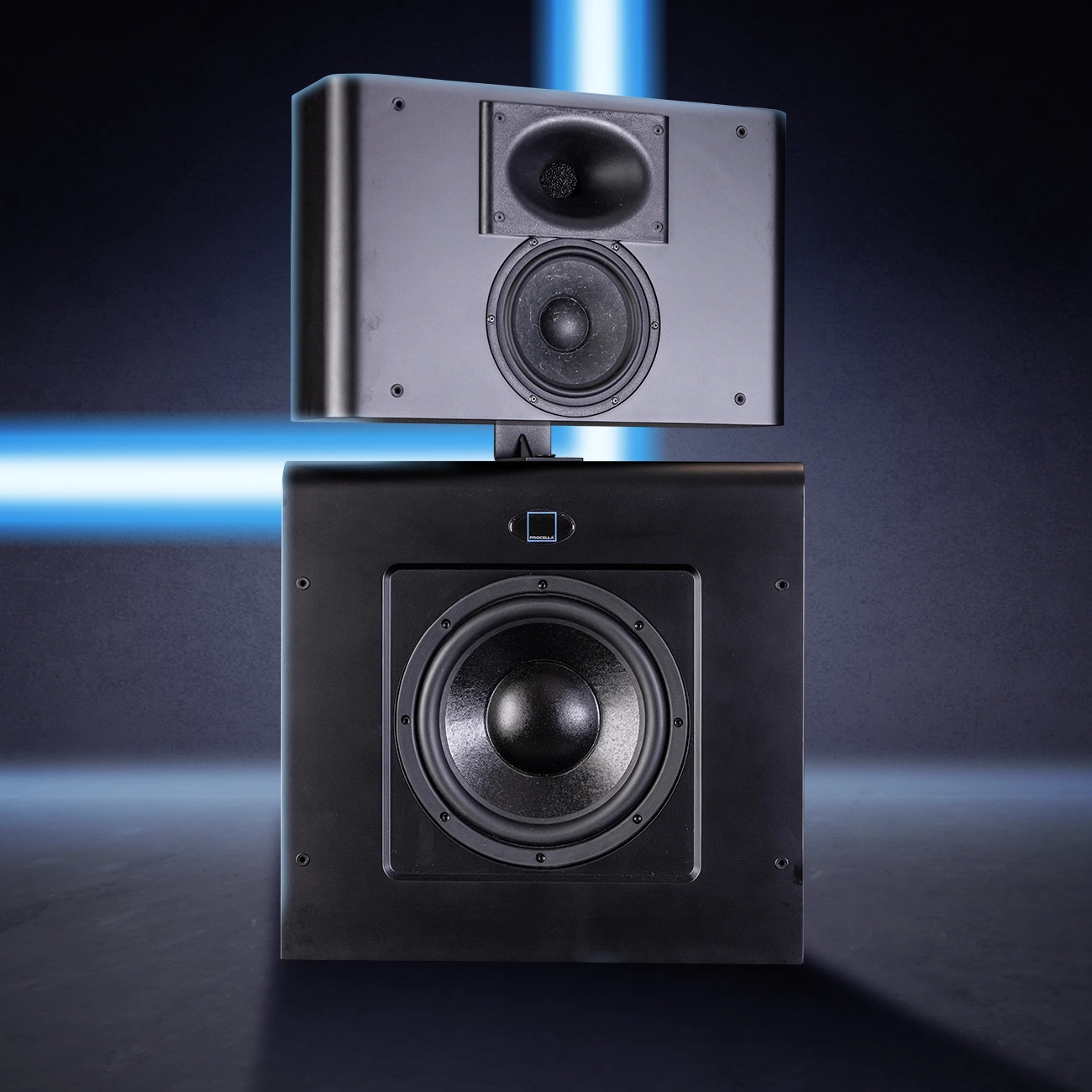

Procella Audio P610 Mk2
Specifications
- Impedance
- 8 + 8 Ohms nominal
- Power Handling
- High Frequency: 100 Watts continuous / 300 Watts peak; Low Frequency: 400 Watts continuous / 1000 Watts peak
- Sensitivity
- 92 dB (1m/1W)
- Maximum SPL
- Free-standing: 116 dB continuous / 122 dB peak; In baffle wall: 122 dB continuous / 128 dB peak
- Frequency Response
- -3 dB points at 40 Hz and 20 kHz
- Dispersion Pattern
- -6 dB Constant directivity; 90°H × 60°V from 2.0 kHz
- Crossover
- 150 Hz (external DSP required); 4th Order Linkwitz-Riley 1.9 kHz (internal)
- Components
- High Frequency: 1” driver with polyester diaphragm on elliptical constant directivity waveguide; Low Frequency: 10” long throw driver with 65 mm voice coil in 35 litre sealed box; Midrange: 6” driver with 40 mm voice coil in 9 litre sealed box
- Connectivity
- Gold plated large diameter binding posts
- Amplifier
- External, sold separately
- Recommended
- 2 channels of the DA03-DSP
- Construction
- Void-free MDF, internally cross-braced, painted black finish
- Dimensions & Weight
- 800 × 480 × 220 mm / 31.5” × 18.9” × 8.7”
- Shipping Carton
- P10Si Mk2: 600 × 600 × 350 mm / 23.6” × 23.6” × 13.8”; P6 Mk2: 395 × 565 × 245 mm / 15.5” × 22.2” × 9.6”
- Included
- Damper feet, installation guide, loudspeaker bracket
- Assembly
- Belgium, 100% QC testing
In detail
About the P610 Mk2
Procella’s most compact full-range loudspeaker system, ideal for smaller to mid-size rooms. The P610 Mk2 is powerful proof of the benefits of Procella’s design philosophy of full dynamic range playback of 24bit/96KHz program material. The P610 Mk2 combines a bracket mounted P6 Mk2 with a P10Si Mk2 low-frequency module to create a 10” three-way main speaker. With bass extension to 40 Hz, the P610 Mk2 meets cinema requirements for a full-range speaker, freeing listeners from the sonic limitations of speakers using an 80Hz subwoofer cross- over point.
