Marantz has reimagined the integrated amplifier for the digital age while preserving a luxurious analog feel and sound.
- Input Sensitivity: Phono input
- 2 mV / 47 kohm
- Frequency Response
- 5Hz - 50kHz
- Rated Output Power
- 70W + 70W (8ohm), 100W + 100W (4ohm)
- Packaging Dimensions (W x H x D in inches)
- 21" x 10" x 20.6"
Sale price
$4,400Regular price
$4,900
Save $500
Includes GST
Voted Australia's #1 Hi-Fi Retailer, Sound+Image Awards 2023. Family owned since 2010.
Hear the Model 40n before you decide
Book a private listening session in Belrose and ask for the Model 40n: we will confirm what we can set up for you. Or audition it at home.
Delivery and collection
Free standard shipping on orders of $300 or more within Australia, and $15 on smaller orders. Western Australia is quoted on request.
Pick up from our Belrose showroom: call ahead so we can have it ready.
Set-up and installation
Our team can deliver, install and set up your system, from speaker placement to a full cinema calibration. Ask us for a quote when you order.
Returns
Your rights under Australian Consumer Law always apply. Read our returns policy.

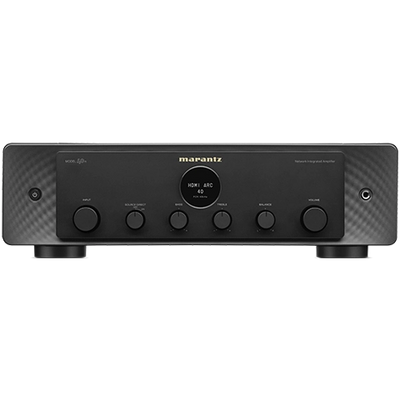

Marantz Model 40n
Specifications
- Rated Output Power
- 70W + 70W (8ohm), 100W + 100W (4ohm)
- Power Amplifier Circuit
- HDAM-SA3
- Power Transformer
- Double Shielded Toroidal
- Volume
- Electric
- Bass / Treble / Mid / Balance Control
- yes / yes / - / yes
- Source Direct
- yes
- Frequency Response
- 5Hz - 50kHz
- Total Harmonic Distortion
- 0.02% (20Hz - 20kHz, 8Ω)
- Dumping Factor
- 100
- Input Sensitivity: Phono input
- 2 mV / 47 kohm
- Input Sensitivity: CD/LINE/RECORDER
- 220 mV / 20 kohm
- Input Sensitivity: Power Amplifier input
- 1.6 V / 15 kohm
In detail
About the Model 40n
Key Features
-

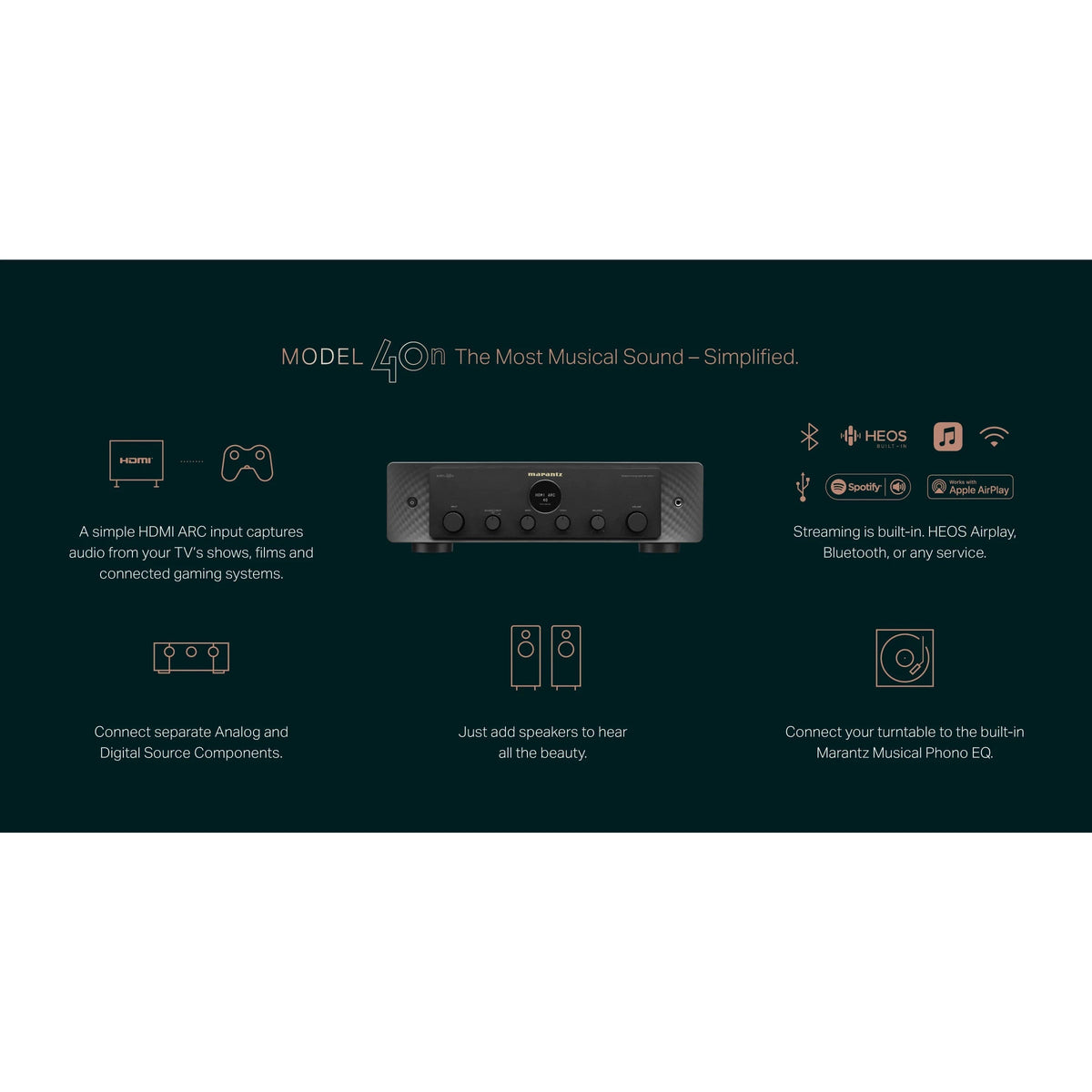

The Most Musical Sound from Any Source
A full compelement of analog and digital inputs plus built-in streaming and HDMI make listening enjoyable and easy regardless of source.
-
Stream Millions of Hi-Resolution Songs
Stream from Spotify, Pandora, Tidal, and more or enjoy your own music file libraries. Works with Alexa, Google, and Siri.
-
Whole-Home Hi-Fi
Create a multiroom musical experience with the MODEL 40n as your home’s music hub.
-
HDMI Input Adds AV Connectivity
HDMI ARC (Audio Return Channel) adds uncommon flexibility to this stereo amplifier by enabling TV sound through your stereo.
Multiroom streaming
with HEOS Built-in
Effortlessly connect via Bluetooth, Apple AirPlay 2, or directly from the HEOS app to play all your favorites from hundreds of streaming services.
HEOS Built-in works with
Believe in Quality
High-Resolution Digital Streaming Built-In
MODEL 40n is for those whose music collection is infinite and online. Connect to your network with Wi-Fi or ethernet. With HEOS® Built-in, you won’t need extra equipment to stream your favorite tunes. MODEL 40n supports Spotify, AirPlay 2, Apple Music, Bluetooth, Tidal, TuneIn, and more services—plus, playback of your own collection via USB-A input or on compatible home servers.
The Marantz Musical Phono EQ
The joy of vinyl playback is both audible and tactile yet requires highly specialized electronics for high performance. The Marantz Musical Phono EQ is built in so you can connect a turntable with MM cartridge directly to MODEL 40n. You’ll enjoy your favorite records and discover new ones, all without the burden of additional electronics.
Precise Tone Control
Your sound preferences at your fingertips. Adjust bass and treble to suit your sound or bypass for the purest sound possible.

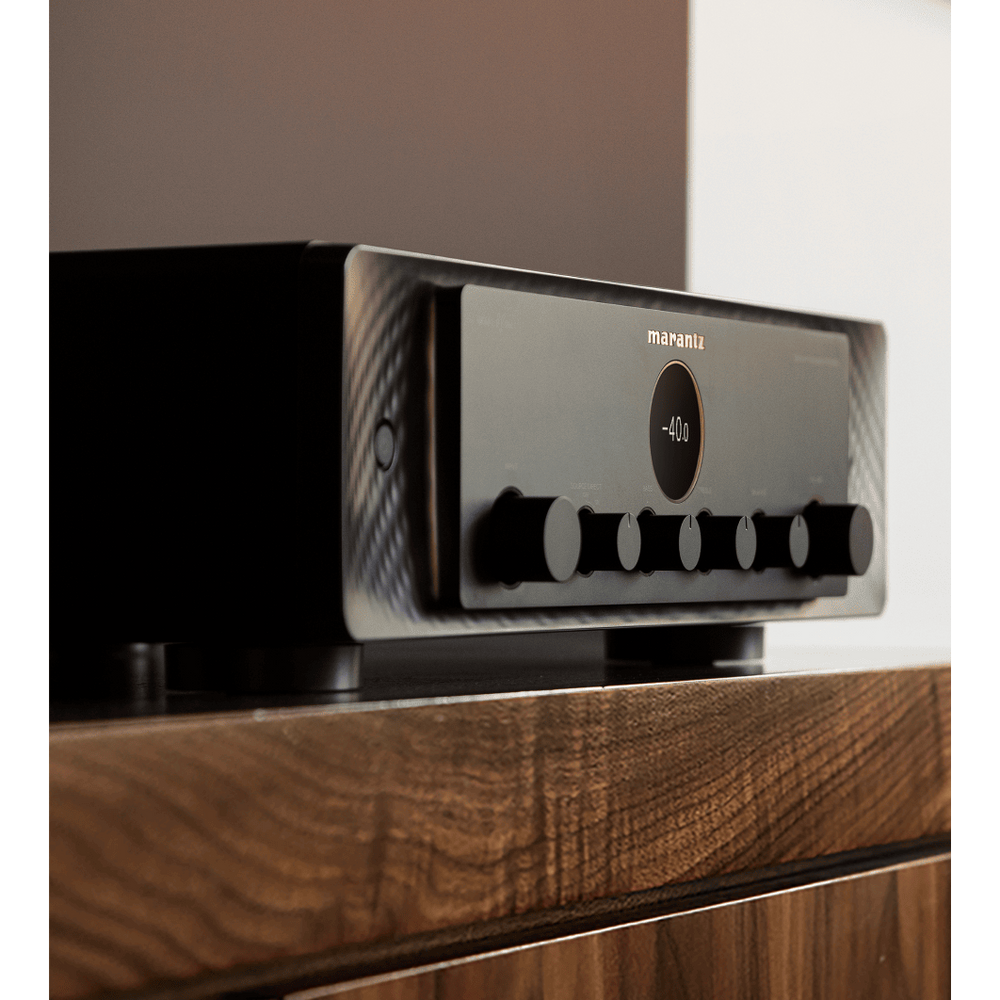

Luxurious Look and Feel
MODEL 40n follows a long line of historic Marantz pieces notable for their exquisite design. Every aspect is considered—from premium materials, symmetry, classic porthole display, and even smooth operation of the volume control. Your stereo doesn’t need to look like lab equipment. Marantz MODEL 40n begs to be heard, seen, and touched.

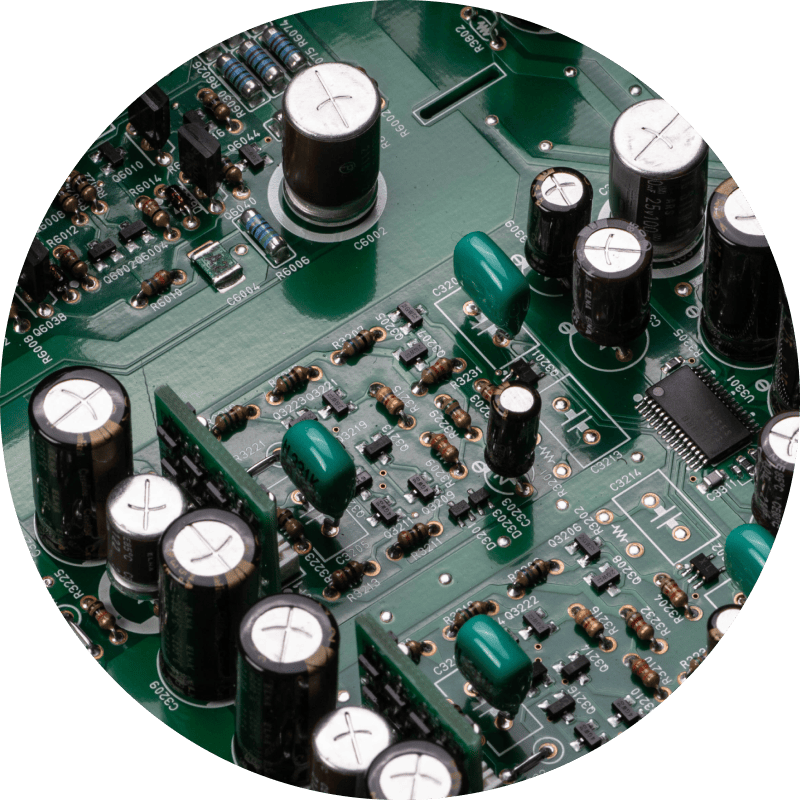

Hyper Dynamic Amplifier Modules
To preserve the detail, nuance, and essence of the music you love, Marantz developed HDAM (Hyper Dynamic Amplifier Modules) which are superior in their speed and response to off-the-shelf modules found in other products. MODEL 40n leverages this unique Marantz innovation to ensure whatever you’re listening to is always the most musical.
Subwoofer Output
Deep bass is a visceral and exciting sensation. When partnered with equally excellent speakers, MODEL 40n produces impressive bass. If you want more, add a subwoofer using the dedicated subwoofer output and dial in the low-frequency crossover settings and level for precise integration with your main loudspeakers.
Technical Specifications
-
Output Power
Rated Output Power 70W + 70W (8ohm)
100W + 100W (4ohm) -
Features
Power Amplifier Circuit HDAM-SA3 Power Transformer Double Shielded Toroidal Volume Electric Bass / Treble / Mid / Balance Control yes / yes / - / yes Source Direct yes Frequency Response 5Hz - 50kHz Total Harmonic Distortion 0.02% (20Hz - 20kHz, 8Ω) Dumping Factor 100 Input Sensitivity: Phono input 2 mV / 47 kohm Input Sensitivity: CD/LINE/RECORDER 220 mV / 20 kohm Input Sensitivity: Power Amplifier input 1.6 V / 15 kohm SN Ratio PHONO (MM): 87dBCD: 106dB -

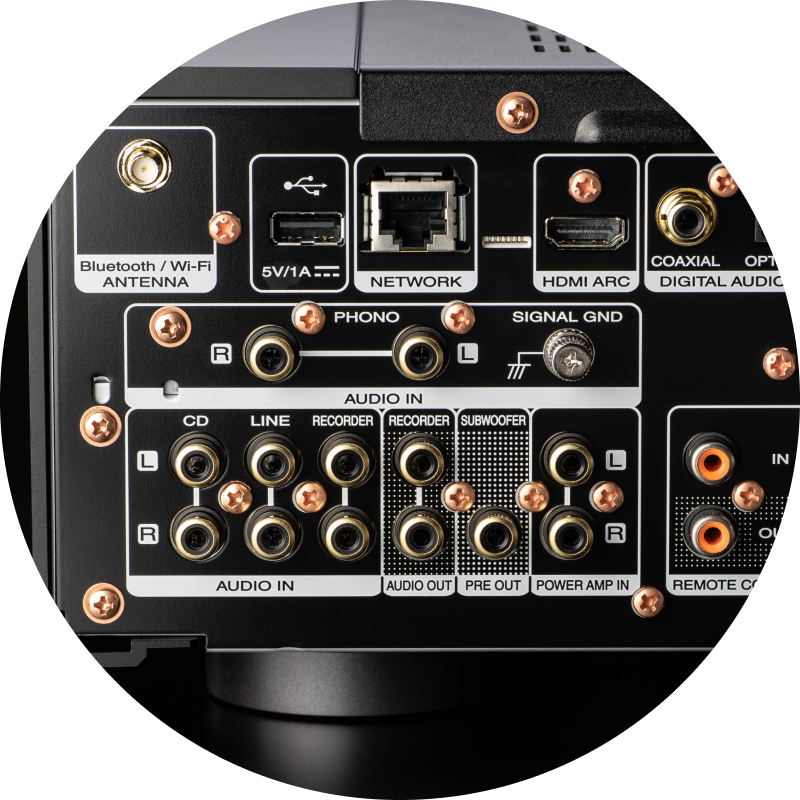

Terminal
Phono Input yes (MM)
Marantz Musical Phono EQExt. Pre Input (Power Amp Direct) yes Preout no Analog Input (include Phono) / REC Out (RCA) 4 (PHONO, CD, LINE,RECORDER) / 1 (RECORDER) Optical input 1 Coaxial input 1 HDMI 1 / 0 (ARC) PCM only USB A 1 (Rear), Mass Storage Class5V/1A Speaker Terminal SPKT-1+ Remote Control Bus Terminal yes (RC-5 In / Out) Subwoofer Pre-out Low Pass Filter Selectable
40 Hz / 60 Hz / 80 Hz /100 Hz / 120 Hz -
Control
App HEOS App Remote Controller System Remote
Features (Amp and CD Player Control) -
Others
Power Consumption 220W, 0.3W (Standby) AC Inlet yes Quick Start Guide Included Packaging Dimensions (W x H x D in inches) 21" x 10" x 20.6" Product Dimensions (W x H x D in inches) 17.4" x 5.1" x 17" -
Cosmetic

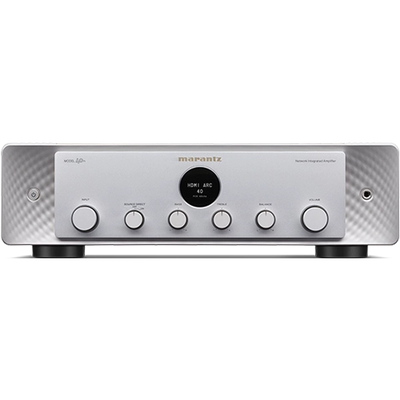

Panel Color SG / BK Front Center Panel Aluminum Top Cover Steel Edge Lighting yes (Dimmer) Volume Knob Aluminum Input Selector Aluminum Bass/Treble/Balance/ REC Out Sel knobs Aluminum Power button Aluminum Chassis Material SECC Bottom Layer Thicker double layer
