LEA CONNECT 64D
Specifications
- AUDIO
- AUDIO
- Inputs
- - 4 Balanced Analog Inputs with user-selectable 26dB, 34dB, and Mic level sensitivity - 4 Unbalanced RCA Inputs with user-selectable 26dB and 34dB input sensitivity Note: Unbalanced and RCA share the same analog input channel
- Dante
- 4 x 4 Dante at 48kHz, Multicast or Unicast
- AES67
- Configurable via Dante Controller software
- THD+N
- 0.1% (20Hz to 20kHz)
- Frequency Response
- 20Hz to 20kHz, ±0.5 dB @ 4Ω, 8Ω, 70V, 100V -2.5dB @ 20kHz at 2Ω
- Signal to Noise Level
- 102dB (20Hz to 20kHz referenced to 8Ω)
- Crosstalk
- 70dB (20Hz to 20kHz)
- Amplifier Output Classification
- Class D with Proprietary Smart Power Bridge Technology (bridged output without sacrificing a channel)
In detail
About the CONNECT 64D

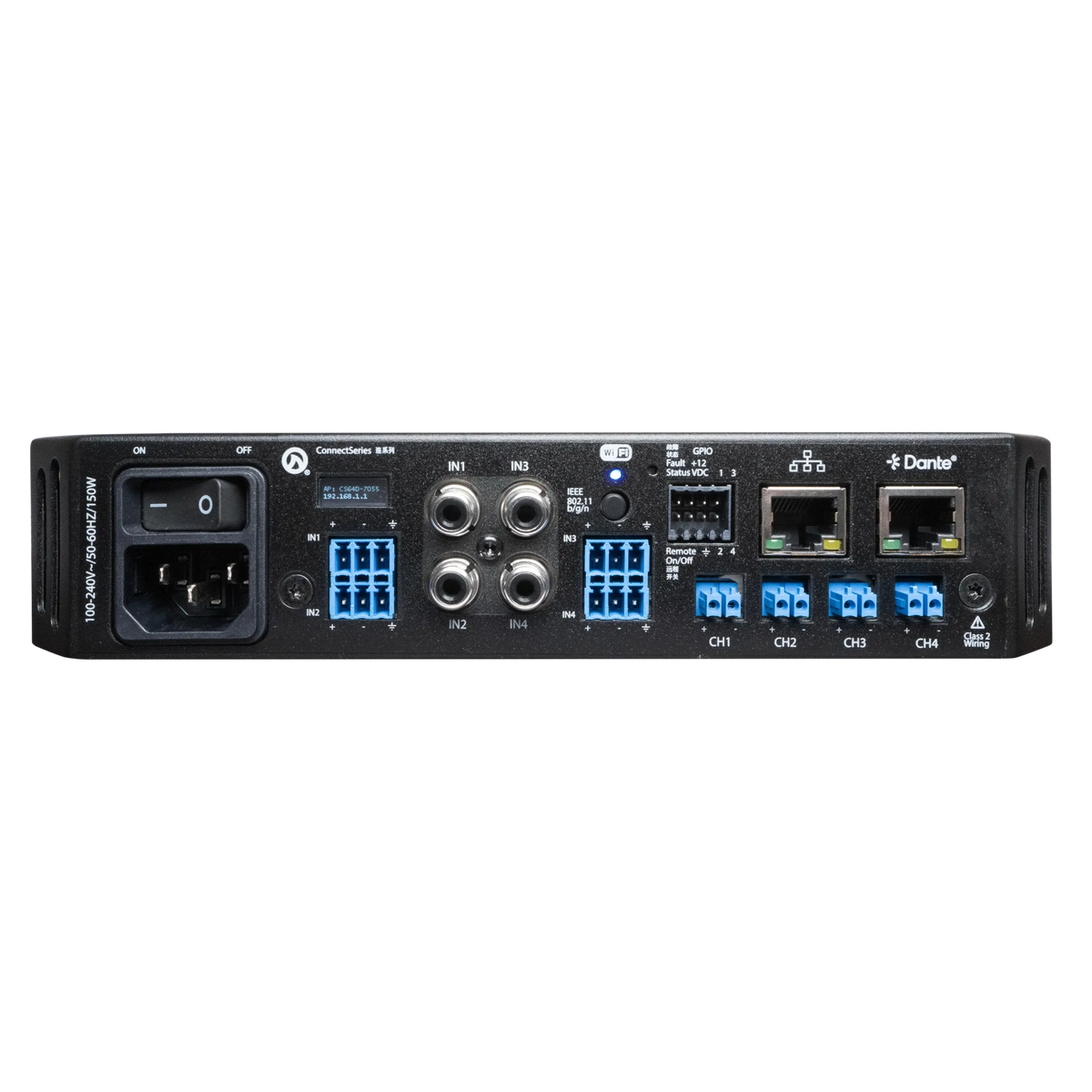

The Connect Series 64D delivers one of the most feature-rich amplifier experiences available in the industry – in a smaller form factor. Featuring 96kHz DSP, WebUI, SharkWare, LEA Cloud, third-party APIs, speaker tunings, and more—this amplifier is the right choice for your next install.The Connect Series Half-Rack is built with fully routable analog inputs, four amplifier channels with Lo-Z, 70V, or 100V selectable by channel and D-units include Dante and AES67 connectivity. All models boast three different ways of network connection: using the built-in Wi-Fi Access Point, connecting to an existing Wi-Fi network, or using a Local Area Network Ethernet connection.
