Megaphonix

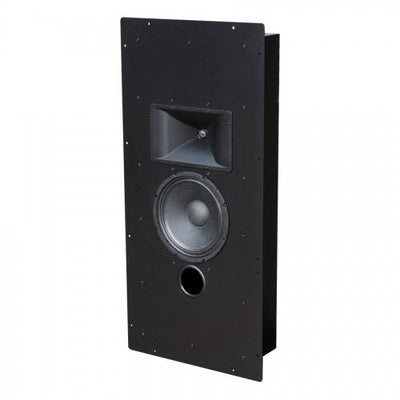

In-Wall Speaker

Price on request

Voted Australia's #1 Hi-Fi Retailer, Sound+Image Awards 2023. Family owned since 2010.

Planning a cinema around it?

Our designers match it to your room, screen and seating, then install and calibrate the lot. Start with it in our 3D builder, or talk to us.

Start a cinema with this

Set-up and installation

Our team can deliver, install and set up your system, from speaker placement to a full cinema calibration. Ask us for a quote when you order.

Returns

Your rights under Australian Consumer Law always apply. Read our returns policy.

Krix Megaphonix

Specifications

Sensitivity95dB for 2.83 volts at 1 metre: Sensitivity95dB for 2.83 volts at 1 metre
Impedance8 Ohms: Configuration, 2-way
Enclosure TypeBass reflex, front vented: Dimensions, 885mm high x 390mm wide x 150mm deep cabinet, 965mm high x 470mm wide x 2mm thick faceplate
Crossover Point1.8kHz: Input Terminals, Gold plated binding posts

Frequency Range
40Hz-20kHz in room response

Power Handling
50-250 Watts RMS recommended amplifier power

Low Frequency Driver
Single 255mm (10”) paper cone driver. 50mm (2”) voice coil wound on high powered kapton former, with ventilated magnet assembly and copper shorting ring for low distortion

High Frequency Driver
26mm (1”) doped fabric dome with large roll surround. Ferro fluid cooled. Coupled to a Krix designed 90 x 40 short throw waveguide

Cut-out Dimensions
890mm high x 395mm wide recommended

Weight
23kg each

In detail

About the Megaphonix

Impact and dynamics for a real home cinema experience
High sensitivity, very low distortion
Precise pattern control

Mounted behind acoustically transparent screens or as surrounds in a multi-channel setup, the Megaphonix In-Wall deliver effortless power and controlled dispersion to achieve the impact of a real cinema experience.

EXPERIENCE DYNAMICS

The Megaphonix In-Wall are designed specifically for in wall use in dedicated home cinemas. Using high power handling and high sensitivity drivers, these speakers will deliver all the impact and dynamics you need for a real home cinema experience without the need for a big wattage power amplifier.

The 255mm bass driver has a 50mm voice coil and has been developed to offer low harmonic distortion, especially in the critical midband. The paper cone and surround of the bass driver have been developed to provide the smoothest possible response. The high frequency drive unit is a specially-damped, high power, 26mm doped fabric dome tweeter, and is coupled with Krix’s proprietary waveguide to provide consistently-maintained optimum dispersion of 90 degrees horizontal and 40 degrees vertical over the entire working bandwidth.

The combined high frequency response is exceptionally smooth and well controlled – a new benchmark in loudspeaker reproduction.

Finished with a powder coated steel front baffle for easy retrofitting, Megaphonix In-Wall speakers are braced and critically damped to improve bass extension and can be used without a grille behind an acoustically transparent screen or with a grille if it’s in full view.

The Megaphonix In-Wall is a member of a five-speaker family, allowing you to combine it with main or surround speakers for a connected, clear and smooth sound experience.

For the ultimate cinema experience at home, play it through Krix.

Cinema design

Part of something bigger.

The Megaphonix is one piece of a room. We design the screen, speakers, acoustics and seating around it, then install and calibrate the lot, so it all works as one.

Start a cinema with this
