Krix KA 1100

Specifications

SPECIFICATIONS: Supported products, MX-5, MX-10, Cyclonix 11, Cyclonix 12 General subwoofer use
Weight: 5.3kg

Input power
Mains input power, 100 – 240V AC~ 50/60Hz

Output power rated maximum
700W RMS per channel one channel driven @ 4 Ohms, 1% THD
550W RMS per channel both channels driven @ 4 Ohms, 1% THD

Mode filters
Mode 1, 2 – Low pass filter 50 – 200Hz
Mode 3 – Low pass filter bypass
All modes – High pass filter optimised for supported Krix subwoofers

Distortion
THD+N – 0.001% – 200W 4 Ohms @ 100Hz

Mode 1 output power limit
300W RMS per channel @ 4 Ohms

Mode 2 output power limit
500W RMS per channel @ 4 Ohms

Mode 3 output power limit
700W RMS per channel @ 4 Ohms

Dimensions
480mm x 360mm x 97mm (includes terminals, rack ears and feet)

In detail

About the KA 1100

Dual-mono subwoofer amplifier
Custom DSP modes
Feature-packed for home cinema enthusiasts
Australian designed and madE

Elevate your home cinema experience with the KA-1100, Krix’s first subwoofer amplifier that is perfectly matched to MX-5, MX-10, Cyclonix 11 and Cyclonix 12 subwoofers.

MAXIMISE PERFORMACE

The KA-1100 subwoofer amplifier was designed in-house from the ground up. This dual-mono subwoofer amplifier offers pre-configured DSP modes that are optimised to drive and maximise the performance of Krix passive subwoofers, ensuring movie soundtracks play with high output and incredibly low distortion.

DSP modes are set for Krix MX-5, MX-10, Cyclonix 11 and Cyclonix 12 subwoofers. Each mode is specifically tailored to accurately amplify the input signal to full power without compression or loss of dynamics. A third pre-set mode is for general subwoofer use. If an input signal is applied beyond the subwoofer maximum capacity, soft limiting will minimise distortion and protect the loudspeaker driver.

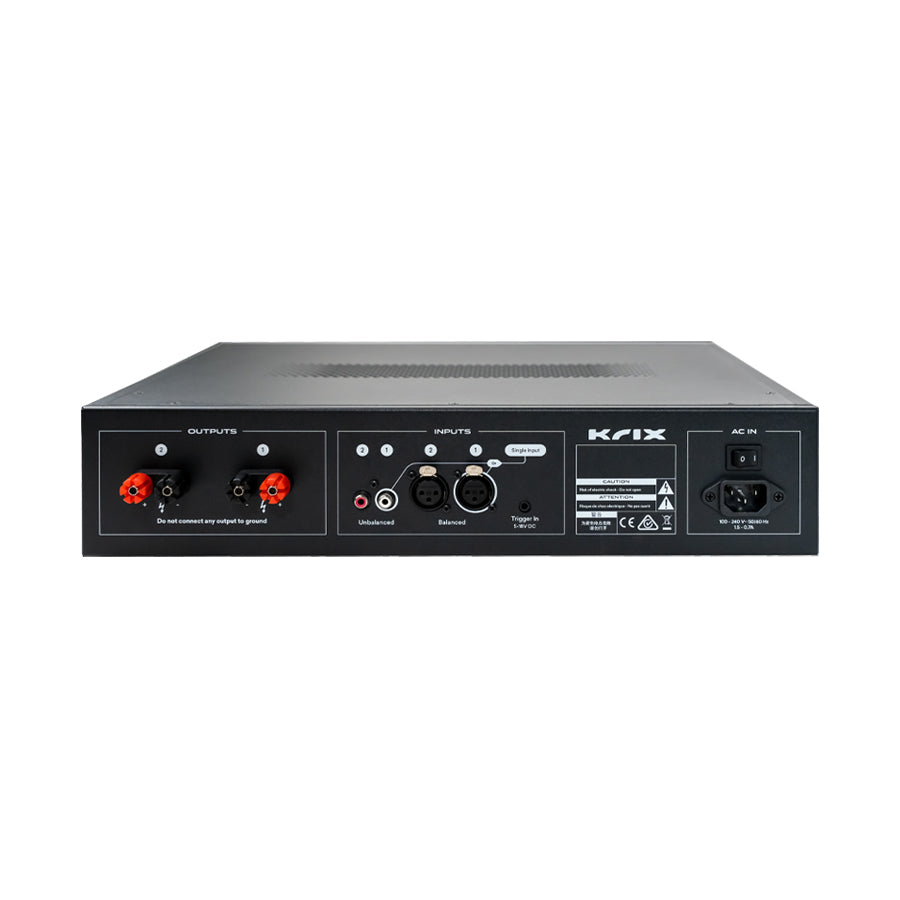

The KA-1100 is based on Class D amplification from ICEpowerTM and includes a Krix custom-designed 24-bit signal processor board. Engineered with home cinema enthusiasts in mind, the amplifier features a fan-less design for ultra-quiet operation, 12V trigger for easy power-on and both balanced and unbalanced connection options.

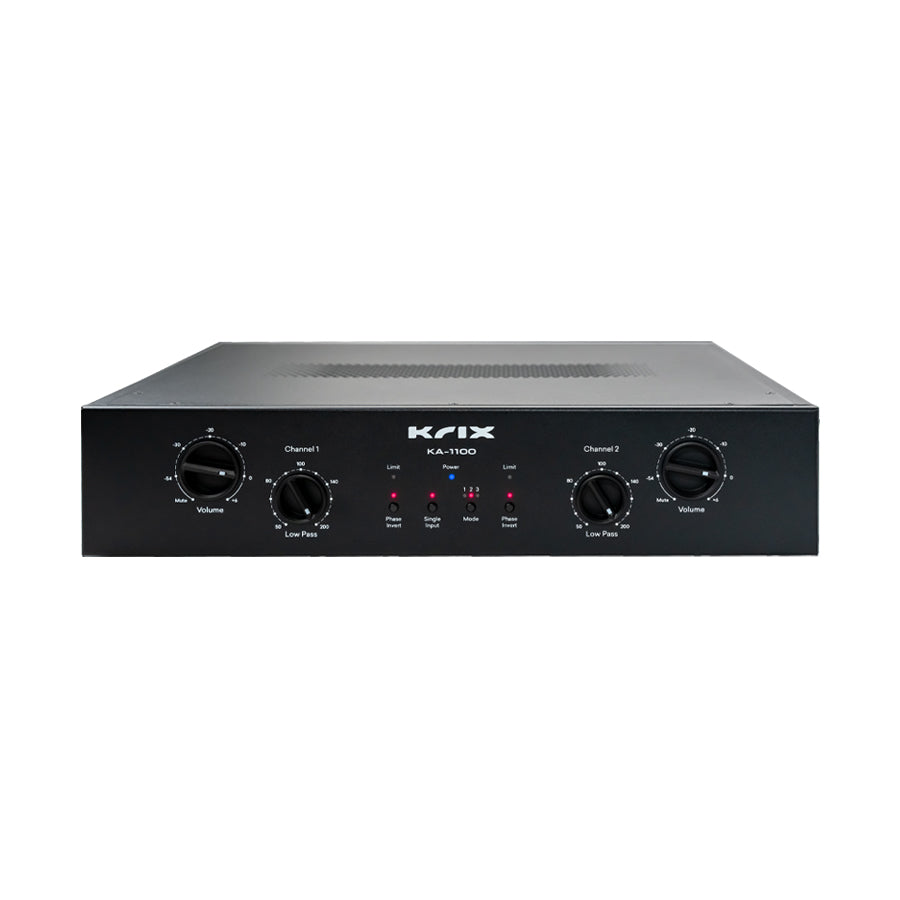

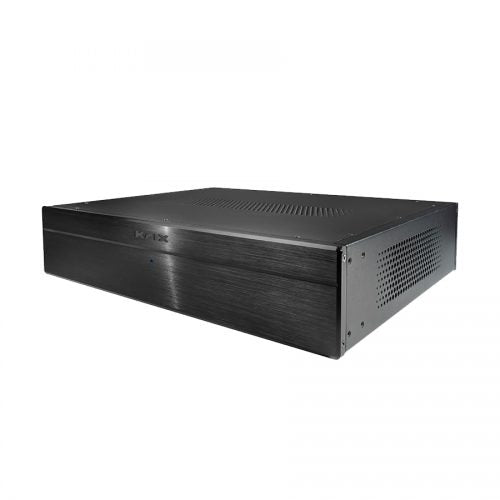

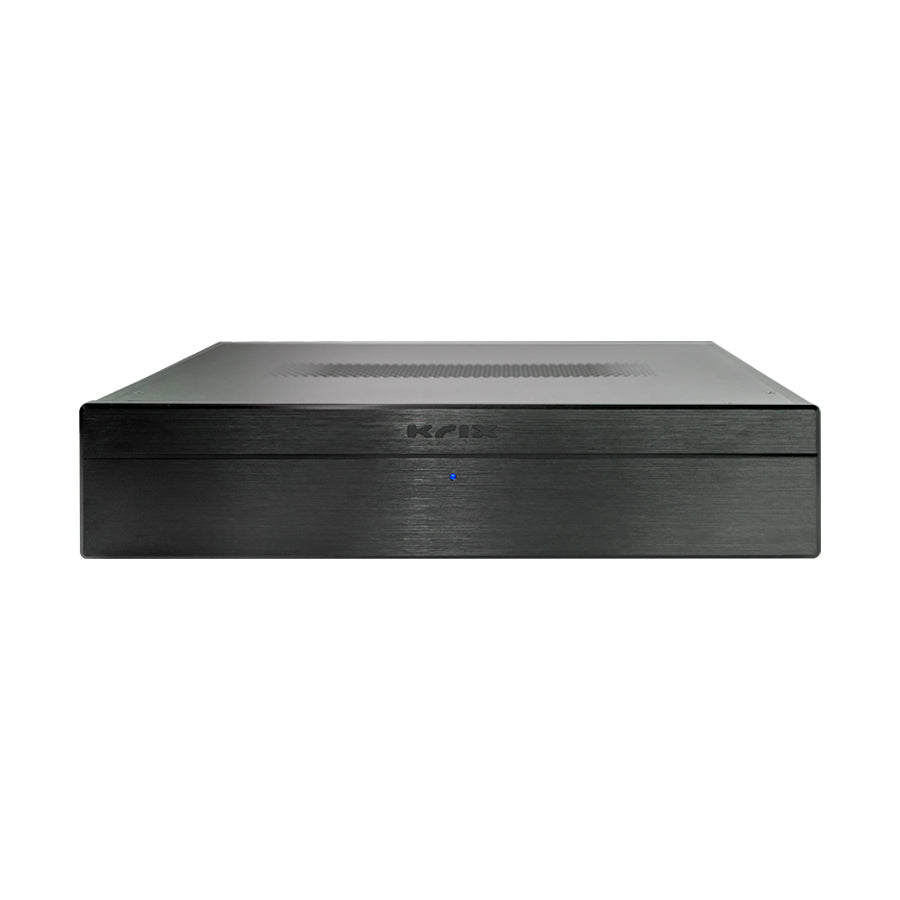

The sleek and modern design allows the unit to blend in with any furniture and cabinetry, or stylishly sit amongst other electronic equipment within a rack (rack ears are included). The brushed aluminium fascia can be easily removed for access to all controls.

For the ultimate sound experience at home, play it through Krix.
