- Impedance
- 6 Ω nominal (4.3 Ω minimum)
- Sensitivity
- 90 dB (2.83 V / 1 m)
- Recommended amplifier power
- 50 to 300 W RMS
Price $1,495
Includes GST
Voted Australia's #1 Hi-Fi Retailer, Sound+Image Awards 2023. Family owned since 2010.
Planning a cinema around it?
Our designers match it to your room, screen and seating, then install and calibrate the lot. Start with it in our 3D builder, or talk to us.
Delivery and collection
Free standard shipping on orders of $300 or more within Australia, and $15 on smaller orders. Western Australia is quoted on request.
Pick up from our Belrose showroom: call ahead so we can have it ready.
Set-up and installation
Our team can deliver, install and set up your system, from speaker placement to a full cinema calibration. Ask us for a quote when you order.
Returns
Your rights under Australian Consumer Law always apply. Read our returns policy.
Krix Epix Main Baffle
Specifications
- Type
- In-wall speaker baffle (drivers and crossover), 3-way
- Low frequency drivers
- 4 x nominal 130 mm (5") coated paper cones, 26 mm (1") voice coil on aluminium former
- Mid frequency driver
- 1 x nominal 130 mm (5") coated paper cone, 26 mm (1") voice coil on aluminium former, copper shorting ring
- High frequency driver
- 26 mm (1") dual concentric diaphragm with waveguide centre plug
- Frequency range
- 40 Hz to 40 kHz (in-room response)
- Sensitivity
- 90 dB (2.83 V / 1 m)
- Impedance
- 6 Ω nominal (4.3 Ω minimum)
- Recommended amplifier power
- 50 to 300 W RMS
- Enclosure
- Bass reflex, front vented (with Epix Back Box)
- Input terminals
- Concealed spring terminals
- Front baffle (H x W x D)
- 962 x 225 x 18 mm
- Grille (H x W x D)
- 995 x 258 x 13 mm
- Back box (sold separately, H x W x D)
- 1700 x 390 x 80 mm
- Configuration
- Main
- Grille
- Black, custom colour cloth
- Sold as
- Each (baffle with grille)
Specifications are as published by Krix for the Epix in-wall speaker.
In detail

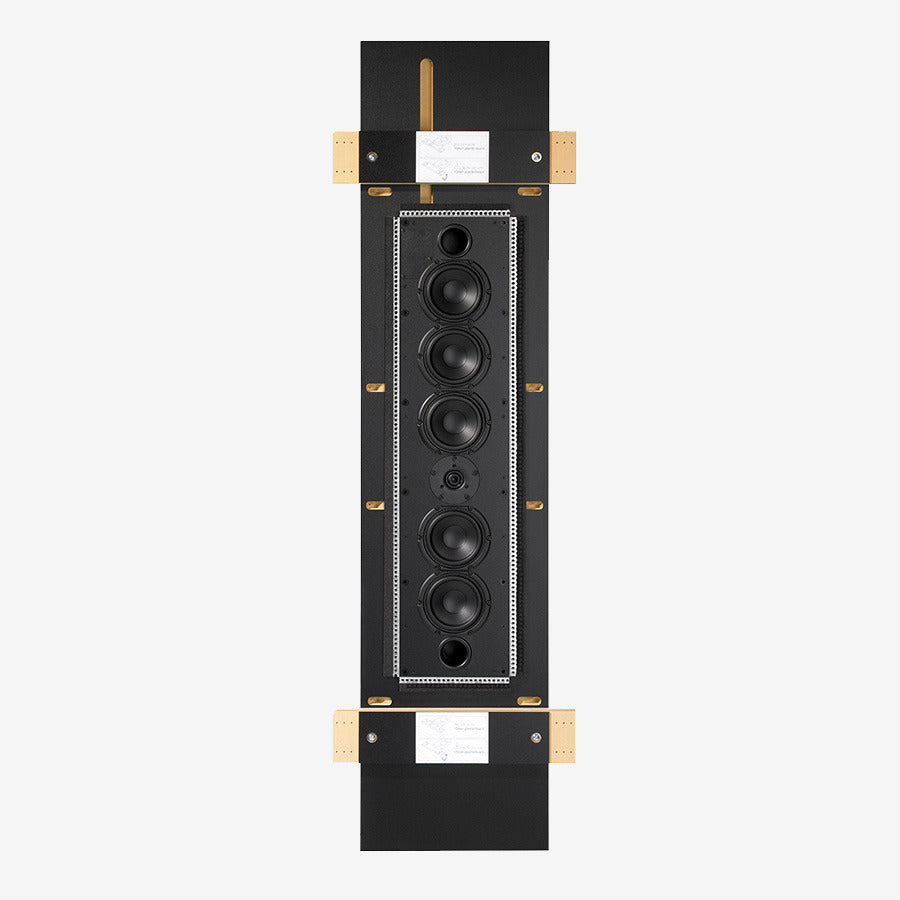

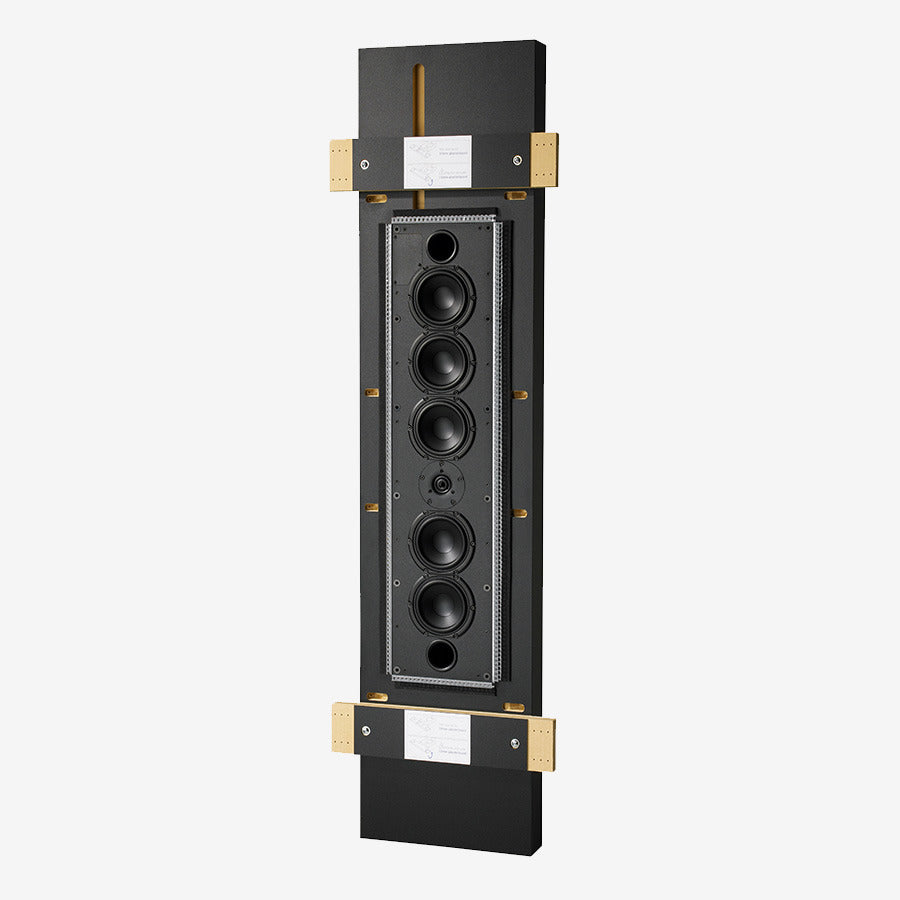

About the Epix Main Baffle
Overview
This is the Krix Epix Main Configuration baffle: the front baffle of the Krix Epix in-wall speaker, housing the drivers and crossover, with a cloth grille. It mounts into the Krix Epix Back Box (sold separately), which completes the Epix in-wall speaker.
Grille options for this listing: black, custom colour. The custom colour option is a special colour cloth grille.
Installation
- Two stages: Krix supplies the back box with a fake baffle so it can be installed at frame stage. Once the room is finished, the fake baffle is removed and this baffle is mounted into the back box.
- Wall frame: Krix designed the Epix to fit a standard 90 mm frame.
- Orientation: Krix offers the Epix in vertical or horizontal configurations.
