SKU EXT EPXC.B
Krix - Epix Centre Baffle
by Krix
$1,495.00
Lightning Fast Free Delivery*
Don't wait to start your audio adventure. With our lightning-fast delivery, your new high-fidelity audio equipment will be at your doorstep before you know it.
Check Out Our Thousands Of Reviews
Our services hit the high notes, but don't just take our word for it. Scroll down to read the rave reviews from our chorus of happy customers. They've heard the difference, and you can too.
Overview

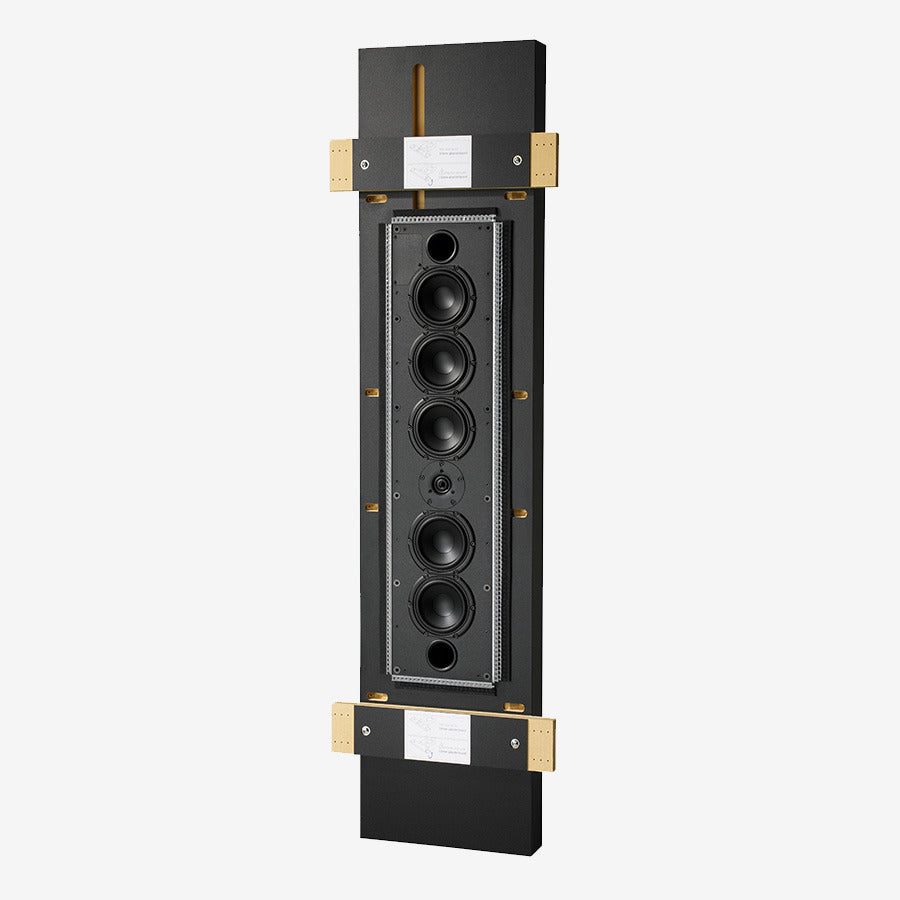

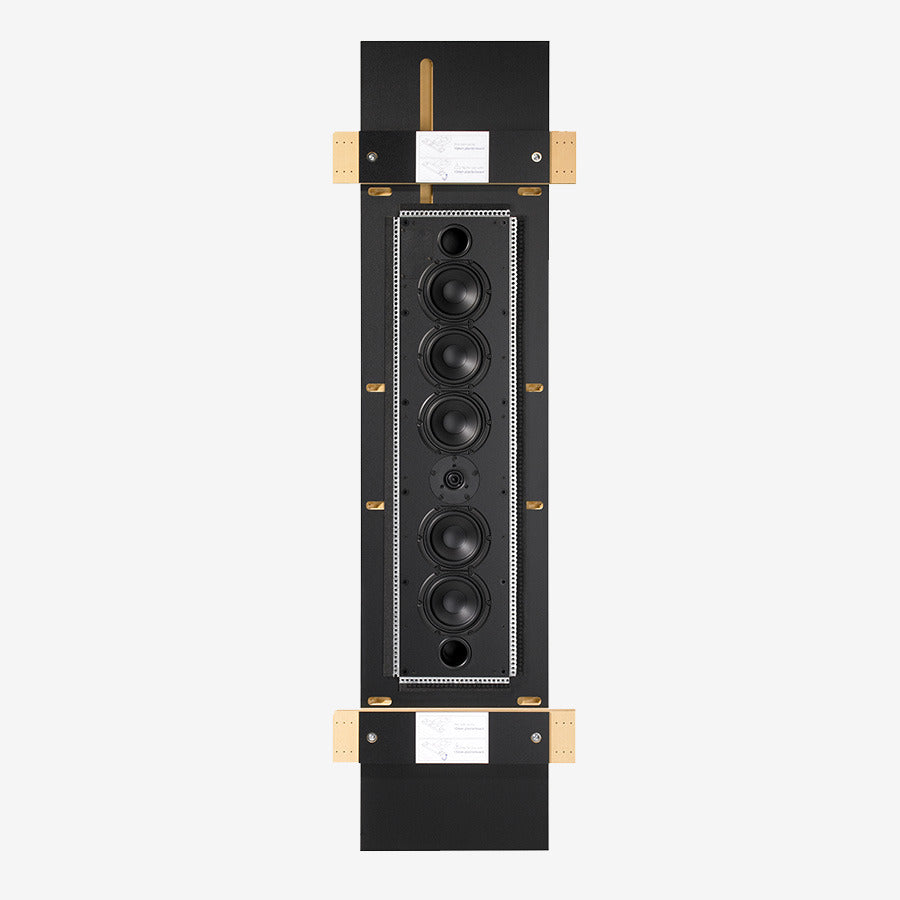

This is the Krix Epix Centre Configuration baffle: the front baffle of the Krix Epix in-wall speaker, housing the drivers and crossover, with a cloth grille. It mounts into the Krix Epix Back Box (sold separately), which completes the Epix in-wall speaker.
Grille options for this listing: black, white, custom colour. The custom colour option is a special colour cloth grille.
Installation
- Two stages: Krix supplies the back box with a fake baffle so it can be installed at frame stage. Once the room is finished, the fake baffle is removed and this baffle is mounted into the back box.
- Wall frame: Krix designed the Epix to fit a standard 90 mm frame.
- Orientation: Krix offers the Epix in vertical or horizontal configurations.
Specifications
| Type | In-wall speaker baffle (drivers and crossover), 3-way |
| Low frequency drivers | 4 x nominal 130 mm (5") coated paper cones, 26 mm (1") voice coil on aluminium former |
| Mid frequency driver | 1 x nominal 130 mm (5") coated paper cone, 26 mm (1") voice coil on aluminium former, copper shorting ring |
| High frequency driver | 26 mm (1") dual concentric diaphragm with waveguide centre plug |
| Frequency range | 40 Hz to 40 kHz (in-room response) |
| Sensitivity | 90 dB (2.83 V / 1 m) |
| Impedance | 6 Ω nominal (4.3 Ω minimum) |
| Recommended amplifier power | 50 to 300 W RMS |
| Enclosure | Bass reflex, front vented (with Epix Back Box) |
| Input terminals | Concealed spring terminals |
| Front baffle (H x W x D) | 962 x 225 x 18 mm |
| Grille (H x W x D) | 995 x 258 x 13 mm |
| Back box (sold separately, H x W x D) | 1700 x 390 x 80 mm |
| Configuration | Centre |
| Grille | Black, white, custom colour cloth |
| Sold as | Each (baffle with grille) |
Specifications are as published by Krix for the Epix in-wall speaker.
