Bowers & Wilkins

CCM664SR

2-Way In-Ceiling System

Price $549

Includes GST

Available to order: we confirm delivery timing when you order

Sound+Image Awards winner

Voted Australia's #1 Hi-Fi Retailer, Sound+Image Awards 2023. Family owned since 2010.

Planning a cinema around it?

Our designers match it to your room, screen and seating, then install and calibrate the lot. Start with it in our 3D builder, or talk to us.

Start a cinema with this

Delivery and collection

Free standard shipping on orders of $300 or more within Australia, and $15 on smaller orders. Western Australia is quoted on request.

Pick up from our Belrose showroom: call ahead so we can have it ready.

Shipping information

Set-up and installation

Our team can deliver, install and set up your system, from speaker placement to a full cinema calibration. Ask us for a quote when you order.

Returns

Your rights under Australian Consumer Law always apply. Read our returns policy.

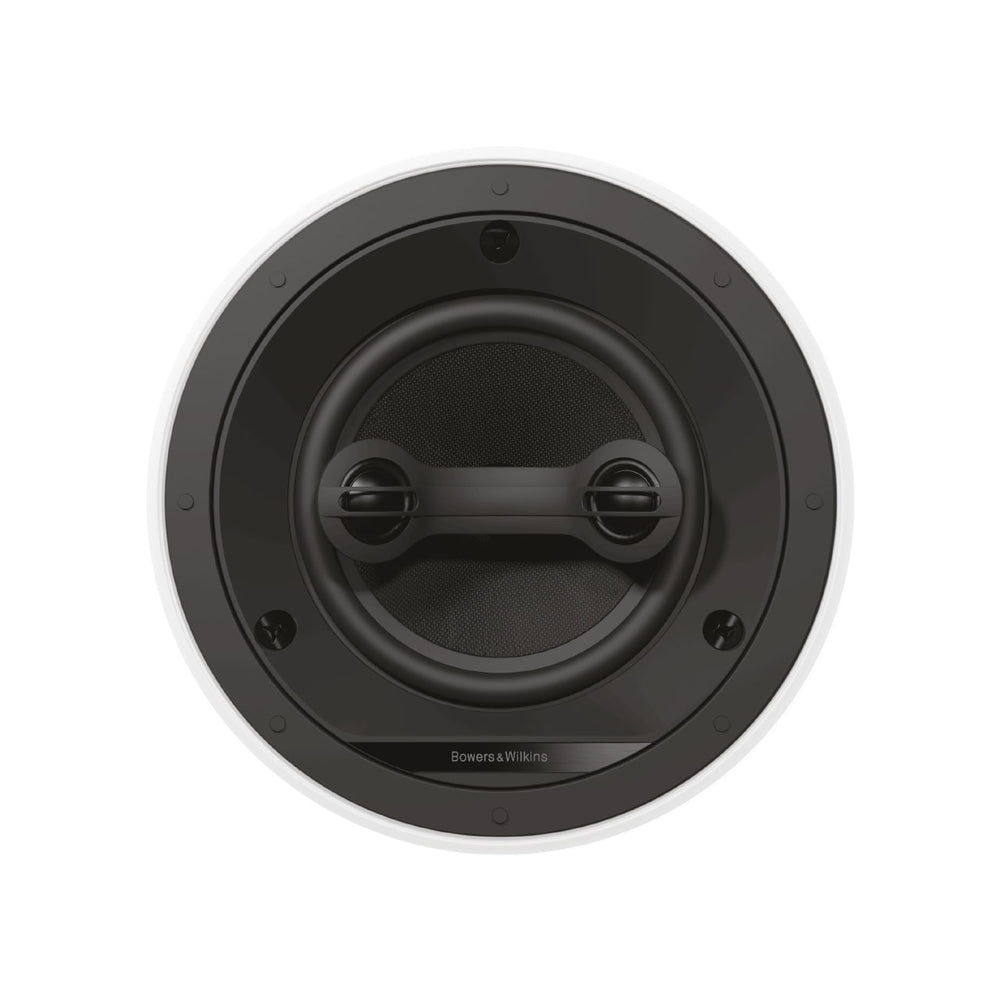

Bowers & Wilkins CCM664SR

Specifications

Frequency Range (-6dB): 48Hz – 30kHz
Recommended Amp Power: 25 – 80w (per channel)
Impedance Nominal (min): 8Ω (4Ω) (per channel)
Impedance Nominal (min): 8Ω (4Ω) (per channel)
Frame diameter: 240mm (9.5in)
Cut-out diameter: 202mm (8in)
Depth behind surface: 133mm (5.2in)
Protrusion: 4mm (0.2in)
Pre-mount Kit: PMK C6
Back Box: BB C6

Description: 2-way dual channel in-ceiling system

Drive Units:  2x ø20mm (1in) soft dome tweeter 1x ø150mm (6in) black glassfibre cone bass/midrange

Sensitivity SPL (2.83V, 1m):  82dB (per channel) 88dB (both channels driven)

In detail

About the CCM664SR

See nothing, hear everything.

The CCM664SR is a dual, two-way ceiling speaker featuring a 150mm(6in) woven glass fibre cone bass/midrange driver and two offset soft dome tweeters. The twin voice coil bass/midrange driver and tweeters allow a stereo signal to be combined to facilitate the use of just one ceiling speaker in a single installation area without the loss of one audio channel. The CCM664SR also includes a two-position stereo/surround switch to instantly make the speaker very suitable to be used as a surround channel. Incorporating QuickDogs™ and plug-and-play functionality it is quick and easy to install.
