In detail
About the CCM663RD

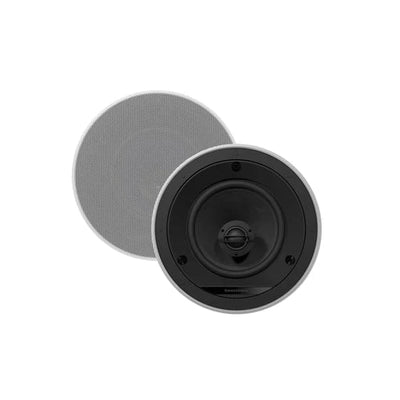

Bowers & Wilkins CCM663RD
Designed with reduced depth for tight spaces but full-fat sound quality, the Bowers & Wilkins CCM663 RD fits the spaces others don’t.
RD – Reduced Depth
This RD (Reduced Depth) speaker is specially designed to fit tighter spaces. A shallower cone and redesign of the QuickDogs frame reduces the mounting depth from 133mm to 92mm – a saving of more than 40mm. This can make all the difference in shallow ceiling voids.
Still the highest quality sound – from above
Despite the narrow depth, the CCM663 RD still sounds exceptional. With speakers in studios around the world, including Abbey Road, Bowers & Wilkins have an outstanding reputation for sound quality. Featuring a Nautilus, swirl loaded, aluminium tweeter and blue Aramid Fibre woofer, the CCM663 RD’s speaker spec matches its top quality cabinet speakers. The Nautilus provides exceptional detail and a crisp and uncompressed response, right the way to 50,000Hz. The Aramid Fibre cone matches power and control for exceptional realism – right down to 35Hz.
Tilt adjustable tweeter for precise detail
Fitted with pivoting tweeters in both speakers, getting the perfect soundstage is easy with these Bowers & Wilkins ceiling speakers. The tweeters tilt by up to 30 degrees, letting you angle them to precisely the best spot – usually your sitting area in the room. The more directly aligned the tweeters are with your ears, the more detail you hear – simple!
Optimised EQ
Working with the adjustable tweeters, the three-positon equaliser optimises the response for superior off-axis sound. This means that, even when you’re not in the listening ‘sweetspot’, you’ll still get the best balanced sound possible.
Unobtrusive design

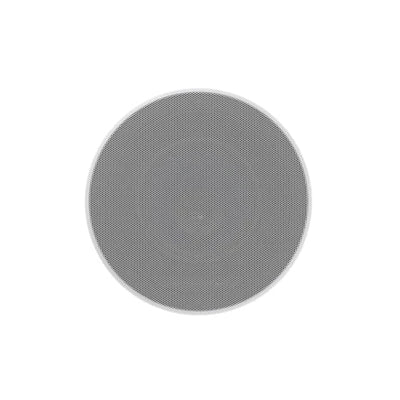

Once in place, these easy to fit ceiling speakers look sleek and unobtrusive. The flush fitting grilles offer an ultra-low profile against your ceiling and can be painted to harmonise with your décor.
Enjoy the best sound, from the tightest spaces, with the Bowers & Wilkins CCM663 RD.
Technical Specifications
|
Speaker Type
|
Ceiling Speaker |
|---|---|
|
Frequency Response (Hz)
|
35 - 50,000 |
|
Impedance (ohms)
|
8 |
|
Power Rating (Watts)
|
100 |
|
Sensitivity (dB)
|
86 |
|
Ceiling Speaker
|
Yes |
|
Cut out
|
202mm |
|
Diameter
|
240mm |
|
Dimensions WxHxD (mm)
|
240 x 92 (99mm inc protrusion) |
|
Weight (KG)
|
2.3 |
