AT-LP5X

Fully Manual Direct-Drive Turntable

Dimensions (W x D x H): 450 x 352 x 157 mm
Weight: 7.3 kg

All specifications

Price $999

Includes GST

Voted Australia's #1 Hi-Fi Retailer, Sound+Image Awards 2023. Family owned since 2010.

Hear the AT-LP5X before you decide

Book a private listening session in Belrose and ask for the AT-LP5X: we will confirm what we can set up for you. Or audition it at home.

Delivery and collection

Free standard shipping on orders of $300 or more within Australia, and $15 on smaller orders. Western Australia is quoted on request.

Pick up from our Belrose showroom: call ahead so we can have it ready.

Set-up and installation

Our team can deliver, install and set up your system, from speaker placement to a full cinema calibration. Ask us for a quote when you order.

Returns

Your rights under Australian Consumer Law always apply. Read our returns policy.

Audio Technica AT-LP5X

Specifications

Type: 3-speedfully manual operation
Drive method: Direct drive
Motor: DC motor
Speeds: 33⅓ RPM45 RPM, 78 RPM
Platter: Die-cast aluminium
Starting torque: >1.0 kgf.cm
Braking system: Electronic brake
Wow and flutter: <0.2% WRMS (33 RPM) at 3 kHz
Signal-to-noise ratio: >50 dB
Output level: PHONO: 4.0 mV nominal at 1 kHz5 cm/sec, LINE: 250 mV nominal at 1 kHz, 5 cm/sec
Phono preamp gain: MM: 36 dB nominalRIAA equalised, MC: 56 dB nominal, RIAA equalised
Tonearm: J-shaped

Show all 19 specifications

Cartridge: AT-VM95E dual moving magnet (fitted)
Headshell: AT-HS6
USB: A/D 16-bit44.1 kHz or 48 kHz selectable; USB 2.0; Windows 7 or later, macOS
Power supply: 100 to 240 V AC50/60 Hz (AC adapter)
Dimensions (W x D x H): 450 x 352 x 157 mm
Weight: 7.3 kg
Colour: Black

In detail

About the AT-LP5X

Overview

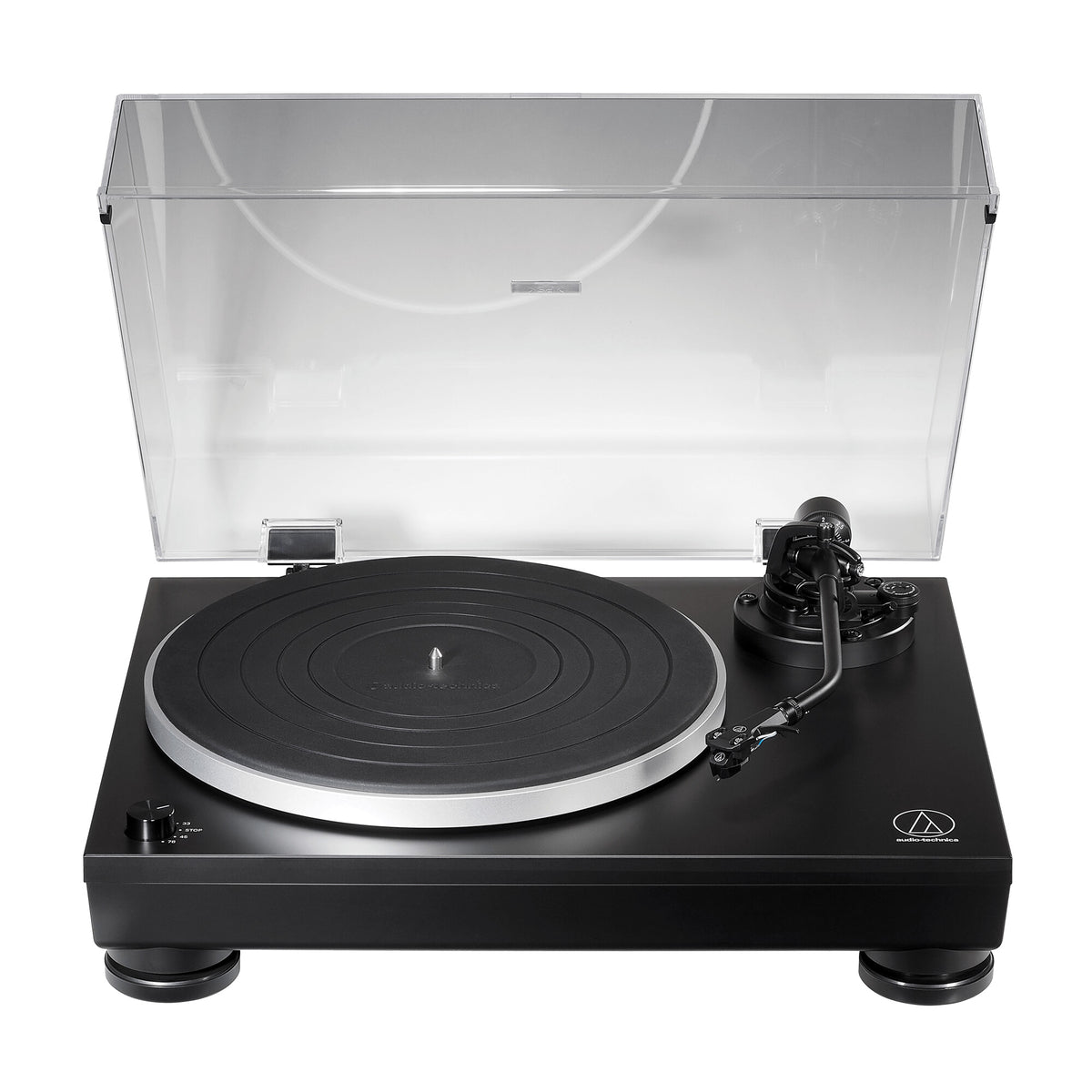

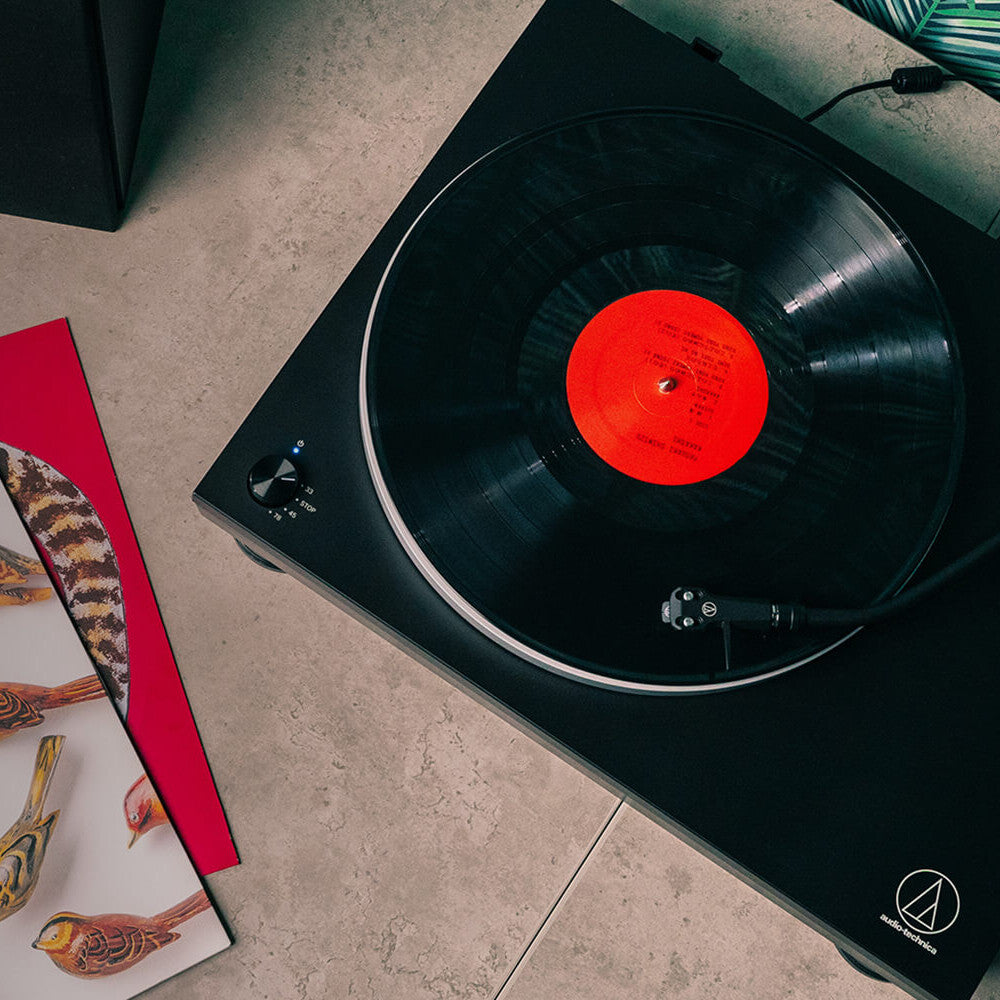

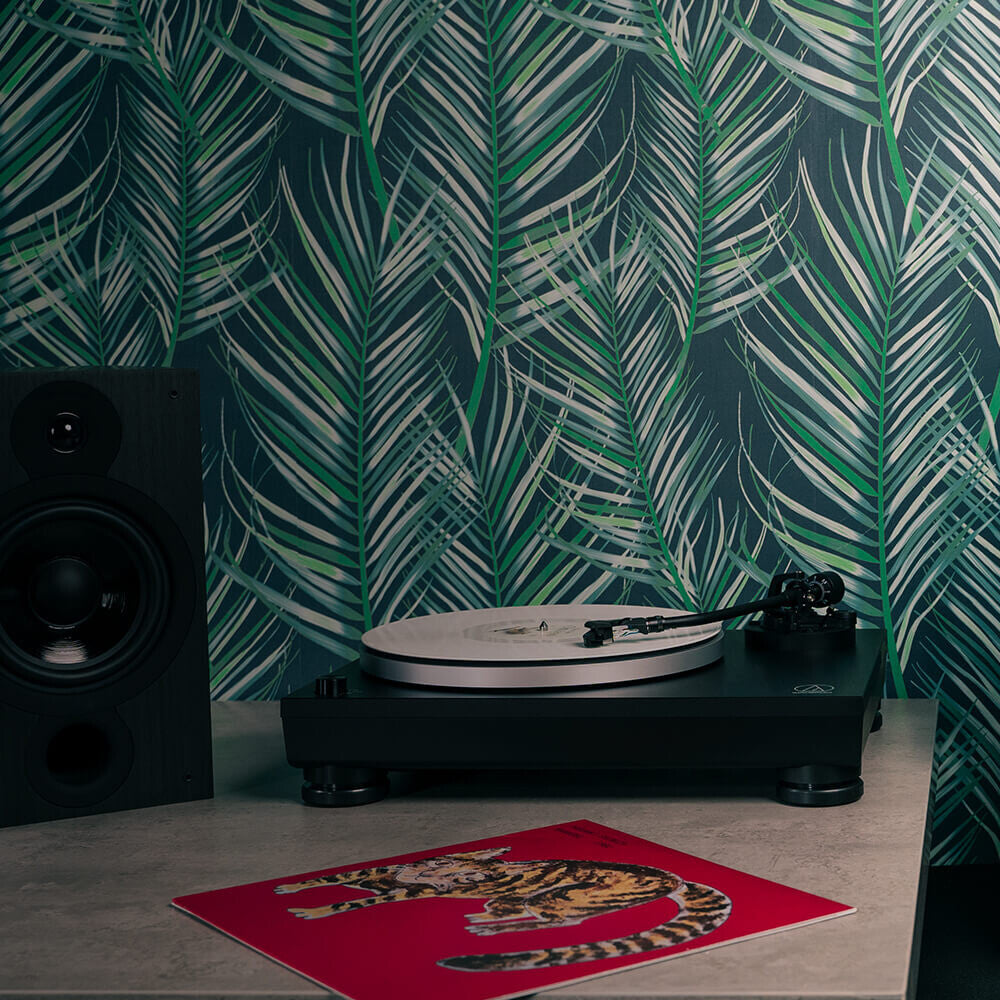

The Audio-Technica AT-LP5X is a fully manual direct-drive turntable that plays 33⅓, 45 and 78 RPM records. It has a built-in switchable phono preamp with MM and MC gain settings, a USB output for recording vinyl to a computer, and a J-shaped tonearm modelled on Audio-Technica designs from the 1960s and ’70s. It comes fitted with an AT-VM95E dual moving magnet cartridge on an AT-HS6 headshell, ready to play.

The AT-LP5X is the latest version of the AT-LP5. Audio-Technica has added the AT-VM95E cartridge and a preamp gain switch so the turntable can be used with moving magnet or moving coil cartridges.

Features

Direct drive, three speeds: a DC motor drives a die-cast aluminium platter at 33⅓, 45 or 78 RPM, with an electronic brake.

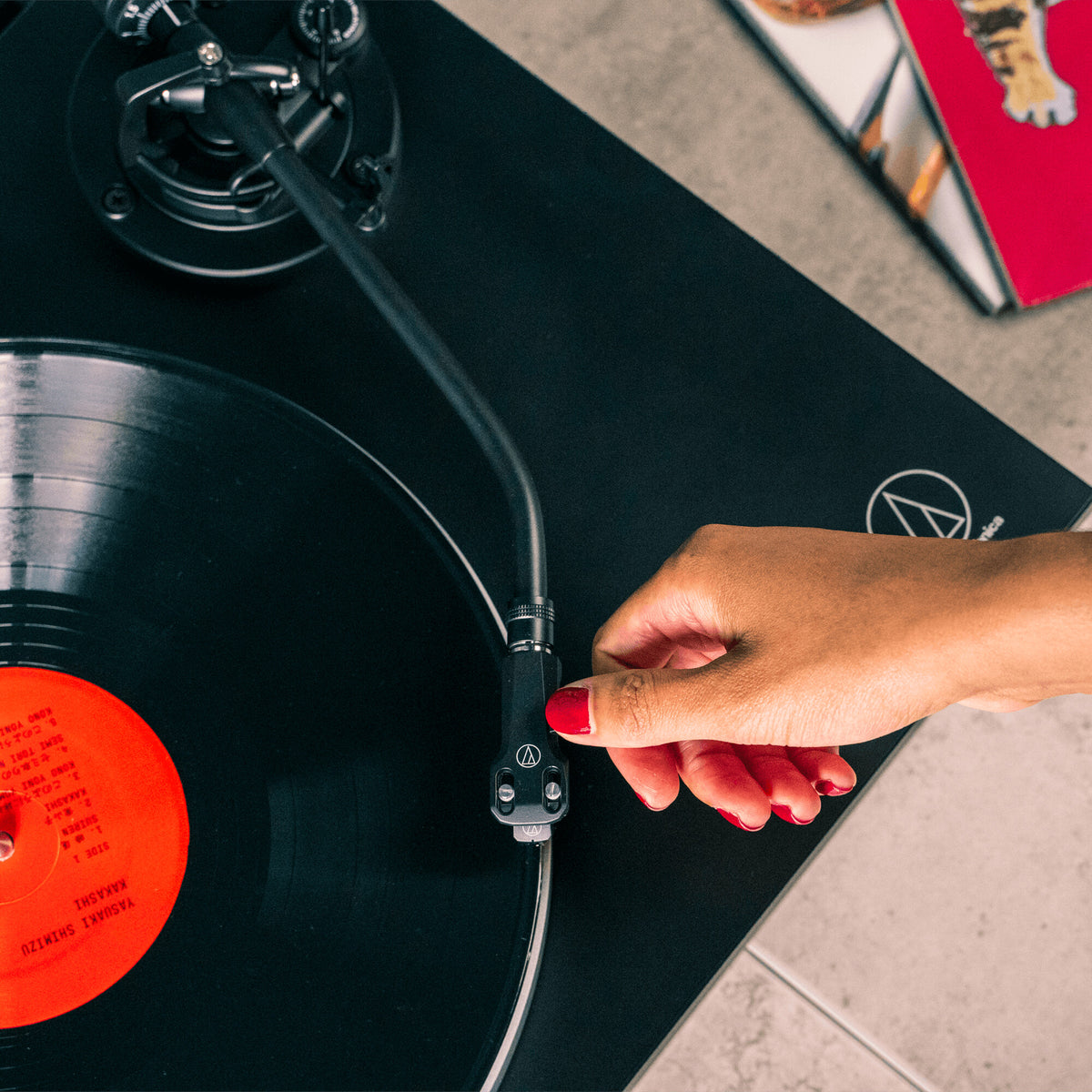

Fully manual operation: you place and lift the tonearm yourself.

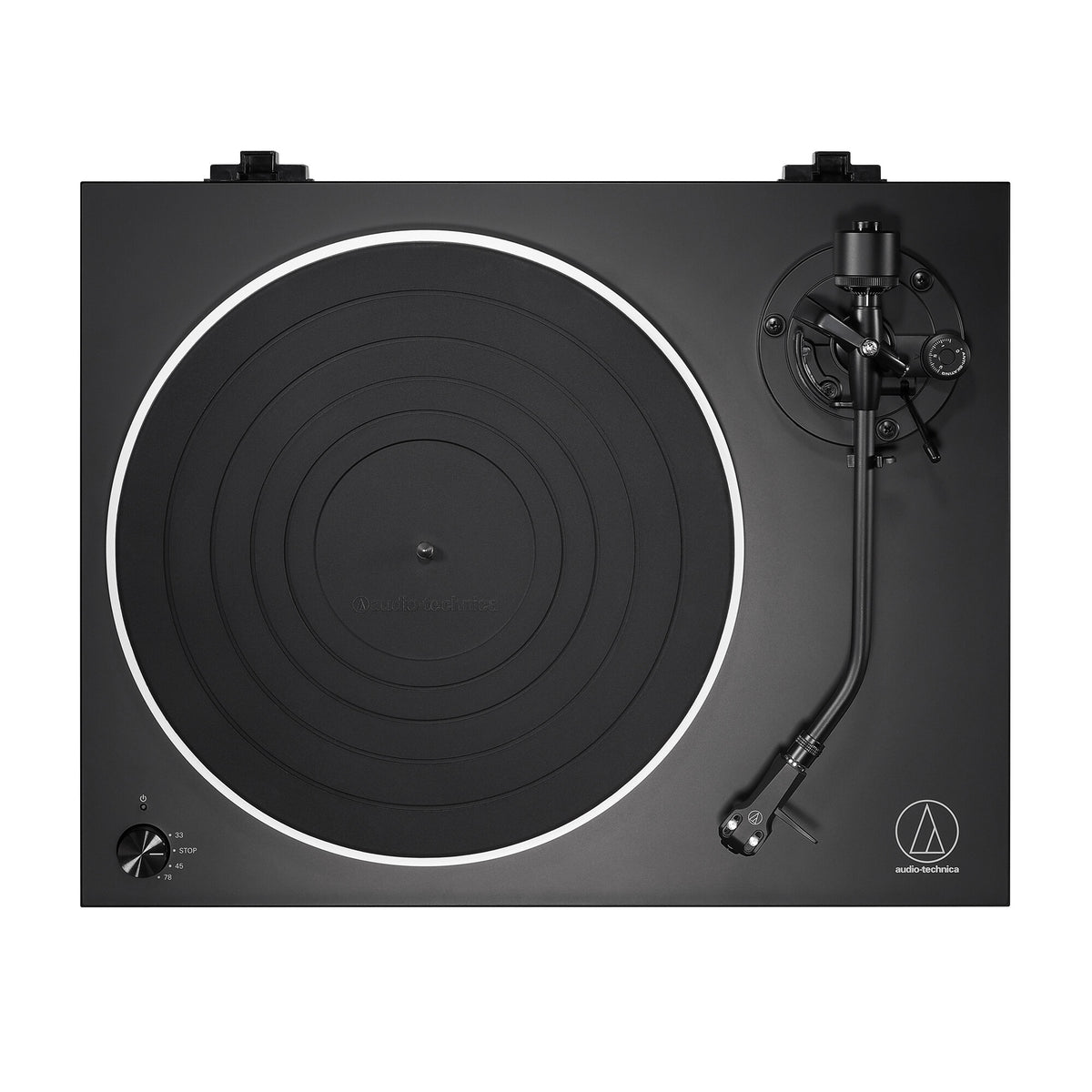

J-shaped tonearm: based on classic Audio-Technica designs, fitted with an AT-HS6 headshell.

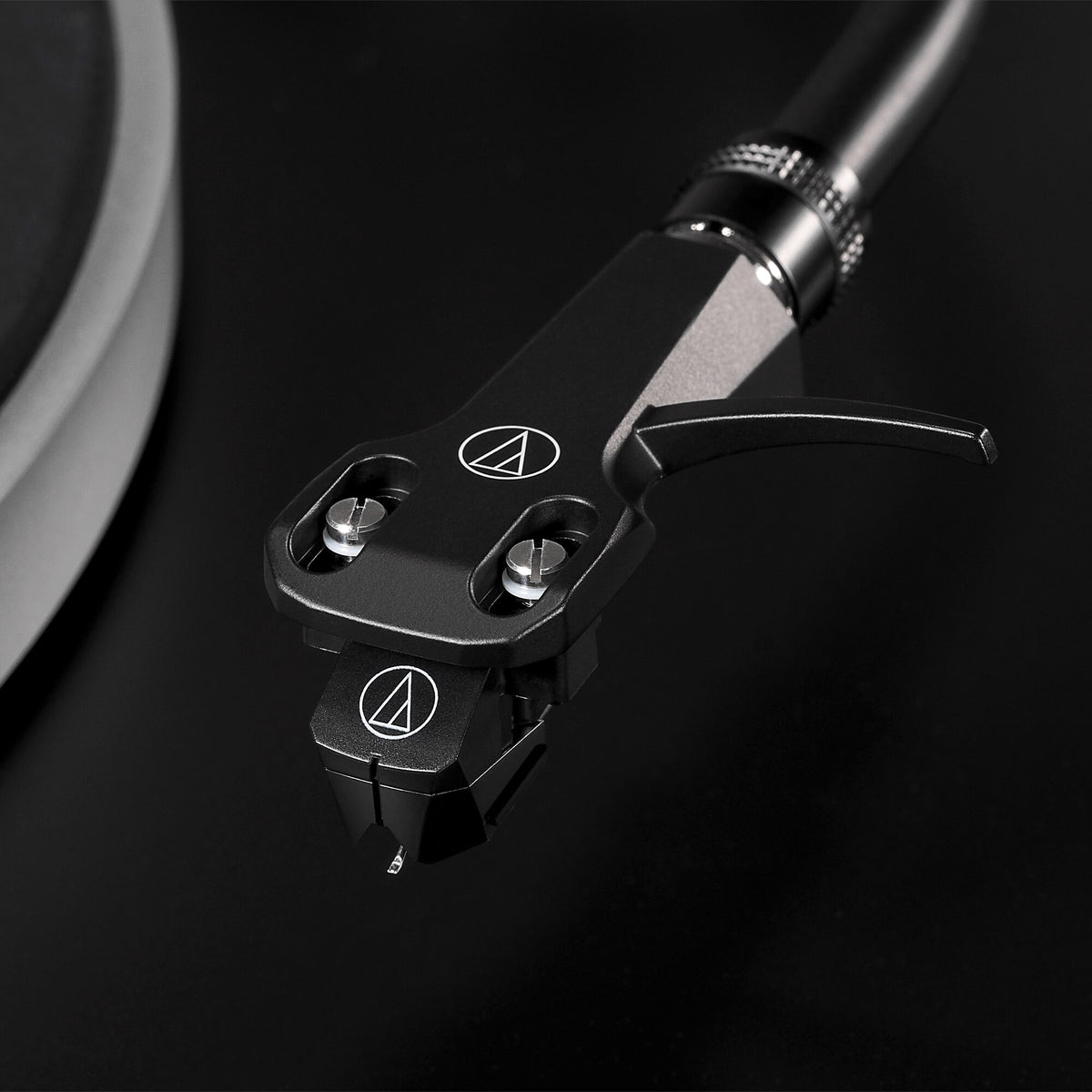

AT-VM95E cartridge: a dual moving magnet stereo cartridge with a replaceable stylus, fitted to the AT-HS6 headshell.

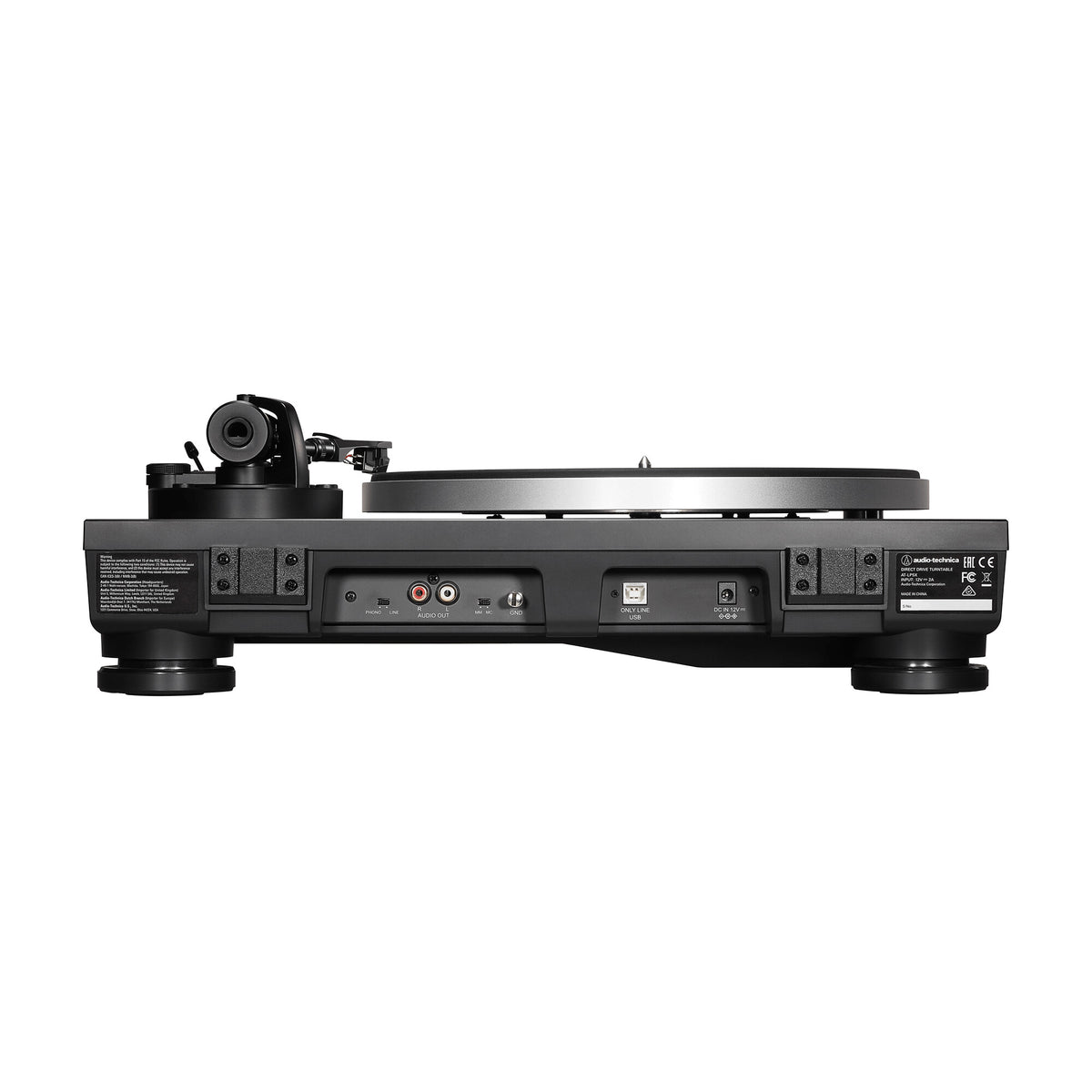

Switchable MM/MC phono preamp: use the PHONO output with an amplifier that has a phono input, or the LINE output with powered speakers or an amplifier without one. A gain switch sets the preamp for moving magnet or moving coil cartridges.
USB output: converts the analogue signal to 16-bit digital at 44.1 kHz or 48 kHz for recording to a Windows or Mac computer.
Cabinet: mass damped, high-density polymer.

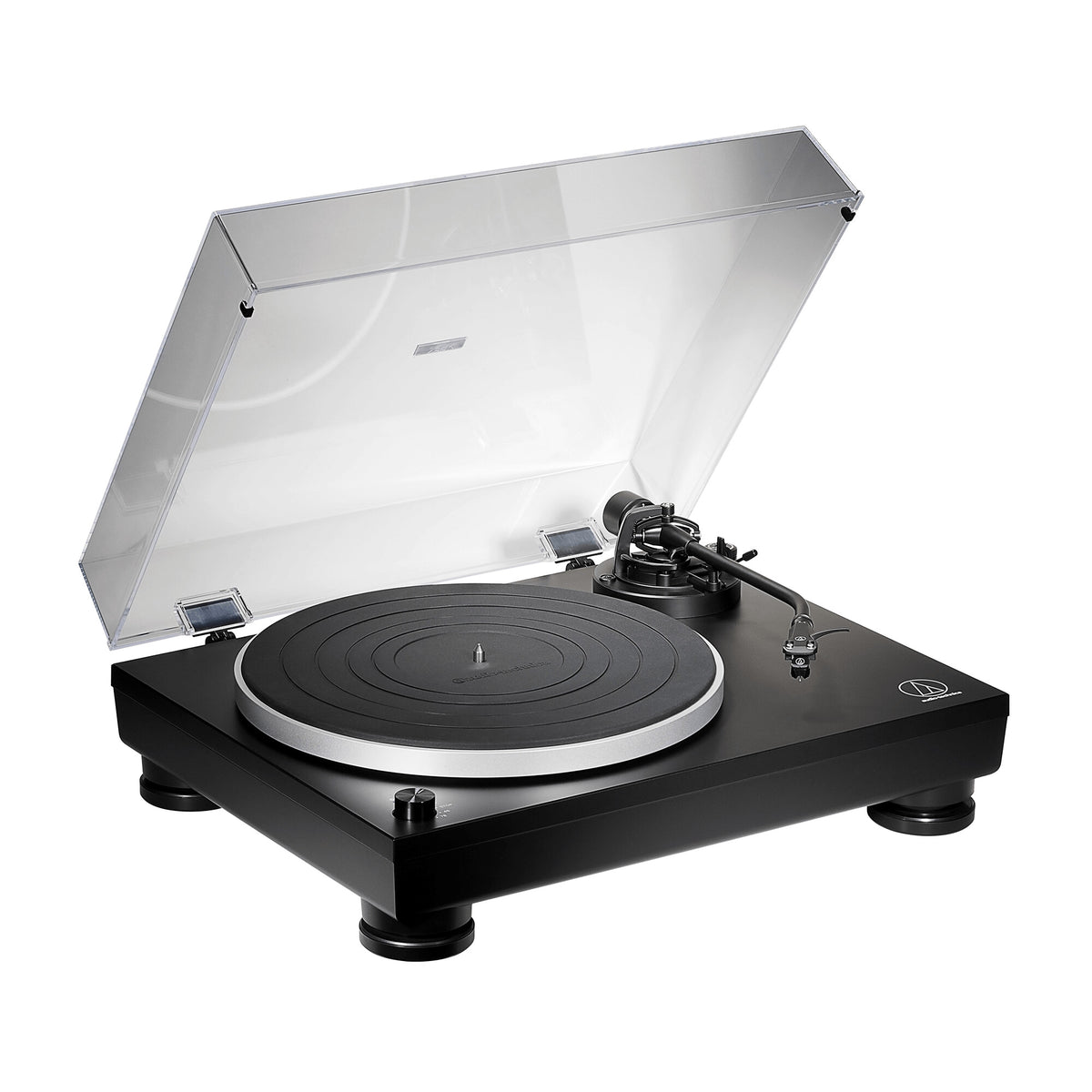

Dust cover: included, with hinges.

In the Box

AT-LP5X turntable
AT-VM95E dual moving magnet stereo cartridge (black) with replaceable stylus
AT-HS6 headshell
Dust cover with hinges
AC adapter
Dual RCA (male) to dual RCA (male) stereo cable
USB cable
45 RPM adapter

Specifications

Type	3-speed, fully manual operation
Drive method	Direct drive
Motor	DC motor
Speeds	33⅓ RPM, 45 RPM, 78 RPM
Platter	Die-cast aluminium
Starting torque	>1.0 kgf.cm
Braking system	Electronic brake
Wow and flutter	<0.2% WRMS (33 RPM) at 3 kHz
Signal-to-noise ratio	>50 dB
Output level	PHONO: 4.0 mV nominal at 1 kHz, 5 cm/sec LINE: 250 mV nominal at 1 kHz, 5 cm/sec
Phono preamp gain	MM: 36 dB nominal, RIAA equalised MC: 56 dB nominal, RIAA equalised
Tonearm	J-shaped
Cartridge	AT-VM95E dual moving magnet (fitted)
Headshell	AT-HS6
USB	A/D 16-bit, 44.1 kHz or 48 kHz selectable; USB 2.0; Windows 7 or later, macOS
Power supply	100 to 240 V AC, 50/60 Hz (AC adapter)
Dimensions (W x D x H)	450 x 352 x 157 mm
Weight	7.3 kg
Colour	Black

Specifications are as published by Audio-Technica.
