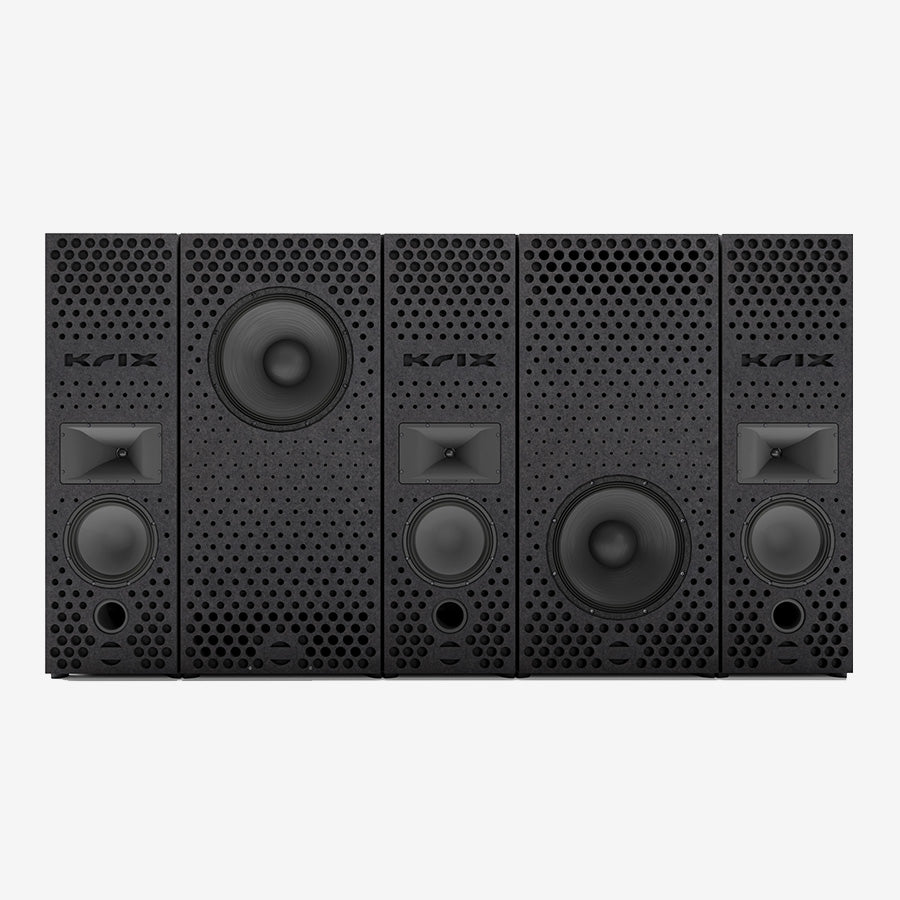

Krix - MX-20 (Mk2) Modular - Cinema Speakers
by Krix
Lightning Fast Free Delivery*
Don't wait to start your audio adventure. With our lightning-fast delivery, your new high-fidelity audio equipment will be at your doorstep before you know it.
Check Out Our Thousands Of Reviews
Our services hit the high notes, but don't just take our word for it. Scroll down to read the rave reviews from our chorus of happy customers. They've heard the difference, and you can too.
Designed for dedicated home cinemas with an acoustically transparent screen, the MX-20 will deliver your favourite movie soundtracks with supreme definition and accuracy, right through the picture and into your seat.
For a wall of sound that plunges through the big screen, the MX-20 will provide the impact you’re looking for. With every aspect optimised to deliver the most faithful reproduction of movie soundtracks, from a whisper to the explosion immediately after, these modules provide a true commercial cinema experience at home.
The MX-20 is designed for cinema rooms four to seven metres long. This system comprises five modules, all of which are the same height and a slim line depth of just 295mm for simple installation into a wall cavity. The front baffle of each module is covered with an acoustic absorbent material to absorb any sound reflecting off the back of the screen or the room itself. This assists greatly with the acoustic treatment of the room to ensure better intelligibility and overall sound performance.
The main speakers feature a 255mm mid-bass driver which has a 50mm voice coil developed to offer low harmonic distortion, especially in the critical midband.
The high frequency drive unit is a damped, high power, 26mm doped fabric dome tweeter, coupled with a proprietary Krix waveguide, for optimum dispersion over the entire working bandwidth. Each subwoofer contains a large 380mm paper cone driver with a 100mm edge-wound copper voice coil, dual spider assembly, and vented magnet assembly.
For the ultimate cinema experience at home, play it through Krix.
| Category | Specification | Details |
|---|---|---|
| System Recommendations | Recommended room depth | 4m – 7m |
| Minimum screen size (16:9) | 105″ (2324mm x 1308mm) | |
| Minimum screen size (21:9) | 130″ (3035mm x 1301mm) | |
| LCR Speaker Modules | Frequency range | 40Hz–20kHz in-room response |
| Power handling | 100–500 Watts RMS recommended amplifier power | |
| Recommended processing | High pass filter: 25Hz 24dB / Octave Butterworth; Limiter: 1000W (8 Ohms) | |
| Sensitivity | 97dB for 2.83 volts at 1 metre | |
| Impedance | 8 Ohms | |
| Configuration | 2-way | |
| Enclosure type | Bass reflex, front vented | |
| Low frequency driver | Single 255mm (10”) paper cone driver; 50mm (2”) voice coil wound on high-powered Kapton former; ventilated magnet assembly and copper shorting ring for low distortion | |
| High frequency driver | 26mm (1”) doped fabric dome with large roll surround; ferro fluid cooled; coupled to a Krix-designed 90 x 40 short throw waveguide | |
| Input terminals | Nickel-plated spring terminals featuring a 5mm hole to accept up to 10AWG cable | |
| Dimensions | 1220mm (H) x 365mm (W) x 295mm (D); 2210mm wide including subwoofer modules | |
| Weight | 31kg each | |
| Subwoofer Modules | Frequency range | 25Hz–200Hz in-room response |
| Power handling | 200–1400 Watts RMS recommended amplifier power | |
| Recommended processing | High pass filter: 25Hz 24dB / Octave Butterworth; Limiter: 1000W (8 Ohms) | |
| Sensitivity | 96dB for 2.83 volts at 1 metre | |
| Impedance | 8 Ohms | |
| Enclosure type | Bass reflex, front vented | |
| Low frequency driver | Single 380mm (15”) paper cone driver; 100mm (4”) edge-wound copper voice coil; dual spider assembly and vented magnet assembly | |
| Input terminals | High-level gold-plated spring terminals | |
| Dimensions | 1220mm (H) x 550mm (W) x 295mm (D); 2210mm wide including LCR modules | |
| Weight | 45kg each |
