SKU VJS5710

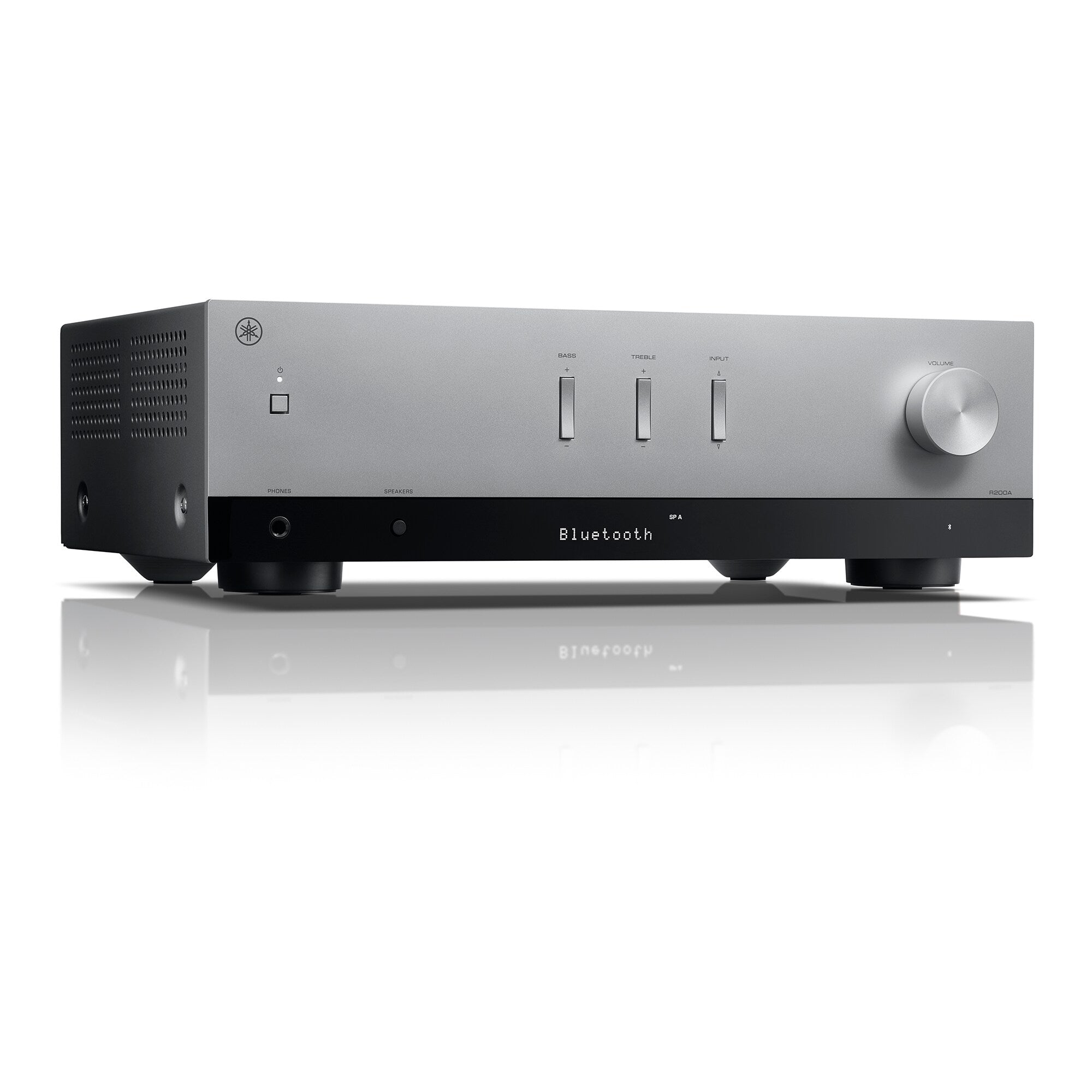

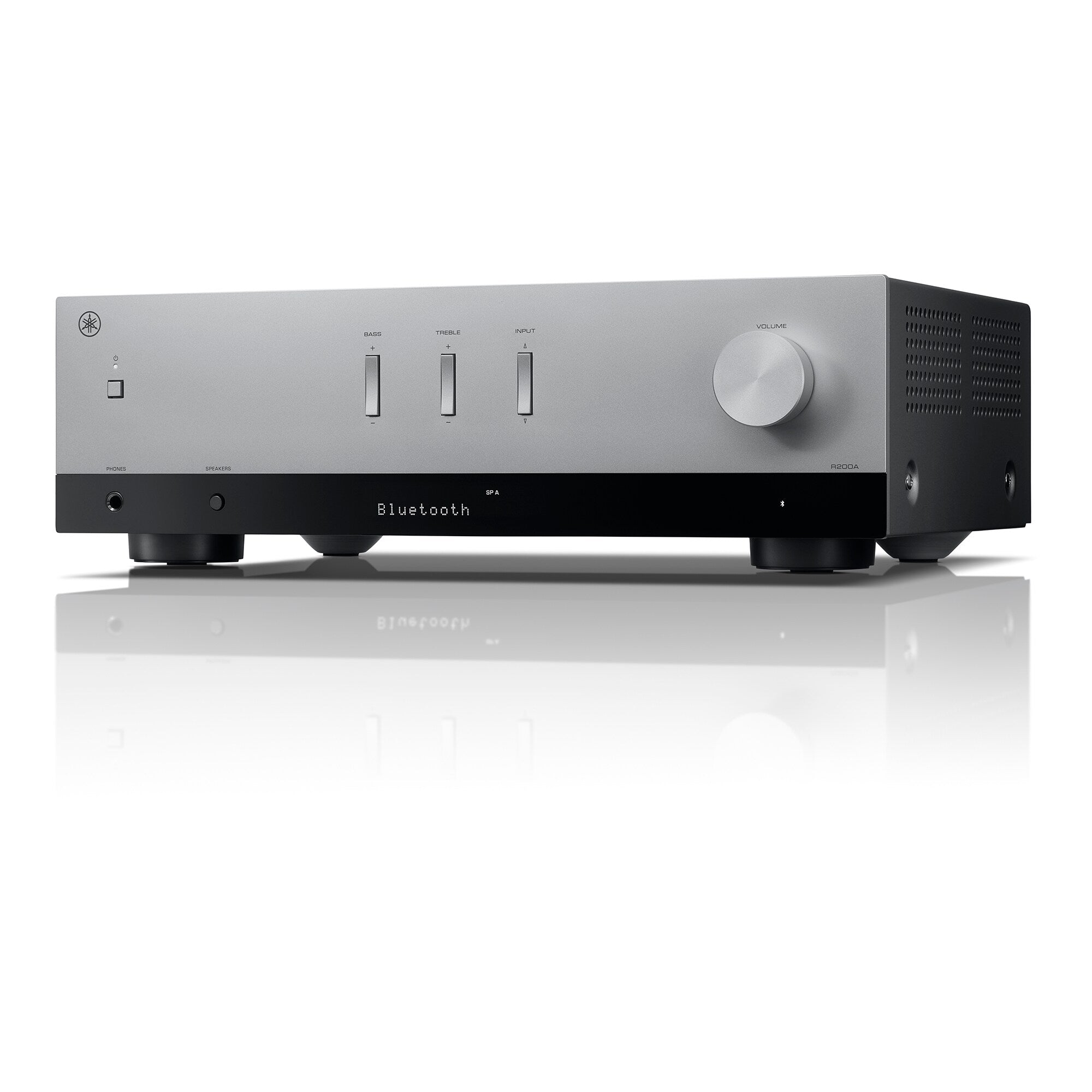

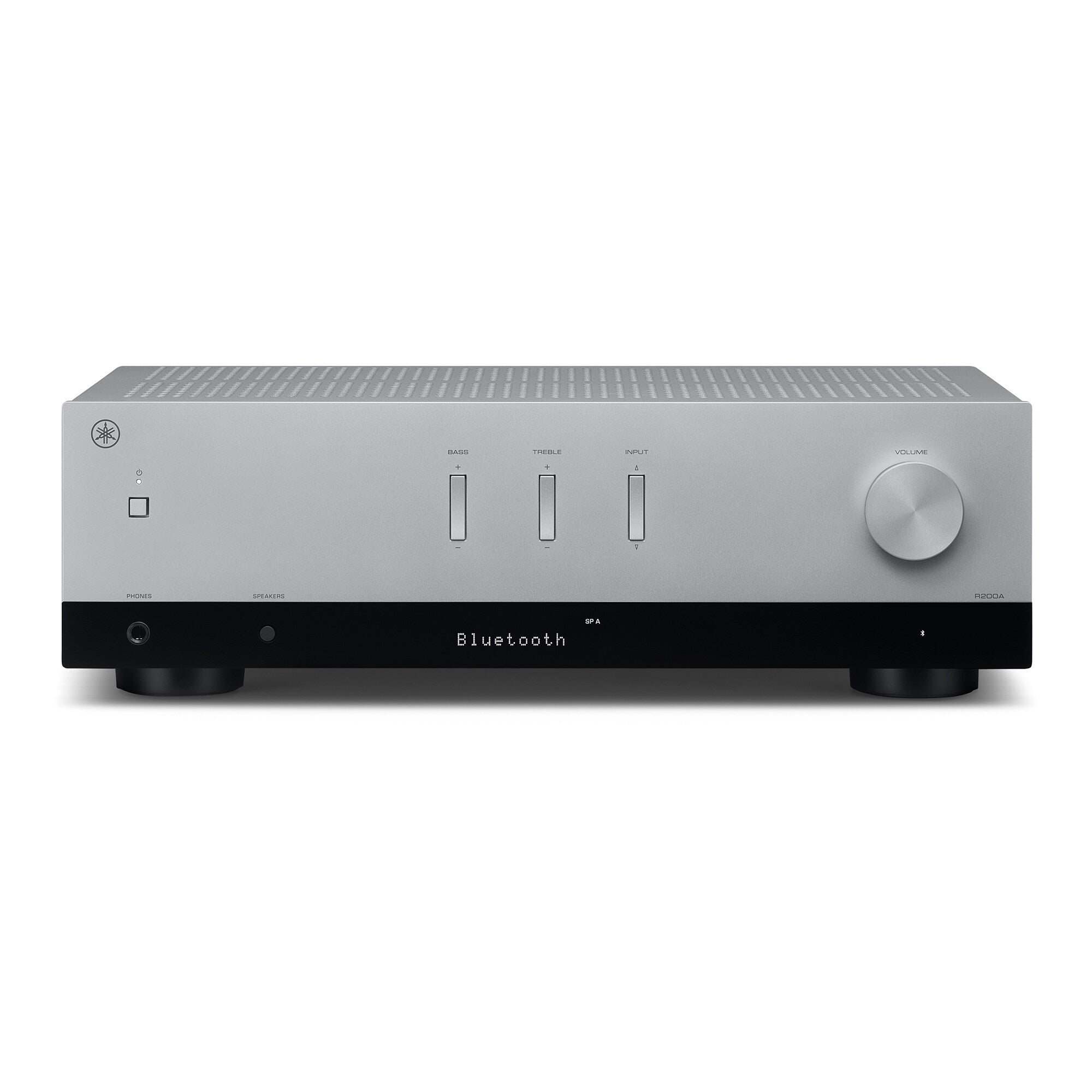

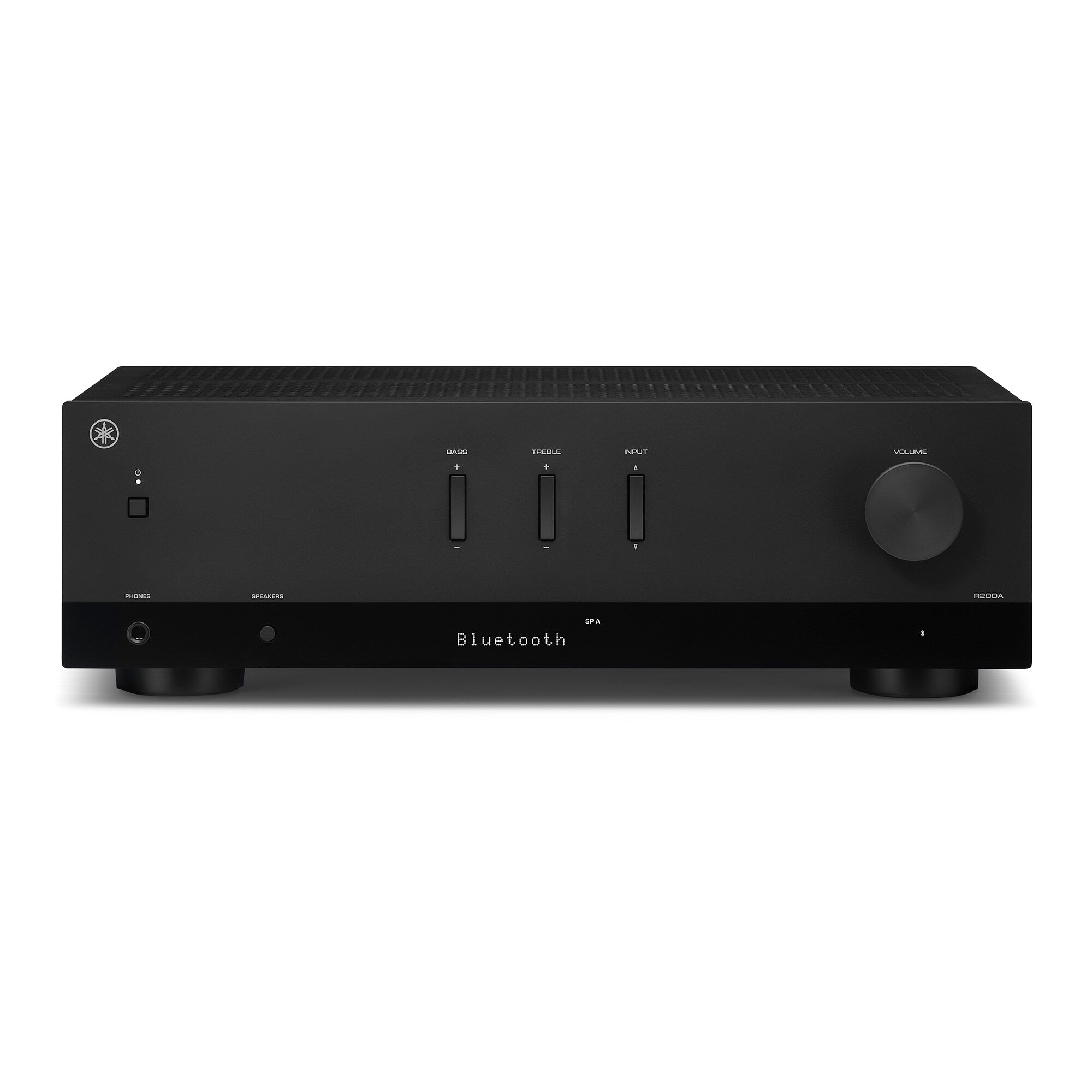

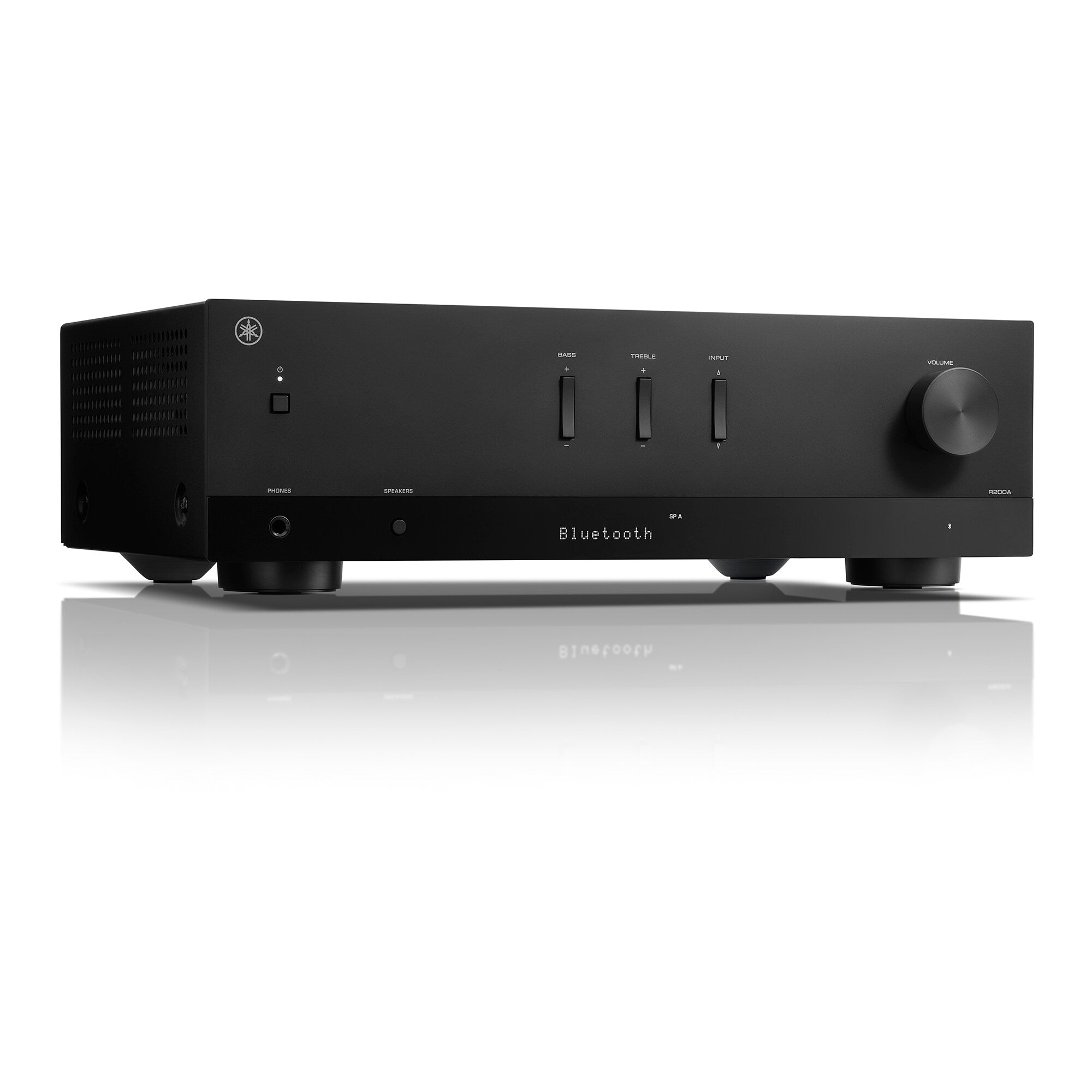

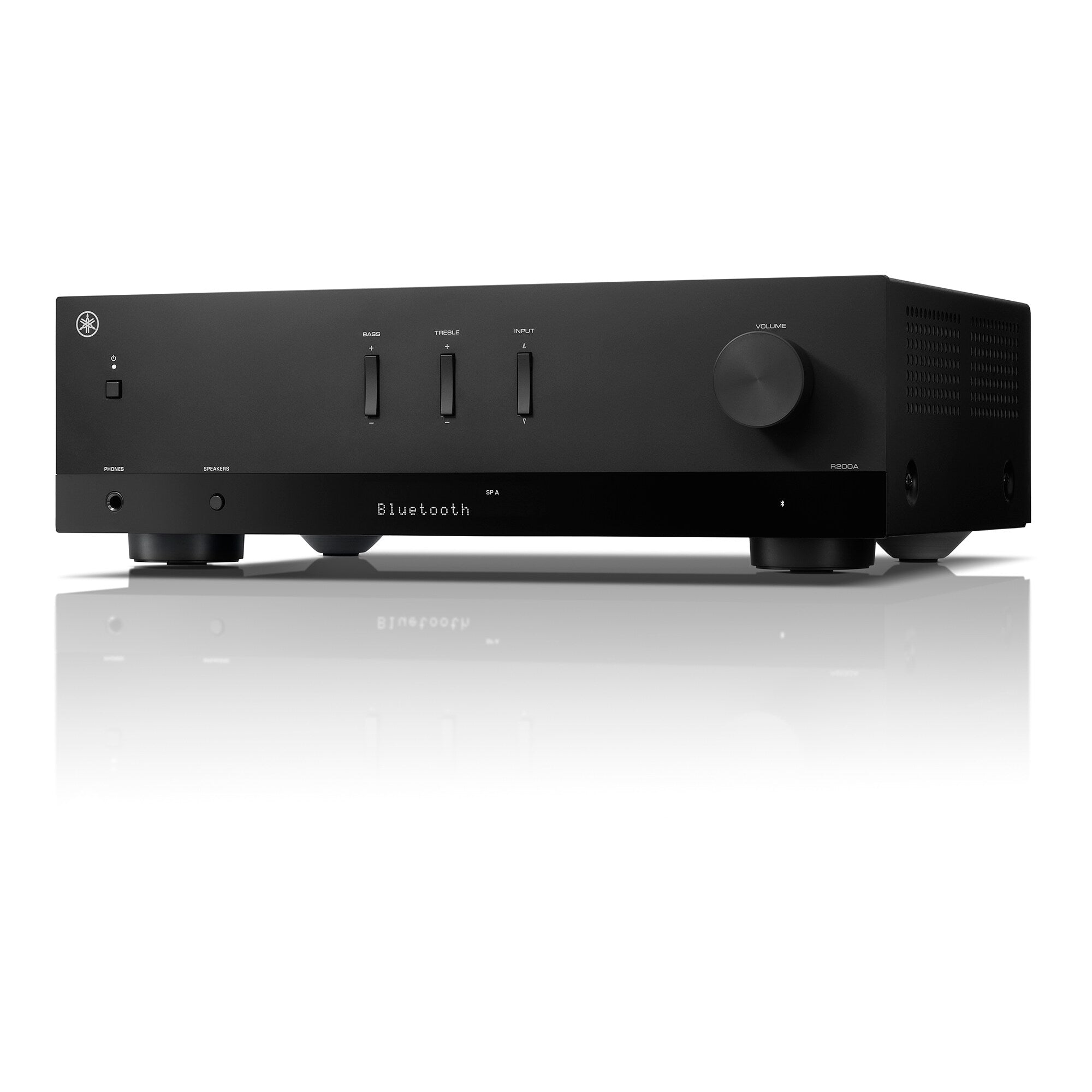

Yamaha - R200A - Stereo Receiver
by Yamaha
$799.99
Lightning Fast Free Delivery*
Don't wait to start your audio adventure. With our lightning-fast delivery, your new high-fidelity audio equipment will be at your doorstep before you know it.
Check Out Our Thousands Of Reviews
Our services hit the high notes, but don't just take our word for it. Scroll down to read the rave reviews from our chorus of happy customers. They've heard the difference, and you can too.
Overview
The Yamaha R200A is a two-channel stereo receiver that replaces the R-S202. It combines a stereo amplifier, a radio tuner and a Bluetooth receiver in one full-width component, with inputs for a turntable, a CD player and other analogue sources. Yamaha rates it at 100W + 100W into 8 ohms (40Hz to 20kHz, 0.2% THD, both channels driven).
According to Yamaha's user guide, the Australian model has a DAB and FM tuner with up to 40 presets each. A/B speaker switching runs two pairs of speakers, in one room or across two rooms, and a subwoofer pre-out lets you add a powered subwoofer. Yamaha lists a centre-beam chassis, binding-post speaker terminals, revised grounding circuitry and a redesigned heat sink.
Connectivity
- Phono input for moving magnet (MM) cartridges
- Three analogue RCA inputs (CD, LINE 1 and LINE 2)
- Analogue line output (RCA)
- Mono subwoofer pre-out for a powered subwoofer
- Speaker A and speaker B terminals for two pairs of speakers, switchable from the front panel
- Headphone output on the front panel
- USB port for firmware updates only (it does not play music)
Bluetooth and Radio
- Bluetooth 5.3 receiver with SBC and AAC codecs
- Bluetooth Multipoint, so two source devices can stay connected and you can switch between them
- DAB and FM tuner on the Australian model, with a DAB/FM antenna supplied
- Up to 40 presets each for FM and DAB stations
Amplifier and Controls
- Rated by Yamaha at 100W + 100W (8 ohms, 40Hz to 20kHz, 0.2% THD)
- Bass and treble controls (±10dB in 2dB steps)
- Front panel display and infrared remote control
- Centre-beam chassis designed by Yamaha to reduce vibration
In the Box
- Remote control
- AAA batteries (x 2)
- DAB/FM antenna (Australian model)
- Quick Guide
- Safety Guide
Specifications
| Model | R200A |
| Type | 2-channel stereo receiver with subwoofer output |
| Rated power output (2 channels driven) | 100W + 100W (8 ohms, 40Hz to 20kHz, 0.2% THD) |
| Dynamic power per channel (IHF) | 125W / 150W / 165W / 180W (8 / 6 / 4 / 2 ohms) |
| 1-channel driven output | 115W (4 ohms, 1kHz, 0.7% THD) |
| Damping factor | 120 or more (1kHz, 8 ohms) |
| Frequency response (CD etc.) | 20Hz to 20kHz ±0.5dB; 10Hz to 100kHz ±3.0dB |
| Total harmonic distortion | CD etc. to speaker out: 0.2% or less (20Hz to 20kHz, 50W, 8 ohms) Phono (MM) to line out: 0.025% or less (20Hz to 20kHz) |
| Signal-to-noise ratio (IHF-A) | CD etc.: 100dB or more Phono (MM): 75dB or more |
| Residual noise (IHF-A) | 70µV or less (speaker out) |
| Channel separation (CD etc.) | 65dB / 50dB or more (1kHz / 10kHz) |
| Input sensitivity / impedance | CD etc.: 500mV / 47 kohms Phono (MM): 10mV / 47 kohms |
| Maximum allowable input | CD etc.: 2.2V (1kHz, 0.5% THD) Phono (MM): 35mV (1kHz, 0.06% THD) |
| RIAA deviation | Phono (MM): ±0.5dB |
| Rated output voltage / impedance | Line out: 500mV / 2.2 kohms Subwoofer out: 6.0V / 2.2 kohms Headphones: 470mV / 470 ohms |
| Tone controls | Bass: ±10dB in 2dB steps (50Hz) Treble: ±10dB in 2dB steps (20kHz) |
| Analogue inputs | 4 stereo RCA (Phono MM, CD, LINE 1, LINE 2) |
| Outputs | Speakers A and B (L/R), subwoofer pre-out (mono) x 1, line out x 1, headphones x 1 |
| Speaker selection | A/B |
| USB | 1 (firmware updates only) |
| Bluetooth | Ver. 5.3, Class 2, A2DP and AVRCP, SBC and AAC, SCMS-T, Multipoint (2 devices) |
| Bluetooth range | 10m (no obstructions) |
| Tuner (Australian model) | DAB (Band III, 174MHz to 240MHz; MPEG 1 Layer II and MPEG-4 HE-AAC v2) and FM (87.50MHz to 108.00MHz) |
| Presets | Up to 40 each for FM and DAB |
| FM 50dB quieting sensitivity | 3µV (20.8dBf), mono (IHF, 1kHz, 100% mod.) |
| FM signal-to-noise ratio | 65dB / 64dB (mono / stereo) |
| FM harmonic distortion | 0.5% / 0.6% (mono / stereo) |
| Power supply (Australian model) | AC 230V to 240V, 50Hz |
| Power consumption | 200W |
| Standby power consumption | 0.3W (Bluetooth standby off); 0.5W (Bluetooth standby on) |
| Dimensions (W x H x D) | 435 x 137 x 328 mm (including feet and protrusions) |
| Weight | 7.3 kg |
| Finishes | Black, Silver |
| Unit | Sold individually |
