Compact Hi-Fi Pack (WXA-70A + NS-BP401)

Hi-Fi Package

Impedance: 6 ohms
Sensitivity: 85 dB / 2.83 V / 1 m
Dimensions (W x H x D): 220 x 73 x 267 mm
Weight: 2.6 kg

All specifications

Price $2,999

Includes GST

Voted Australia's #1 Hi-Fi Retailer, Sound+Image Awards 2023. Family owned since 2010.

Hear the Compact Hi-Fi Pack (WXA-70A + NS-BP401) before you decide

Book a private listening session in Belrose and ask for the Compact Hi-Fi Pack (WXA-70A + NS-BP401): we will confirm what we can set up for you. Or audition it at home.

Delivery and collection

Free standard shipping on orders of $300 or more within Australia, and $15 on smaller orders. Western Australia is quoted on request.

Pick up from our Belrose showroom: call ahead so we can have it ready.

Set-up and installation

Our team can deliver, install and set up your system, from speaker placement to a full cinema calibration. Ask us for a quote when you order.

Returns

Your rights under Australian Consumer Law always apply. Read our returns policy.

Yamaha Compact Hi-Fi Pack (WXA-70A + NS-BP401)

Specifications

Unit: Sold as a pack: 1 x WXA-70A amplifier and 1 pair of NS-BP401 speakers
Yamaha pack code: COMPACTHIFI1
Colour options: Black or Silver (WXA-70A finish); NS-BP401 speakers are piano black in both
Combined weight: 14.4 kg (WXA-70A 2.6 kg plus 2 x NS-BP401 at 5.9 kg each)
WXA-70A Wireless Streaming Amplifier: WXA-70A Wireless Streaming Amplifier
Type: Wireless streaming amplifier
Output power: Yamaha rates the 120 V / 230 V models at 55 W + 55 W (8 ohms, 20 Hz to 20 kHz, 0.06% THD, 2 channels driven), 105 W + 105 W (4 ohms, 20 Hz to 20 kHz, 0.06% THD, 2 channels driven) and 165 W (4 ohms, 1 kHz, 10% THD, 1 channel driven)
Inputs: Analogue (RCA), optical, HDMI (CEC/eARC/ARC), USB Type-A (music playback/firmware update)
Outputs: Speaker terminals, subwoofer output
Trigger in / out: 0 / 1
Remote in / out: 1 / 0
Wi-Fi services: Server, Net Radio, AirPlay, Spotify Connect, TIDAL Connect, Google Cast, Roon Ready, Qobuz Connect
Bluetooth: Yes (SBC/AAC)
File formats: MP3, WMA, MPEG-4 AAC, WAV, FLAC, ALAC, AIFF, DSD
DAC: ESS SABRE ES9039Q2M
YPAO: PEQ, Reflected Sound Control (R.S.C.), YPAO Volume
Standby power consumption: 2.0 W
Dimensions (W x H x D): 220 x 73 x 267 mm
Weight: 2.6 kg
Finishes: Black, Silver
NS-BP401 Bookshelf Speakers: NS-BP401 Bookshelf Speakers
Type: 2-way bass-reflex bookshelf speaker (non-magnetic shielding type)
Woofer: 13 cm (5-1/4") aluminium cone
Tweeter: 3 cm (1-1/4") soft dome
Frequency response: 50 Hz to 40 kHz (-10 dB); 100 kHz (-30 dB)
Nominal input power: 60 W
Maximum input power: 120 W
Sensitivity: 85 dB / 2.83 V / 1 m
Crossover frequency: 3 kHz
Impedance: 6 ohms
Dimensions (W x H x D): 176 x 310 x 327 mm (each)
Weight: 5.9 kg (each)
Finish: Piano black

In detail

About the Compact Hi-Fi Pack (WXA-70A + NS-BP401)

Overview

The Yamaha Compact Hi-Fi Pack (Yamaha Australia pack code COMPACTHIFI1) combines the WXA-70A wireless streaming amplifier with a pair of NS-BP401 bookshelf speakers in piano black. The colour option refers to the WXA-70A finish (Black or Silver); the NS-BP401 speakers are piano black in both versions.

The WXA-70A is a compact MusicCast amplifier with Wi-Fi streaming (AirPlay, Google Cast, Spotify Connect, TIDAL Connect, Qobuz Connect, Roon Ready), Bluetooth, HDMI eARC for TV sound and YPAO room calibration. The NS-BP401 is a 2-way bookshelf speaker with an aluminium woofer and a piano black finish.

What's in the Pack

1 x Yamaha WXA-70A wireless streaming amplifier (Black or Silver, as selected)
2 x Yamaha NS-BP401 bookshelf speakers (one pair, piano black)

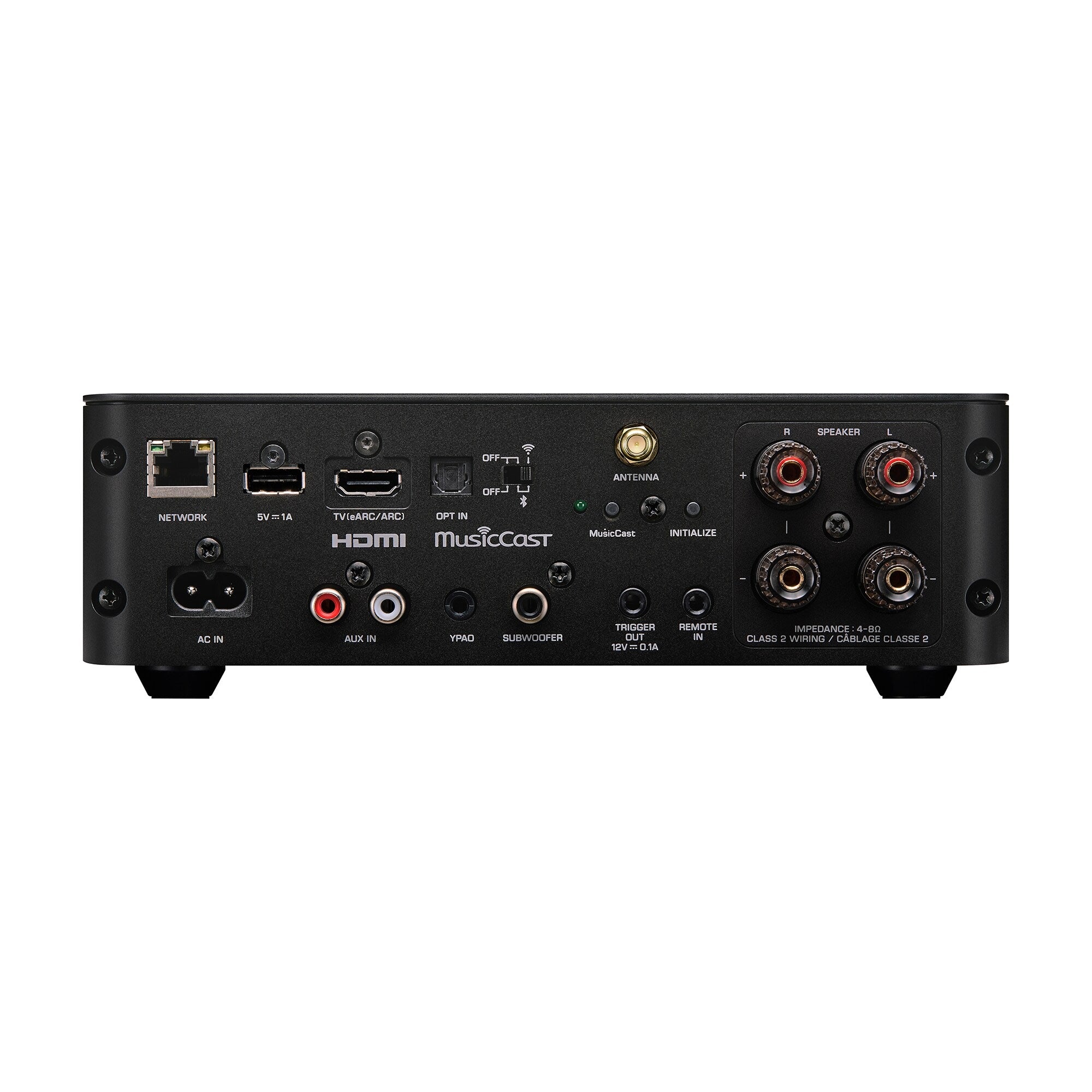

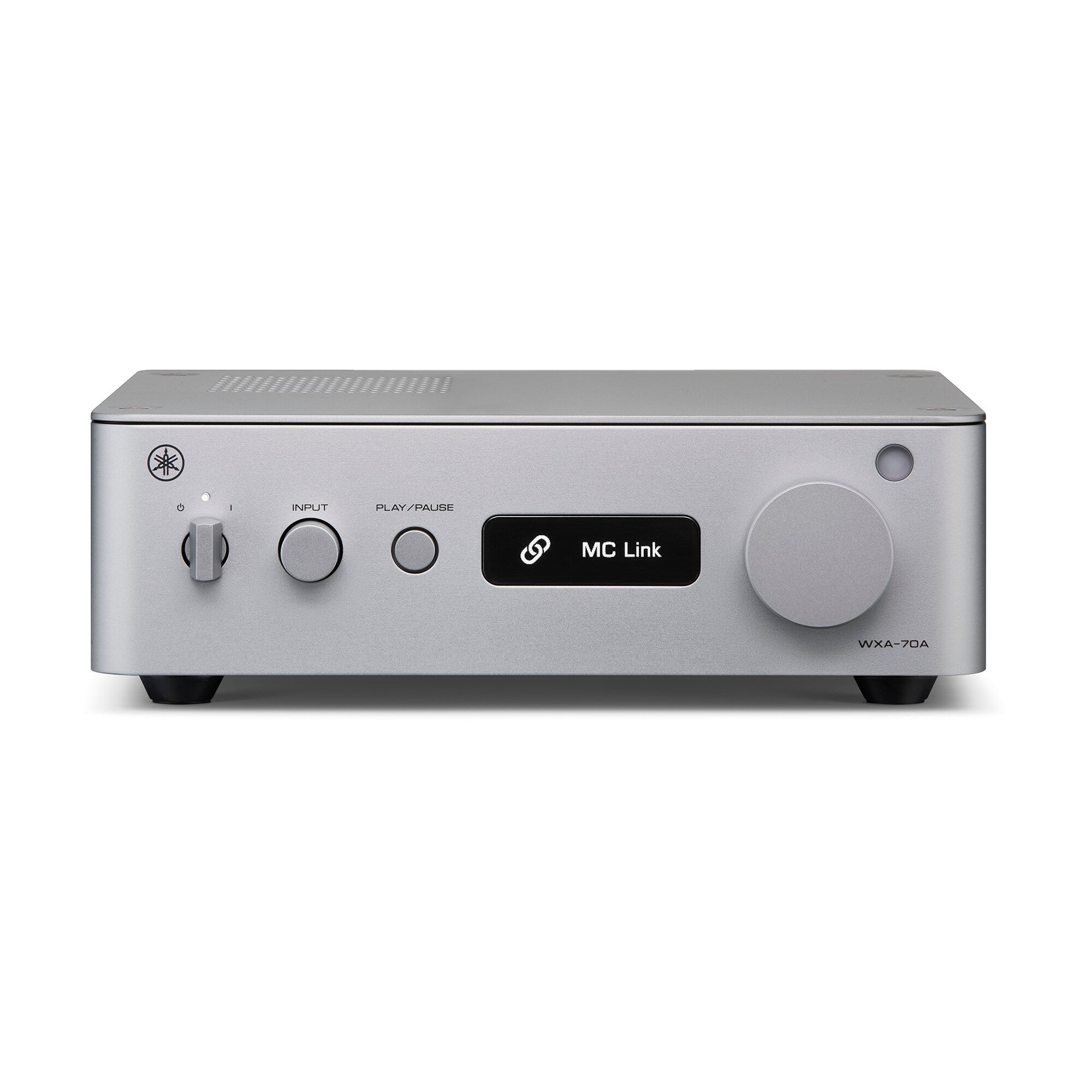

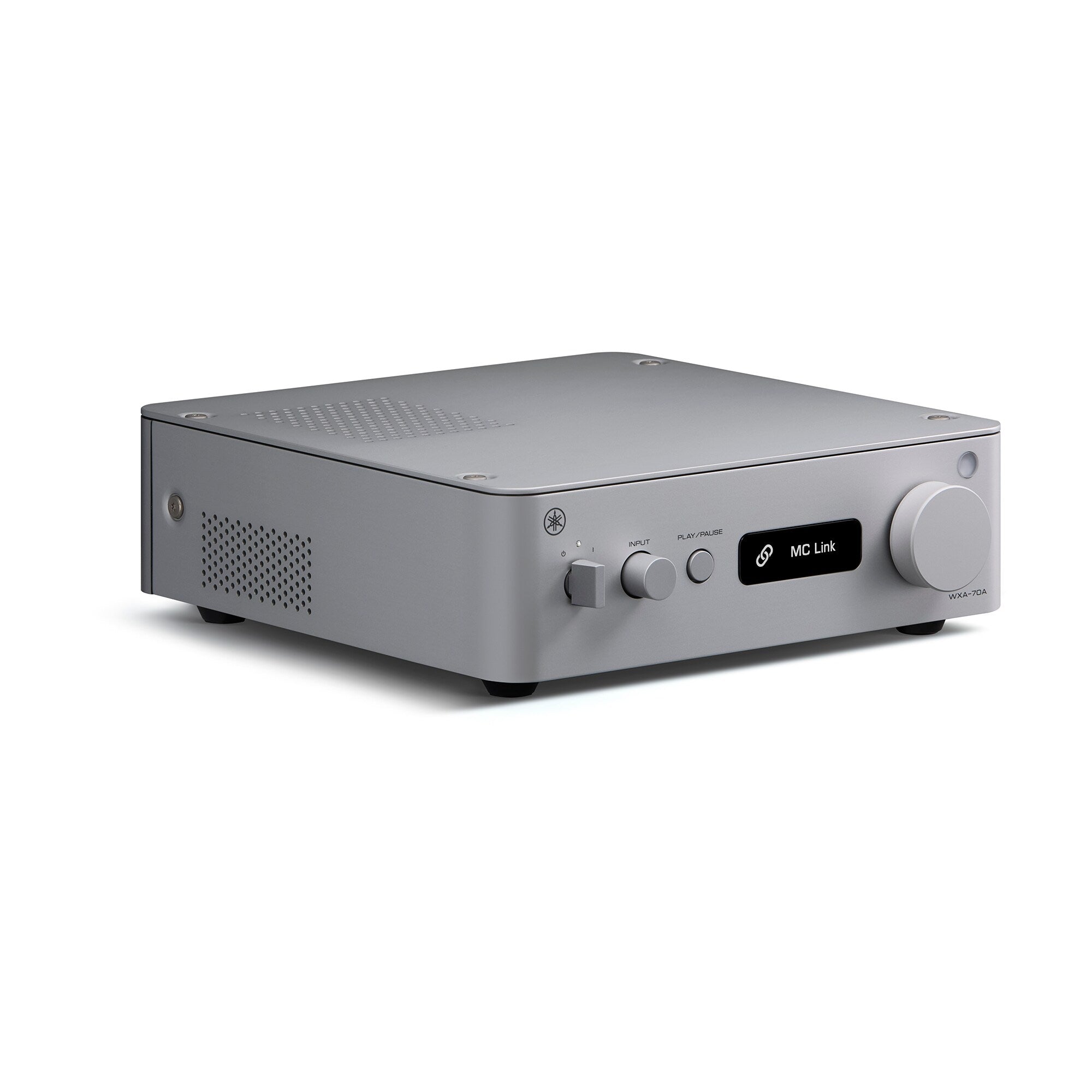

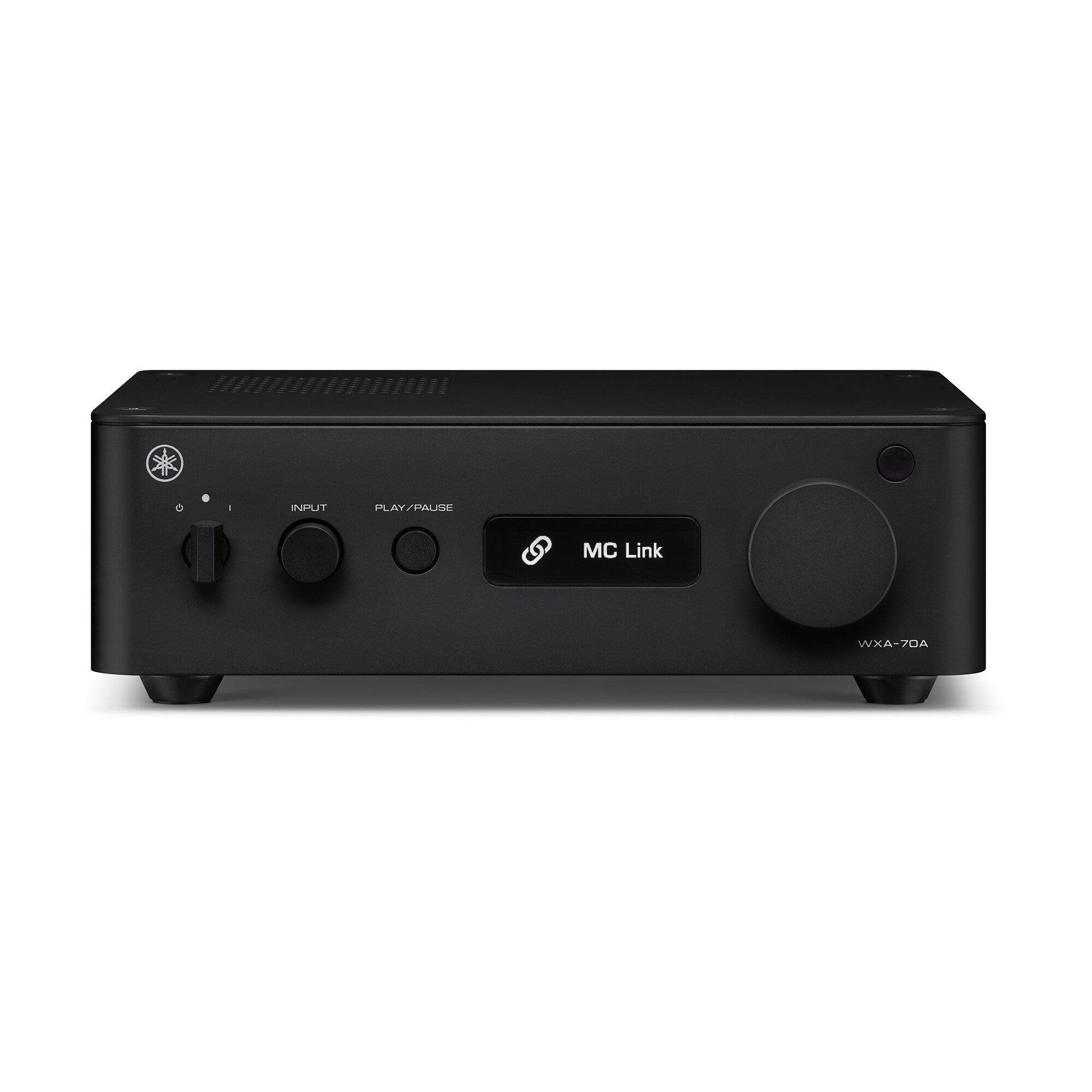

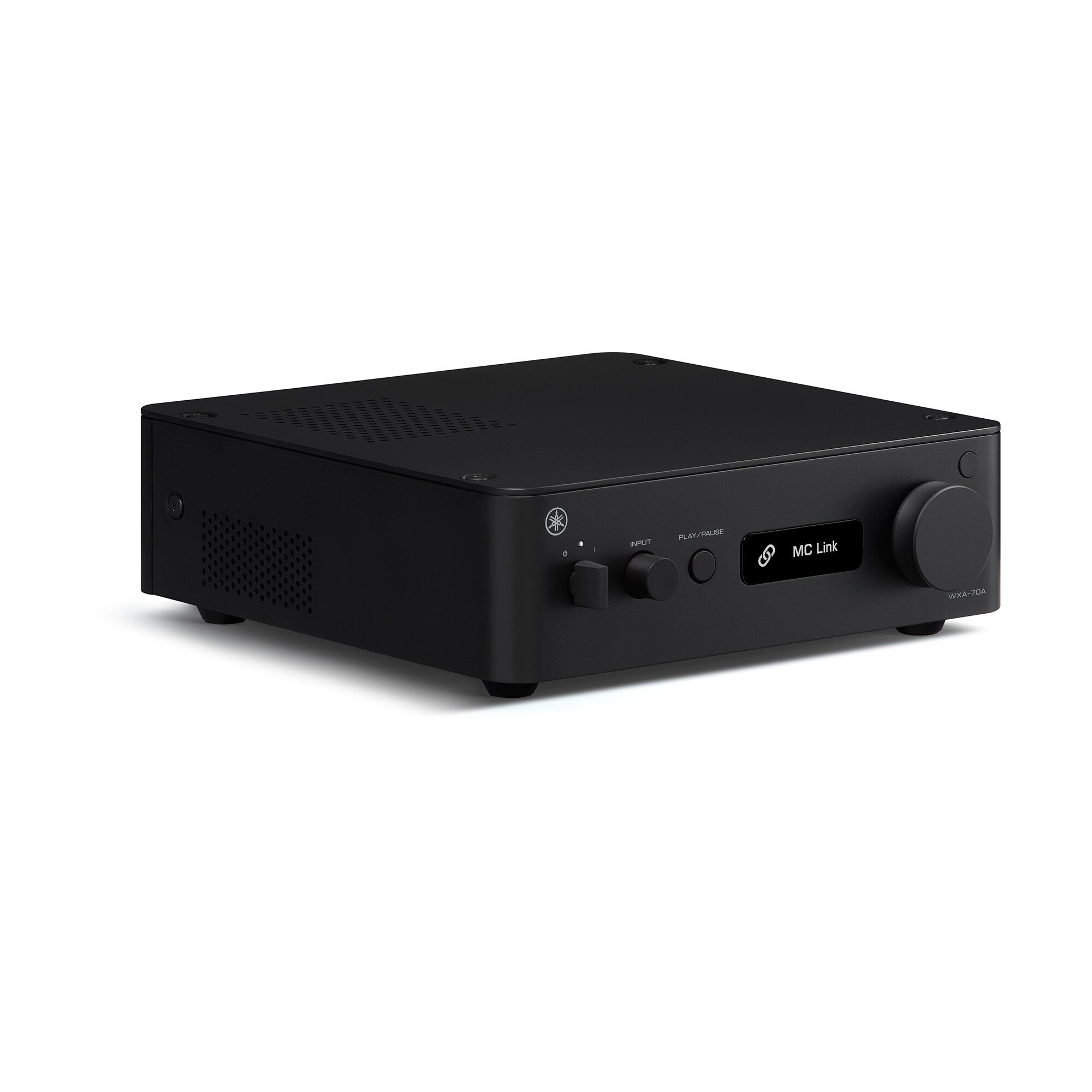

WXA-70A Streaming Amplifier

Wi-Fi streaming with AirPlay, Google Cast, Spotify Connect, TIDAL Connect, Qobuz Connect and Roon Ready, plus Net Radio and network server playback
MusicCast multi-room audio, controlled from the MusicCast app
HDMI eARC/ARC with CEC for TV sound, so TV power and volume can follow the TV remote
Optical input, analogue RCA input, USB Type-A (music playback and firmware updates) and a subwoofer output
Bluetooth (SBC/AAC)
ESS SABRE ES9039Q2M DAC in Yamaha's DAC on Pure Ground configuration
YPAO room calibration with Reflected Sound Control (R.S.C.) and YPAO Volume, using the supplied microphone
Adjustable Dialogue Level control for TV and film
Front panel OLED display, supplied remote control and aluminium enclosure
Integration features: Control4 compatibility, Web Setup, IR input, 12 V trigger output, and a rear switch that turns off Wi-Fi, or Wi-Fi and Bluetooth together

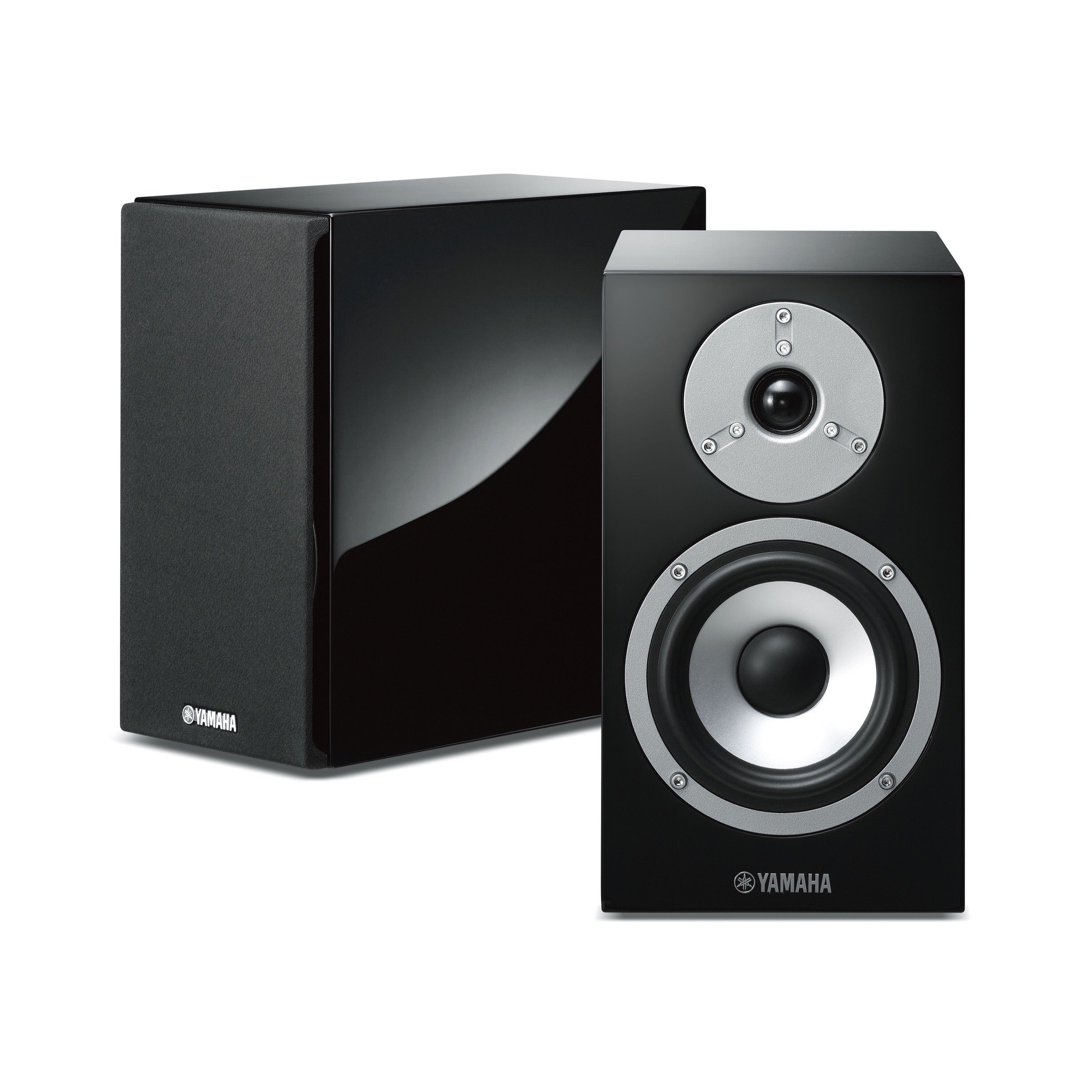

NS-BP401 Bookshelf Speakers

2-way bass-reflex bookshelf design with a 13 cm (5-1/4") woofer and a 3 cm (1-1/4") soft dome tweeter
Woofer diaphragm made from aluminium that Yamaha specifies as over 99% pure
Piano black finish produced with Yamaha's piano finishing process
Cabinet with full three-way mitred-joint construction
Gold-plated speaker terminals that accept banana plugs

In the Box

WXA-70A: remote control, batteries (AAA, LR03, UM-4), power cable, YPAO microphone (6 m), quick guide, safety guide
NS-BP401 (pair): speaker cables (2 m) x 2, grilles x 2, non-skid pads (8 pcs.) x 1
