- Impedance
- 8 ohms nominal; 6 ohms minimum
- Sensitivity
- 91dB SPL (2.83V/1 meter)
- Frequency Response
- 34Hz - 20kHz ±3dB
- Power Handling
- 5 watts minimum; 150 watts maximum
Price $1,649
Includes GST
Voted Australia's #1 Hi-Fi Retailer, Sound+Image Awards 2023. Family owned since 2010.
Planning a cinema around it?
Our designers match it to your room, screen and seating, then install and calibrate the lot. Start with it in our 3D builder, or talk to us.
Set-up and installation
Our team can deliver, install and set up your system, from speaker placement to a full cinema calibration. Ask us for a quote when you order.
Returns
Your rights under Australian Consumer Law always apply. Read our returns policy.

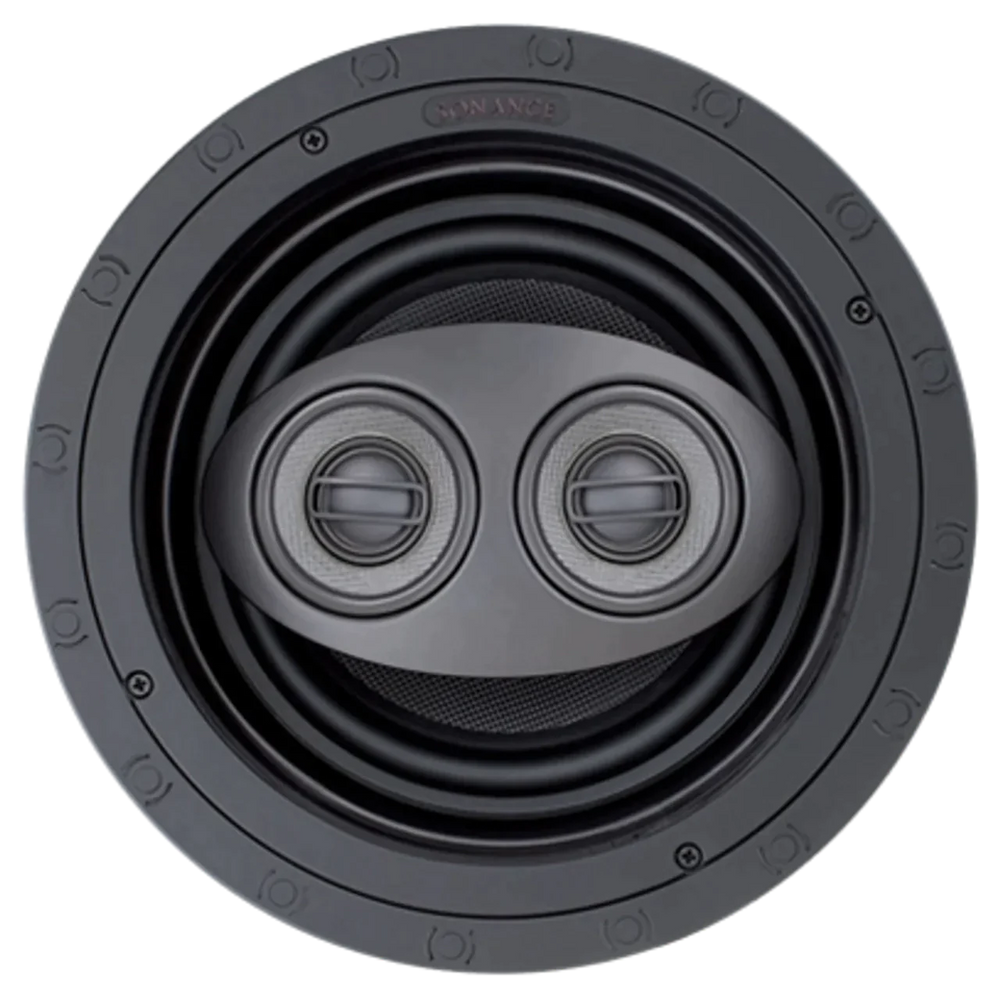

Sonance VP86R SST/SUR
Specifications
- Tweeter
- Two 1" (25mm) powder-coated aluminum domes, ferrofluid-cooled, in acoustic back chamber
- Midrange
- Two 3" (76mm) Kevlar/Nomex laminated cone with a rubber surround
- Woofer
- 8" (203mm) Kevlar/Nomex laminated cone with a rubber surround, pivoting, dual voice coil
- Frequency Response
- 34Hz - 20kHz ±3dB
- Impedance
- 8 ohms nominal; 6 ohms minimum
- Power Handling
- 5 watts minimum; 150 watts maximum
- Sensitivity
- 91dB SPL (2.83V/1 meter)
- Dimensions
- Group
- Diameter
- 11 5/8" (295mm)
- Cut Out Diameter
- 10 1/8" (257mm)
- Speaker Depth
- 5 7/8" (149mm)
- Grille Material
- Perforated Steel
In detail
About the VP86R SST/SUR
Key Features
• Selectable switch between Single Stereo or Surround speakers
• Two 1" (25mm) powder-coated aluminum domes, ferrofluid-cooled Tweeter
• Two 3" (76mm) Kevlar/Nomex laminated cone Midrange
• 8" (203mm) Kevlar/Nomex laminated cone, pivoting, dual voice coil Woofer
• Slimline Magnetic Grill (Paintable)
SST/SUR is a combination of SST and SUR in one speaker
• Uses a switch on the crossover cover to select between Single Stereo or Surround system
Absolute best sonic performance at all price points
• Designed using state-of-the-art computer modeling software to vastly improve magnetic field and suspension linearity for consistent sonic performance at any SPL for best-in-class performance
Latest high-tech driver and tweeter material technology
• Improved low frequency performance
• Improved driver cone materials
• Low diffraction driver design
• Chambered midrange and tweeter design on all models
• Pivoting woofers on SST/SUR range VP62R, VP66R, VP86R
The Chambered tweeter design does the following
• Lowers the resonance frequency of the tweeter
• Allows for a lower crossover frequency to the woofer
• Reduces the back pressure on the tweeter dome
• Reduces the distortion of the tweeter near the crossover frequency
Easier to install
• Easier to access Roto-Lock® screws
• Removed metal hang tabs
• One-piece paintable grille with peel and stick scrim cloth for easier painting
• Two piece toggle feet allows installation with double dry wall and thicker ceiling and wall materials
