- Impedance
- 8 ohms nominal; 6 ohms minimum
- Sensitivity
- 91dB SPL (2.83V/1 meter)
- Frequency Response
- 34Hz - 20kHz ±3dB
- Power Handling
- 5 watts minimum; 150 watts maximum
Price $3,095
Includes GST
Voted Australia's #1 Hi-Fi Retailer, Sound+Image Awards 2023. Family owned since 2010.
Planning a cinema around it?
Our designers match it to your room, screen and seating, then install and calibrate the lot. Start with it in our 3D builder, or talk to us.
Set-up and installation
Our team can deliver, install and set up your system, from speaker placement to a full cinema calibration. Ask us for a quote when you order.
Returns
Your rights under Australian Consumer Law always apply. Read our returns policy.

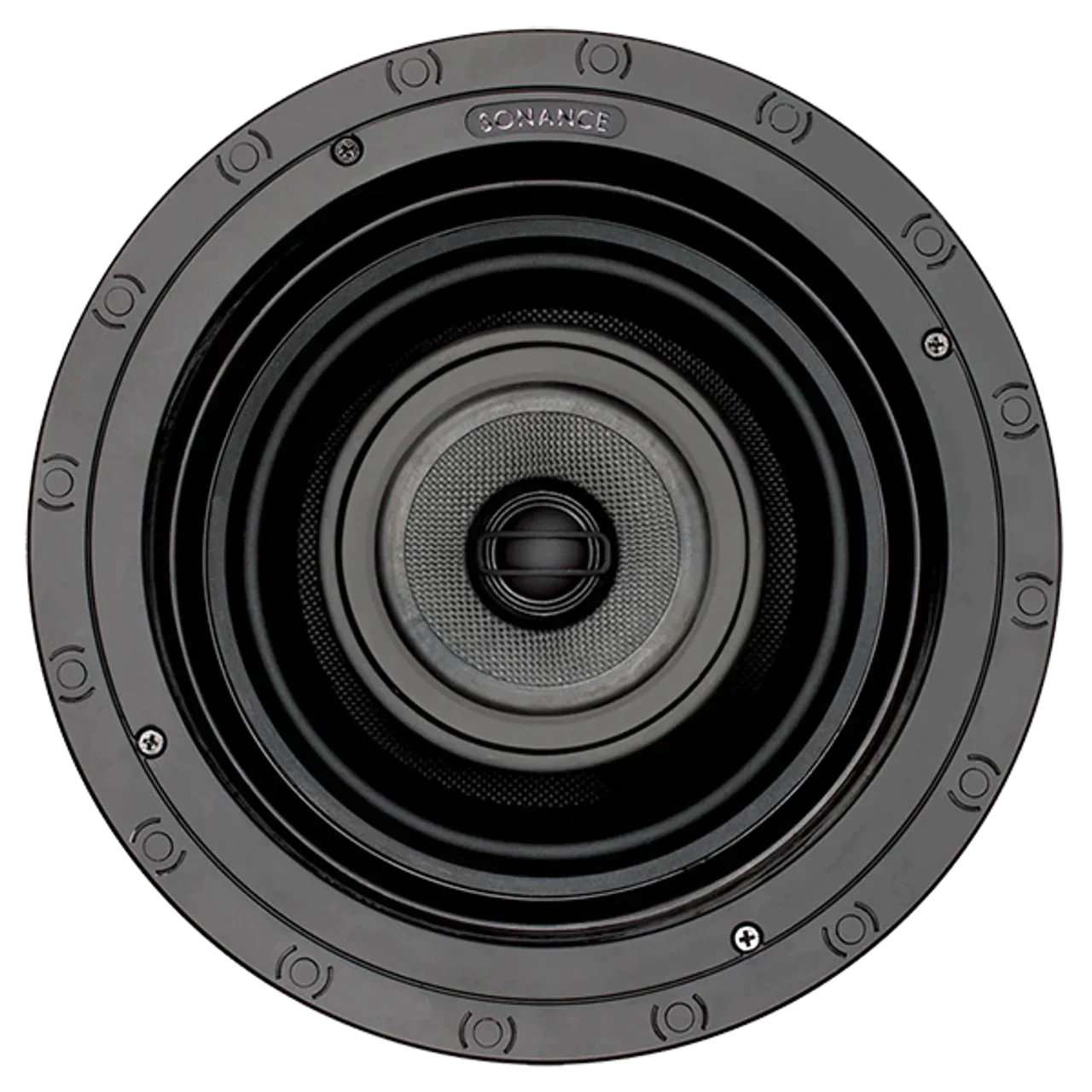

Sonance VPx86R
Specifications
- Tweeter
- 1" (25mm) powder coated aluminum dome, ferrofluid-cooled, pivoting, in acoustic back chamber
- Midrange
- 4" (102mm) Kevlar/Nomex laminated cone with a rubber surround, pivoting
- Woofer
- 8" (203mm) Kevlar/Nomex laminated cone with a rubber surround, pivoting
- Frequency Response
- 34Hz - 20kHz ±3dB
- Impedance
- 8 ohms nominal; 6 ohms minimum
- Power Handling
- 5 watts minimum; 150 watts maximum
- Sensitivity
- 91dB SPL (2.83V/1 meter)
- Dimensions
- Dimensions
- Diameter
- 11 5/8" (295mm)
- Cut Out Diameter
- 10 1/8" (257mm)
- Speaker Depth
- 5 7/8" (149mm)
- Grille Material
- Perforated Steel
In detail
About the VPx86R
Key Features
• 3-way speaker system for audiophile quality
• 1" (25mm) powder coated aluminum dome, ferrofluid-cooled, pivoting Tweeter
• 4" (102mm) Kevlar/Nomex laminated cone, pivoting Midrange
• 8" (203mm) Kevlar/Nomex laminated cone, pivoting Woofer
• Square Adapter turn the round speaker into square speaker (Optioanal)

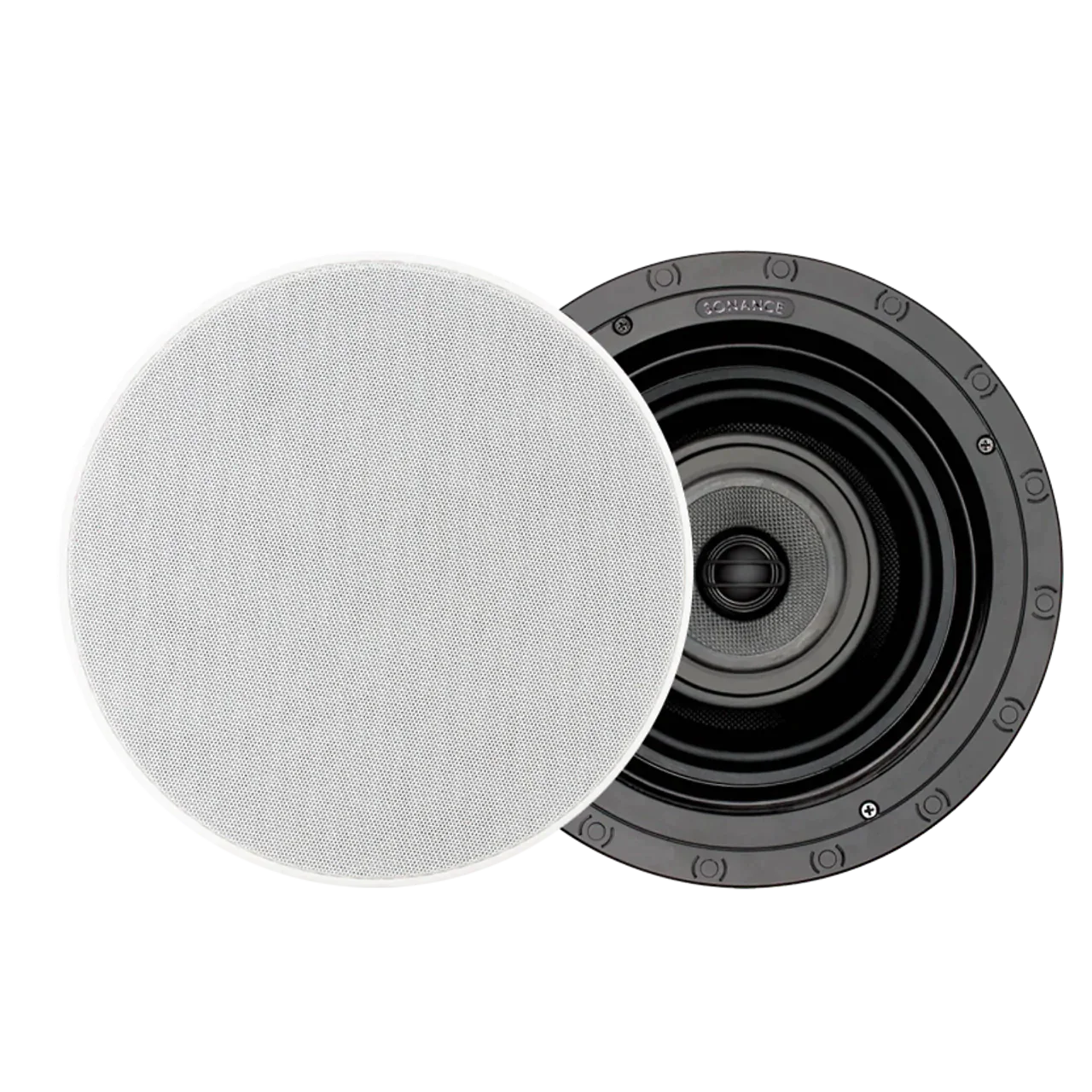

• Slimline Magnetic Grill (Paintable)
Absolute best sonic performance at all price points
• Designed using state-of-the-art computer modeling software to vastly improve magnetic field and suspension linearity for consistent sonic performance at any SPL for best-in-class performance
• Pivoting woofer, midrange, and tweeter for improved frequency response in off-axis installations
Latest high-tech driver and tweeter material technology
• Improved low frequency performance
• Improved driver cone materials
• Low diffraction woofer, and midrange tweeter design
• Pivoting drivers for improved frequency response in off-axis installations
• Chambered midrange and tweeter design on all models
The Chambered tweeter design does the following
• Lowers the resonance frequency of the tweeter
• Allows for a lower crossover frequency to the woofer
• Reduces the back pressure on the tweeter dome
• Reduces the distortion of the tweeter near the crossover frequency
Easier to install
• Easier to access Roto-Lock® screws
• Removed metal hang tabs
• One-piece paintable grille with peel and stick scrim cloth for easier painting
• Two piece toggle feet allows installation with double dry wall and thicker ceiling and wall materials
Square adapter w/ grille can turn any round speaker into a square speaker (VP8SQ) - Sold Separately
• Allows easy alignment of the square grille with other ceiling features
Cinema design
Part of something bigger.
The VPx86R is one piece of a room. We design the screen, speakers, acoustics and seating around it, then install and calibrate the lot, so it all works as one.
