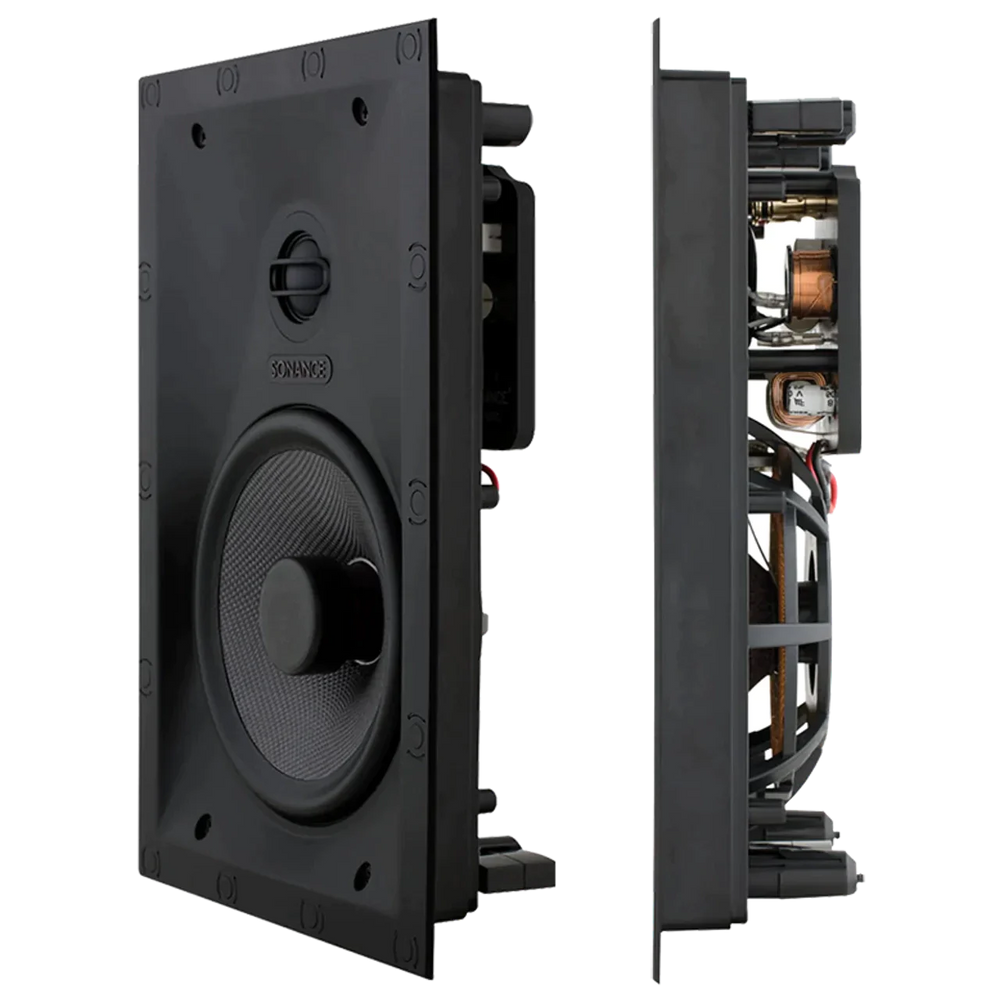

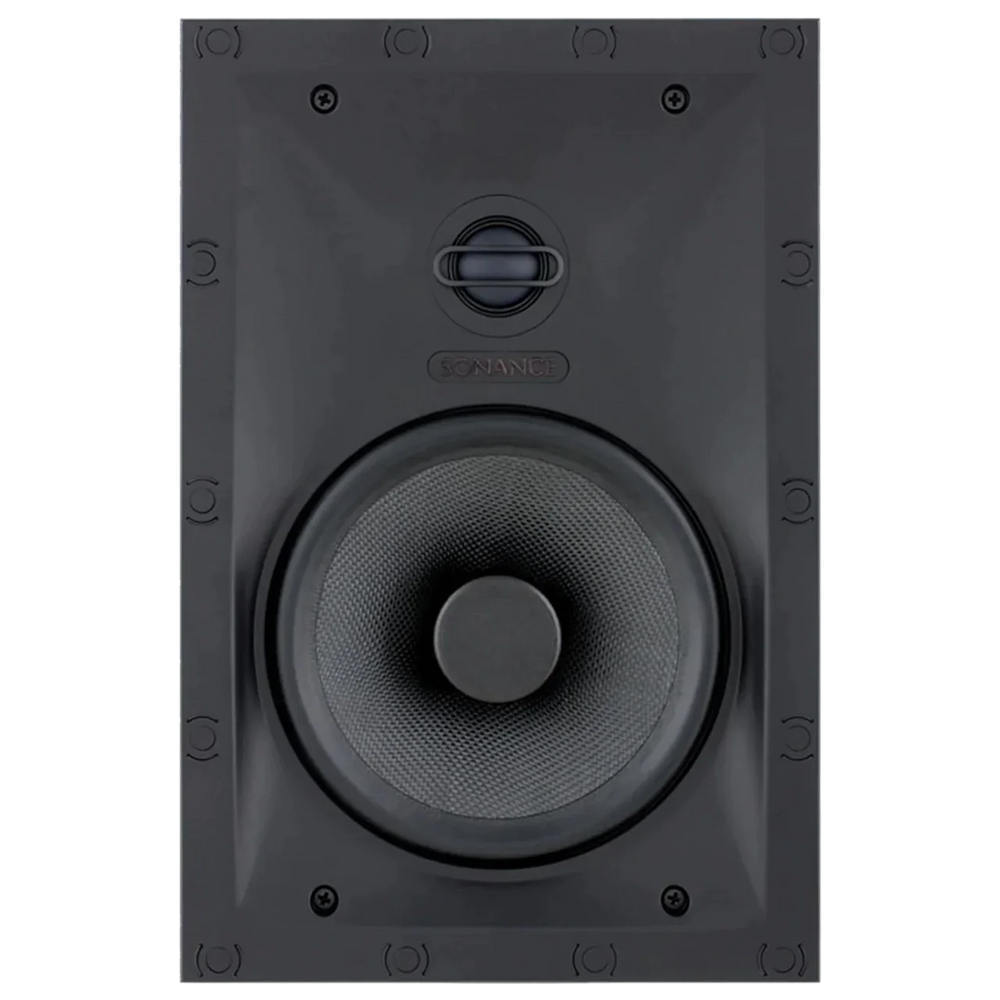

VP66 TL

6" In-Wall ThinLine Rectangular Speakers (PR)

Impedance: 8 ohms nominal; 6 ohms minimum
Sensitivity: 90dB SPL (2.83V/1 meter)
Frequency Response: 43Hz - 20kHz ±3dB
Power Handling: 5 watts minimum; 140 watts maximum

All specifications

Price $1,530

Includes GST

Voted Australia's #1 Hi-Fi Retailer, Sound+Image Awards 2023. Family owned since 2010.

Planning a cinema around it?

Our designers match it to your room, screen and seating, then install and calibrate the lot. Start with it in our 3D builder, or talk to us.

Set-up and installation

Our team can deliver, install and set up your system, from speaker placement to a full cinema calibration. Ask us for a quote when you order.

Returns

Your rights under Australian Consumer Law always apply. Read our returns policy.

Sonance VP66 TL

Specifications

Tweeter: 1" (25mm) powder coated aluminum dome, ferrofluid-cooled, pivoting, in acoustic back chamber
Woofer: 6 1/2" (165mm) Kevlar/Nomex laminated cone with a rubber surround
Frequency Response: 43Hz - 20kHz ±3dB
Impedance: 8 ohms nominal; 6 ohms minimum
Power Handling: 5 watts minimum; 140 watts maximum
Sensitivity: 90dB SPL (2.83V/1 meter)
Grille Material: Perforated Steel
Dimensions: Group
Width: 8 3/8" (213mm)
Height: 12 1/4" (311mm)
Depth: 2 1/2" (64mm)
Cut Out Width: 6 15/16" (176mm)

Show all 13 specifications

Cut Out Height: 10 3/4" (273mm)

In detail

About the VP66 TL

ThinLine

34% shallower than standard-depth Visual Performance Series models.
Pivoting tweeter.*
Perfect for restricted mounting depths or obstructions found during installation where a conventional speaker is too deep.
Identical size cutout and grille for a perfect aesthetic match to other Visual Performance Series speakers.

Visual Performance THINLINE speakers

• feature shallow 64mm (2 1/2") depths that allow installation in areas that will not accommodate conventional speakers

Absolute best sonic performance at all price points

• Designed using state-of-the-art computer modeling software to vastly improve magnetic field and suspension linearity for consistent sonic performance at any SPL for best-in-class performance

Latest high-tech driver and tweeter material technology

• Improved low frequency performance

• Improved driver cone materials

• Low diffraction woofer and tweeter design

• Pivoting tweeter for improved frequency response in off-axis installations

• Chambered tweeter design on all models

The Chambered tweeter design does the following

• Lowers the resonance frequency of the tweeter

• Allows for a lower crossover frequency to the woofer

• Reduces the back pressure on the tweeter dome

• Reduces the distortion of the tweeter near the crossover frequency

Easier to install

• Easier to access Roto-Lock® screws

• Removed metal hang tabs

• One-piece paintable grille with peel and stick scrim cloth for easier painting

• Two piece toggle feet allows installation with double dry wall and thicker ceiling and wall materials

Cinema design

Part of something bigger.

The VP66 TL is one piece of a room. We design the screen, speakers, acoustics and seating around it, then install and calibrate the lot, so it all works as one.
