REL - Arrow - Wireless Transmitter

Freedom

ARROW™ WIRELESS CONNECTIVITY

Arrow™ is our zero compression method of distributing wireless and delivers performance similar to our more expensive wireless systems quickly, reliably and without the thin, dried out sound most wireless systems deliver. In part, this is achieved by eliminating the often very slow delivery methods offered by off-the-shelf Bluetooth and wi-fi based systems. Arrow represents something of a cost breakthrough as it uses LSI (large scale integrated circuit chips) technology to lower the cost of our system by about 30% while preserving almost all the performance.



This freedom permits ultra-high performance without the cumbersome tether of a cable, allowing careful placement without being limited by the length of a wire and can lead to a better sounding, less cluttered experience. Giving you the ability to place subs in distant corners, along glass walls, or on hardwood floors where a cable would otherwise destroy the effect

Specifications

INPUT CONNECTORS

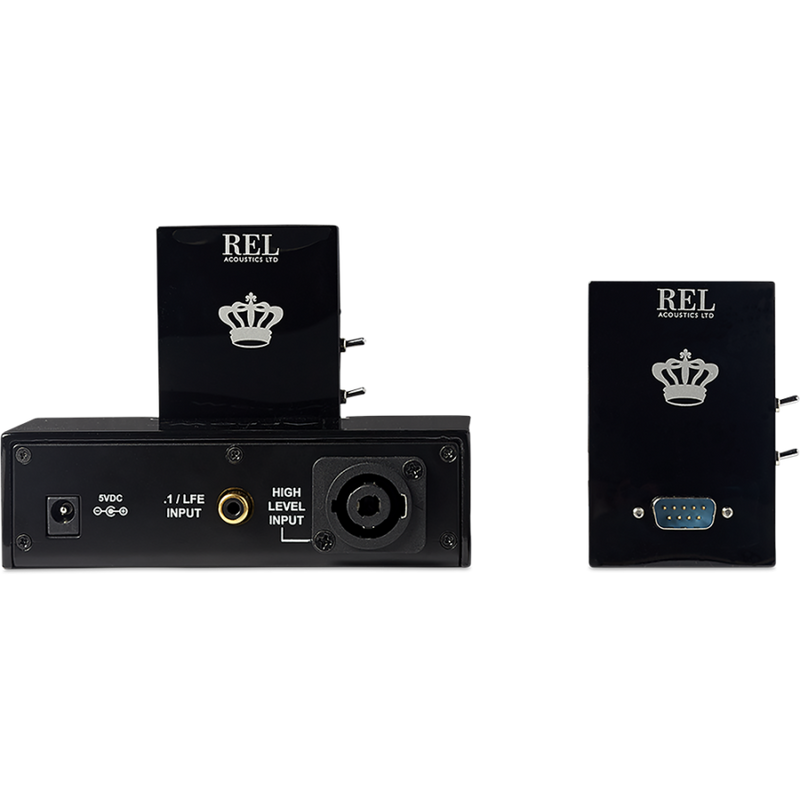

HIGH-LEVEL Neutrik Speakon, LFE single phono

Input Impedance

XLR .1/LFE

10k ohms

WIRELESS OUTPUT POWER

10dBm

WIRELESS EFFECTIVE DISTANCE

50 ft (15.2 meters) with clear line of site

MAINS INPUT VOLTAGE

5V DC, 5.5mm circular connector, positive center

POWER CONSUMPTION

600 mWatts

Dimensions

TRANSMITTER

5.125 x 3.5 x 3.25 in. (130 x 89 x 82.5 mm)

RECEIVER

2 x 3 x .5 in. (51 x 76 x 13 mm)

FINISH

Gloss Piano Black

Supplied Accessories

POWER ADAPTER

Yes

HIGH LEVEL CABLE

No

DUAL RCA CABLE

No
