- Impedance
- 8 Ohms nominal (each input)
- Sensitivity
- 101 dB (1m/1W)
- Frequency Response
- -3 dB points at 40 Hz and 20 kHz
- Dimensions
- 730 × 300 × 250 mm
- Weight
- 25 kg
Price $6,999
Includes GST
Voted Australia's #1 Hi-Fi Retailer, Sound+Image Awards 2023. Family owned since 2010.
Hear the P628 before you decide
Book a private listening session in Belrose and ask for the P628: we will confirm what we can set up for you. Or audition it at home.
Set-up and installation
Our team can deliver, install and set up your system, from speaker placement to a full cinema calibration. Ask us for a quote when you order.
Returns
Your rights under Australian Consumer Law always apply. Read our returns policy.

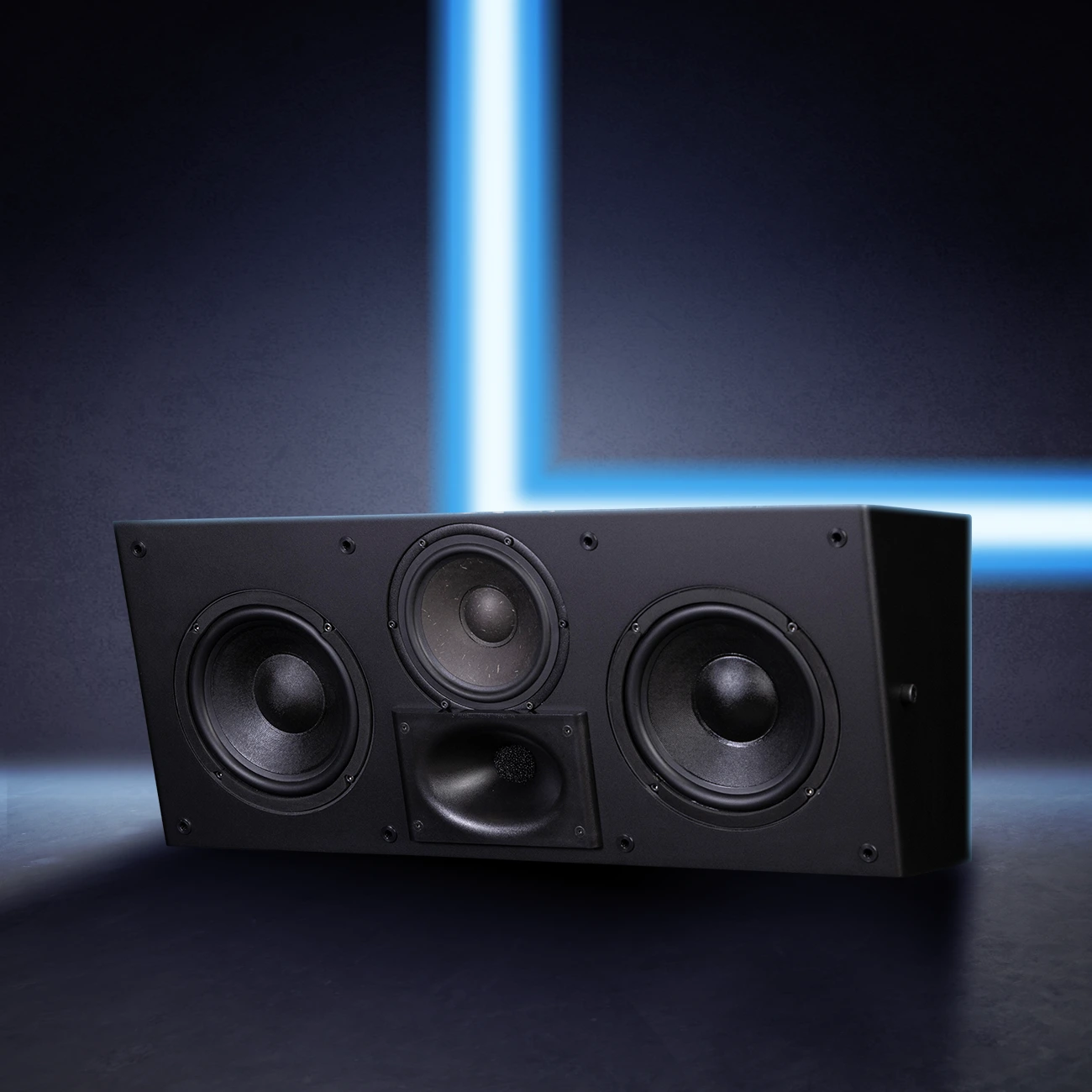

Procella Audio P628
Specifications
- Weight
- 25 kg
- Dimensions
- 730 × 300 × 250 mm
- Power Handling
- High Frequency: 100W continuous / 300W peak; Low Frequency: 400W continuous / 1,200W peak
- Impedance
- 8 Ohms nominal (each input)
- Sensitivity
- 101 dB (1m/1W)
- Maximum SPL
- Free-standing: 116 dB continuous / 122 dB peak
- Frequency Response
- -3 dB points at 40 Hz and 20 kHz
- Dispersion Pattern
- Constant directivity; 90°H × 60°V from 2.0 kHz
- Crossover
- Asymmetrical Linkwitz-Riley 2.0 kHz, BSC (internal to P6); 150 Hz (external DSP required)
- Components
- 2 × 8" long throw drivers with 50 mm voice coil; 1" neodymium high-frequency driver with polyester diaphragm on elliptical constant directivity waveguide; 6.5" midrange driver with 40 mm voice coil
- Connectivity
- Gold plated large diameter binding posts (two pair)
- Wall Mount
- M10 bolts on side panels
- Construction
- Painted black finish, void-free MDF internally braced
- Dimensions & Weight
- 730 × 300 × 250 / 170 mm (H × W × D), 25 kg / 55.12 lbs
- Assembly
- Belgium, 100% QC testing
In detail
About the P628
Procella’s Above Screen full-range loudspeaker is especially designed for cinemas where placement behind an acoustically transparent screen is not possible. For high-performance home theatres and screening rooms incorporating a Video Wall micro-LED display or a solid projection screen, the P628 is the LCR speaker of choice. The P628 is a 2x 8” three-way main speaker. With bass extension to 40 Hz, the P628 meets cinema requirements for a full-range speaker, freeing listeners from the sonic limitations of speakers using an 80Hz subwoofer cross- over point.
Moving the speakers from behind the screen creates a major challenge: how do we match the location of the sonic images created by the loudspeakers to the visual image locations on screen? Procella Audio already created the solution to this acoustical dilemma. The new P628 has the same performance as our full range P610 model but now designed for above screen placement.
By appointment
Hear it in a real room.
Specifications only tell half the story. Book a private listening session in our Belrose showroom, bring the music you know best, and ask for the P628.
