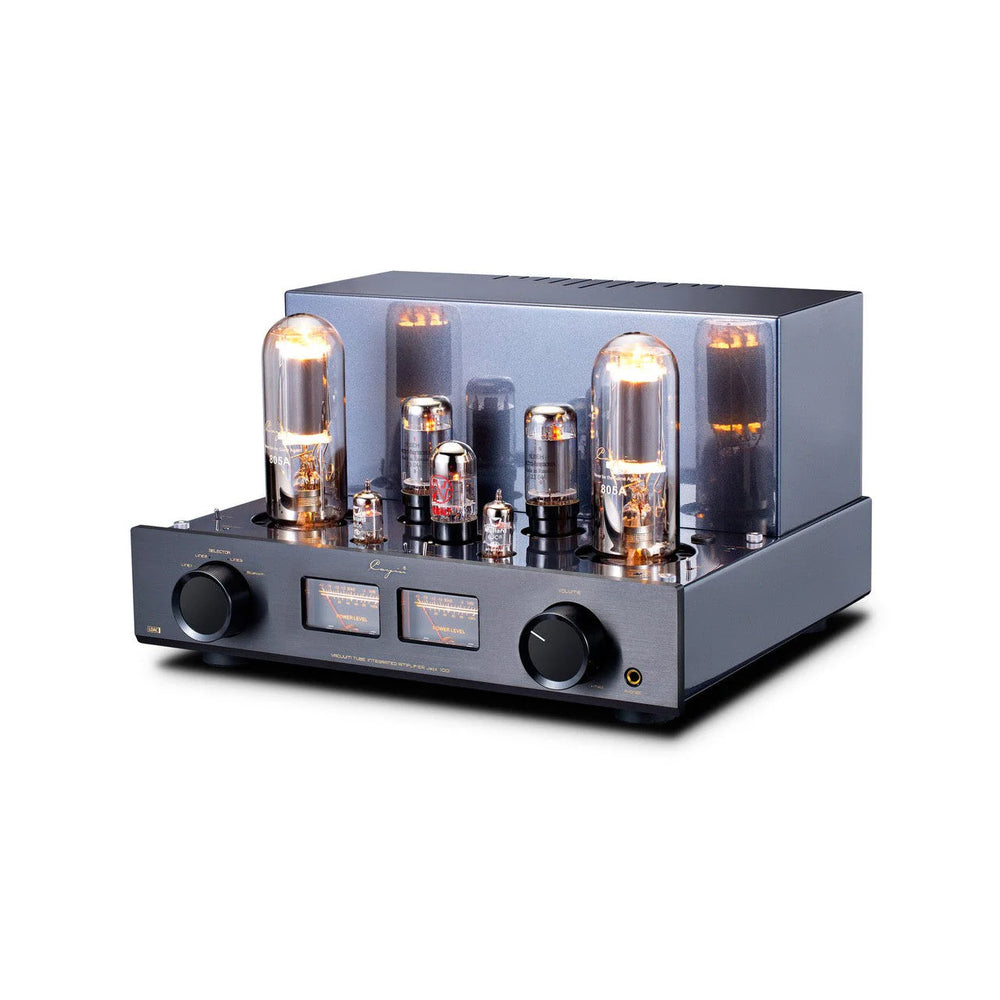

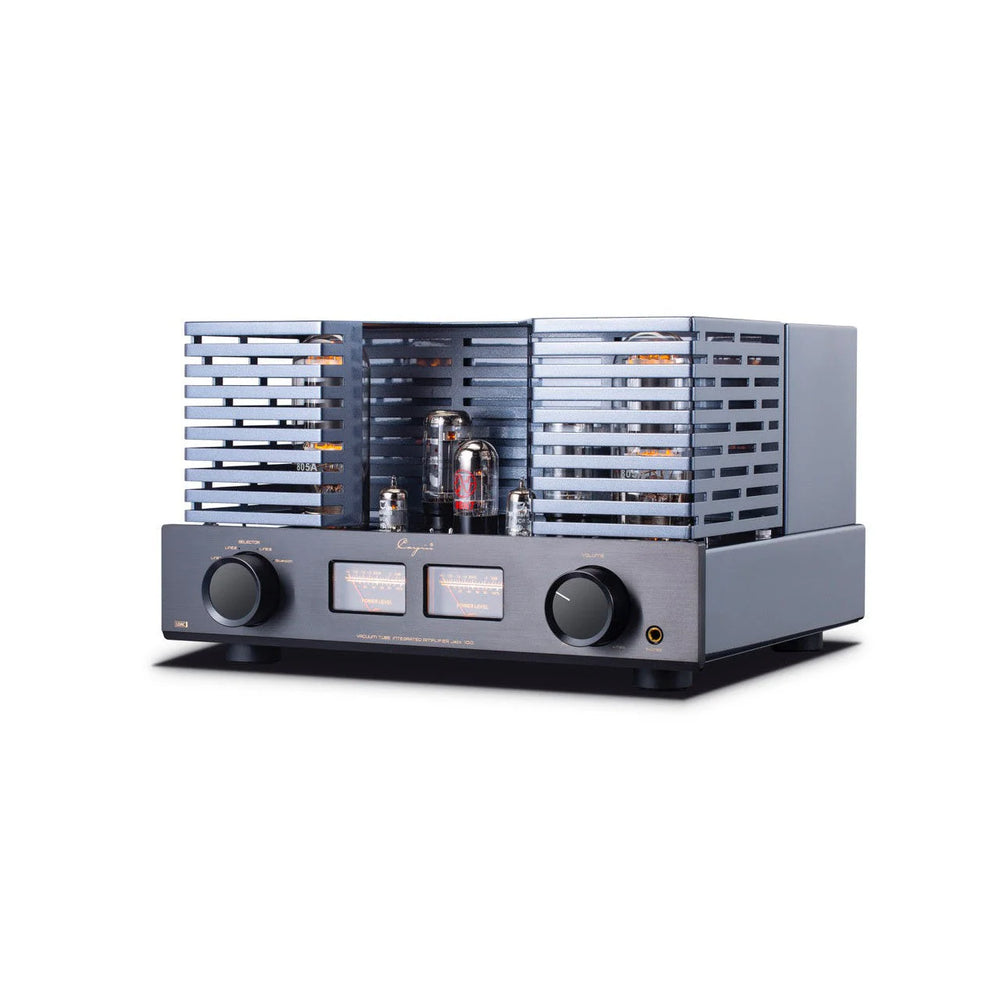

Experience the ultimate in tube amplifier excellence with the Jazz 100 Tube Amplifier, a masterpiece engineered around the iconic 805A Power Tube. Delivering an impressive 46 watts per channel in a pure Single Ended Class A configuration, this amplifier is crafted to deliver exceptional clarity and warm, dynamic sound.
Advanced Tube Design and Versatility
The Jazz 100 features an all-tube construction that incorporates a Mullard 6JC6 and 6SN7 voltage amplification stage, paired with a 6L6 driver stage and the revered 805A output tubes. For those seeking customised tonal nuances, the 6L6 driver stage can be effortlessly replaced with alternatives such as EL34, 6CA7, 5881, 6550, KT88, or KT90, allowing you to tailor your sound experience.
Flexible Connectivity and Superior Sound

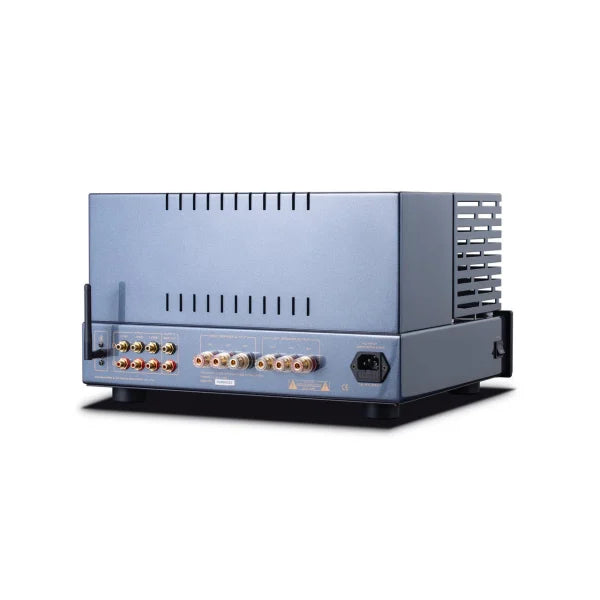

Designed for modern versatility, the amplifier offers three pairs of line inputs along with a dedicated Bluetooth input, conveniently located on the rear panel. Speaker terminals for both 4 ohm and 8 ohm speakers ensure optimal performance with your chosen sound system. Additionally, the customised output transformer provides a dedicated headphone output, capable of driving most headphones on the market for private listening sessions.
Innovative Features for Precise Control

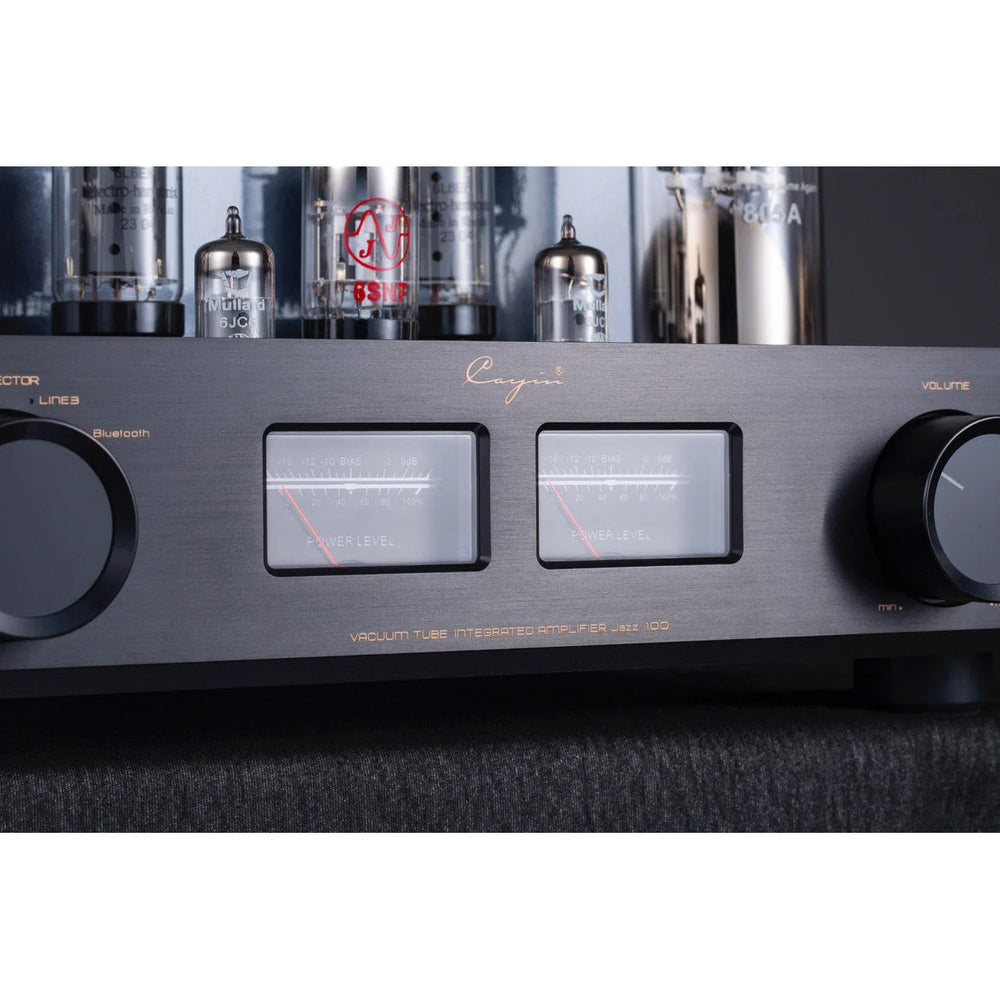

The Jazz 100 is equipped with dual function meters that not only serve as a professional power meter but also allow for bias adjustment via a convenient meter switch on the top plate. User bias controls and a hum balancer for the 805A tubes are also accessible on the top panel, ensuring precise tuning and reduced hum levels.
Enhanced Protection and Premium Construction
High voltage fuses offer vital protection by reacting to any tube failures, making troubleshooting straightforward. A negative feedback selection switch on the top plate allows you to choose between high and low negative feedback settings, offering different sound characteristics to suit your preferences.
Crafted with an anodised aluminium front and a fully vented chassis, the Jazz 100 boasts a gorgeous finish and meticulous hand-made point-to-point wiring. Premium components such as an Alps volume control, porcelain tube sockets, audio-grade capacitors, carbon film resistors, a toroid power transformer, and a wide bandwidth EI output transformer are all standard, ensuring superior audio performance.
Convenience and Longevity

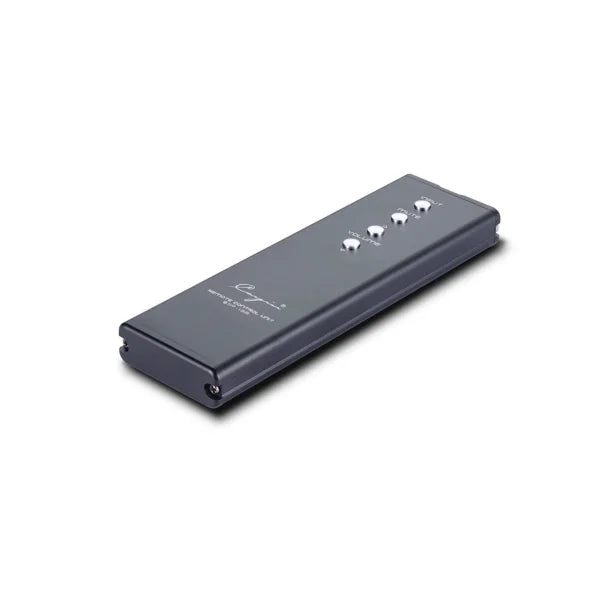

Standard with remote control functionality, the Jazz 100 remembers your last operation settings even when switched off. Its soft-start circuit and high voltage delay further protect the amplifier, promoting an extended life for your tubes. Available in a sleek black front finish, this amplifier not only sounds exceptional but also makes a striking addition to any audio setup.
Discover the unparalleled performance and refined engineering of the Jazz 100 Tube Amplifier – where classic design meets modern innovation for an exceptional listening experience.
| Frequency Response |
12Hz～33KHz (-3dB) |
| S/N Ratio |
90dB (A-Weighted) |
| Max Power Consumption |
410W |
| Tube |
6JC6×2, 6SN7×1, 6L6×2, 805A×2 |
| Headphone Output Impedance |
16Ω~300Ω |
| Input Connector |
LINE1, LINE2, LINE3, Bluetooth |
| High Fidelity DAC Chipset |
ES9018K2M SABRE32 |
| Audio Format |
UAT, LDAC, apt-X, apt-X HD, apt-X Low latency, SBC, AAC |
| Dimensions (W×D×H) |
420mm×389mm×248mm |
