Musical Fidelity M5xi Integrated Amplifier
The Musical Fidelity M5xi is a high-performance integrated stereo amplifier designed for listeners who want effortless power, exceptional control and a truly engaging music experience. Drawing on engineering principles from Musical Fidelity’s flagship TITAN amplifier platform, the M5xi combines a refined fully analogue preamplifier, powerful dual-mono amplification and modern digital connectivity in one beautifully built component.
Delivering up to 160 watts per channel into 8 ohms and 240 watts per channel into 4 ohms, the M5xi has the current delivery and headroom needed to confidently drive demanding floorstanding or bookshelf speakers. Its advanced low-distortion amplifier stage delivers impressive dynamics, controlled bass, clear midrange detail and a wide, stable soundstage, even at higher listening levels.
The M5xi is built for both analogue and digital music systems. Four RCA line-level inputs support traditional source components, while the upgraded MM/MC phono stage provides a high-quality connection for turntables using either moving magnet or moving coil cartridges. Improved shielding and internal layout reduce interference and noise, helping vinyl playback retain its warmth, depth and fine musical detail.
For contemporary systems, the M5xi includes HDMI eARC, optical and coaxial digital inputs, plus a USB-C input supporting high-resolution audio up to 24-bit/192kHz. This makes it an excellent centrepiece for a premium stereo system that also handles TV audio, music streaming and digital sources with ease. A dedicated isolated 5V/2A USB-A output can power a compatible music streamer directly from the amplifier, reducing cable clutter and simplifying system setup.

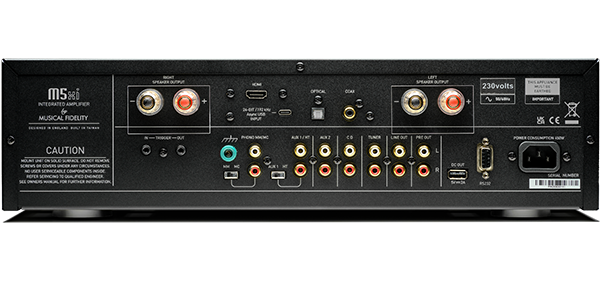

The amplifier also features home theatre bypass for easy integration with an AV processor, pre-outs for active subwoofers or external power amplification, fixed line outputs for recording or headphone amplifiers, trigger connections and RS232 control for custom installations.

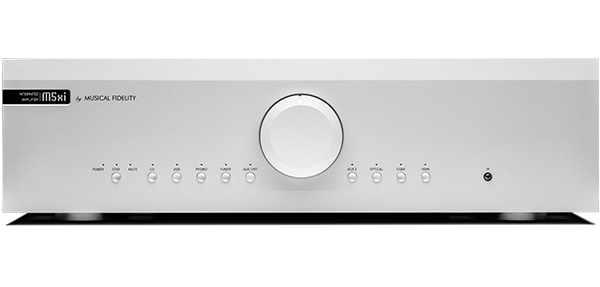

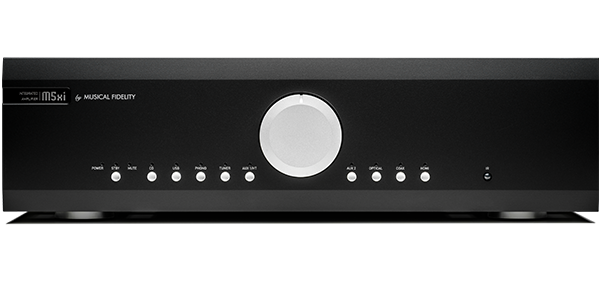

Finished with a substantial aluminium front panel and rigid metal chassis, the Musical Fidelity M5xi offers the build quality, flexibility and musical authority expected from a true high-end integrated amplifier.
Key Features
-
160W per channel into 8 ohms
-
240W per channel into 4 ohms
-
Dual-mono amplifier configuration with separate preamplifier stage
-
TITAN-inspired amplifier topology
-
High-quality Burr-Brown stepped volume attenuator
-
Built-in MM and MC phono stage
-
HDMI eARC for premium TV and home theatre audio
-
USB-C, optical and coaxial digital inputs
-
High-resolution USB playback up to 24-bit/192kHz
-
Isolated 5V/2A USB-A output for compatible streamers
-
Home theatre bypass input
-
Pre-out for active subwoofers or bi-amping
-
RS232, trigger input and trigger output
-
Solid aluminium and metal chassis construction
| Category | Specification | Details |
|---|---|---|
| Output | Continuous Power @ 1% THD, 1kHz | 160W per channel into 8 Ohms; 240W per channel into 4 Ohms |
| Continuous Power @ 0.09% THD, 20Hz–20kHz | 140W per channel into 8 Ohms; 210W per channel into 4 Ohms | |
| Peak Power @ 1% THD, 1kHz | 190W per channel into 8 Ohms; 320W per channel into 4 Ohms | |
| Clipping Voltage | 36V RMS, 20Hz–20kHz | |
| Peak-to-Peak Voltage | 101V | |
| Current | 45A peak-to-peak | |
| Damping Factor | 47 (8 Ohms) | |
| Output Devices | 2 pairs per channel | |
| Line Input | THD+N | <0.009% typical, 20Hz–20kHz |
| Signal-to-Noise Ratio | >105dB, A-weighted | |
| Input Impedance | 40k Ohms | |
| Frequency Response | +0, –0.1dB, 10Hz–20kHz | |
| Connections | Analogue Inputs | 4 × line-level RCA inputs |
| Digital Inputs | 1 × HDMI, 1 × coaxial, 1 × optical | |
| Phono Input | 1 × MM/MC phono input | |
| USB Input | 1 × USB-C, up to 24-bit/192kHz | |
| Line Outputs | 1 pair fixed-level RCA tape outputs; 1 pair RCA preamp outputs | |
| Speaker Outputs | 2 pairs, 4mm banana plug compatible | |
| USB Power Output | 1 × USB-A, 5V/2A | |
| Control Connections | RS232 D-sub, trigger input and output | |
| Phono Input | Sensitivity | 3mV MM / 0.4mV MC, for 300mV nominal output |
| Gain | 40dB MM / 60dB MC | |
| Signal-to-Noise Ratio | >87dB, A-weighted | |
| Input Capacitance | 220pF | |
| Input Impedance | 50k Ohms MM / 1k Ohm MC | |
| Frequency Response | RIAA/IEC ±0.4dB, 20Hz–20kHz | |
| Power | Mains Supply | 115/230VAC, 50/60Hz factory preset; 100VAC, 50/60Hz alternative |
| Maximum Consumption | 320W | |
| General | Dimensions (W × H × D) | 440 × 125 × 405mm |
| Weight | 15kg unpacked / 18.5kg packed |
