Yamaha - NX-70A - Wireless Speakers
by Yamaha
$4,799.00
Lightning Fast Free Delivery*
Don't wait to start your audio adventure. With our lightning-fast delivery, your new high-fidelity audio equipment will be at your doorstep before you know it.
Check Out Our Thousands Of Reviews
Our services hit the high notes, but don't just take our word for it. Scroll down to read the rave reviews from our chorus of happy customers. They've heard the difference, and you can too.
Overview

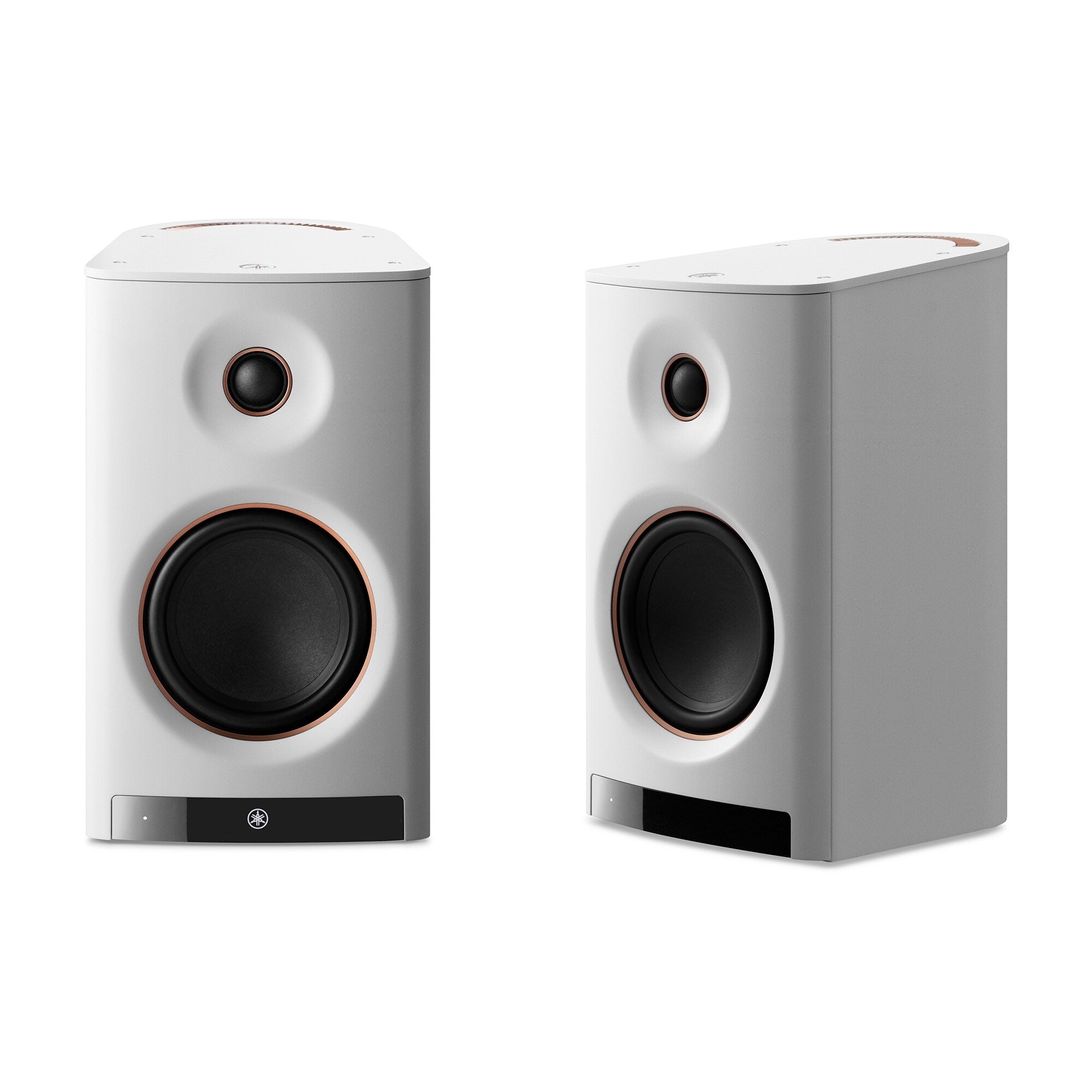

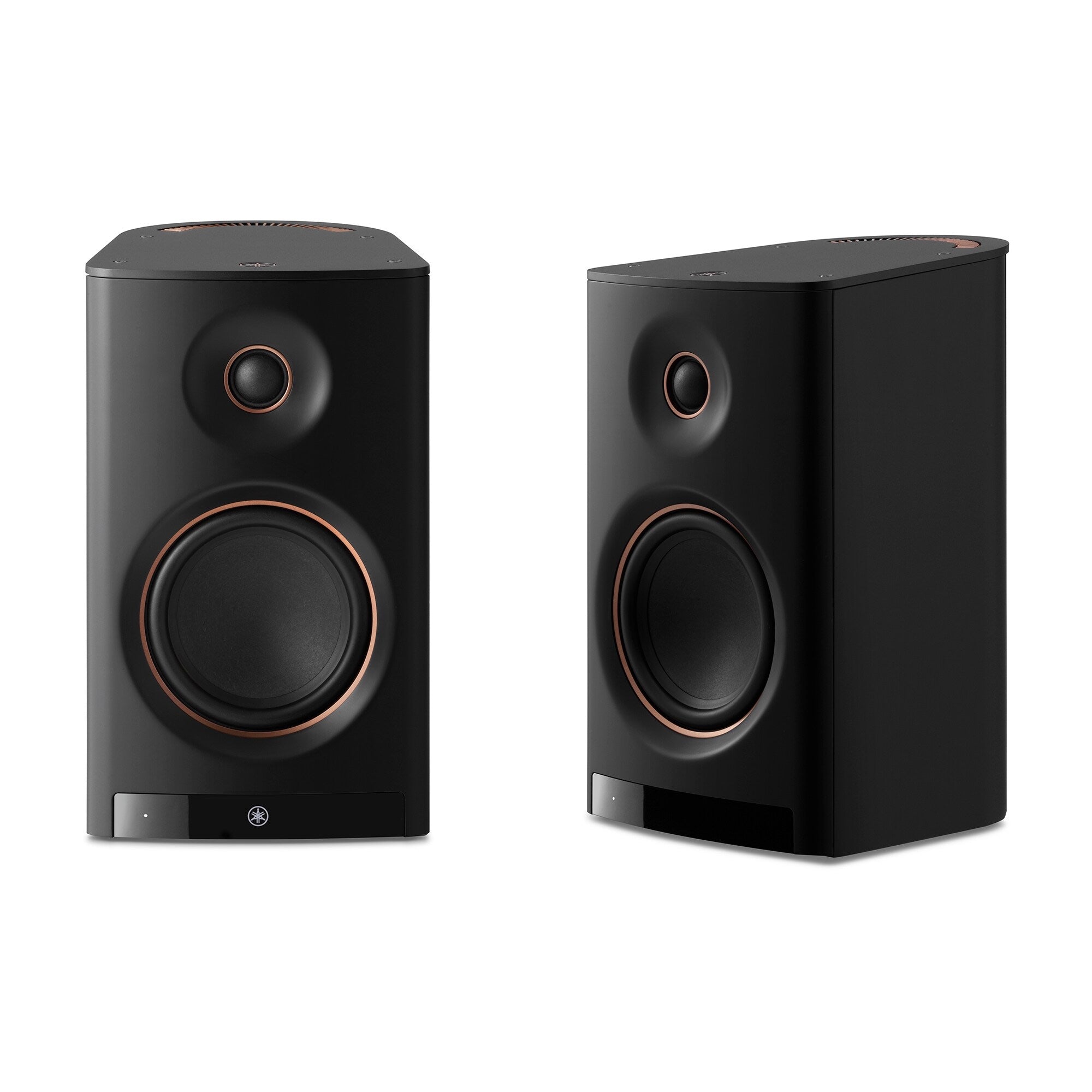

The Yamaha NX-70A is a pair of powered wireless hi-fi speakers with MusicCast streaming built in. Each speaker has its own amplification, and the left and right speakers connect to each other wirelessly, with a 3 m network cable supplied if you prefer a wired left/right link.

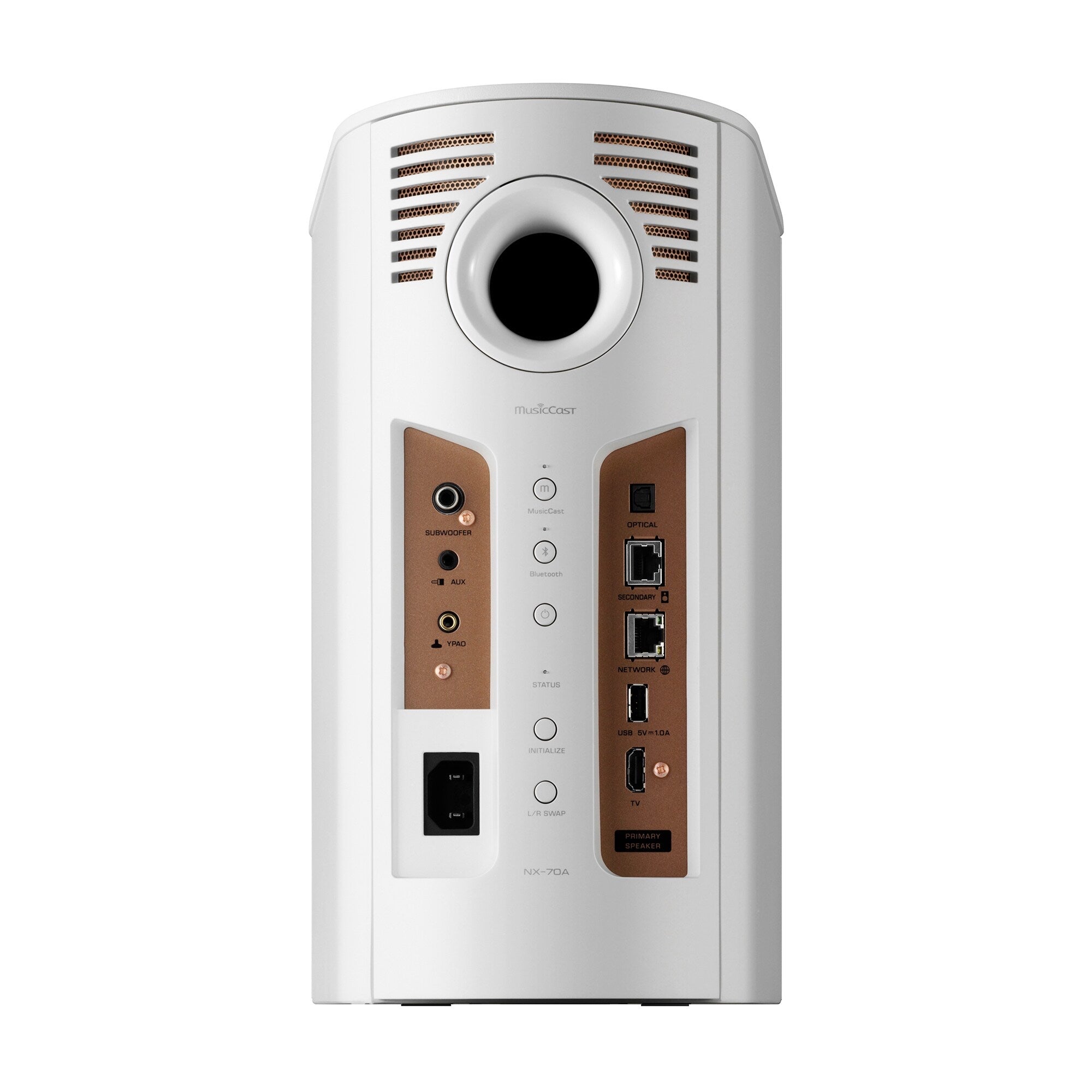

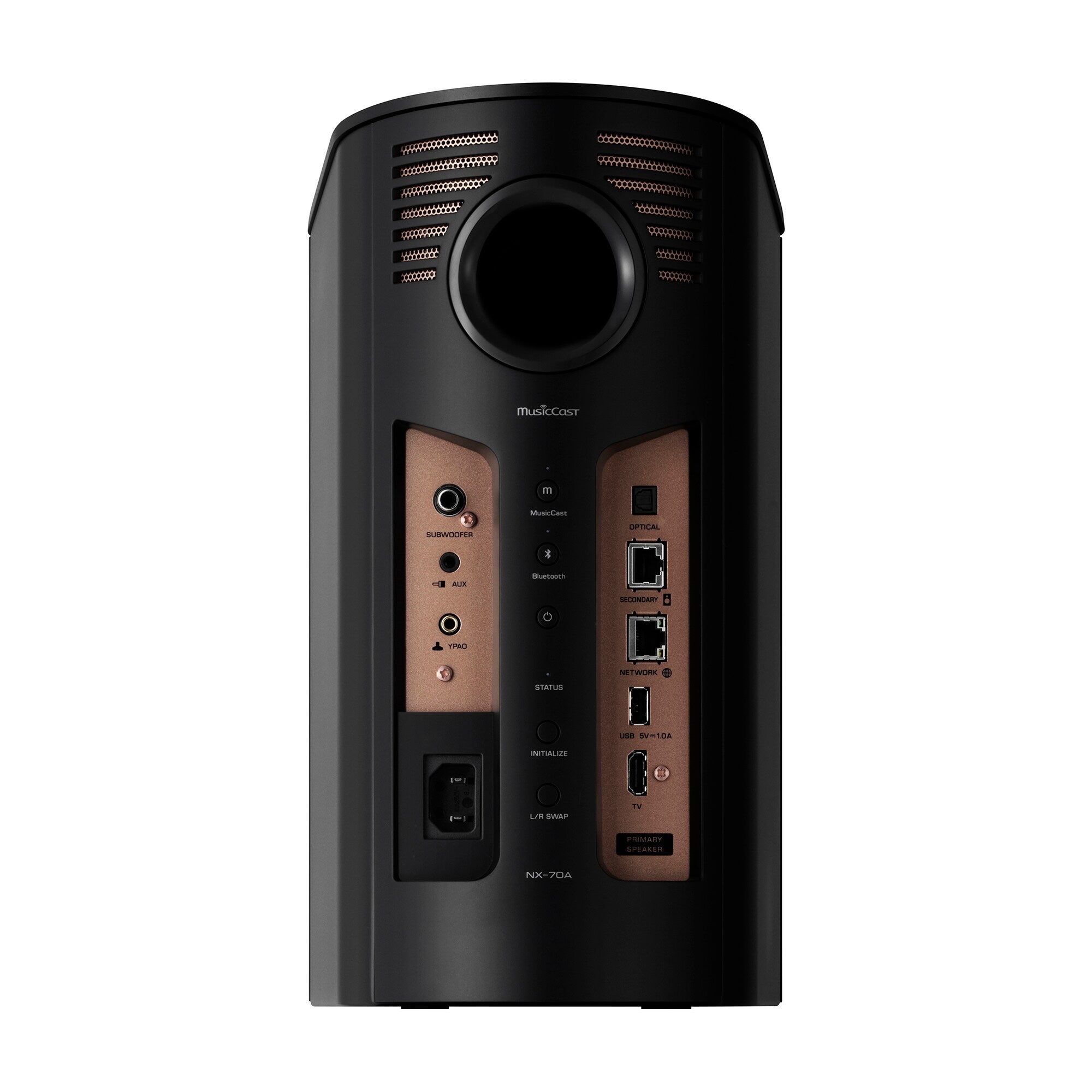

The primary speaker handles the connections: HDMI eARC/ARC for a TV, optical and 3.5 mm analogue inputs, USB, Ethernet and Wi-Fi, plus a subwoofer output. Yamaha builds in its Harmonious Diaphragm drivers, Synergistic Drive amplifier design and YPAO room calibration. The dedicated SPS-70A stands are available separately.
Drivers and Amplification
- 2-way bass reflex design with a 13 cm (5-1/4") woofer and 3 cm (1-1/4") dome tweeter in each speaker
- Harmonious Diaphragm in both drivers, made from a blend of ZYLON (PBO fibre) and spruce, the timber Yamaha uses in grand piano soundboards
- Synergistic Drive: a unified circuit design in which the speaker unit connects directly to the amplifier circuit so current flow can be managed
- Yamaha rates output at 100 W for the woofer and 60 W for the tweeter in each speaker (320 W total, 160 W x 2)
- ES9017S DAC operating in current mode, linear phase design and LLC power supply, as listed in Yamaha's user guide
- Rounded cabinet without parallel surfaces, with a 5 mm aluminium top plate screwed into the enclosure
Streaming and Room Calibration
- MusicCast multiroom: control everything from the MusicCast Controller app and send music or TV sound to other MusicCast devices in the home
- AirPlay 2, Google Cast, Spotify Connect, TIDAL Connect and Roon Ready, plus internet radio, podcasts and media server playback
- Bluetooth 5.3 (SBC, AAC)
- Plays MP3, WMA, MPEG-4 AAC, WAV, FLAC, ALAC, AIFF and DSD files from the network or USB, with WAV, FLAC and AIFF up to 384 kHz and DSD up to 11.2 MHz
- YPAO room calibration with Reflected Sound Control (R.S.C.), parametric EQ and YPAO Volume, using the supplied 6 m microphone
TV and Connections
- HDMI eARC/ARC with CEC, so the speakers power on with the TV and follow the TV remote's volume (2 ch PCM up to 192 kHz/24-bit)
- Optical digital input and 3.5 mm stereo mini jack analogue input
- USB Type-A for music playback and firmware updates
- RCA subwoofer output for an active subwoofer
- Wi-Fi (IEEE 802.11 a/b/g/n/ac/ax, 2.4 GHz and 5 GHz) and Ethernet

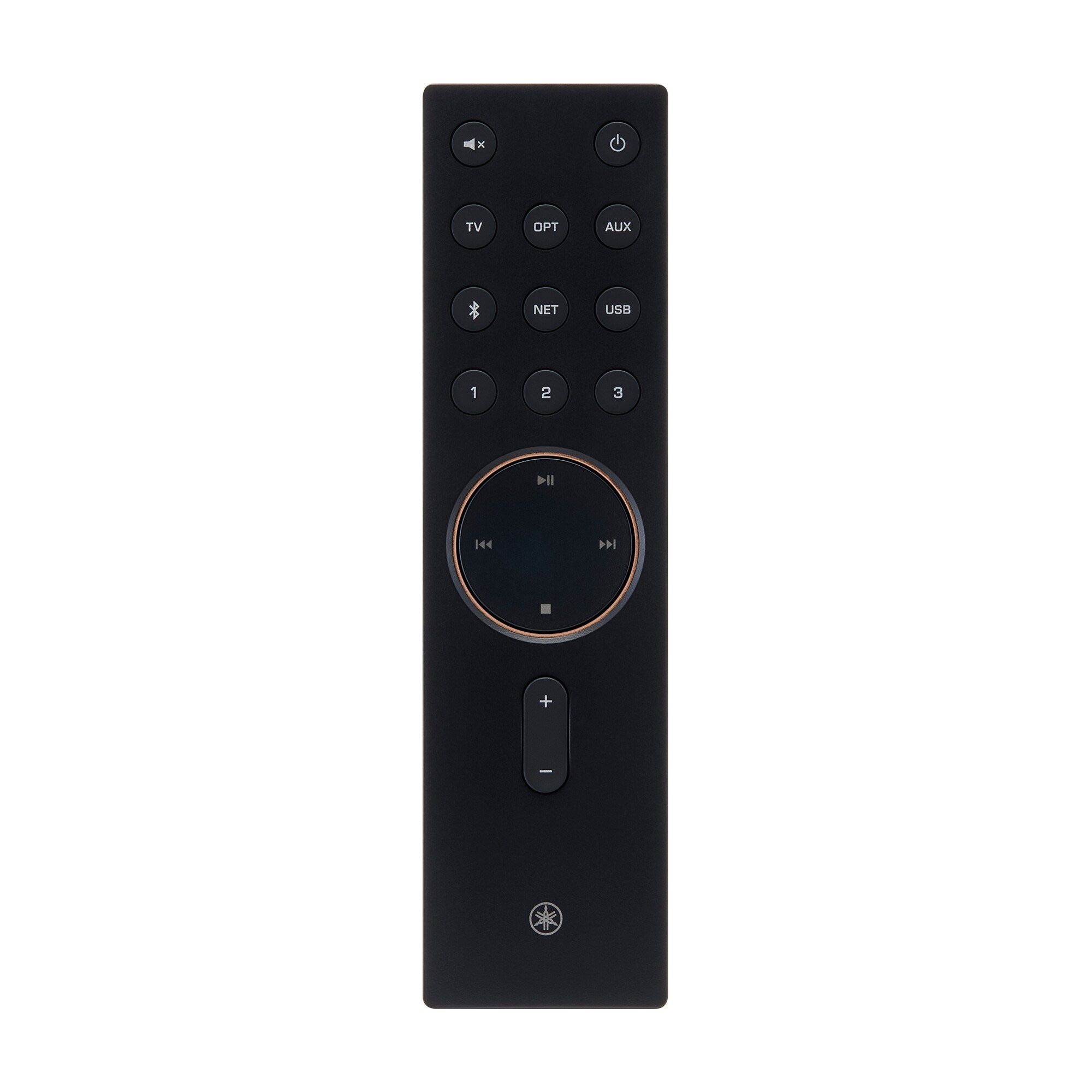

- Front panel display and supplied remote control
- Two M4 mounting holes on the base for the SPS-70A stands (sold separately)
In the Box
- PRIMARY speaker (1) and SECONDARY speaker (1)
- Remote control and 2 AAA batteries
- Power cords, 2 m (2)
- HDMI cable, 2 m
- Network cable for wired left/right connection, 3 m
- YPAO microphone, 6 m, and cardboard microphone stand
- Quick Guide and Safety Guide
Specifications
| Type | 2-way bass reflex, powered (non-magnetic-shield type) |
| Woofer | 13 cm (5-1/4") Harmonious Diaphragm cone |
| Tweeter | 3 cm (1-1/4") Harmonious Diaphragm dome |
| Frequency response | 50 Hz to 35 kHz (-10 dB, wired left/right connection); 50 Hz to 21 kHz (-10 dB, wireless left/right connection) |
| Output power (rated by Yamaha) | Woofer 100 W, tweeter 60 W per speaker; total 320 W (160 W x 2) |
| Total harmonic distortion | 0.09% (1 kHz/W) |
| S/N ratio (optical) | 100 dB |
| Inputs (primary speaker) | HDMI (eARC/ARC) x 1, optical x 1, stereo mini jack x 1, LAN (Ethernet) x 1, USB Type-A (music playback/firmware update) x 1, YPAO microphone input x 1 |
| Outputs (primary speaker) | RCA subwoofer output x 1 (4.5 V/1.2 kΩ), LAN (wired speaker connection) x 1 |
| Secondary speaker | LAN (wired speaker connection) x 1 |
| Streaming | MusicCast, AirPlay 2, Google Cast, Spotify Connect, TIDAL Connect, Roon Ready, Net Radio, podcasts, media server |
| File formats | MP3, WMA, MPEG-4 AAC, WAV, FLAC, ALAC, AIFF, DSD (2.8/5.6/11.2 MHz) |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac/ax, 2.4 GHz/5 GHz, WPA2-PSK/WPA3-SAE |
| Bluetooth | Version 5.3, A2DP/AVRCP, SBC/AAC |
| YPAO | PEQ, Reflected Sound Control (R.S.C.), YPAO Volume |
| HDMI control | CEC power and volume control, eARC/ARC (2 ch PCM 192 kHz/24-bit) |
| Power supply (Australian model) | AC 230 to 240 V, 50 Hz |
| Power consumption | 40 W per speaker |
| Standby power consumption | 2.0 W (primary speaker 0.5 W with network, Bluetooth and HDMI control standby off) |
| Dimensions (W x H x D) | 189 x 333 x 234 mm per speaker |
| Weight | 5.7 kg (primary), 5.4 kg (secondary) |
| Compatible stand | SPS-70A (sold separately) |
| Finishes | Black, White |
| Unit | Sold as a pair |
