SKU PA-AMP-DA03-DSP

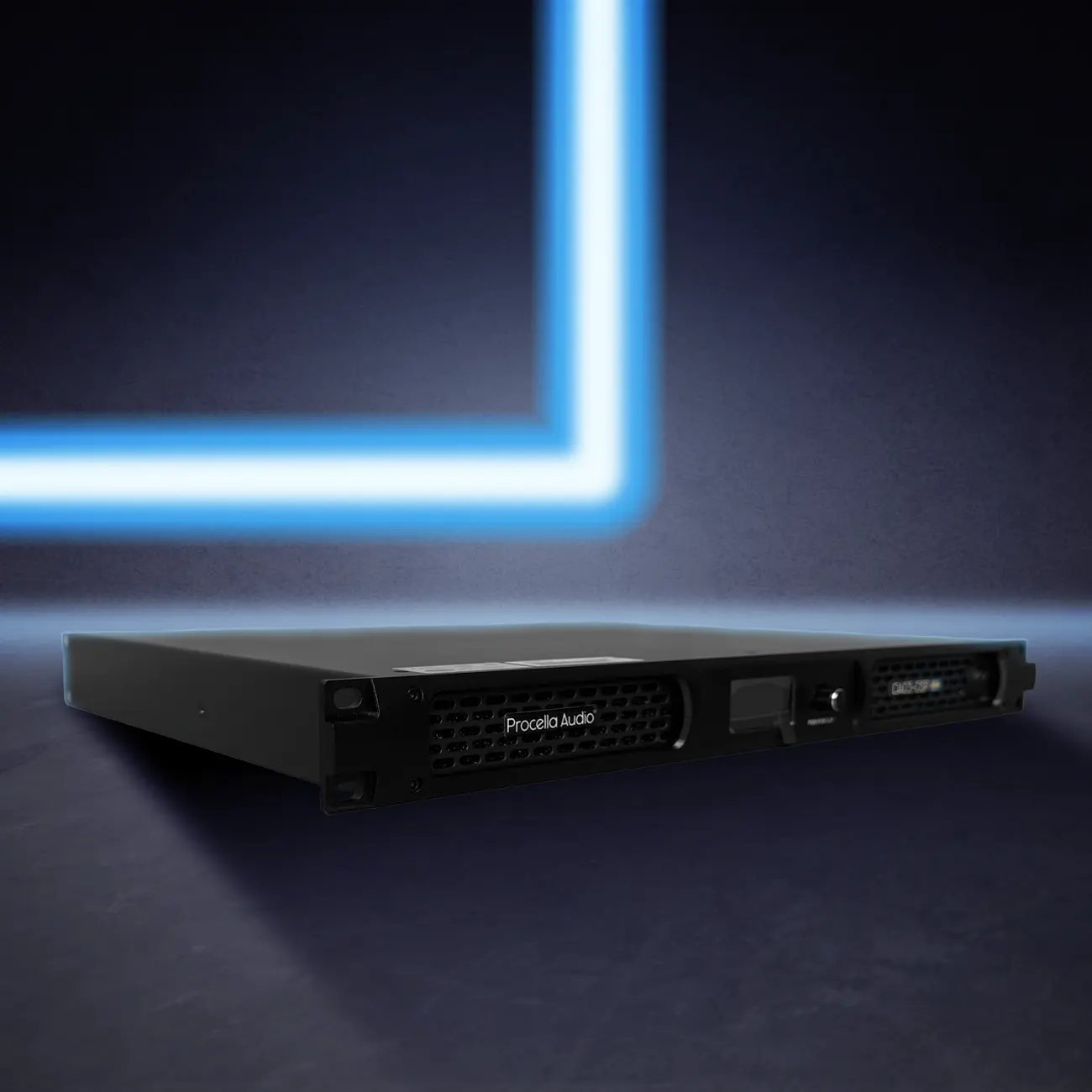

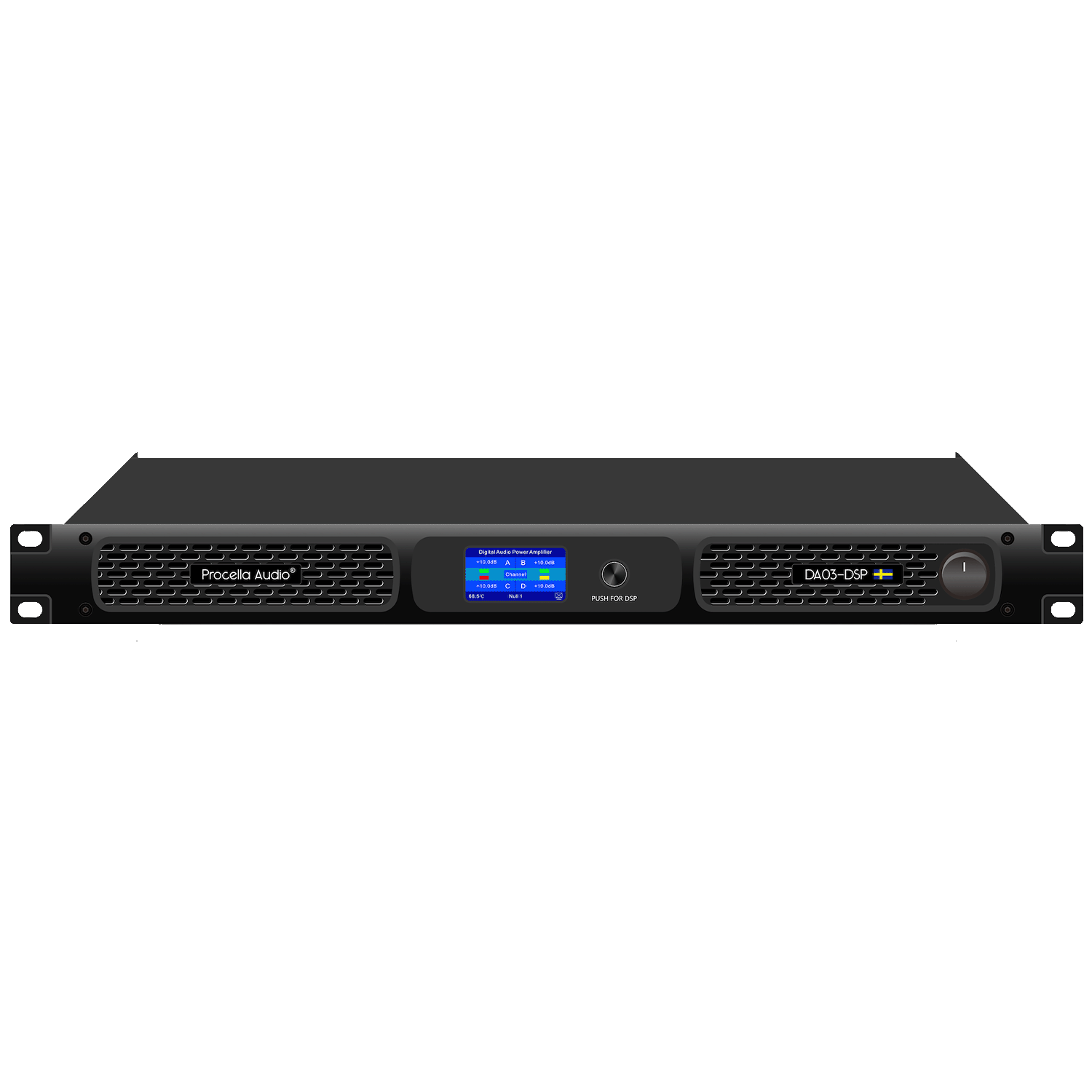

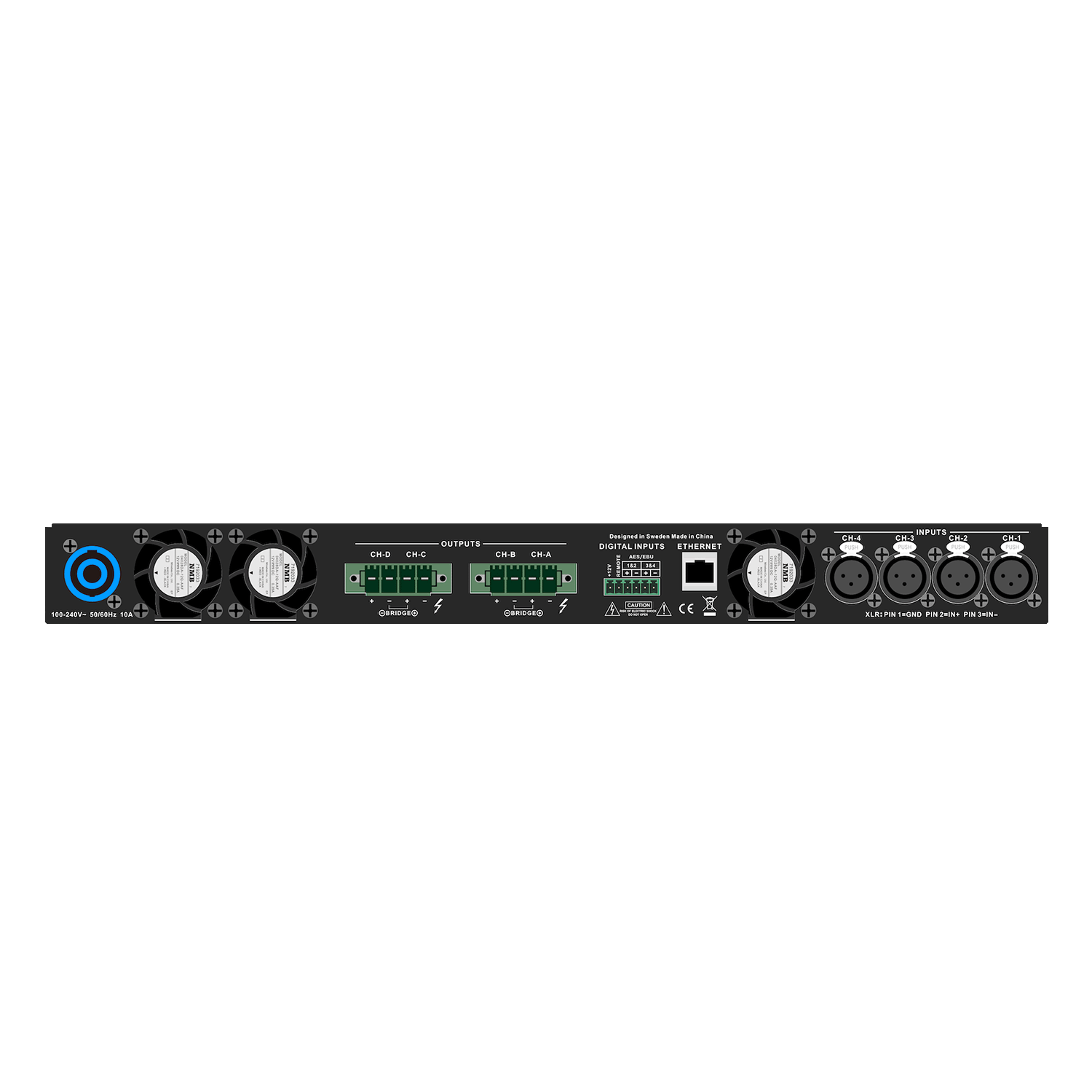

Procella Audio - DA03-DSP - Amplifier
$5,999.00
Lightning Fast Free Delivery*
Don't wait to start your audio adventure. With our lightning-fast delivery, your new high-fidelity audio equipment will be at your doorstep before you know it.
Check Out Our Thousands Of Reviews
Our services hit the high notes, but don't just take our word for it. Scroll down to read the rave reviews from our chorus of happy customers. They've heard the difference, and you can too.
The DA03-DSP is a high output power amplifier and has the horsepower to bring out every little detail of Procella’s high-output speakers and subwoofer models.
Procella’s DA03-DSP can be used as a four-channel amplifier to produce 4x 280W (8 ohms) and 4x 500W (4 ohms), but switch to bridge mode, and it will deliver 2x 1.050W (8 ohms).
In a single rack unit, this power station ensures maximum output and dynamic range, especially for Procella loudspeakers.
40 factory presets enable multiple configurations with Procella’s high output speakers and subwoofers.
| Specification | Details |
|---|---|
| Output Power @ 4Ω / 8Ω | 4 × 280W / 4 × 500W, bridged 2 × 1,050W at 8Ω |
| Max. Output Current | 25A peak |
| Signal-to-Noise Ratio | >104 dB A-weighted, 20 Hz – 20 kHz, 8 Ω |
| THD+N (Typical) | <1% (1 kHz continuous sine wave, all channels driving) |
| Frequency Response | 20 Hz – 20 kHz (+0 / -0.5 dB, 8 Ω load, 3 dB below rated power) |
| Protection Circuits | Short circuit protection, DC protection, limiter, under-voltage protection, over-temperature protection, overload protection |
| Operating Voltage / Frequency | Universal mains, 90–260V, 50–60Hz |
| DSP for All Channels | 40 selectable presets, level, parametric EQ, delay, matrix limiter |
| Carton Content | Mains power cable, 4 × adhesive rubber feet, user guide |
| Dimensions & Net Weight | 483 × 45 × 370 mm (1U) / 19” × 1.7” × 14.6”, 9.0 kg / 19.8 lbs |
| Shipping Carton & Weight | 570 × 135 × 515 mm / 22.44” × 5.31” × 20.28”, 10 kg / 22.05 lbs |
