SKU CD‐4K22HS

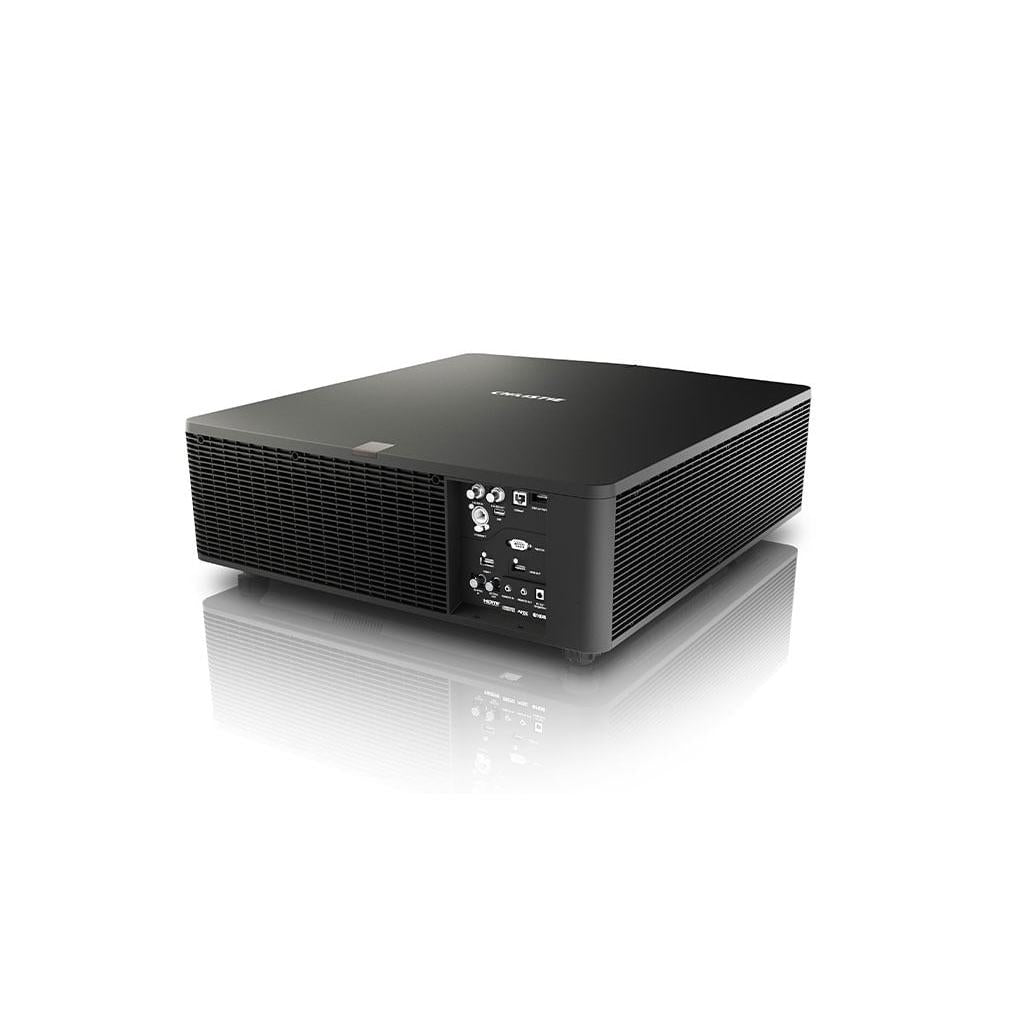

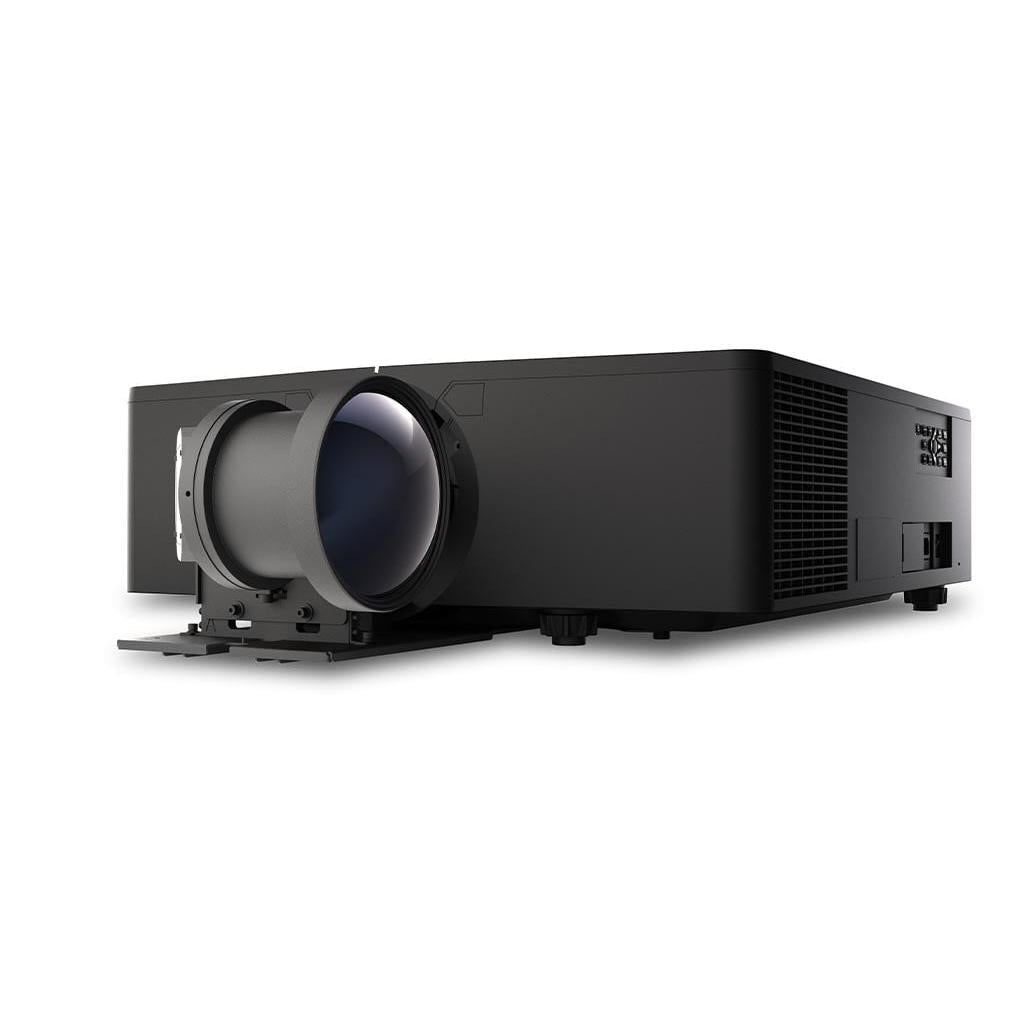

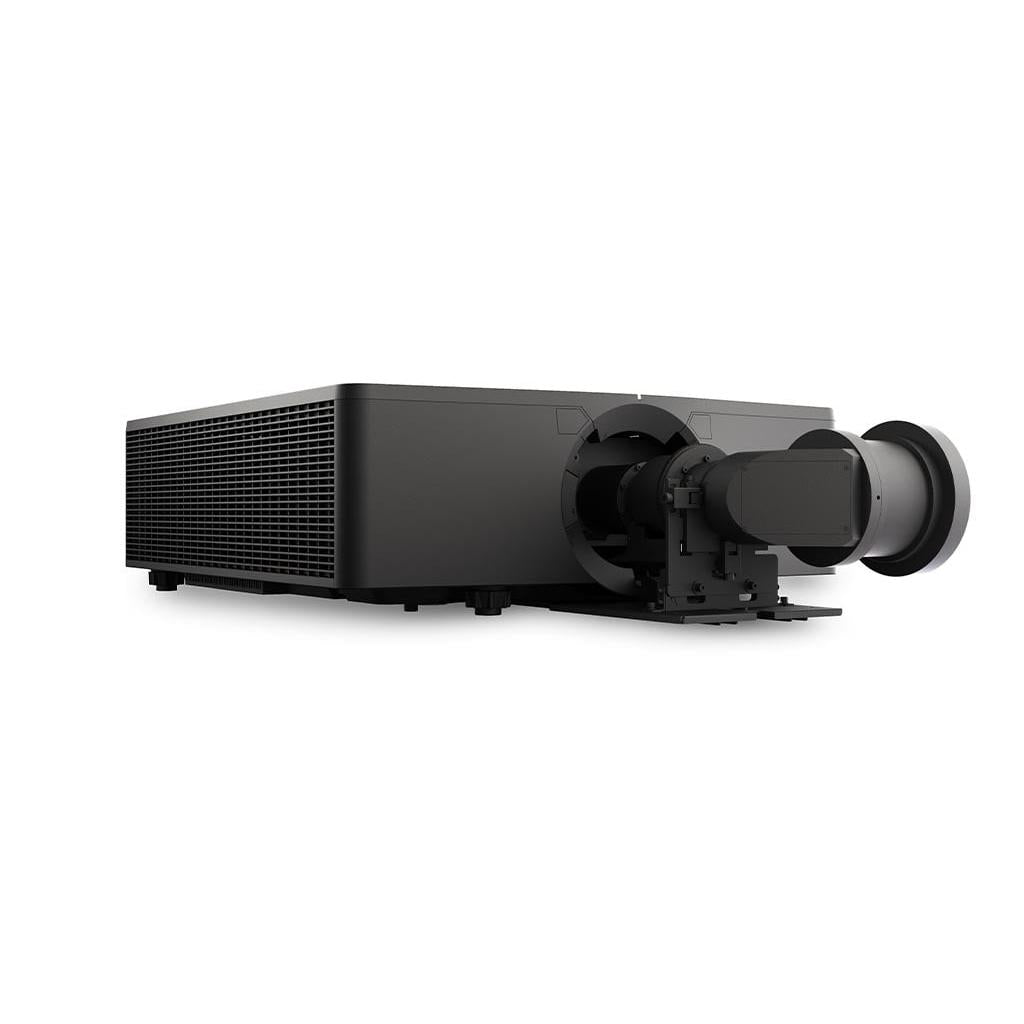

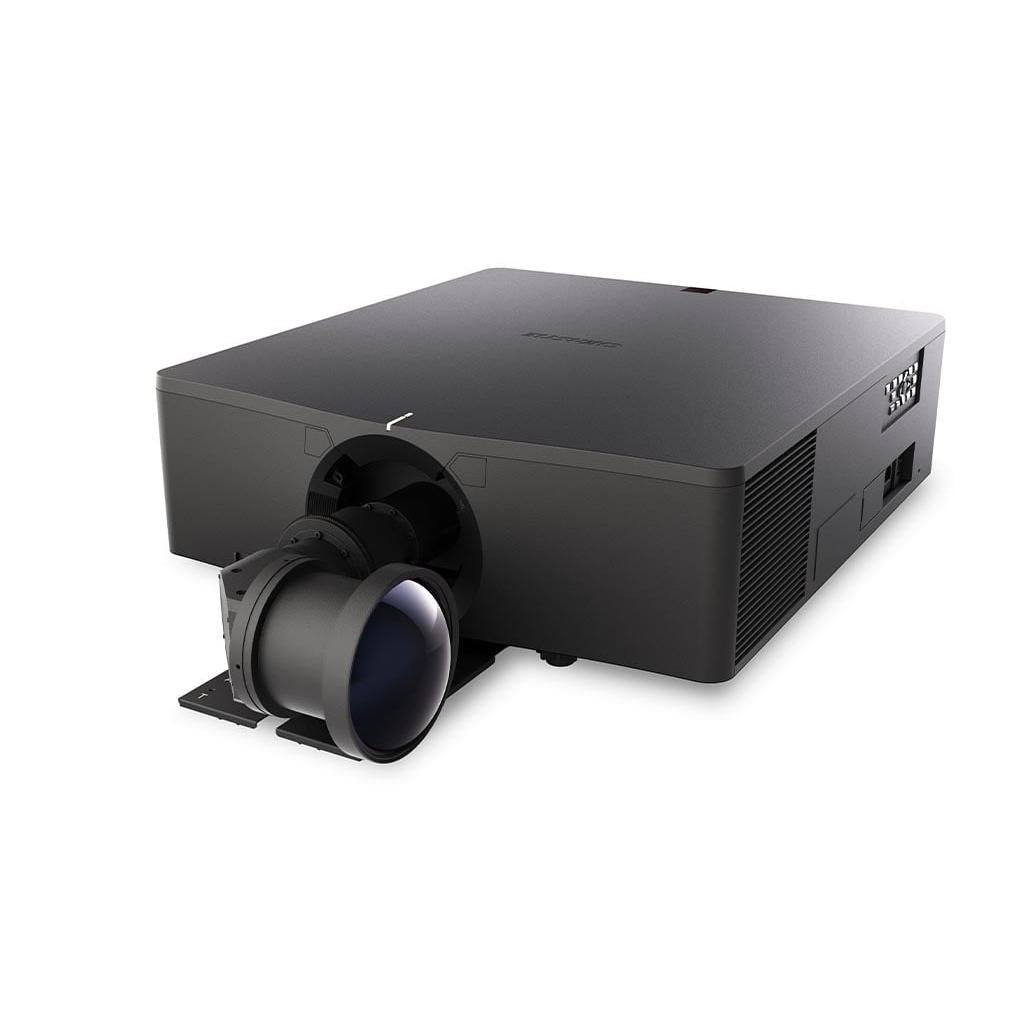

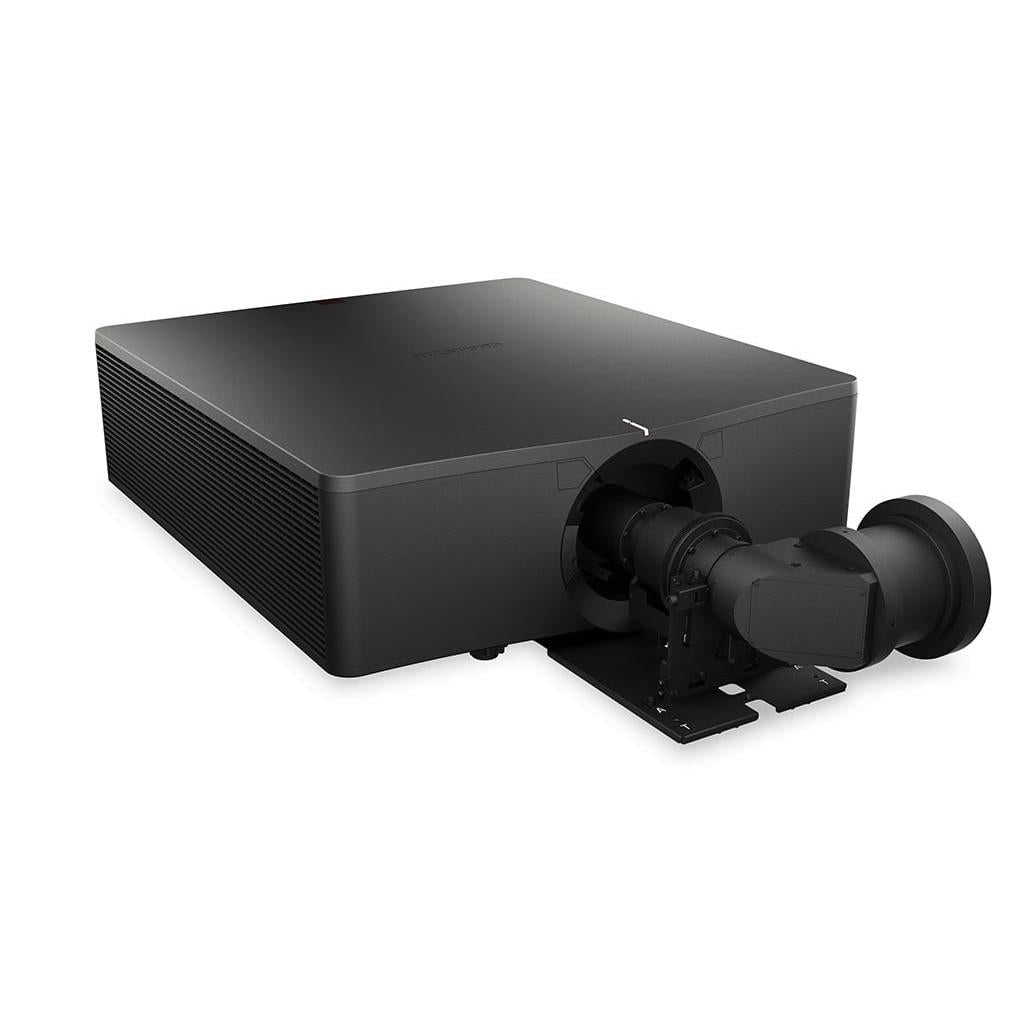

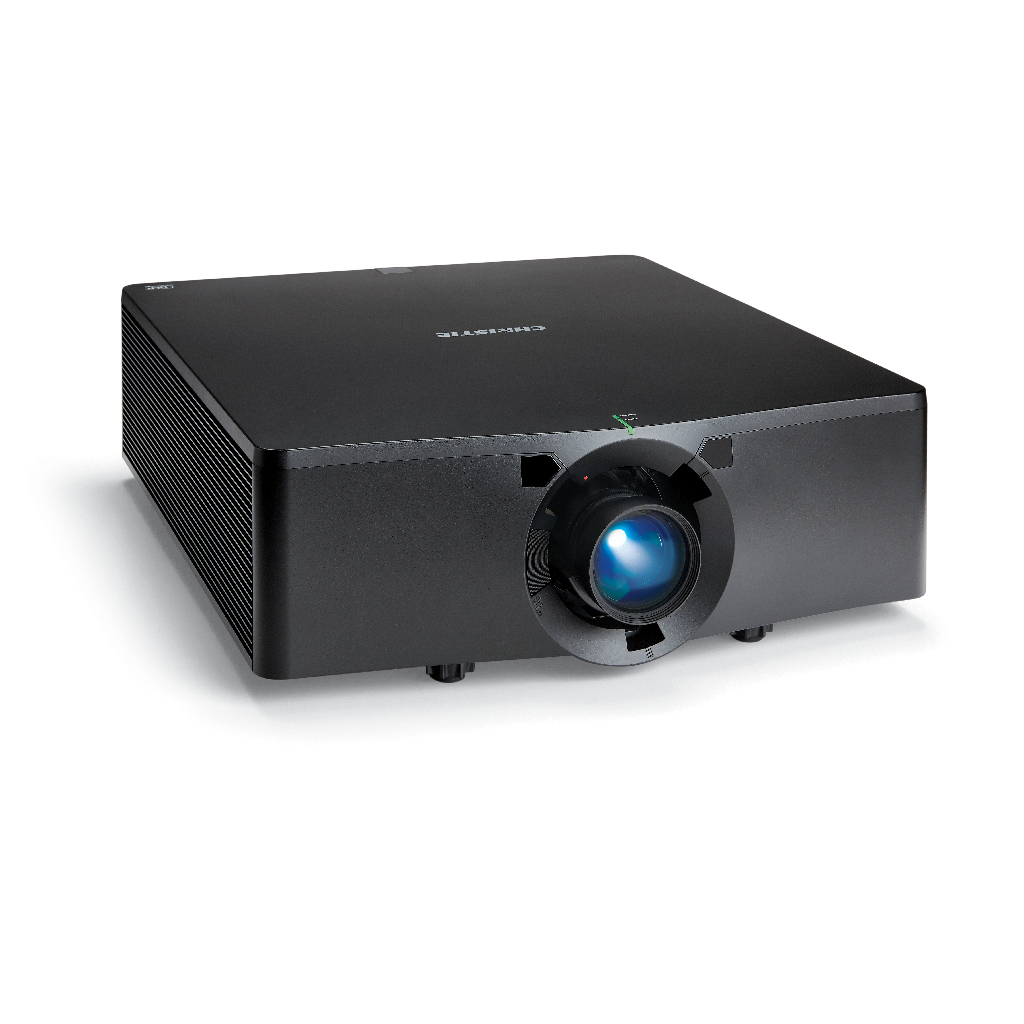

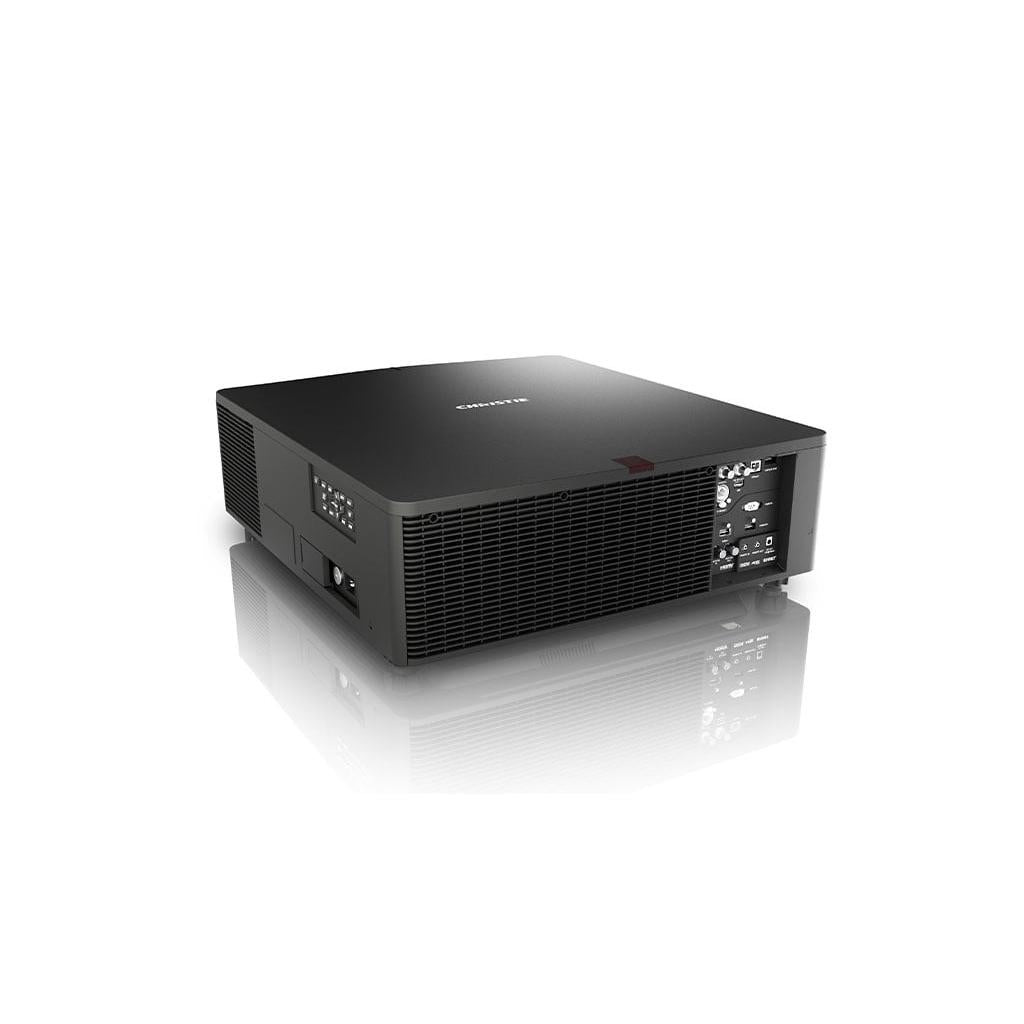

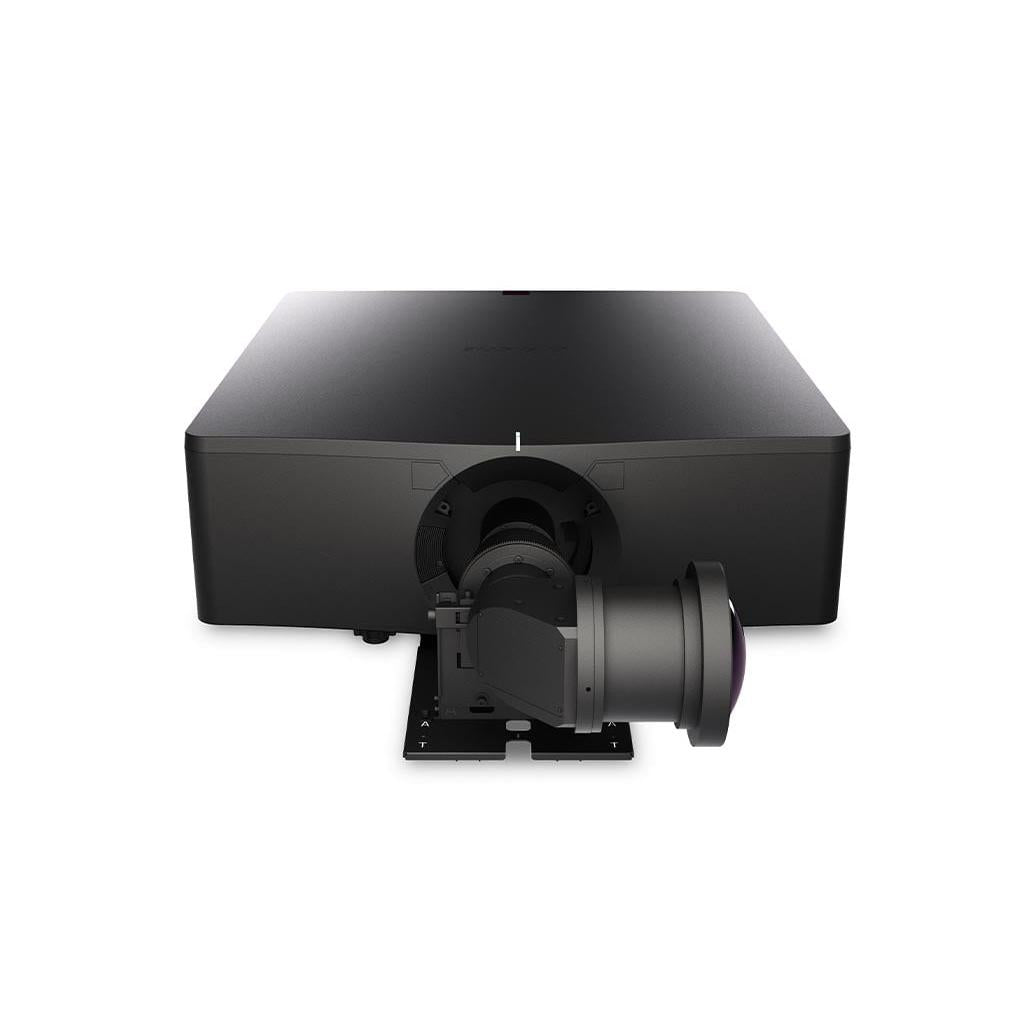

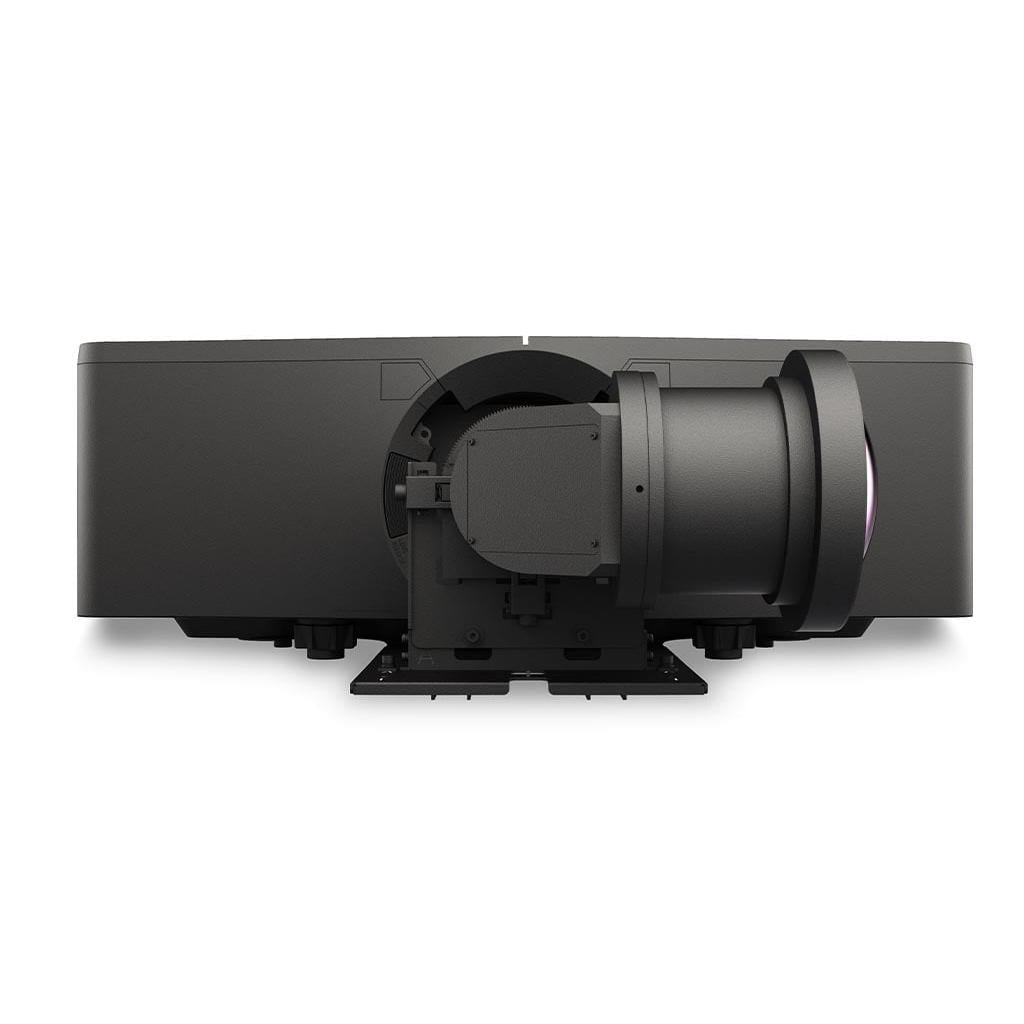

Christie Digital - 4K22-HS 22,500 lumen, 4K UHD, 1DLP - Laser Projector
$99,999.00
Lightning Fast Free Delivery*
Lightning Fast Free Delivery*
Don't wait to start your audio adventure. With our lightning-fast delivery, your new high-fidelity audio equipment will be at your doorstep before you know it.
Check Out Our Thousands Of Reviews
Check Out Our Thousands Of Reviews
Our services hit the high notes, but don't just take our word for it. Scroll down to read the rave reviews from our chorus of happy customers. They've heard the difference, and you can too.
When you’re looking to stand out from the crowd with bright, impressive visuals and you don’t want to blow your budget, the 22,500-lumen, high-performance Christie® 4K22-HS is the perfect fit.
Your audience will enjoy incredible brightness and resolution, plus enhanced color performance from the brightest 4K UHD 1DLP® projector on the market. The 4K22-HS delivers deeper blacks and more natural and realistic onscreen visuals thanks to Christie BoldColor+™ technology.
Using onboard Christie Twist™ warping and blending, you can quickly and easily set up and align irregular screens and multi-projector displays. The option to add Christie Mystique™ automated camera-based alignment software lets you quickly stage, install, align, and recalibrate multi-projection systems in minutes.
And as if that wasn’t enough, the 4K22-HS comes with a 5-year warranty and supports active and passive polarized 3D right out of the box.
Key features
- High brightness– The first 4K UHD 1DLP projector on the market with 22,500 ISO lumens/19,000 ANSI lumens
- Premium color – Christie BoldColor+ gives audiences enhanced color performance—with deeper blacks and more natural and realistic onscreen visuals.
- Warping and blending – Make setup even easier with proprietary Christie Twist built-in for quick and easy setup of multi-projector displays
- RealBlack™ technology – Produces the deepest possible black on-screen by completely turning off the laser light when displaying black scenes.
- Compatible with Christie Mystique automated camera-based alignment and recalibration software that lets you quickly install, align, calibrate, and maintain multi-projection systems
- Compatible with Christie Intelligent Camera (CIC) – Use CIC to trigger autofocus, automatically calibrate projector color, optimize color uniformity, and more
- Advanced electronics deliver high frame rates for 4K UHD at 60 Hz and 1080p at 240 Hz
- HDBaseT solution – Supports HD video streaming through RJ45
- AMX and Crestron connectivity - For enhanced collaboration and easy integration into virtually any existing boardroom
- Support for active and passive polarized 3D provides additional versatility
- Full suite of lenses – Compatible with WUXGA HS Series lenses* including 0.65:1 to 10.8:1 and a 0.38:1 UST lens
- Quiet operation – As low as 42dBA
- Eco Mode – Reduces brightness to 50%, significantly extending the lifetime of your projector, and results in quieter operation
-
Full-range voltage support (100 to 240 VAC)– The system dims to 80% brightness when it detects 100-120 VAC power
| Specification | Details |
|---|
| ISO Lumens | 22,500 |
| ANSI Lumens | 19,000 |
| Colour Wheel | 3 Segment (RGB) – 4X speed |
| Contrast Ratio | 4,000,000:1 with Christie RealBlack™ * |
| Dynamic Contrast | 6,000:1 |
| Display Type | 1 x 0.95" DMD |
| Resolution | 4K UHD (3840 x 2160) |
| Illumination Type | Laser phosphor with Christie BoldColor+™ (blue and red laser) |
| Illumination Performance (hrs) | 20,000 hours to 50% brightness |
| Scan Rates | Horizontal: 15-91kHz, Vertical: 24-240Hz |
| Pixel Clock Rate | 600MHz |

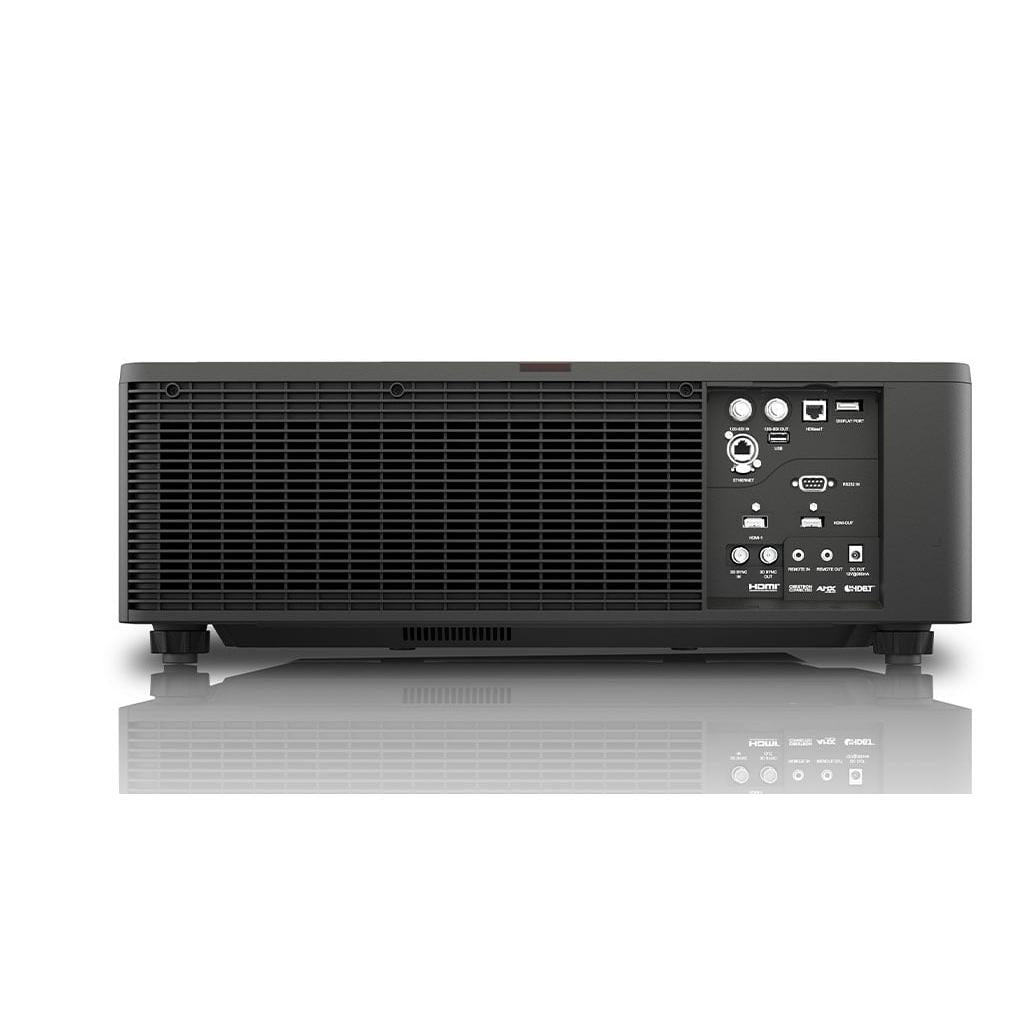

| Signal Inputs | HDMI 2.0b x2, 12G-SDI (BNC) x1, DisplayPort x1, USB (Type A) x1, HDBaseT (RJ45) x1 |
| 3D Inputs | HDMI 1.4, HDBaseT (up to 120Hz), 3D sync in/out (BNC) – Active shuttered and passive polarised stereoscopic 3D |
| Signal Outputs | 12G-SDI x1 (BNC), HDMI out x1 |
| Control and Networking | HDBaseT (RJ45), Ethernet (RJ45), RS232, Remote in (3.5mm), Loop out, DC Jack 12VDC, 200mA |
| Warping and Blending (User Controlled) | Christie Twist™ (standard); Twist Premium and Twist Pro (optional) |
| Warping and Blending (Automated) | Christie Mystique™ (optional camera-based alignment) |
| Lens Mount | Boresight adjustable, Motorised lens offset, zoom, and focus (memory available) |
| Lens Options | Multiple options including 0.38:1 UST, 0.65-0.75:1, 1.2-1.5:1, 1.5-2.0:1, 2.0-4.0:1, 4.0-7.0:1, 7.2-10.8:1, and 1.02-1.36:1 (no memory) |
| Lens Offsets | Varies by lens (e.g., ±140% Vertical, ±50% Horizontal for full ILS lenses) |
| Operating Voltage | 100-240 VAC @ 50/60Hz (100-120 VAC at 80% brightness) |
| Power Consumption | Normal: 1553W, Eco1: 1281W, Eco2: 806W |
| Operating Current | 8.5A (220-240 VAC), 13.5A (100-120 VAC) |
| Dissipation @220V | Normal: 5,295 BTU/hr, Eco1: 4,368 BTU/hr, Eco2: 2,748 BTU/hr |
| Audible Noise | Standard: 45dBA, Eco2: 42dBA |
| Dimensions (L x W x H) | 26.65 x 23.46 x 7.99" (677 x 596 x 203mm) without feet |
| Weight | 95.9lbs (43.5kg) |
| Shipping Dimensions (L x W x H) | 37.99 x 31.30 x 14.37" (965 x 795 x 365mm) |
| Shipping Weight | 124.3lbs (56.4kg) |
| Operating Environment | Temp: 0-40°C (32-104°F), Humidity: 10-85% non-condensing |
| Regulatory Compliance | RoHS, REACH, WEEE, UL/CSA/IEC 60950-1, FCC Class A, cTUVus, CE, FDA, CCC, KC, PSE, EAC, BIS, VCCI, RCM, Mexico, BSMI |
| Limited Warranty | Five years parts and labour (projector), Five years or 20,000 hours parts and labour (illumination system)** |
