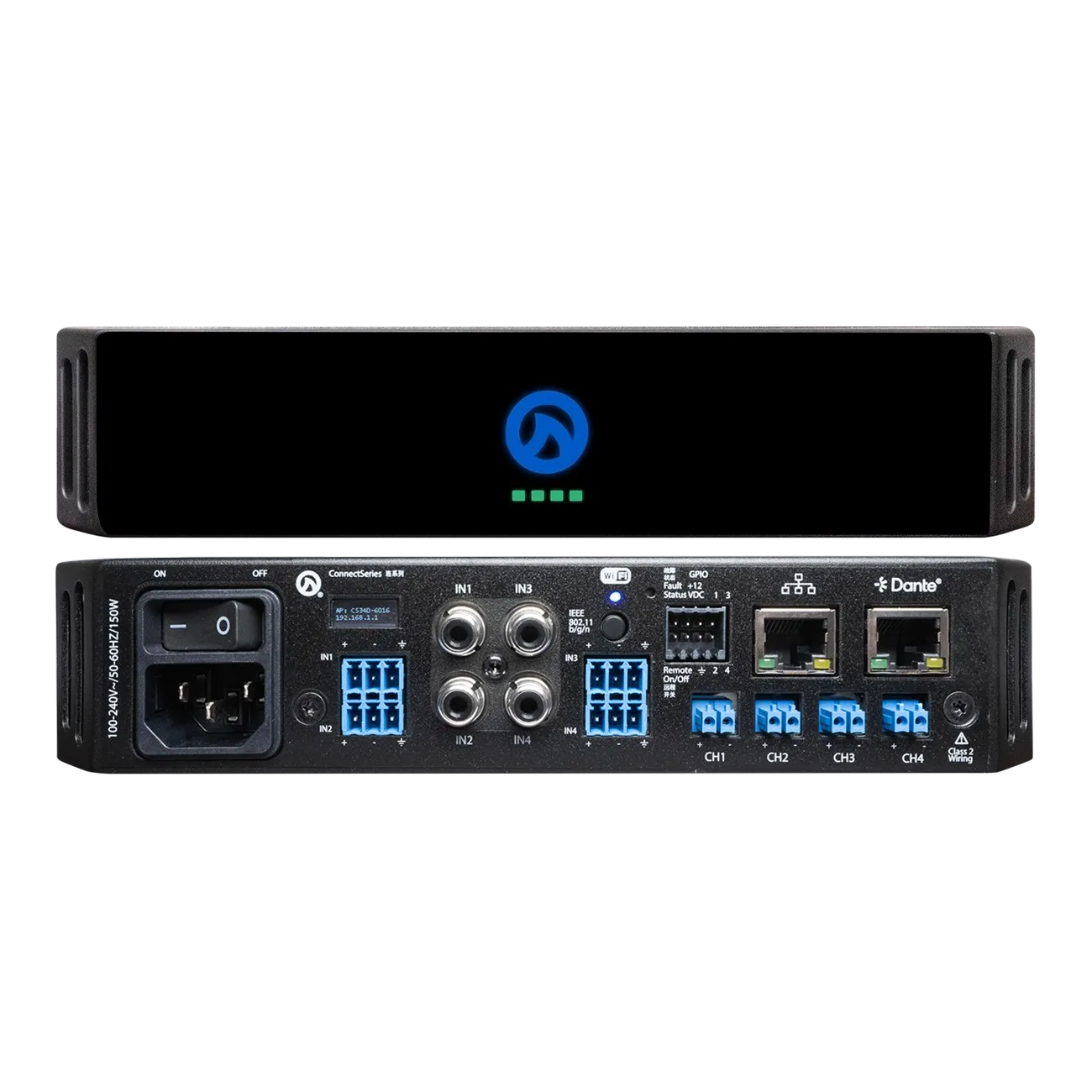

LEA - CONNECT 34D - Amplifier
by Krix
$2,295.00
Lightning Fast Free Delivery*
Don't wait to start your audio adventure. With our lightning-fast delivery, your new high-fidelity audio equipment will be at your doorstep before you know it.
Check Out Our Thousands Of Reviews
Our services hit the high notes, but don't just take our word for it. Scroll down to read the rave reviews from our chorus of happy customers. They've heard the difference, and you can too.
The Connect Series 34D delivers one of the most feature-rich amplifier experiences available in the industry—in a smaller form factor. Featuring 96kHz DSP, WebUI, SharkWare, LEA Cloud, third-party APIs, speaker tunings, and more—this amplifier is the right choice for your next install. The Connect Series Half-Rack is built with fully routable analog inputs, four amplifier channels with Lo-Z, 70V, or 100V selectable by channel and D-units include Dante and AES67 connectivity. All models boast three different ways of network connection: using the built-in Wi-Fi Access Point, connecting to an existing Wi-Fi network, or using a Local Area Network Ethernet connection.
| Category | Specification |
|---|---|
| AUDIO | |
| Inputs | - 4 Balanced Analog Inputs with user-selectable 26dB, 34dB, and Mic level input sensitivity - 4 Unbalanced RCA Inputs with user-selectable 26dB and 34dB input sensitivity - Note: Unbalanced and RCA share the same analog input channel - 4×4 Dante @ 48kHz (Multicast/Unicast) - AES67: Configurable via Dante Controller |
| THD+N | 0.1% (20Hz to 20kHz) |
| Frequency Response | 20Hz to 20kHz, ±0.5 dB @ 4Ω, 8Ω, 70V, 100V; -2.5dB @ 20kHz at 2Ω |
| Signal to Noise Level | 102dB (20Hz to 20kHz referenced to 8Ω) |
| Crosstalk | 70dB (20Hz to 20kHz) |
| Amplifier Output Classification | Class D with Proprietary Smart Power Bridge Technology (bridged output without sacrificing amplifier channel) |
| DSP | |
| DSP Architecture | Analog Devices Sigma 96kHz DSP Processor with 32-bit Core and Sample Rate Converters |
| Input Matrix | Routable matrix – any input to any output with primary and secondary input priority |
| Crossovers | Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth) |
| Parametric EQ | 8 Band Parametric EQ per channel |
| Output Delay | 100ms per channel |
| Output Protection | DC, VHF, AC Mains Protection, Overtemp, Current Limiter, fan fault detection |
| User Adjustable Limiting | Peak Voltage and RMS Voltage |
| Load Monitoring | Real-time Load Monitoring and Pilot Tone Detection (Internal/External sources) |
| CONTROL, MONITORING, NETWORKING | |
| User Interface | Web Browser UI, 3rd Party API, Cloud Control, or SharkWare |
| External I/O | In: Toggles Remote On/Off Out: Indicates Amplifier Health 4 General Purpose Input/Output pins (Triggering and output status – Coming Soon) |
| OPERATION | |
| AC Mains | 100VAC – 240VAC ±15%, 50Hz or 60Hz |
| Power Supply | Universal Switch Mode Power Supply |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L × W × H) | Product: 11.82” x 8.58” x 1.71″ (300.11mm x 218mm x 43.5mm) Shipping: 18” x 11” x 2.75” (457.2mm x 300mm x 69.85mm) |
| Weight | Product: 7 lbs / 4.1 kg Shipping: Coming Soon |
| Cooling | Front to Rear Variable Fan Speed Cooling Noise Levels: 50dB (idle), 57dB (50%), 63dB (full speed) @ 1m |
